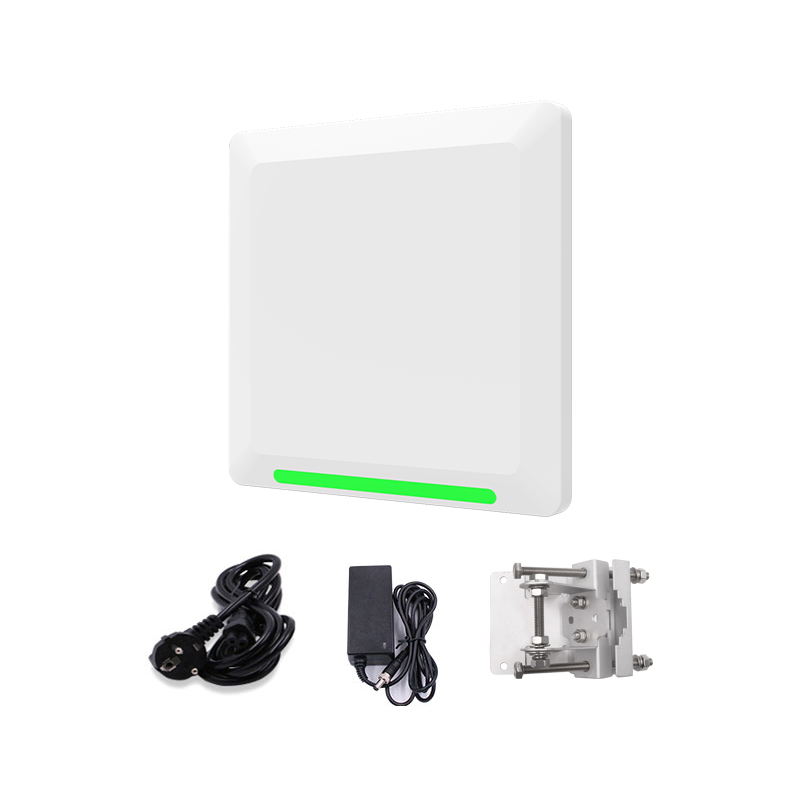

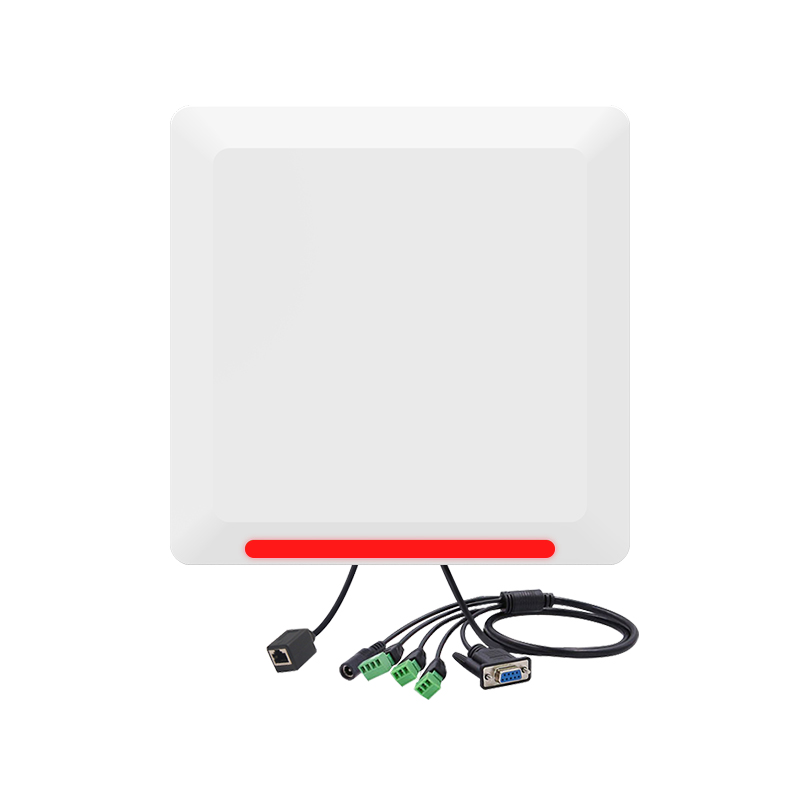

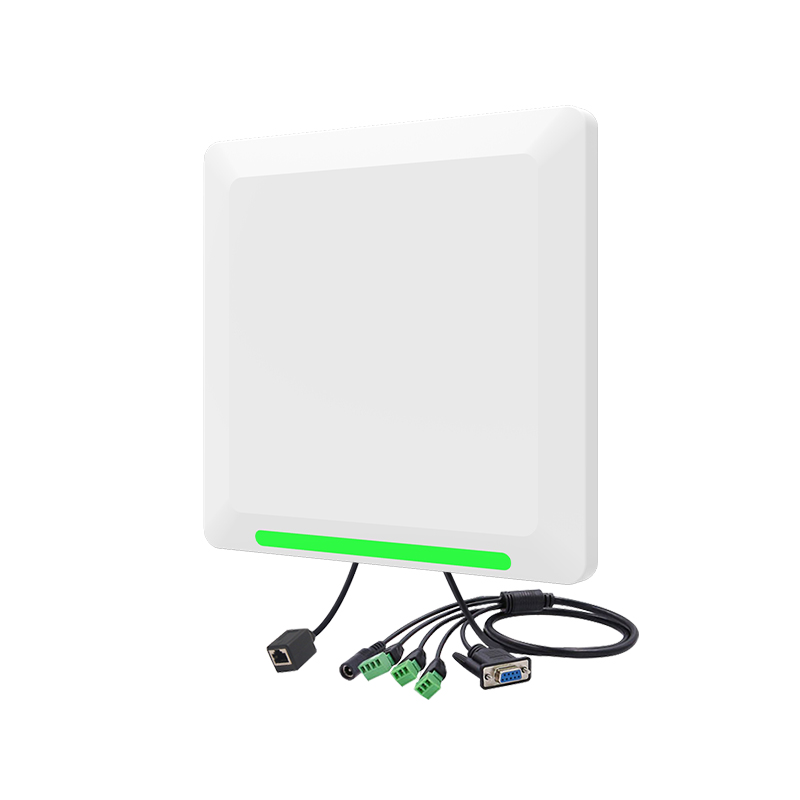

CF6D2-MQTT PRIME UHF integrated reader
-Support password/mask mode, high security
-Relays can supply power and trigger external devices to work
-Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
-Applications: vehicle management, asset anti-theft, weighing scales, animal management, personnel management, etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
902~928MHz（US） 865~868MHz（EU） |
Standard interface |
RS232, WG, relay, power |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Optional interface |
TCP/IP, POE, WIFI |
|
|
RF output power |
0dbm-26dbm(Adjustable) |
Customizable interface |
USB, TTL, RS485 |
|
|
Built-in antenna |
9.2dBi |
Power supply |
12V 2A |
|
|
Polarization mode |
Circular polarization |
Card reading prompt tone |
Buzzer |
|
|
Reading distance |
0-10 meters |
Indicator light |
Strip light, red & green |
|
|
Special functions |
Support password/mask function |
Development Environment |
||
|
Working mode |
Active mode Trigger mode Answer mode |
SDK |
Demo software, API, examples, user manuals |
|
|
RSSI |
support |
Development language |
C#, Delphi, Java, Python, VB and other languages |
|
|
Physical parameters |
Firmware version |
Support online upgrade |
||
|
Material |
Die-cast aluminum |
WIFI（optional） |
||
|
Color |
White / Black (customized) |
Frequency range |
2.4G-2.5G(2400M~2483.5M) |
|
|
Dimensions |
280*280*75mm |
Transmit power |
802.11b:+20dBm 802.11g:+17dBm 802.11n:+14dBm |
|
|
Net Weight |
2kg |
Receiver sensitivity |
802.11b:-91dBm(11Mbps) 802.11g:-75dBm(54Mbps) 802.11n:-72dBm(MCS7) |
|
|
Working environment |
|
Security Mechanism |
WPA/WPA2 |
|
|
IP protection level |
IP65 |
|
Network Protocol |
IPv4、TCP/UDP |
|
Operating temperature |
-10~+55℃ |
|
User Configuration |
Web |
|
Storage temperature |
-20~+75℃ |
|
|
|

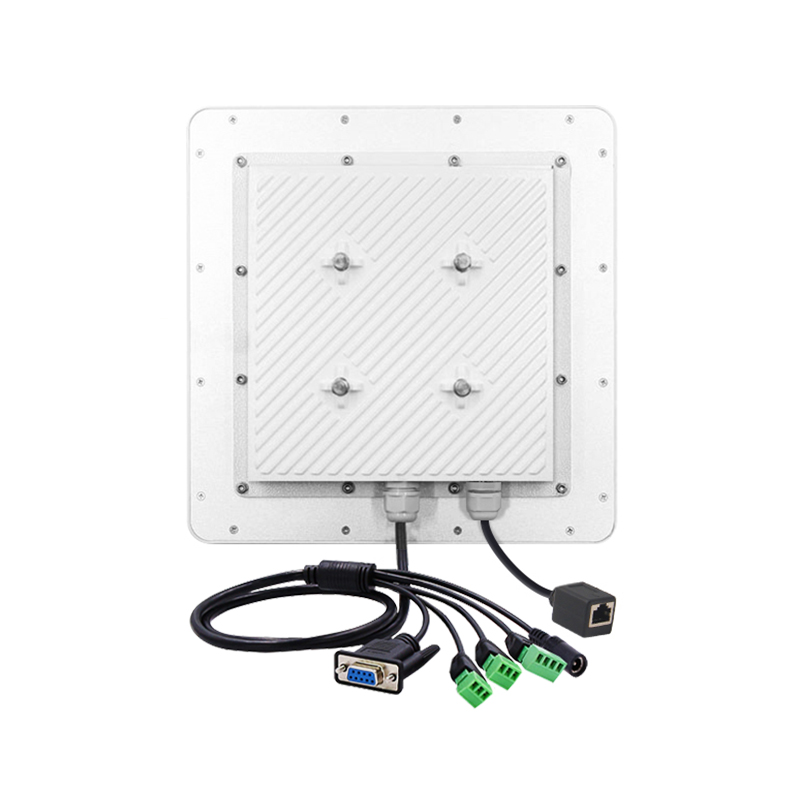

Details display
|

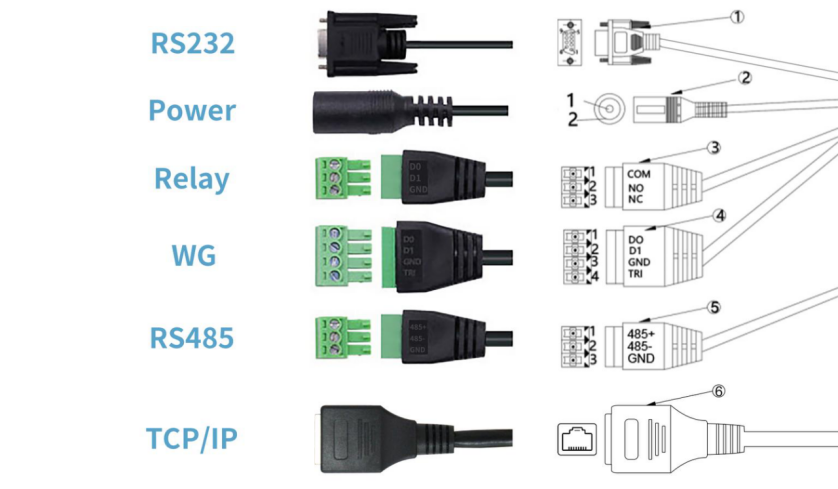

Interface wiring definition |
|||||||||||||||
|
Power port |
RS232 |
Wiegand |
Relay |
RS485 |
RJ45 |
||||||||||
|
12V |
GND |
TX |
RX |
GND |
D0 |
D1 |
GND |
TGIN |
NO |
NC |
COM |
485+ |
485- |
GND |
/ |
|
Red |
Black |
Light green |
Yellow |
Pink |
Green |
White |
Brown |
Blue |
Purple |
Orange |
Grey |
Red white |
Blue White |
Black White |
/ |
