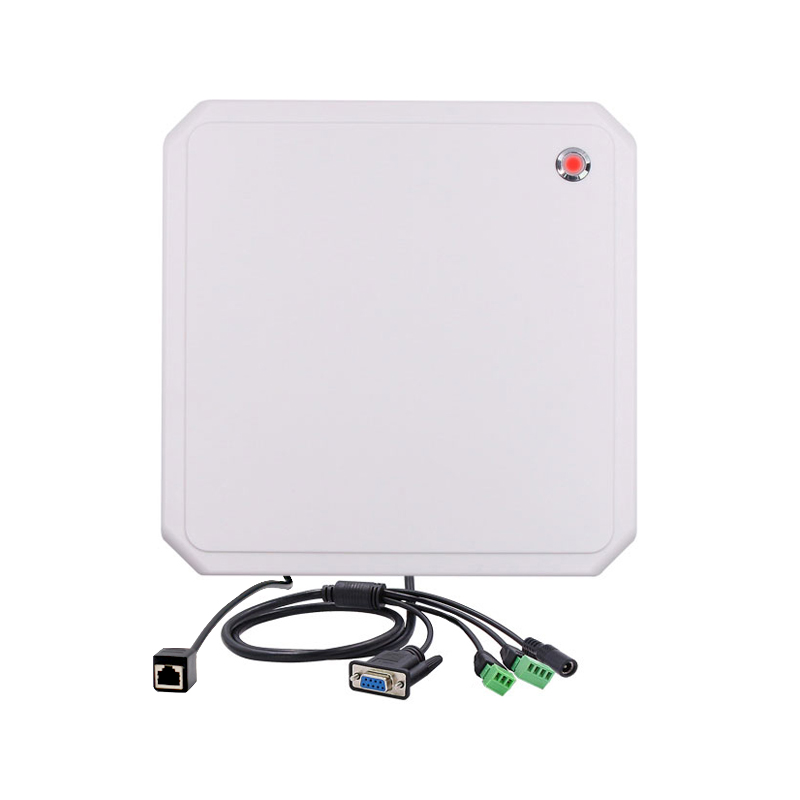

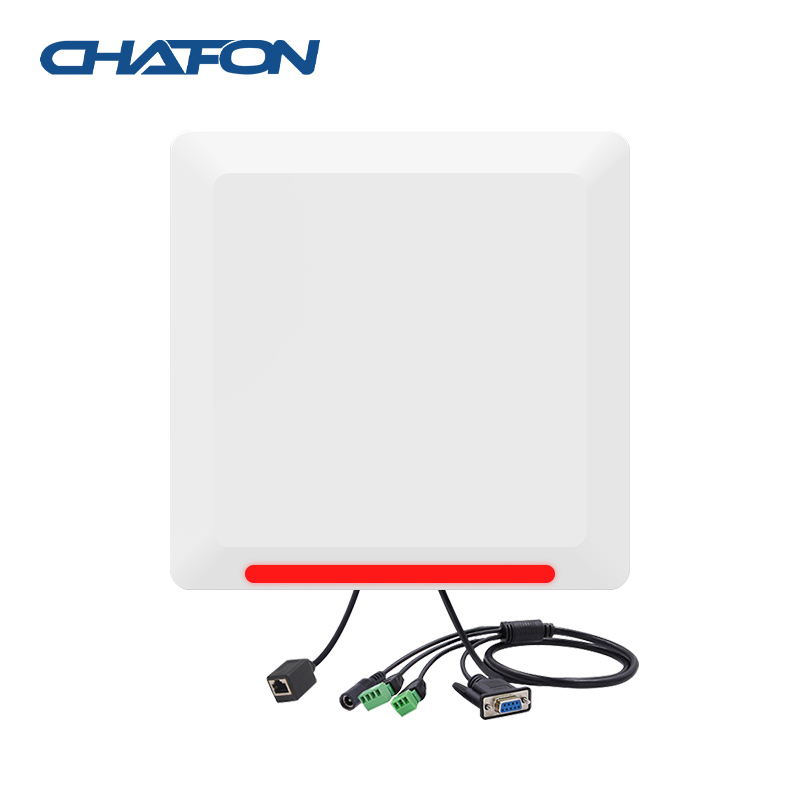

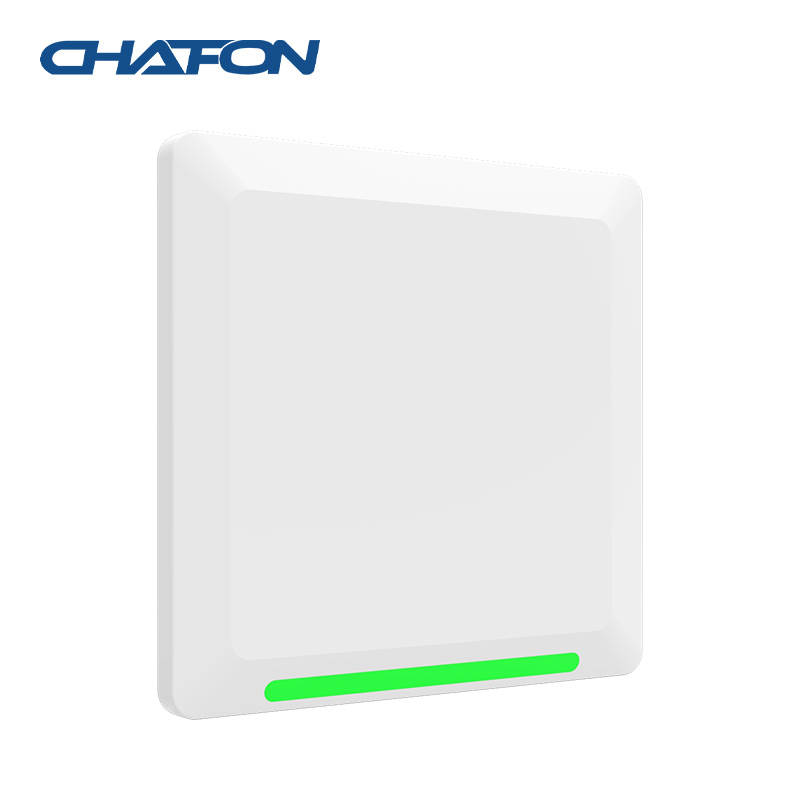

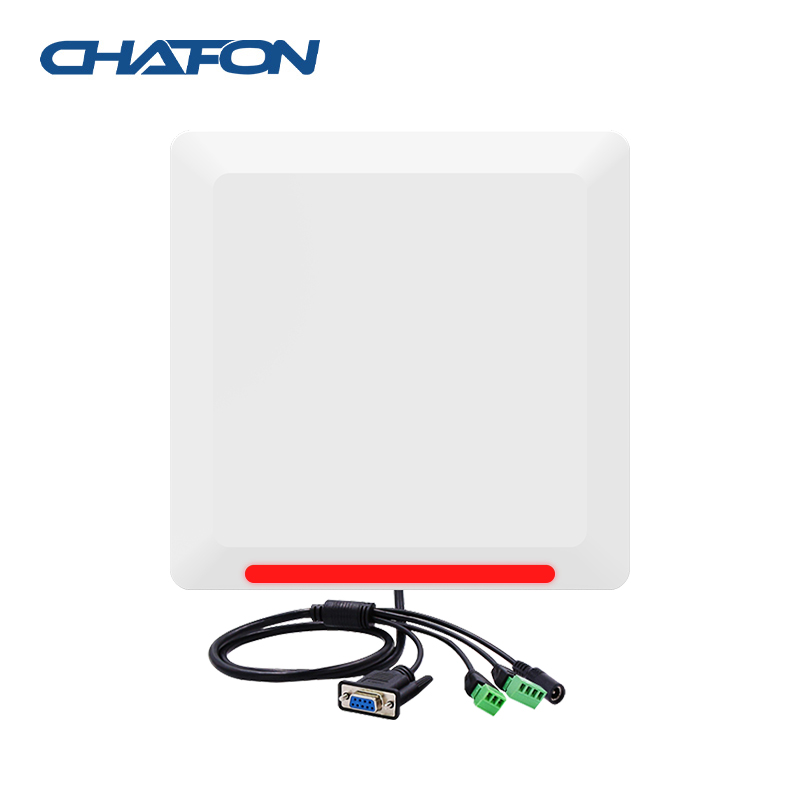

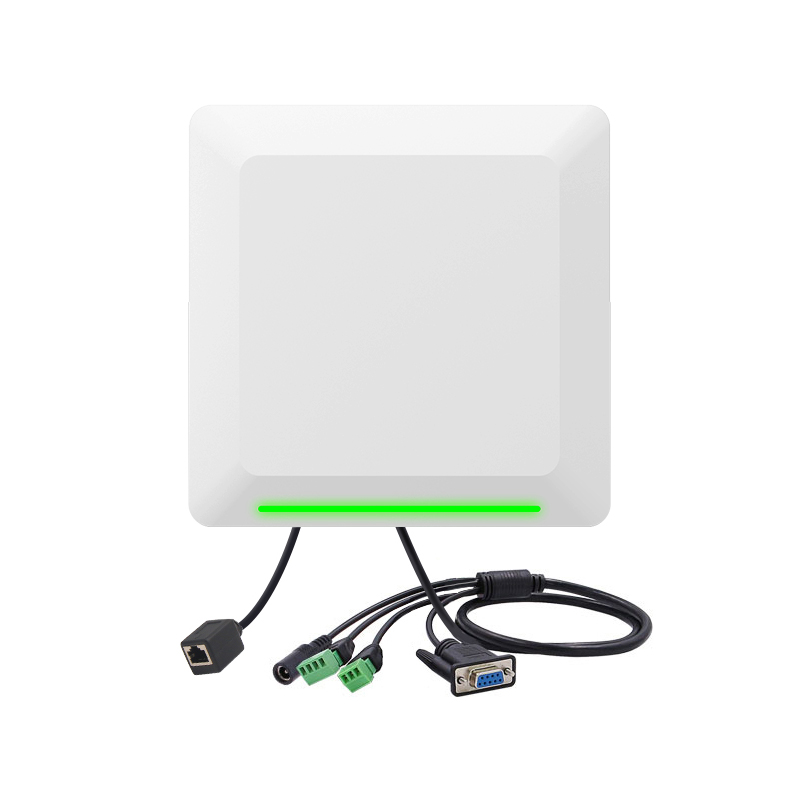

CF6D1 UHF 12dbi Integrated Reader

built-in 12dbi antenna with max 15m distance
usually used for single tag reading
LED long light strip & Buzzer
Standard interface RS232/WG26/RELAY, also can add TCP/IP/POE/WIFI
IP65 waterproof suitable for outdoors use

PRIME CF6D1

UHF 12dbi integrated READER

Widely used in highway charging management, hotel items anti -theft management, industrial production automation management, urban vehicle management, floor launch weight management, container and container management, etc.

1、Product Features

CF6D1 PRIME UHF 12dbi Integrated reader
Automatic scanning port/network	No need to install the driver or configuration, it can be scanned and connected automatically
password mode	The device configures the EPC access password, which only allows reading the same password tag, high security
mask mode	Device Configured the epc Mask, which only all allows reading the same mask tag, account matching
relay	Relay can be used for power supply and communication to trigger external equipment work
POE interface	A network cable can complete power -on and communication
wifi communication	The wireless network makes the communication connection more convenient and efficient
RSSI	Reading TAG upload data will bring RSSI value, which can be used to refer to the calculation judgment distance
Data cache	The network drop data will be automatically cached after connecting again to avoid data loss
Remote monitoring	You only need to configure an IP address to monitor the receiving remote device to send data
Multiple languages development	Support C#, Delphi, Java, Python, VB and other language development
Customized multiple protocols	ASCII, Hex, Modbus and other protocols can be selected and customized
Firmware remote online upgrade	Special functional requirements can be completed by remote upgrade

2.Product parameters

CF6D1 PRIME UHF 12dbi Integrated reader
Model definition	CF6D1: RS232, WG, relay, power port CF6D2: RS232, WG, relay, power port, TCP/IP CF6D3: RS232, WG, relay, power port, POE CF6D4: RS232, WG, relay, power port, WIFI CF6D5: RS232, WG, relay, power port, TCP/IP, WIFI
Frequency	902~928MHz（US）/865~868MHz(EU)
Protocol	ISO18000-6C(EPC GEN2)
Built -in antenna	12dbi linear antenna
Operating mode	Active mode/Trigger mod/Answer mode（for optional）
Special function	Support Mask/Password mode
RF power	Max 26dbm(adjustable）
Reading distance	0~15M（depends on tag and work environment）
Communication Interface	Standard interface：RS232/WG26/Relay Optional interface：TCP/IP/POE/WIFI Customized interface：USB/TTL/RS485
Operating Voltage	9-24V（12V 2A power adapter）
Reader material	ABS shell，IP65 protection level

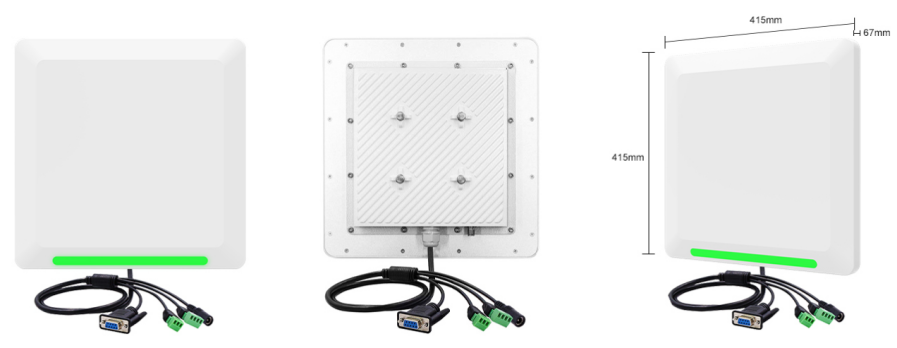

Reader Specifications	Size：41.541.56.7cm / Weight：3.1kg
Single packaging specification	Size：630500130mm/ Weight：5kg
Standard box packaging specification	10pcs/carton；Size：635360cm / Weight：25.5KG
Operating temperature	-10~+55℃
Storage temperature	-20~+75℃

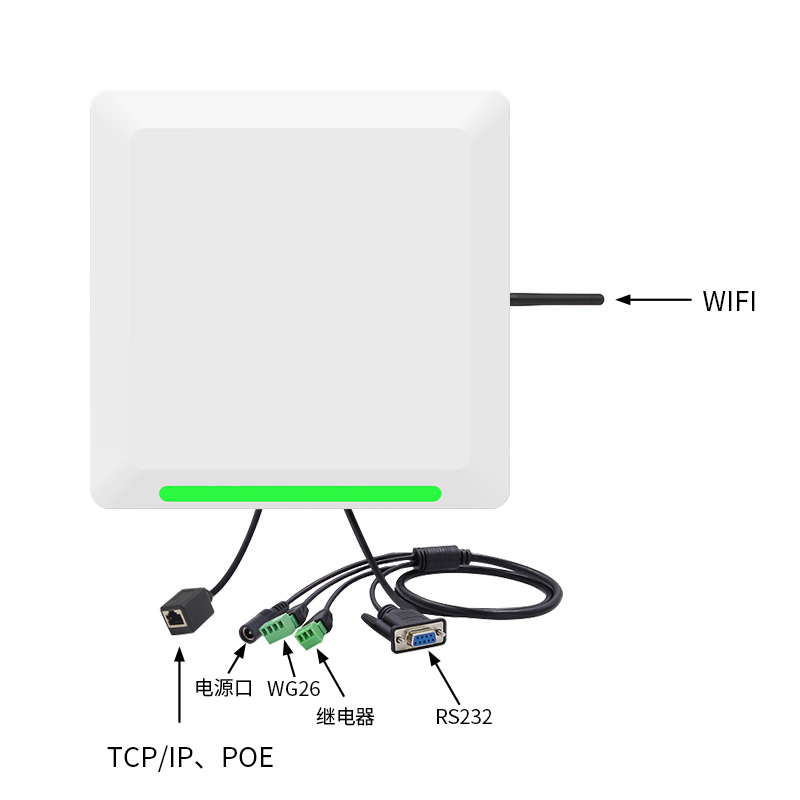

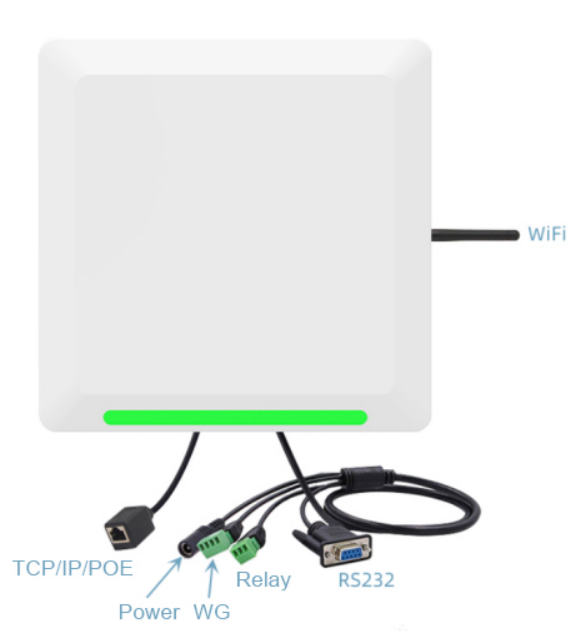

3、Interface definition

Standard interface: RS232, Wiegand, relay

Optional interfaces: TCP/IP, POE, WIFI

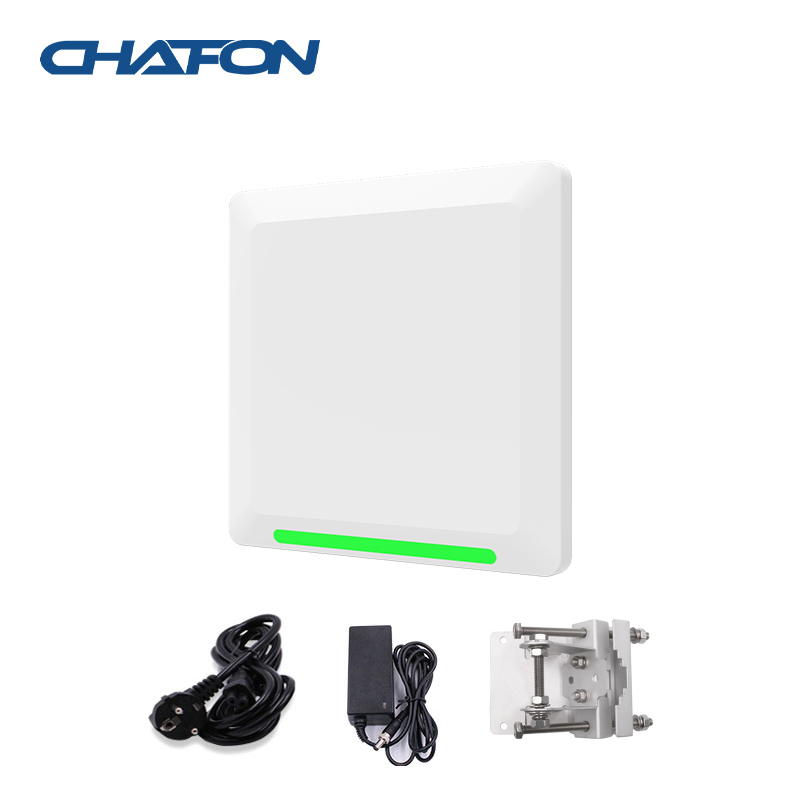

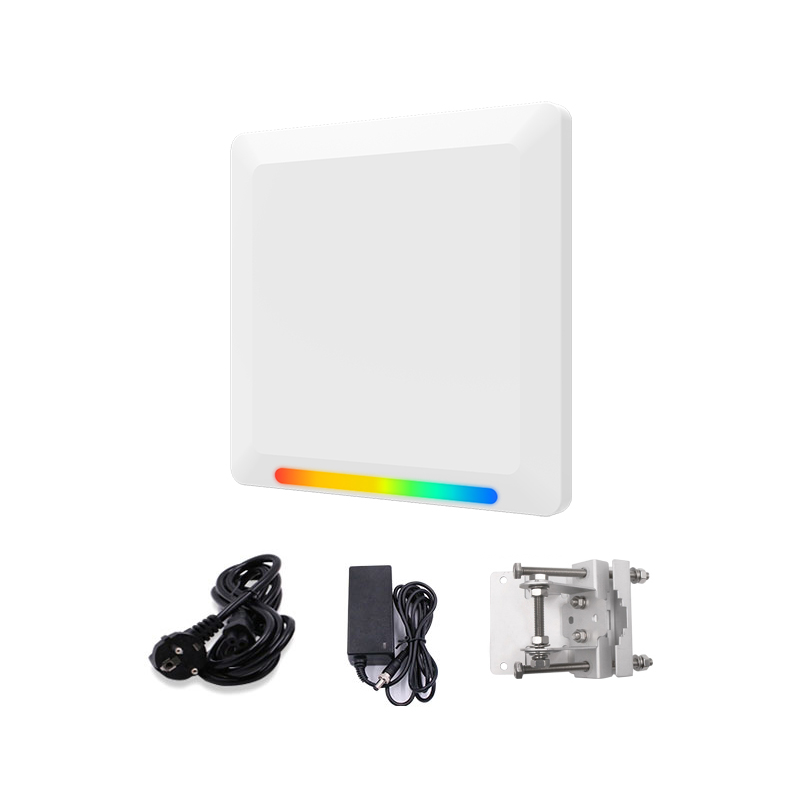

5、Product acessories：Braket*1 set Plug+power adapter*1 set

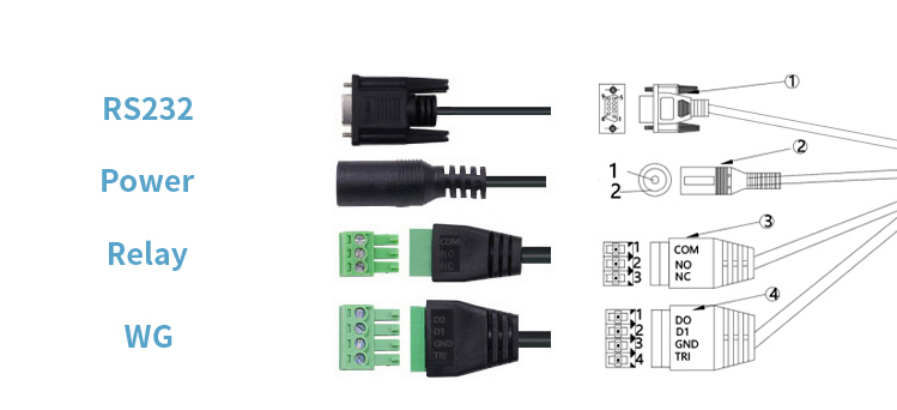

DC power supply		Serial port			WG26				Relay
12V	GND	TX	RX	GND	D0	D1	GND	TGIN	NO	NC	COM
Red	Black	light green	yellow	pink	green	White	brown	blue	Purple	orange color	grey

TCP/IP

Stable network communication, wireless length limit

POE

WIFI

Wireless communication, no wiring required

5、Working status:The red light turns on when power is on, the green light turns on and flashes when reading the card, accompanied by a buzzer prompt.
