RFID Retail System

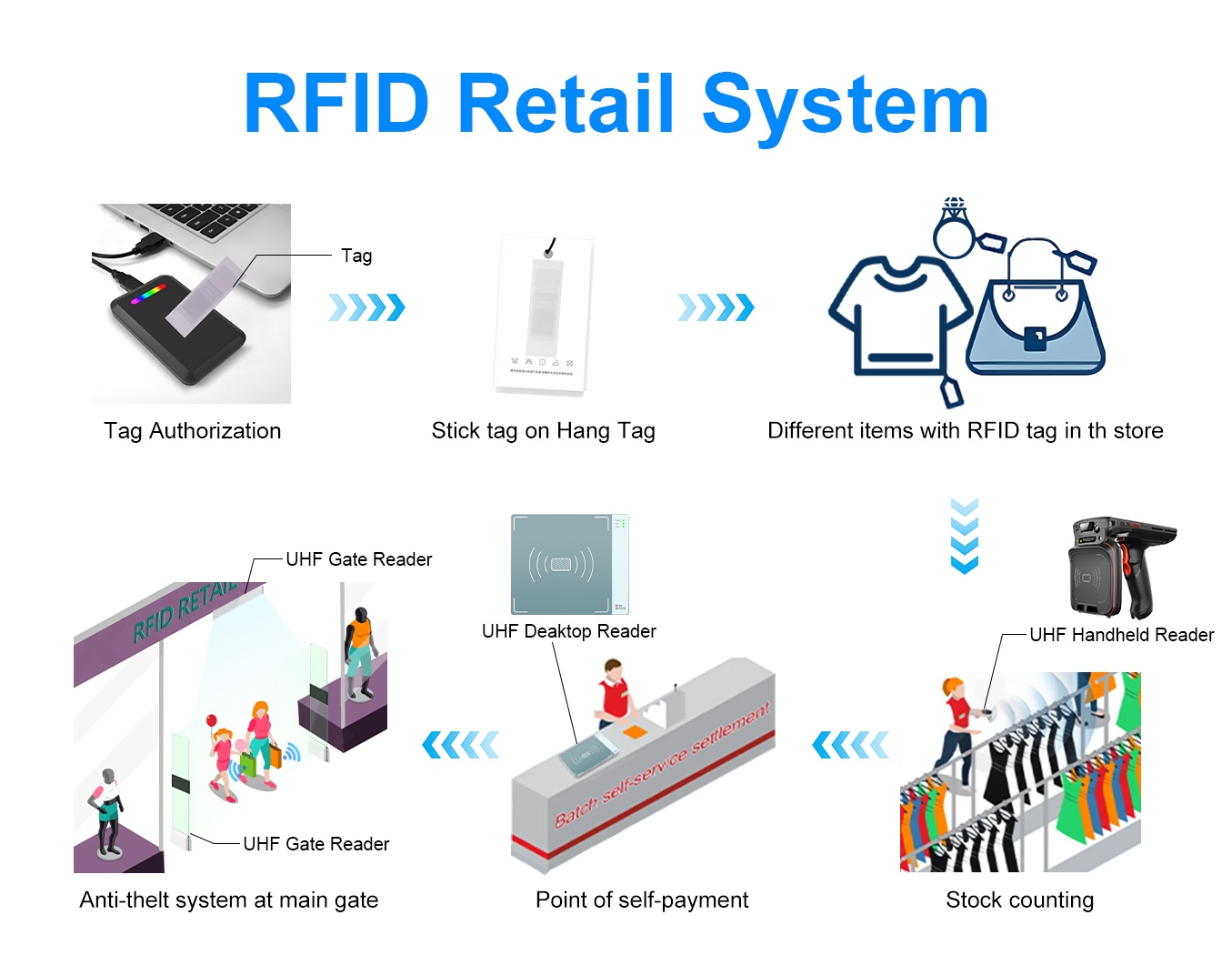

RFID retail system can be divided into 3 parts;
1. Anti-theft system at main entrance
2. Shelves inventry inside the space
3. Self-payment system



1. Anti-theft system

There are two solutions for select:

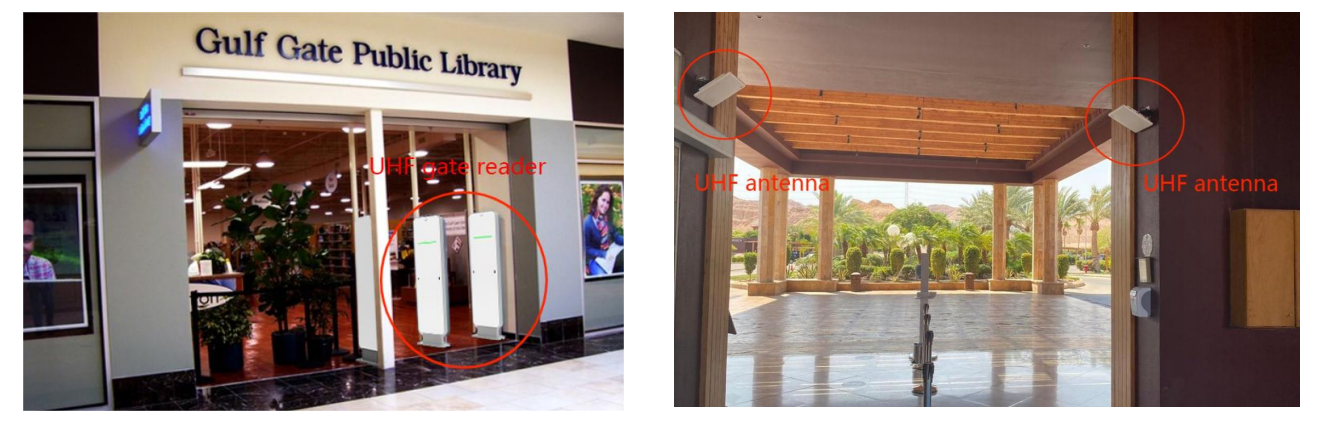

1. install UHF gate reader at Entrance/Exit
when people passing the gate who take items without permission, The LED indicator of gate reader will flash and trigger Alarm buzzer.
2. install UHF fixed reader& multiple antennas at Entrance/Exit
when people passing the entrance who take items with UHF tag, reader will recoginize the tag and transfer tag data to the system.



Related Production for solution 1: UHF Gate Reader

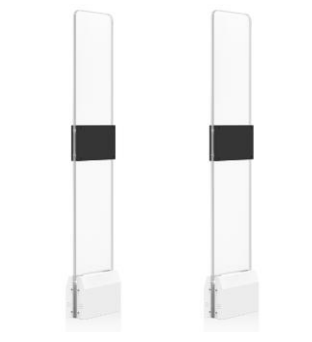

M100
0~1.2m reading distance
Standard RS232/RJ45 interface
have LED indicator & alarm buzzer
have EAS anti-theft & Inventory two working mode
with infrared sensor can recognize people body passing
Windows OS Display screen for optional
Data sheet link:
https://www.chafontech.com/productinfo/1070019.html
Video introduction:
https://www.youtube.com/watch?v=7IZFR88q8rE

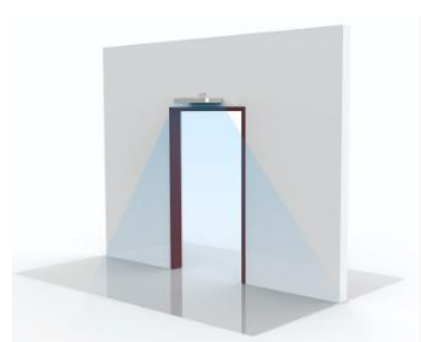

M200
Ceiling design
0~6m reading distance
Standard RS232/RJ45 interface
have LED indicator & alarm buzzer & EAS mode
Data sheet link:
https://www.chafontech.com/productinfo/116 1152.html
Video introduction:
https://www.youtube.com/watch?v=E6w-ka75_bc





M400
1.5~3m reading distance
Standard RS232/RJ45 interface
have LED indicator & alarm buzzer & EAS
mode
Data sheet link:
https://www.chafontech.com/productinfo/1 146089.html
Video introduction:
https://www.youtube.com/watch?v=qDhw4 2eEtG4





Related Production for solution 1: UHF Fixed Reader & Antenna

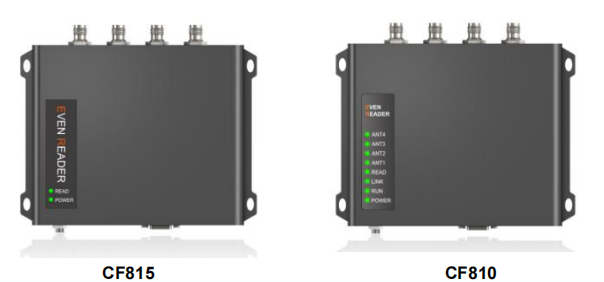

1. CF815 UHF four-port fixed reader
have four RP TNC ports can connect max 4 antennas
made by IMPINJ e710 chip, support max 900pcs/s fast tags identification
with standard interface RS232/USB/TCP/IP/GPIO, also can add POE
Data sheet link: https://www.chafontech.com/productinfo/1069648.html
2. CF810 UHF four-port fixed reader
have four RP TNC ports can connect max 4 antennas
made by high performance chip, support max 200pcs/s fast tags identification
with standard interface RS232/USB/TCP/IP/GPIO, also can add POE
Data sheet link: https://www.chafontech.com/productinfo/1069476.html

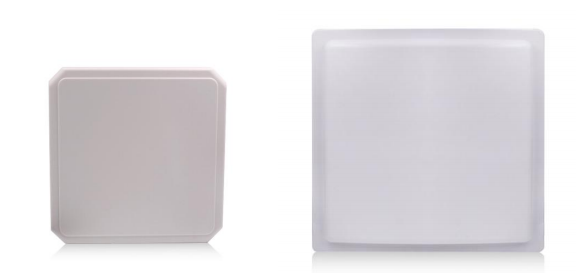

1. CF-RA9002 UHF 9dbi circular panel antenna
made by ABS shell, IP67 waterproof suitable for outdoors use
size: 257*257*33mm, with max 9m reading distance
standard 3m cable, also can adjust cable length
Data sheet link: https://www.chafontech.com/productinfo/1070084.html
2. CF-RA1201 UHF 12dbi linear panel antenna
made by ABS shell, IP67 waterproof suitable for outdoors use
size: 445*445*55mm, with max 12m reading distance
standard 3m cable, also can adjust cable length
Data sheet link: https://www.chafontech.com/productinfo/1070094.html



2. Stock Counting system

For long distance

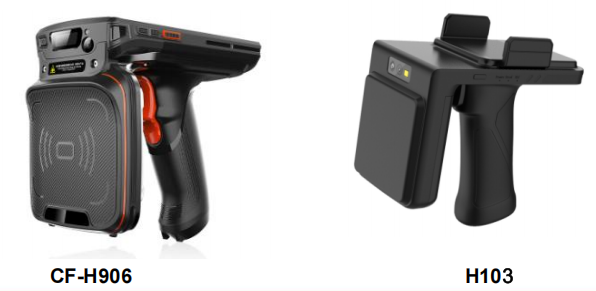

CF-H906 UHF handheld reader
come with Android 11.0 OS, 4+64G memory
support max 900pcs/s tags reading and max 18m distance
Also can support 1D/2D barcode scanning
Data sheet link: https://www.chafontech.com/productinfo/1107439.html
Video introduction:https://www.youtube.com/watch?v=FwEersWO-og
H103 UHF Bluetooth Sled reader
have bluetooth connect your android phone to use
support max 800pcs/s tags reading and max 18m distance
Data sheet link: https://www.chafontech.com/productinfo/1186158.html
For short distance
H102 UHF bluetooth portable reader
Bluetooth communication connect your android phone
max 30pcs/s tags reading, reading distance up to 100cm
have screen can display reading EPC number
Data sheet link: https://www.chafontech.com/productinfo/1095546.html
Video introduction:https://www.youtube.com/watch?v=KsweTad6rnc
H100 UHF bluetooth portable reader
Bluetooth communication connect your android phone
max 30pcs/s tags reading, reading distance up to 40cm
Back clip design, can be fixed on your Android phone
Data sheet link: https://www.chafontech.com/productinfo/1107455.html
Video introduction:https://www.youtube.com/watch?v=5ZX-dWvfNs



3. Self-payment system

There are two solutions, depend on your installation way.

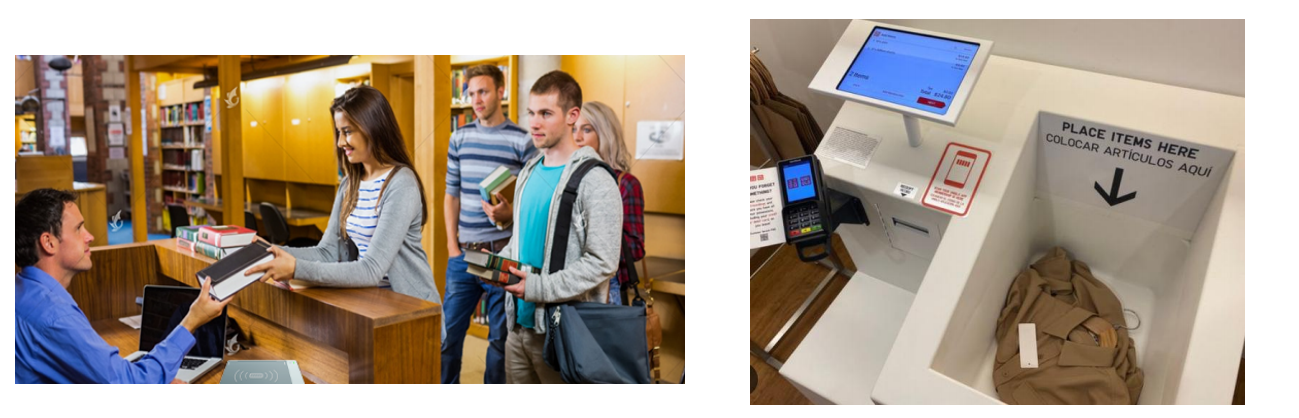

Manual solution:
use CF603 UHF desktop reader. when person put books or merchandises with tag on it ,CF603 can read the items and transfer tag data to the system through USB port.
Self-service solution:
install UHF near field antennas at the bottom and around the  identification area, and connect UHF module (small installation space) or UHF fixed reader (if have enough installation space). When person put items with RFID tag in the identification area, reader will recognize the tag and transfer data to the system.

Related Production for solution 1: UHF Desktop Reader

CF603 UHF desktop reader
built-in 7dbi array antenna
max 100pcs/s tags readng, max 2m reading distance
RF power 20dbm, can adjust it to control reading range. Ensure that tags outside the range are not read.
with USB port can connect your PC to use
Data sheet link:
https://www.chafontech.com/productinfo/114 6091.html
Video introduction:
https://www.youtube.com/watch?v=QqZ5KF_n bLw



Related Production for solution 2: UHF Fixed Reader & near field antenna

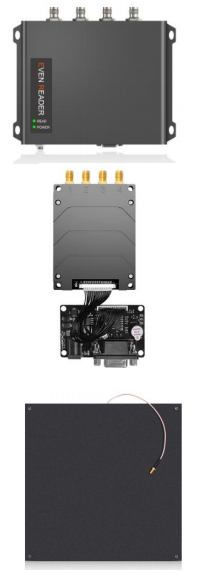

CF815 UHF four-port fixed reader

have four RP TNC ports can connect max 4 antennas
made by IMPINJ e710 chip, support max 900pcs/s fast tags identification
with standard interface RS232/USB/TCP/IP/GPIO, also can add POE
Data sheet link: https://www.chafontech.com/productinfo/1069648.html
CF-E714 UHF four-port module
have four SMA ports can connect max 4 antennas
made by IMPINJ e710 chip, support max 900pcs/s fast tags identification
can connect RS232 interface board to use (optional)
Data sheet link: https://www.chafontech.com/productinfo/1069835.html
CF-RA1008 UHF 10dbi near field circular antenna
PCB material
have different size for select:
320*320/320*240/350*230/400*200/400*320/450*350/560*450/620*205mm,
also can be customized.
with standard 3m cable, can adjust length according the project requirement
Data sheet link: https://www.chafontech.com/productinfo/1070203.html



Related RFID TAGS

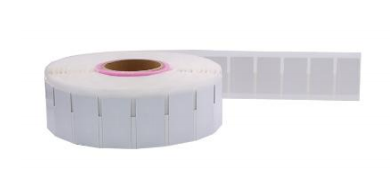

G9201 UHF paper label
with strong glue can stick on box/Hang tag
and not easy to fall.
Standard size 73.5*21.2mm, also have other
sizes for select:
43*18mm/100*25mm/100*30mm
Data sheet:
https://www.chafontech.com/productinfo/1 070742.html
G9802 UHF flexible anti-metal tag
with strong glue can stick on metal items
and not easy to fall.
Standard size 60*25mm, also have other
sizes for select: 44*20mm/100*25mm...
Data sheet:
https://www.chafontech.com/productinfo/1071028.html

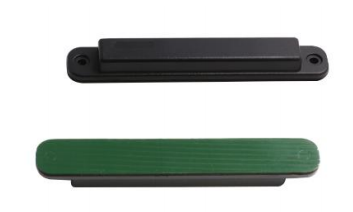

G9811 UHF anti-metal tag
ABS material, size 135*22*5mm
with strong glue can stick on metal items
and not easy to fall.
also have holes can install on metal goods
Data sheet:
https://www.chafontech.com/productinfo/1070902.html
