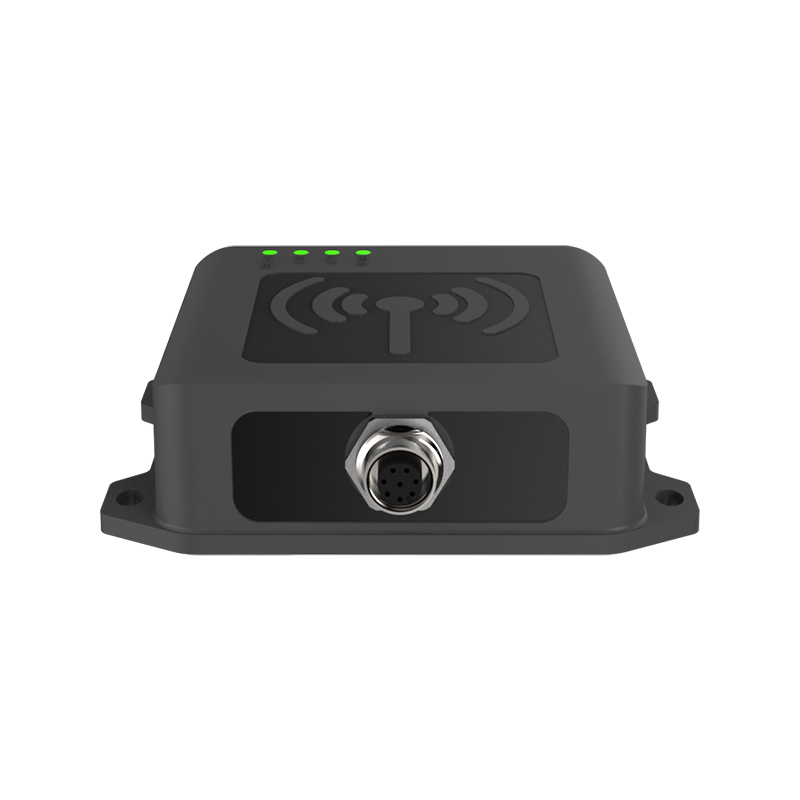

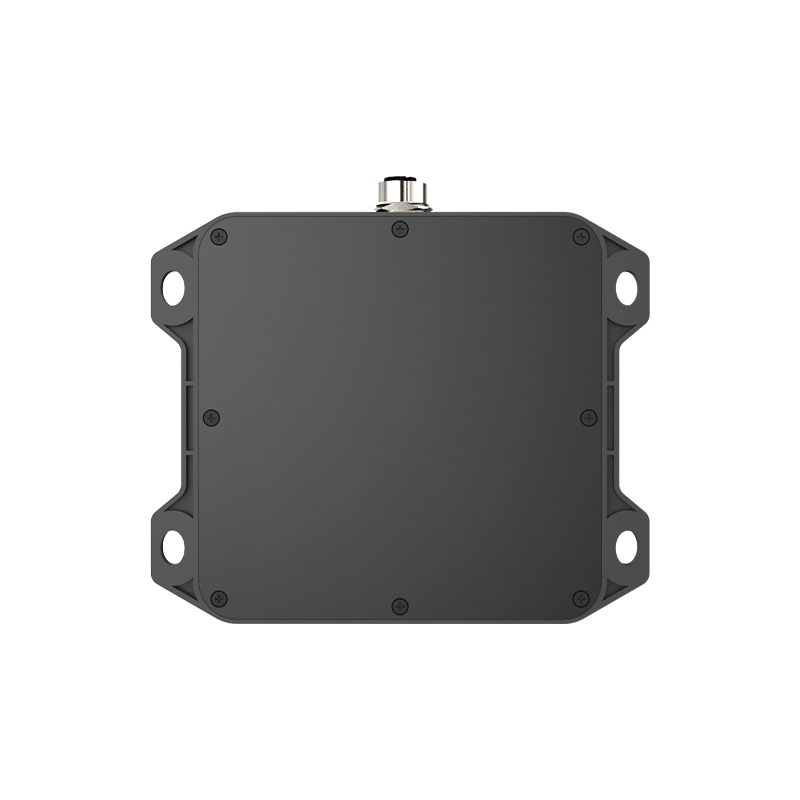

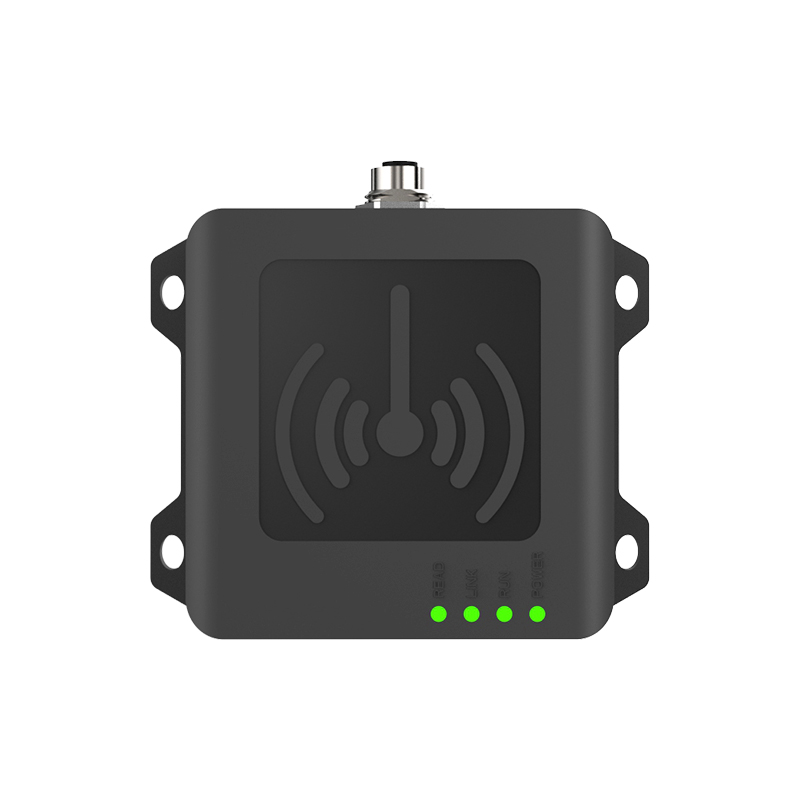

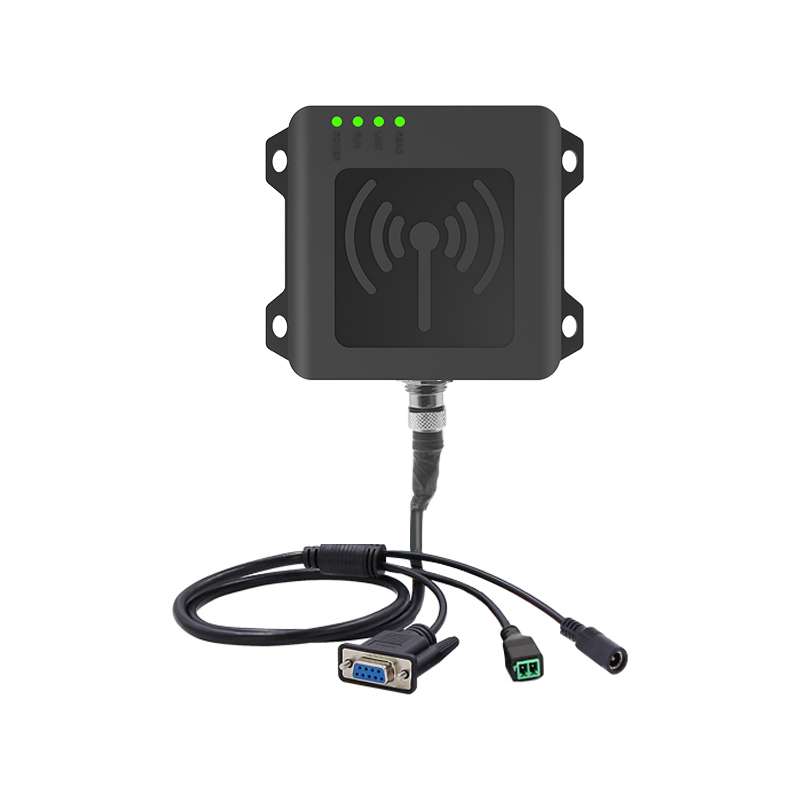

CF821-15693 HF Industrial Reader

RFID technical parameters

Data communication

Frequency

13.56MHZ

Communication Interface

RS232/RS485（Optional）

protocol

ISO15693

Protocol

Modbus

Recognition speed

Not less than 10 pcs/s

Communication rate

9600 ~ 115200bit/s

Built-in antenna

PCB antenna

GPIO interface

1 set of GPI, supports customized GPO

Card reading distance

0~8cm

Interface Type

Round waterproof M12 female pin

Support AFI

You can write to lock the AFI and query the tag based on the AFI.

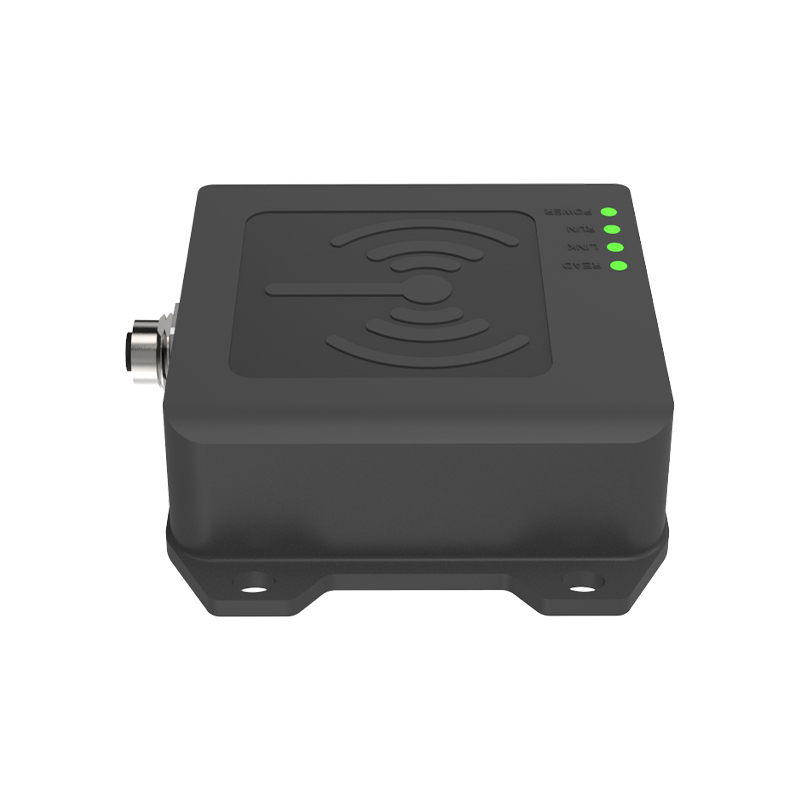

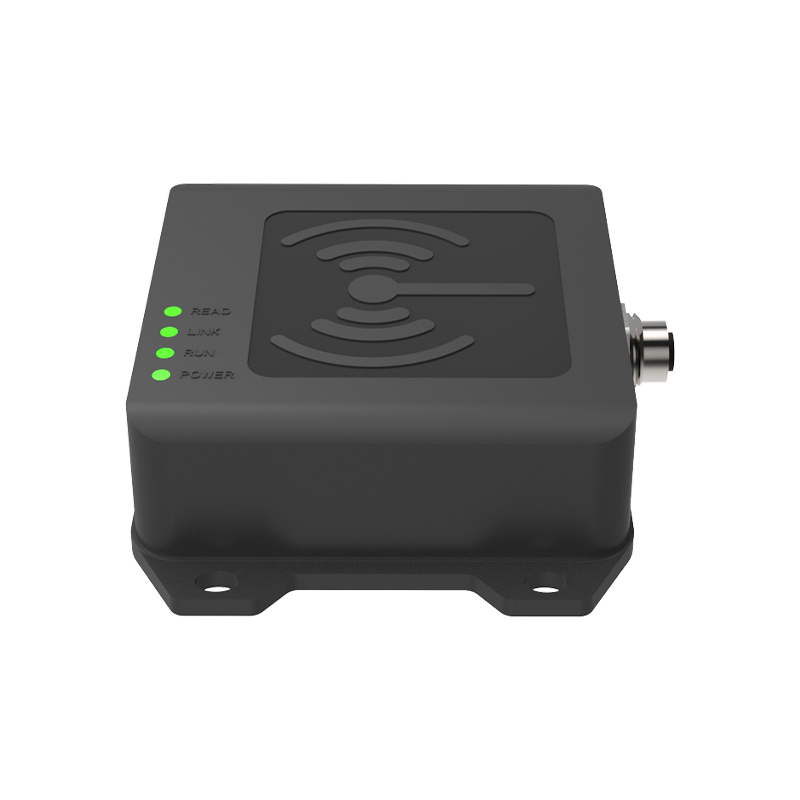

indicator light

4 LEDs: run light, link light, read light, power light

Operating mode

Active mode/Answer mode

Operating Voltage

DC 9~24V

RSSI

support

Development environment

Certification

FCC certification, CE certification

SDK

Demo software, API, examples, user manual

Physical parameters

Development language

VB、Python、Java、Delphi、c#

Material

Fireproof ABS

Firmware version

Support online upgrade

size

115*95*35 mm

Working environment

net weight

450g

IP protection level

IP67

Package Size

24*17*13cm

Operating temperature

-20℃~65℃

Package weight

1.1kg

Storage temperature

-40℃~85℃

humidity

5%-95%、non-condensing
