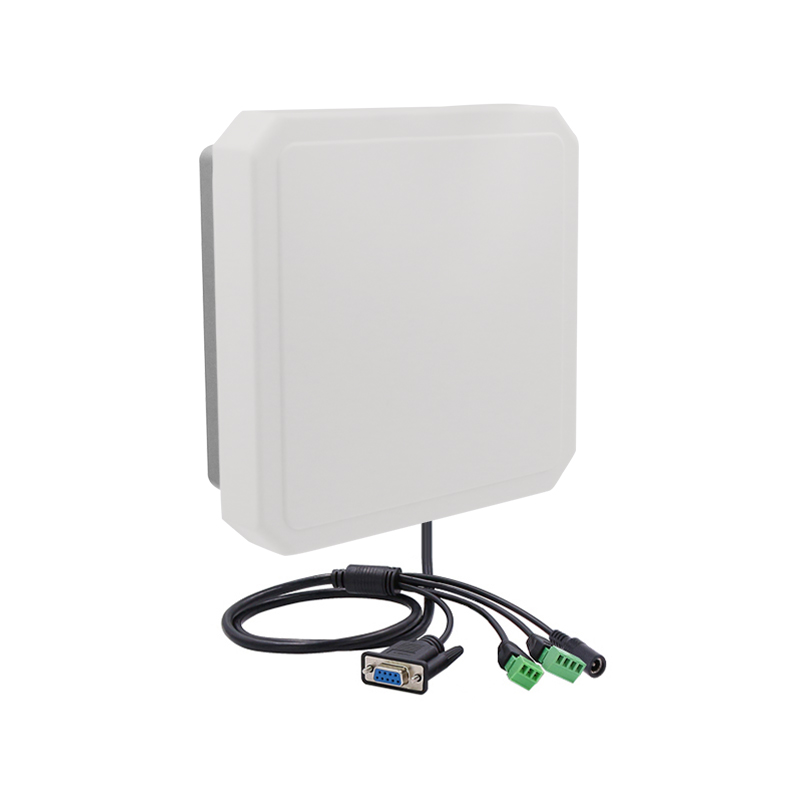

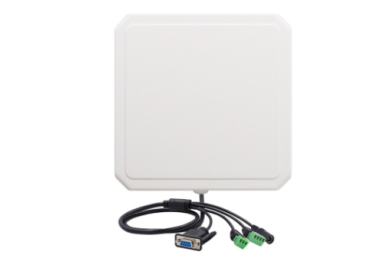

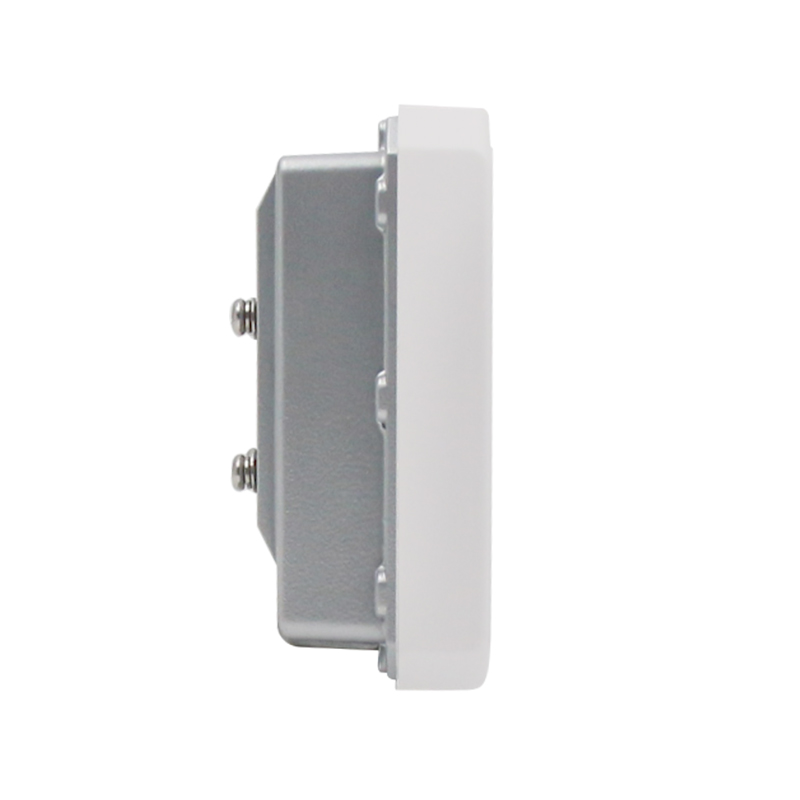

CF631 Prime UHF 5dbi integrated reader
2.Frequency: 902~928MHz（US）/865~868MHz(EU)
3.Built -in antenna: 5dbi circular antenna
4.Communication Interface
Standard interface：RS232/WG26/Relay
Optional interface：TCP/IP/POE/WIFI
Customized interface：USB/TTL/RS485
5. Reading distance: 0~5m（depends on tag and work environment）
1、Product Features
|
CF631 PRIME UHF 5dbi Integrated reader |
|
|
Automatic scanning port/network |
No need to install the driver or configuration, it can be scanned and connected automatically |
|
Password mode |
The device configures the EPC access password, which only allows reading the same password tag, high security |
|
Mask mode |
Device Configured the epc Mask, which only all allows reading the same mask tag, account matching |
|
Relay |
Relay can be used for power supply and communication to trigger external equipment work |
|
POE interface |
A network cable can complete power -on and communication |
|
Wifi communication |
The wireless network makes the communication connection more convenient and efficient |
|
RSSI |
Reading TAG upload data will bring RSSI value, which can be used to refer to the calculation judgment distance |
|
Data cache |
The network drop data will be automatically cached after connecting again to avoid data loss |
|
Remote monitoring |
You only need to configure an IP address to monitor the receiving remote device to send data |
|
Multiple languages development |
Support C#, Delphi, Java, Python, VB and other language development |
|
Customized multiple protocols |
ASCII, Hex, Modbus and other protocols can be selected and customized |
|
Firmware remote online upgrade |
Special functional requirements can be completed by remote upgrade |
2.Product parameters
|
CF631 PRIME UHF 5dbi Integrated reader |
|
|
Frequency |
902~928MHz（US）/865~868MHz(EU) |
|
Protocol |
ISO18000-6C(EPC GEN2) |
|
Built -in antenna |
5dbi circular antenna |
|
Operating mode |
Active mode/Trigger mod/Answer mode（for optional） |
|
Special function |
Support Mask/Password mode |
|
RF power |
Max 26dbm(adjustable） |
|
Reading distance |
0~5M（depends on tag and work environment） |
|
Communication Interface |
Standard interface：RS232/WG26/Relay Optional interface：TCP/IP/POE/WIFI Customized interface：USB/TTL/RS485 |
|
Operating Voltage |
9-24V（12V 2A power adapter） |
|
Reader material |
ABS shell，IP65 protection level |
|
Reader Specifications |
Size：128*128*43mm / Weight：0.75kg |
|
Single packaging specification |
Size：320*300*90mm / Weight：1.7kg |
|
Operating temperature |
-10~+55℃ |
|
Storage temperature |
-20~+75℃ |

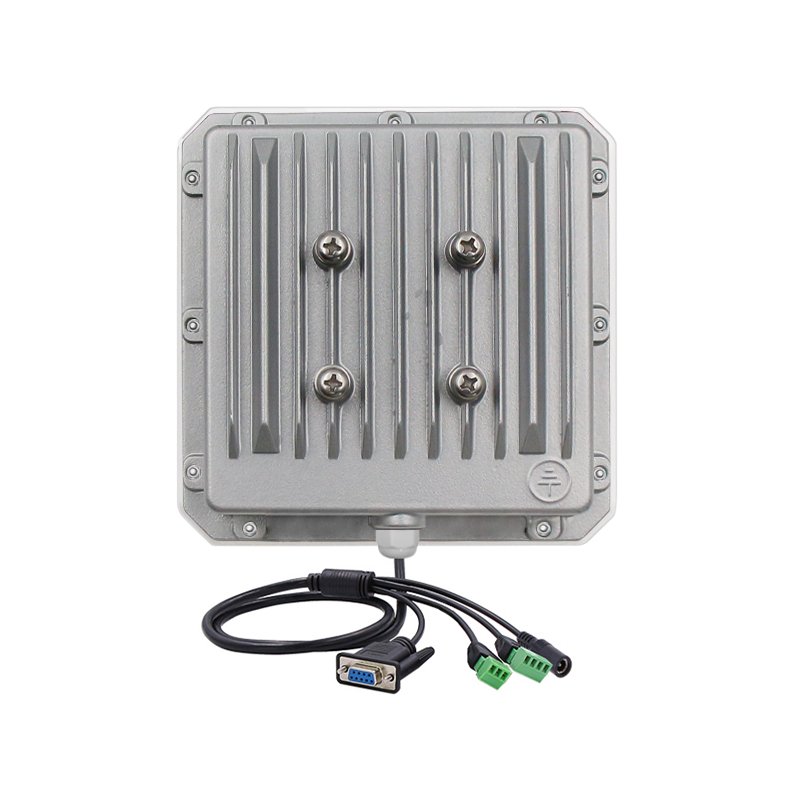

3、Interface definition

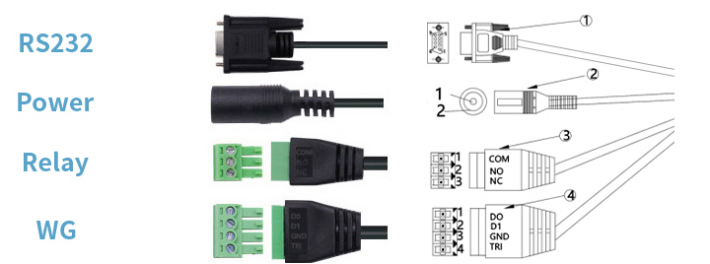

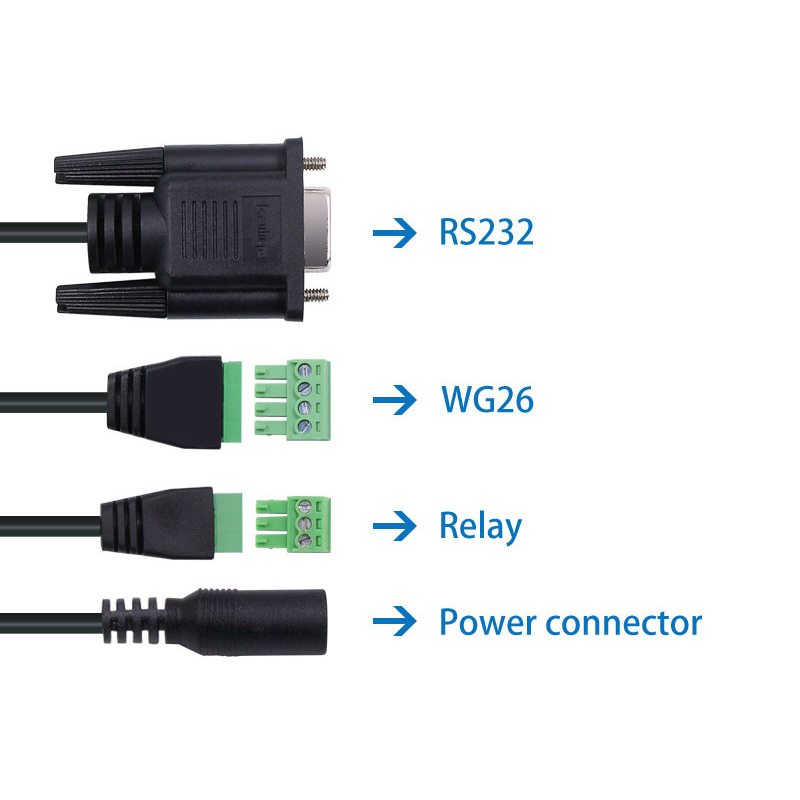

3-1、Standard interface：RS232/WG26/Relay
|
Power |
RS232 |
WG26 |
Relay |
||||||||
|
12V |
GND |
TX |
RX |
GND |
D0 |
D1 |
GND |
TGIN |
否 |
NC |
COM |
|
Red |
black |
Light green |
yellow |
pink |
green |
white |
brown |
blue |
purple |
orange |
grey |
3-2、Optional interface：TCP/IP/POE/WIFI
 |
||
|
TCP/IP Network communication is stable,wireless length limit |
POE POE Network cable power supply, no wiring, plug and play |
WIFI Wireless communication, no need to wiring |

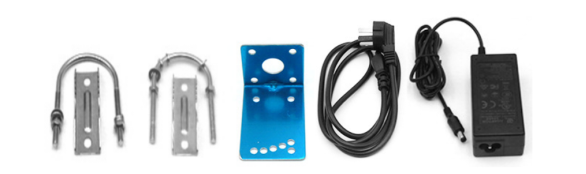

4、Product acessories：Braket*1 set Plug+power adapter*1 set
5、PRIME series
|
|
|
|
|
CF661 Built-in 6dbi antenna Read distance:0~6M 190*190*30mm |
CF691 Built-in 9dbi antenna Read distance 0~10M 260*260*60mm |
CF6C1 Built-in 12dbi antenna Read distance:0~15M 445*445*80mm |
