CF691 Prime UHF 9dbi integrated reader

- Support RSSI to identify tag signal distance
- Support password/mask code, high security
- Relays can supply power and trigger external devices to work
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: vehicle management, asset anti-theft, weighing scales, animal management, personnel management, etc.

Product Specifications

RFID Technical Parameters			Data Communication
Frequency	902~928MHz（US） 865~868MHz（EU）		Standard interface	RS232, Wiegand, relay
Protocol	ISO18000-6C (EPC GEN2)		Optional interface	TCP/IP, POE, WIFI
RF output power	0dbm-26dbm(Adjustable)		Customizable interface	USB, TTL, RS485
Built-in antenna	9dBi		Power supply	12V 2A
Polarization mode	Circular polarization		Card reading prompt tone	Buzzer
Reading distance	0-10 meters		Indicator light	Strip light, red & green
Special functions	Support password/mask function		Development Environment
Working mode	Active mode Trigger mode Answer mode		SDK	Demo software, API, examples, user manuals
RSSI	support		Development language	C#, Delphi, Java, Python, VB and other languages
Physical parameters			Firmware version	Support online upgrade
Material	ABS		Working environment
Color	White		IP protection level	IP65

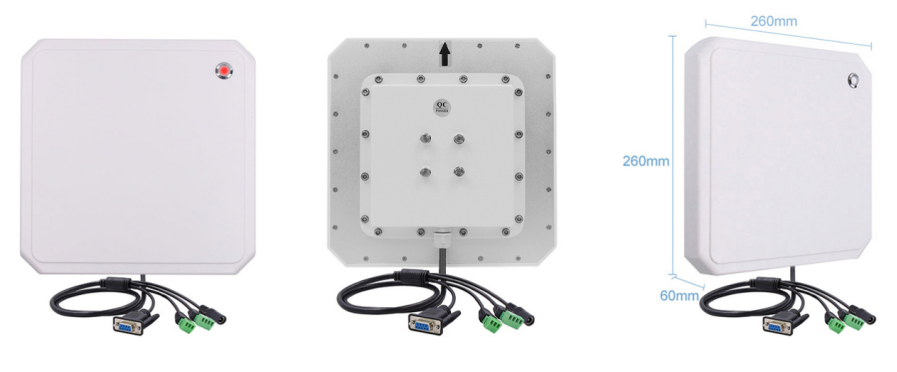

Dimensions	26026060mm		Operating temperature	-10~+55℃
Net Weight	1.2kg		Storage temperature	-20~+75℃

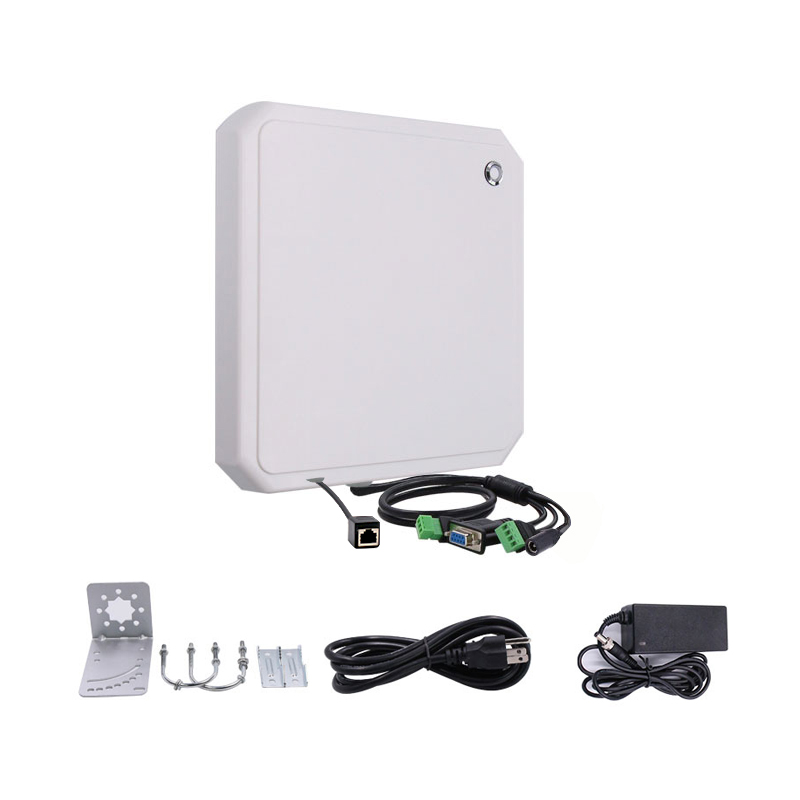

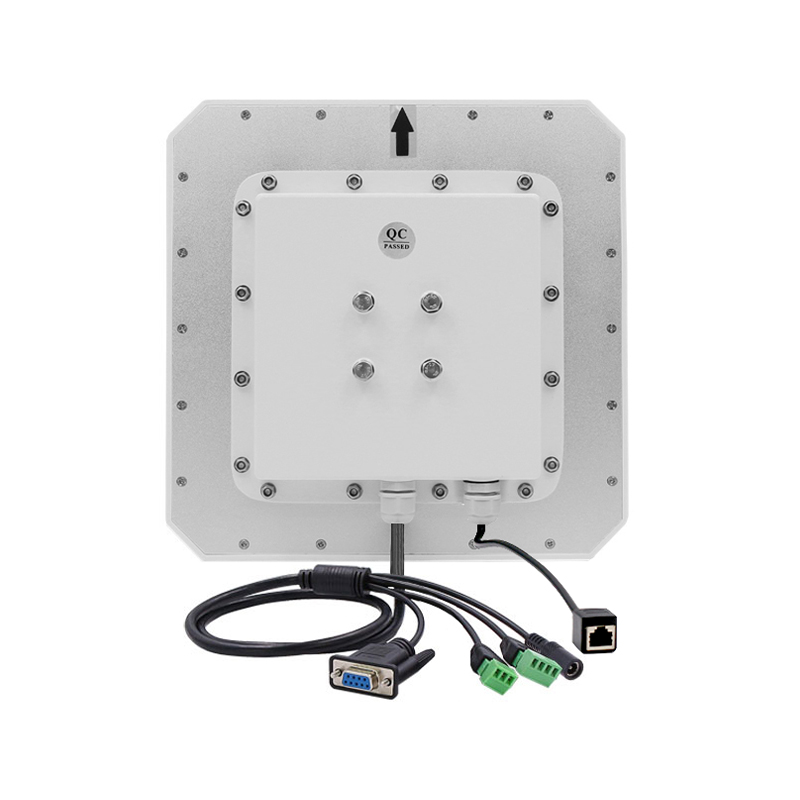

Details display

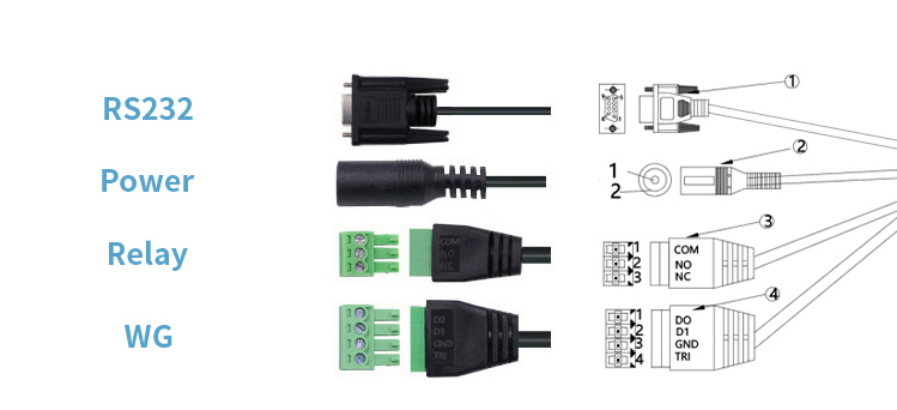

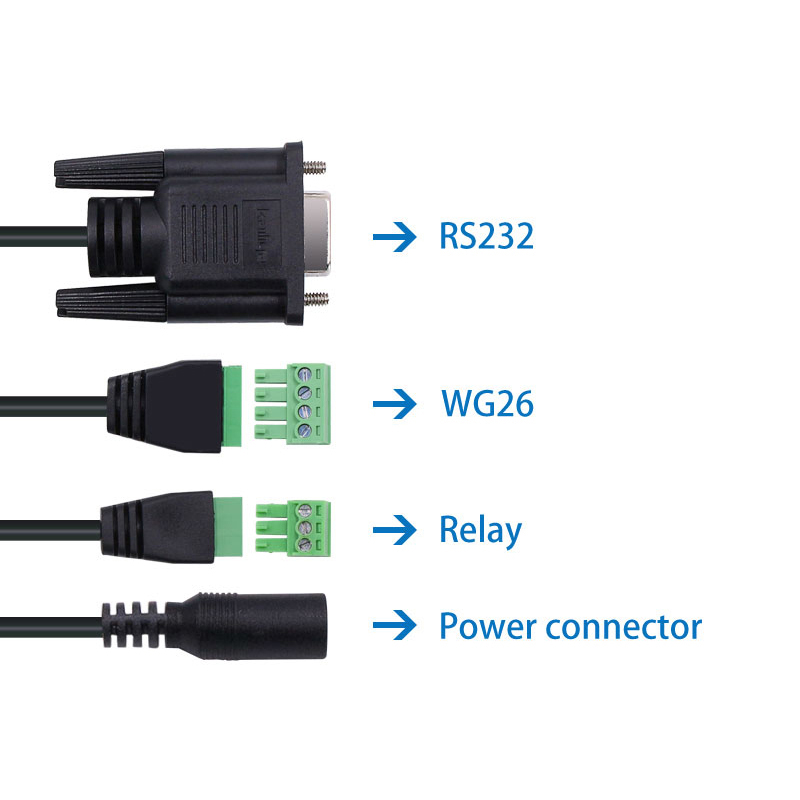

Standard interface wiring definition
DC Power Supply		Serial Port			Wiegand				Relay
12V	GND	TX	RX	GND	D0	D1	GND	TGIN	NO	NC	COM
Red	black	Light green	yellow	pink	green	White	brown	blue	Purple	orange	grey

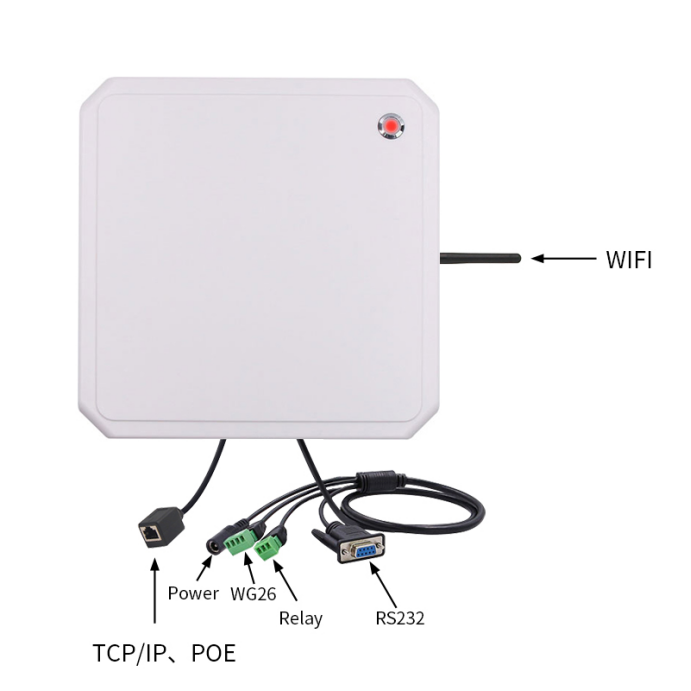

Model Definition
model	Interfaces
CF691	RS232, Wiegand, relay, power port
CF692	RS232, Wiegand, relay, power port, TCP/IP
CF693	RS232, Wiegand, relay, power port, POE
CF694	RS232, Wiegand, relay, power port, WIFI
CF695	RS232, Wiegand, relay, power port, TCP/IP, WIFI

Related Products

Model	CF661	CF6A1	CF6D1
Output RF Power	0dbm ~26dbm (adjustable)
Reading Range	0~6 meters (depends on antenna & tag & application environment)	0~10 meters (depends on antenna & tag & application environment)	0~15 meters (depends on antenna & tag & application environment)
Gain	6dBi	9dBi	12dBi
Polarization	Circular polarization	Circular polarization	Linear polarization
Dimensions	22022056.4mm	30530575mm	41541567mm

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
