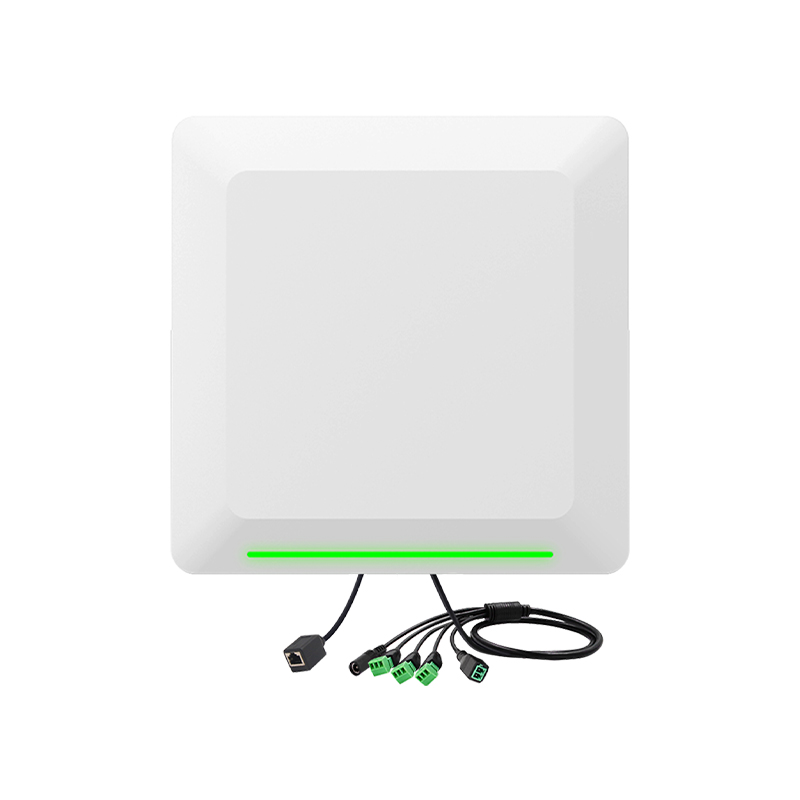

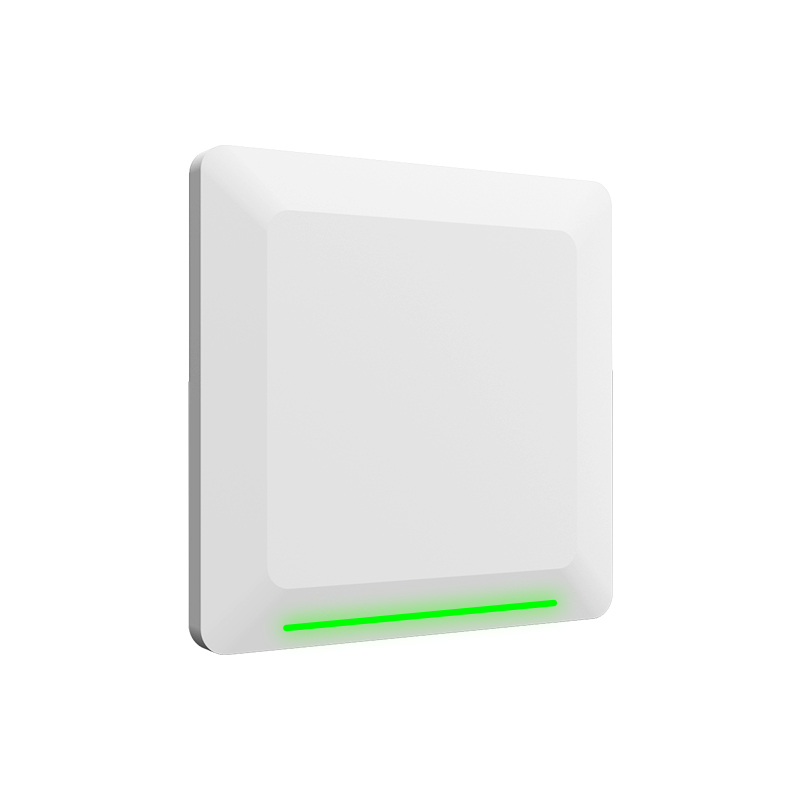

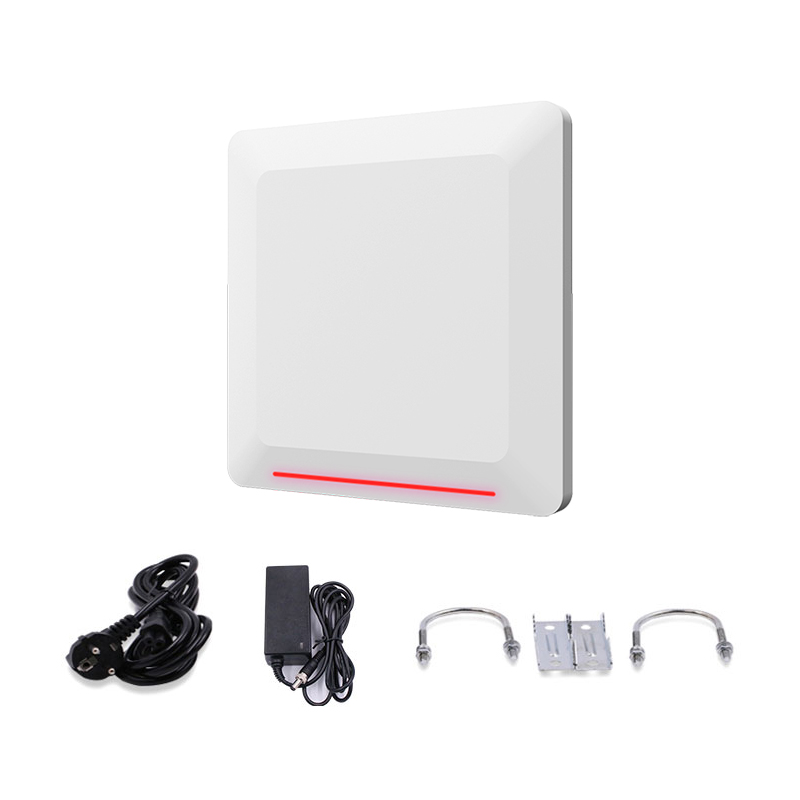

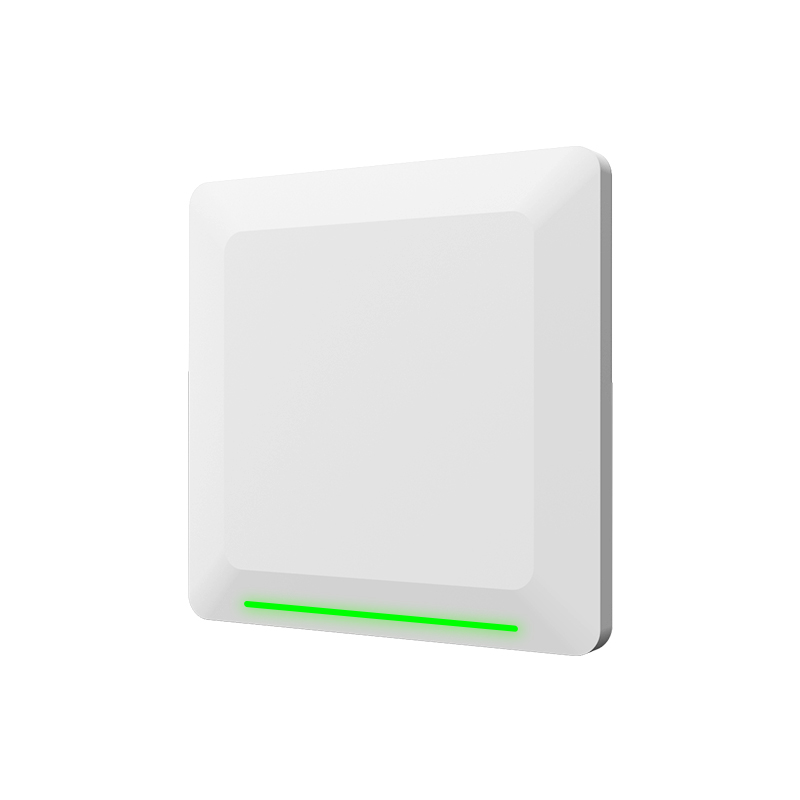

A200 UHF standalone reader with Access control system
2.Protocol: ISO18000-6C(EPC GEN2)
3.Built -in antenna: 9dbi antenna
4.Standard Interface: RS232/WG/RELAY/RJ45,
5. Customizable interfaces : POE/WIFI
6.Reading distance: 0~10M（depends on tag and work environment）
7. come with access control system software V1.0
ACCESS READER
| A100 | A200 | A300 |
| Reading distance 0-6m | Reading distance 0-10m | Reading distance 0-15m |
| ACCESS series is UHF long range reader, built-in controller, come with access control system. Reading distance up to 15m, widely used in parking lot management, personnel management, access control and other areas of control and management. | ||
1. Parameter
|
Model |
A100 |
A200 |
A300 |
|
Frequency |
902~928MHz (US)1865~868MHz (EU) |
||
|
Protocol |
ISO18000-6C (EPC GEN2) |
||
|
Built-in antenna |
6 dBi antenna |
9 dBi antenna |
12 dBi antenna |
|
Operating mode |
Active mode/trigger mode/answer mode |
||
|
Card reading instructions |
LED light bar(normal red light,card reading green light) buzzer;can be controlled by external wires |
||
|
Whitelist function |
100000Pcs@96bit |
||
|
RF power |
Maximum 27dbm(adjustable)/33dbm optional |
||
|
Card reading distance |
0~6 meters (depending on tag type and application environment) |
0~10 meters (depending on tag type and application environment) |
0~15 meters (depending on tag type and application environment) |
|
Communication Interface |
Standard interface:TCP/IP/WG/Relay/GPIO Optional interface:POE/WIFI Customizable interface:RS232/USB/RS485 |
||
|
Operating Voltage |
9-24V(With 12V 2A power adapter) |
||
|
Equipment material |
ABS shell,IP65 protection grade |
||
|
Operating temperature |
-10~+55℃ |
||
|
Storage temperature |
-20~+75℃ |
||
|
Reader size |
220*220*56.4mm |
305*305*75mm |
445*445*80mm |

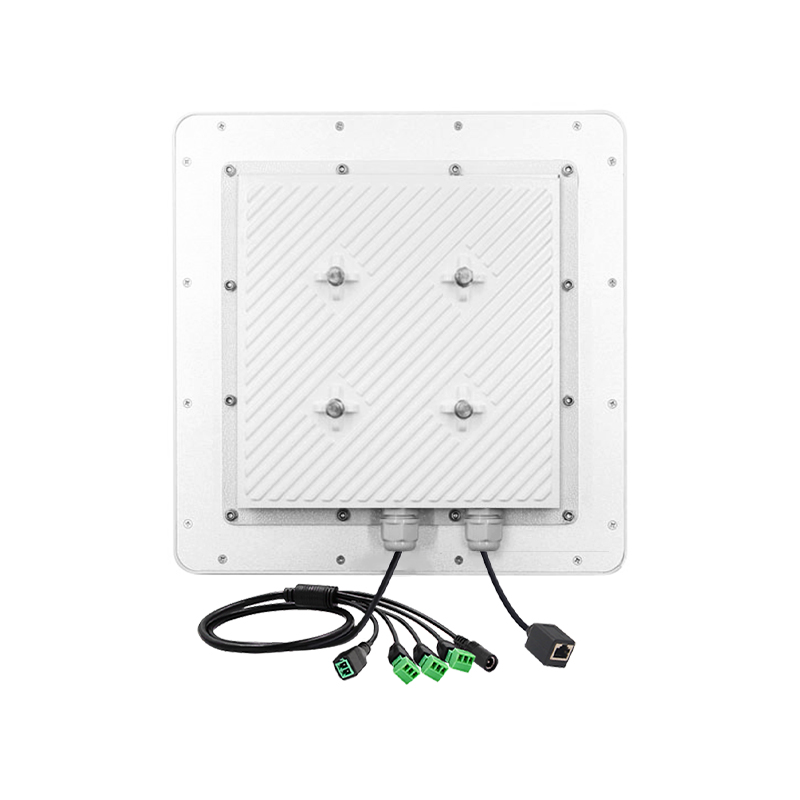

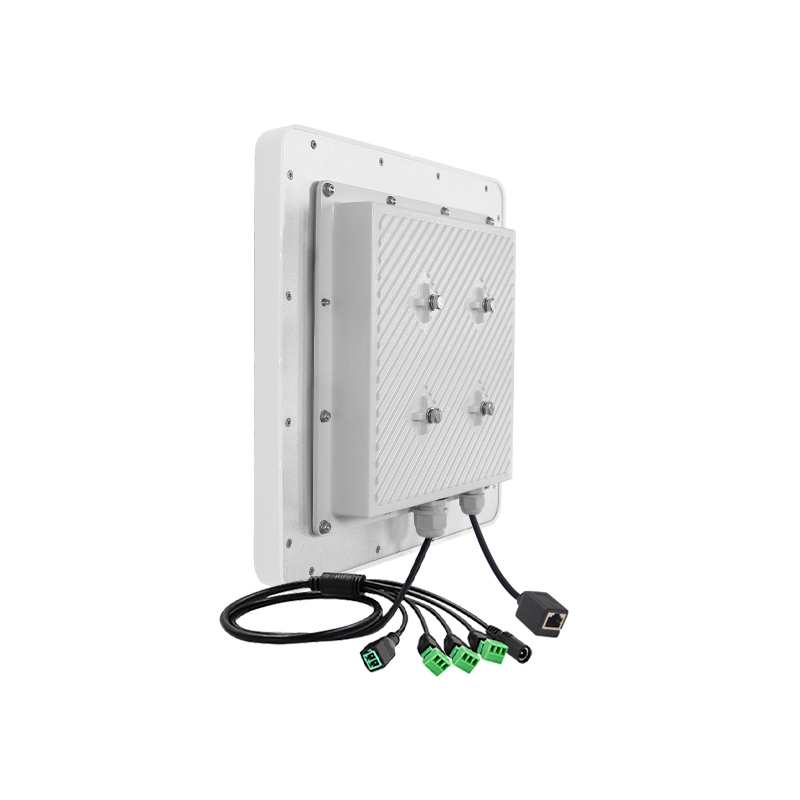

2. Connectors
1Power, 1RJ45, 1Relay output, 1GP0, 4 GPI, 1Wiegand input
|
Internal connector |
Definition |
External connector |
Product image |
|
Power |
DC+ |
DC25 |
|
|
DC- |
|||
|
Relay |
NO |
3PIN |
|
|
NC |
|||
|
COM |
|||
|
Wiegand |
D0 |
3PIN |
|
|
D1 |
|||
|
GND |
|||
|
GP |
GPI1 |
3PIN |
|
|
GND |
|||
|
GPI2 |
|||
|
GPI |
GPI3 |
3PIN |
|
|
GND |
|||
|
GPI4 |
|||
|
GPO |
GPO1 |
2PIN |
|
|
GND |
3. Applications
Long distance vehicle access management
Long distance access control management
Long distance vehicle access management
---No need to contact/stop and swipe card
Method 1 Community Parking lot
Method 2 Private garage car access management
3 CF Access Software System
Vehicle Management
