A100 ACCESS Control system integrated reader
built-in controller
come with full parking software
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
902~928MHz（US） 865~868MHz（EU） |
Standard interface |
TCP/IP, Wiegand, relay, power port, GPI, RS485 |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Power supply |
12V 2A |
|
|
RF output power |
0dbm-26dbm (adjustable) |
Card reading prompt tone |
Buzzer |
|
|
Built-in antenna |
6dBi |
Indicator light |
Strip light, red light & green light |
|
|
Polarization mode |
Circular polarization |
Firmware version |
Support online upgrade |
|
|
Reading distance |
0-6 meters |
Software Features |
||
|
Working mode |
Active mode Trigger mode Answer mode |
language |
Chinese/English switch (Other countries can be customized） |
|
|
Physical parameters |
Type of Charge |
Monthly rental car, temporary car |
||
|
Material |
ABS+die-cast aluminum back cover |
Whitelist function |
100000Pcs@96bit |
|
|
Color |
White |
Disconnected data cache |
Support |
|
|

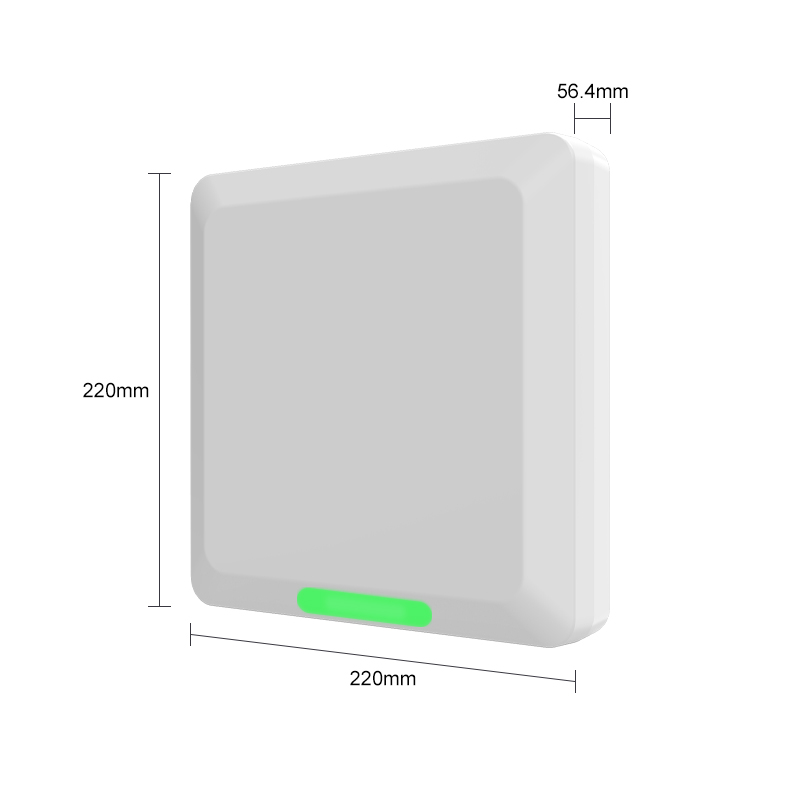

Dimensions |
220*220*56.4mm |
Work Environment |
||
|
Net Weight |
0.95kg |
IP protection level |
IP65 |
|
|
Packing Dimensions |
32*30*9cm |
Operating temperature |
-10~+55℃ |
|
|
Packing Weight |
1.5kg |
Storage temperature |
-20~+75℃ |
|
Details display
Basic software functions
Main Interface
Car owner management
Blacklist and whitelist management
In and out records
Vehicle statistics on site
Charging Rules
Data backup
Related Products
|
Image |
|
|
|
|
Model |
A100 |
A200 |
A300 |
|
Output RF Power |
0dbm ~26dbm (adjustable) |
||
|
Reading Range |
0~6 meters (depending on the tag & application environment) |
0~10 meters (depending on the tag & application environment) |
0~15 meters (depending on the tag & application environment) |
|
Gain |
6dBi |
9dBi |
12dBi |
|
Polarization |
Circular Polarization |
Circular Polarization |
Linear polarization |
|
Dimensions |
220*220*56.4mm |
305*305*75mm |
415*415*67mm |
