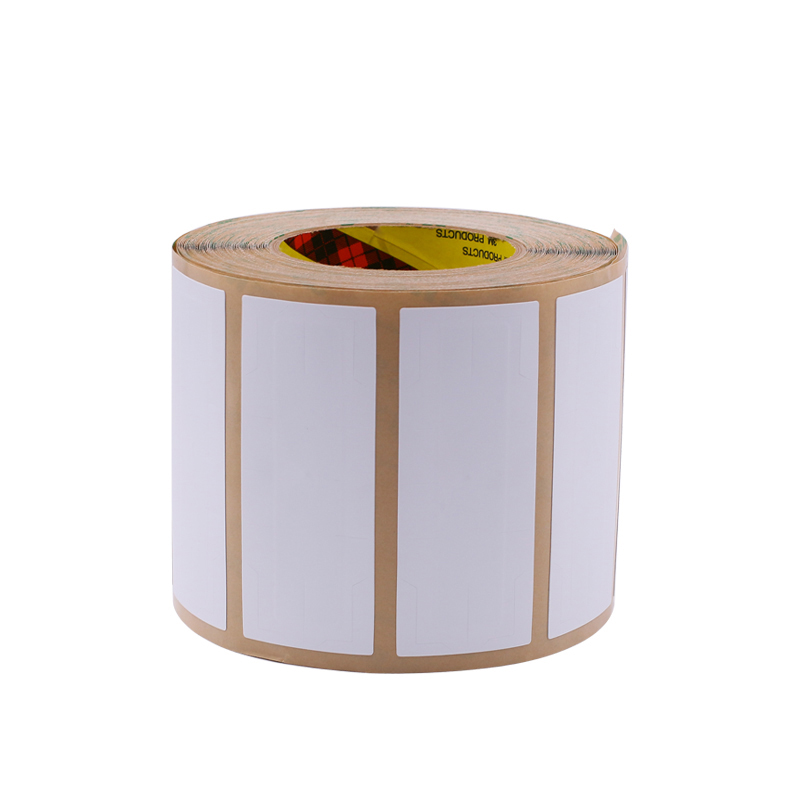

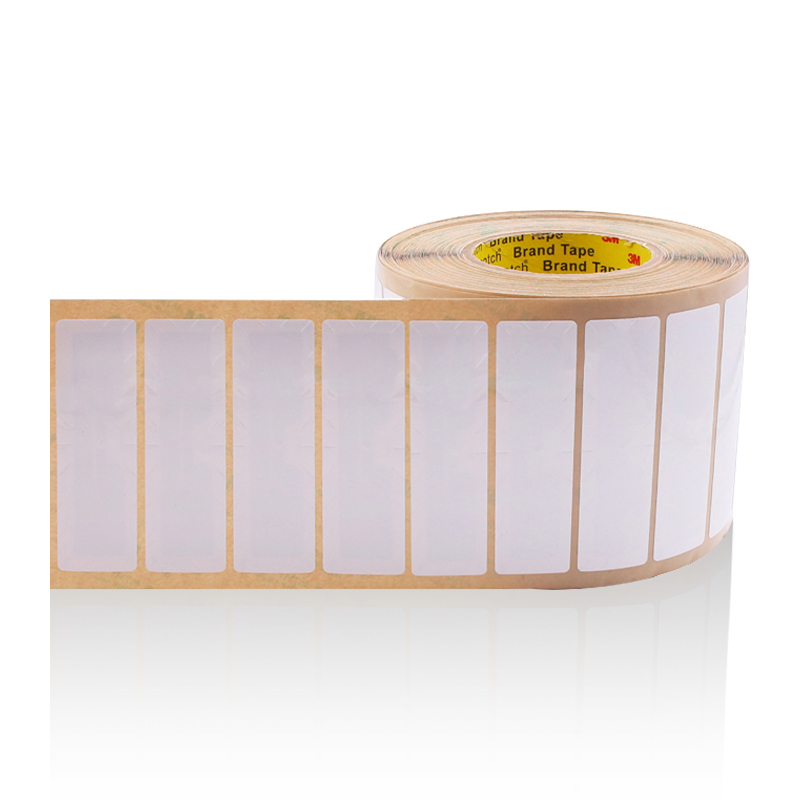

G9305 UHF RFID PP synthetic paper windshield tag
Size:110*45mm
Material:PP synthetic paper with 3M glue
Product name: RFID windshield tag
Product number: G9305
Product character:
1. General tag: global operation 860 to 960 MHz
2. Accord EPC Class1 Gen2 standard
3. The best solutions for Glass surface, windshield applications
4. Provide Logo printing according to customer's request, work distance above 10m
Product technique:
|
Performance Specifications |
|
|
Product model |
G9305 |
|
Frequency |
860～960MHz |
|
Standard |
ISO18000-6C(EPC-Gen2) |
|
Chip type |
Alien H3 |
|
Memory |
32bits TID, 96bits EPC Number, 512bit user memory |
|
Working mode |
read or write |
|
Read distance |
read(1~10m) (Reader dependent) |
|
Write distance |
write(1~3m) (Reader dependent) |
|
Data retention |
10(yrs) |
|
Anti-collision |
yes |
|
Physical Characteristics |
|
|
Dimension |
110mm*45mm*0.3mm(customizes) |
|
Base material |
Thermal Paper/ Self-adhesive paper |
|
Antenna material |
Aluminum |
|
Operating temperature |
-10℃~+70℃ |
|
Operating humidity |
≤80% |
|
Package |
200pcs/box |
|
Weight |
1±0.05kg/box |
Application:
1. Customize different size labels, like 4'' x 2'', 4''x 4'', 4''x6'' etc
2. Can be sticked on the windshield of car, and for parking management.
3. Also can stick on other glass surface product, with good reading range.
