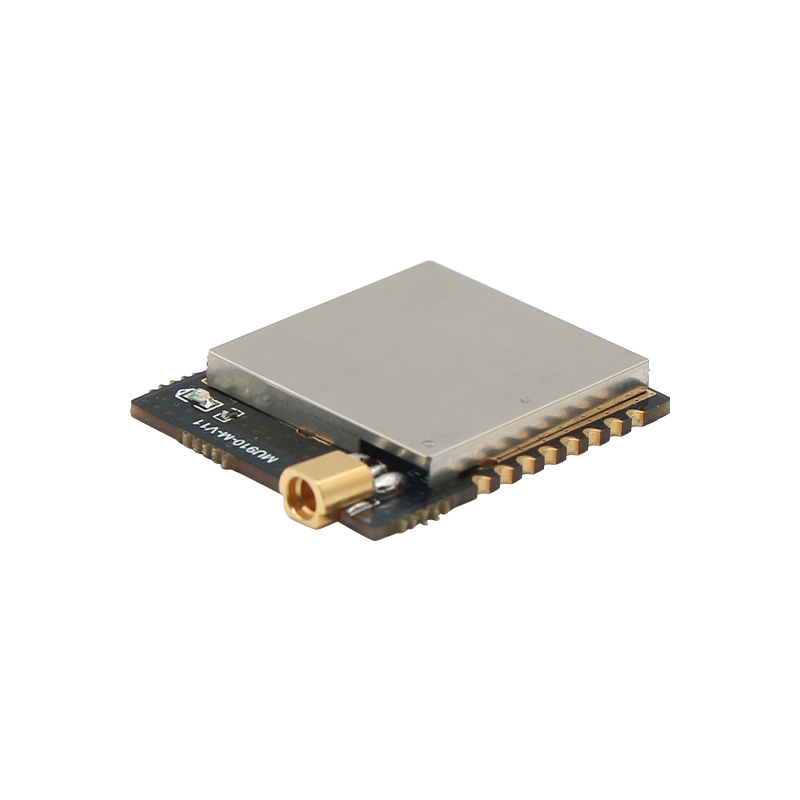

MU910-M SENIOR UHF single-channel module

- The maximum reading speed can reach 50 tags/s
- Support RSSI to identify tag signal distance
- 4 GPIO interfaces (2 inputs and 2 outputs), customizable with Wiegand, relay, trigger, etc.
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: warehouse management, production control, asset tracking, laundry management, smart cabinets, garbage management, etc.

Product Specifications

RFID Technical Parameters



Data Communication

Frequency

902~928MHz (US）865~868MHz （EU）

Antenna port

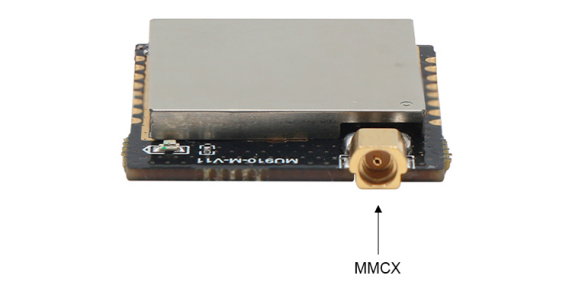

1 50 ohm MMCX female interface

Protocol

ISO18000-6C (EPC GEN2)

Communication interface

TTL Uart interface, baud rate 115200bps

RF output power

0-26dbm (adjustable)

GPIO interface

3.3V 2 inputs 2 outputs

Reading speed

50 tags/s

Operating voltage

3.6--5.5V

Data cache

1000 @96bit EPC tags

Operating mode power consumption

<1.5W (typical)

Reading distance

0-12 meters

(depending on the tag and antenna selected)

Standby mode power consumption

0.25W

External antenna

The standing wave ratio is recommended to be less than 1.5

Sleep mode power consumption

0.05W

Working mode

Active mode

Answer mode

Logic level

VIL   -0.5-0.8V

VIH   +2-3.3V

RSSI

support

Power supply

12V 2A

Environmental parameters

Current consumption

0.5~1.2A

Cooling method

External cooling

Development Environment

Operating temperature

-40℃--+65℃

SDK

Demo software, API, examples, user manual

Storage temperature

-45℃--+85℃

Development language

C#, Delphi, Java, Python, VB and other languages

Operating humidity

<95% (25℃)

Firmware version

Support online upgrade

Physical parameters





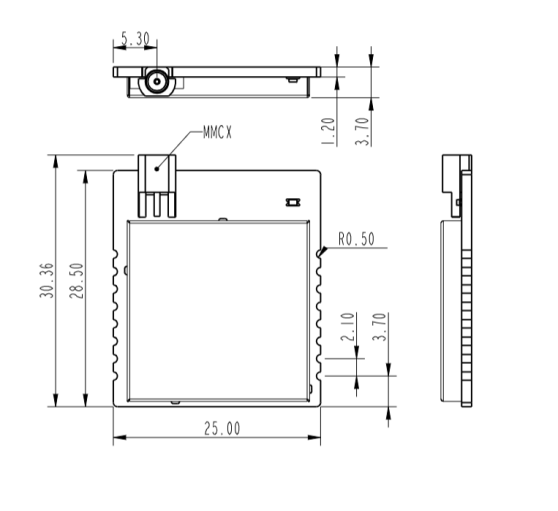

size

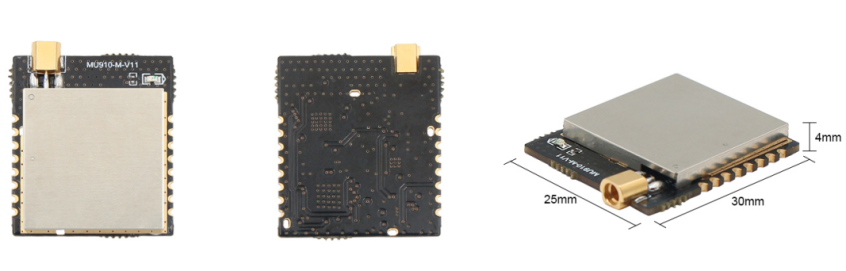

30x25x4mm(Length*Width*Height)









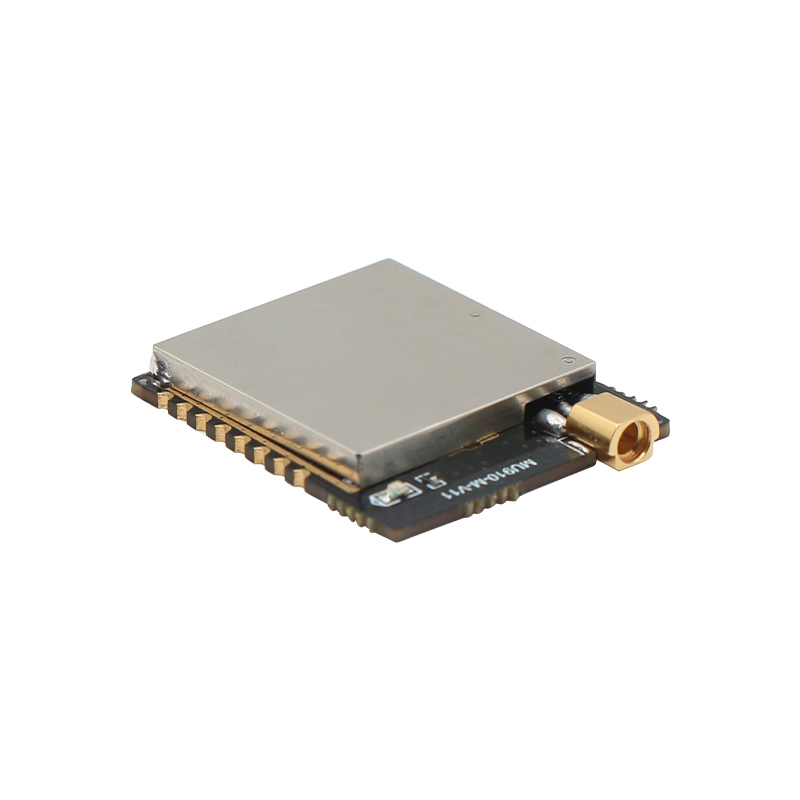

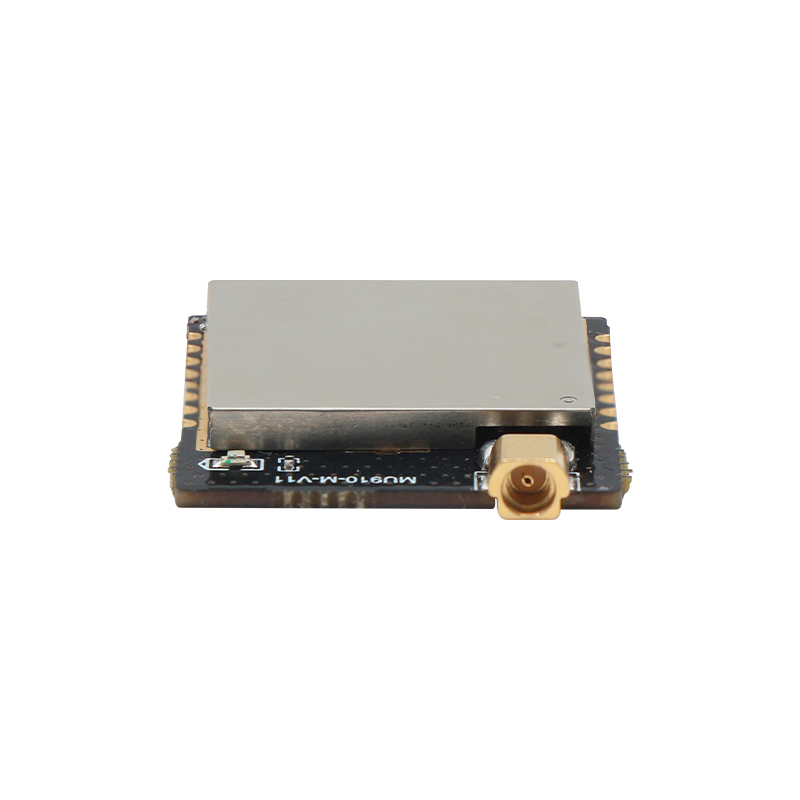

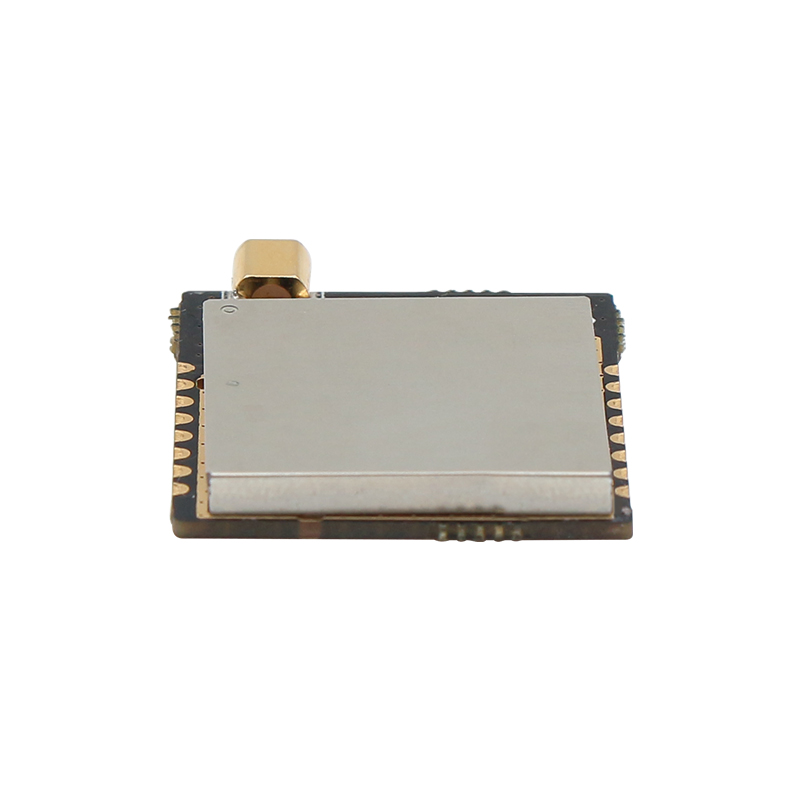

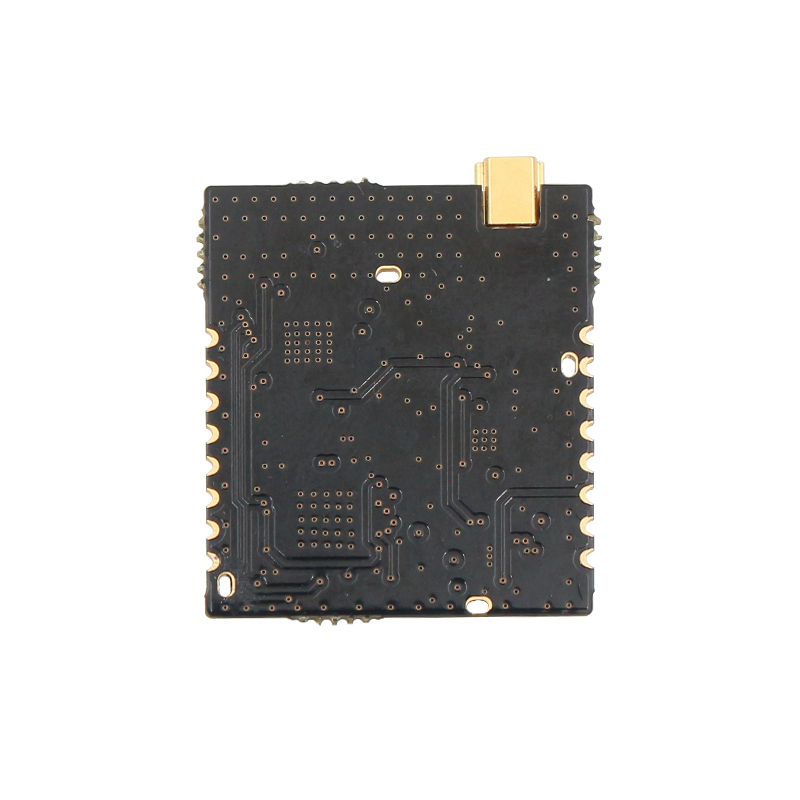

Details display



Wiring Definition

Pin

Definition

Describe

1

Beeper

Buzzer control (high level valid buzzer output TTL, requires external drive.)

2

Reserved

Reserved

3

RXD

Serial communication data input terminal

4

TXD

Serial communication data output terminal

5

GPO2

General output port 2

6

GPO1

General output port 1

7

GPI2

General input port 2

8

GPI1

General input port 1

9

VCC

Power supply

10

GND

Ground

11

EN

Enable terminal (high level valid 3.3V)

12

GND

Ground



13

GND

14

GND

15

GND

16

Ant

Can be customized as antenna port





Interface Plates and Fixtures

Single module: Stamp hole welding, embedded use

Module + fixture: connect the interface board to test

Module + fixture + RS232 interface board: can be powered on directly to read the card for testing
