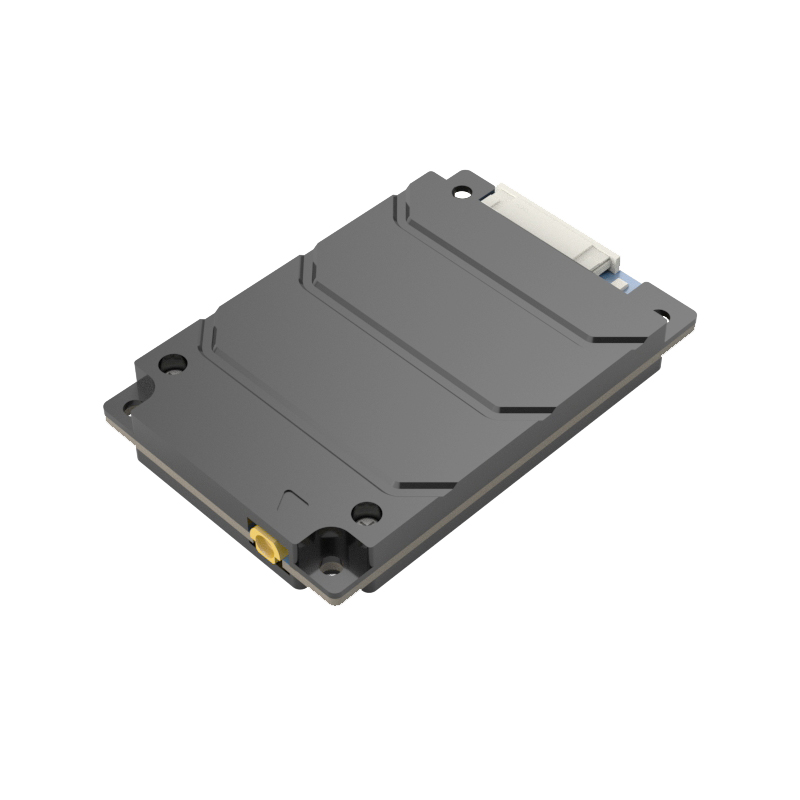

MU912 SENIOR UHF one-channel module

- The maximum reading speed can reach 300 tags/s
- Support RSSI to identify tag signal distance
- 1 set of GPI & 1 set of GPO, can control external devices
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: warehouse management, production control, asset tracking, laundry management, smart cabinets, garbage management, etc.

Product Specifications

RFID Technical Parameters				Data Communication

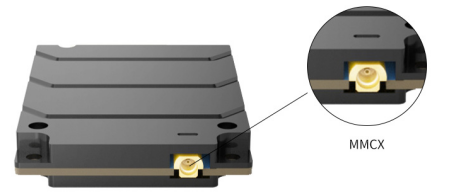

Frequency	902~928MHz (US）865~868MHz （EU）			Antenna port		1 MMCX female connector
Protocol	ISO18000-6C (EPC GEN2)			Communication interface		TTL Uart interface, baud rate 115200bps
RF output power	0-33dbm (adjustable)			GPIO interface		3.3V 1 input 1 output
Read speed	300 tags/s			Operating voltage		3.6--5.5V
Data cache	1000 @96bit EPC labels			Operating mode power consumption		<1.5W (typical)
Reading distance	0-25 meters (depending on the selected tag and antenna)			Standby mode power consumption		0.25W
External antenna	The standing wave ratio is recommended to be less than 1.5			Sleep mode power consumption		0.05W
Working mode	Active mode Answer mode			Logic level		VIL -0.5~0.8V VIH +2~3.3V

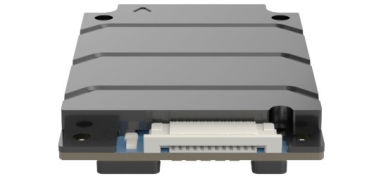

RSSI	support			Connector		12pin pin header, 1.25mm spacing molex 53261-1571
Environmental parameters				Development Environment
Cooling method	External cooling			SDK	Demo software, API, examples, user manual
Operating temperature	-40℃--+65℃			Development language	C#, Delphi, Java, Python, VB and other languages
Storage temperature	-45℃--+85℃			Firmware version	Support online upgrade
Operating humidity	<95% (25℃)			Physical parameters
				Size		57x36.8x7.3mm
				Weight		22.2g

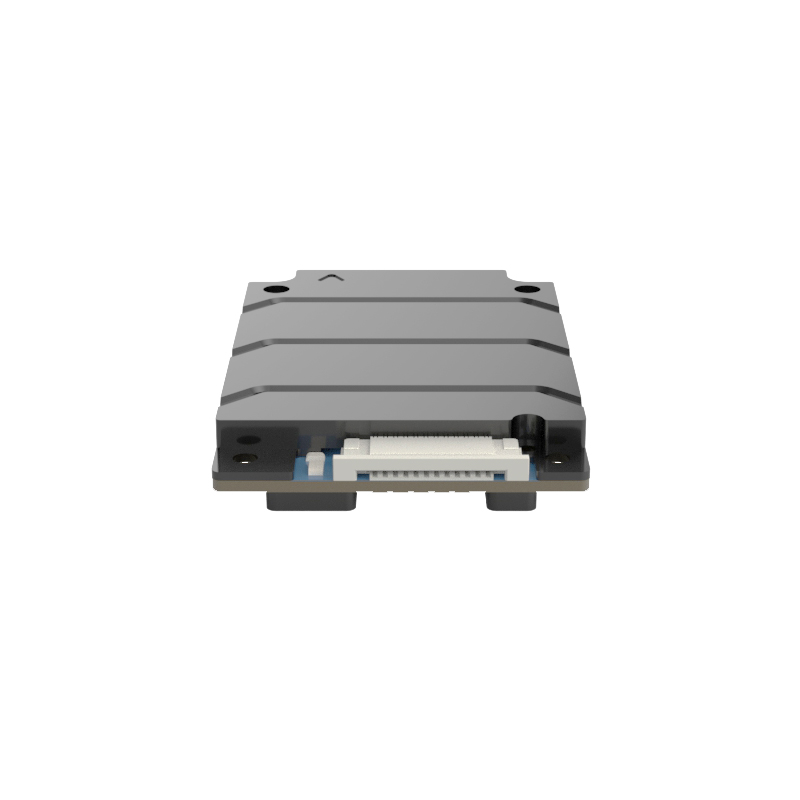

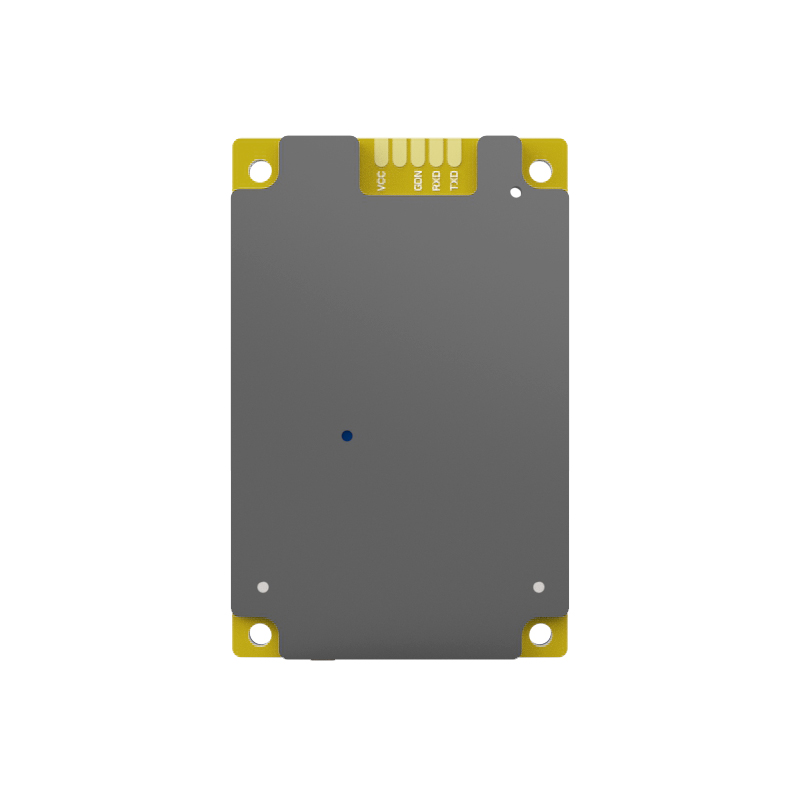

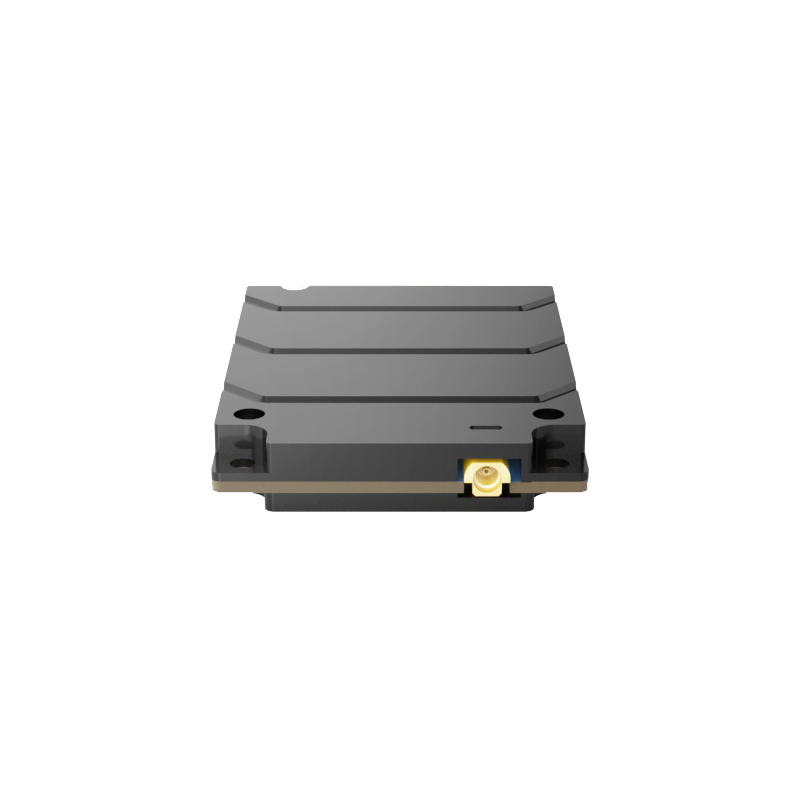

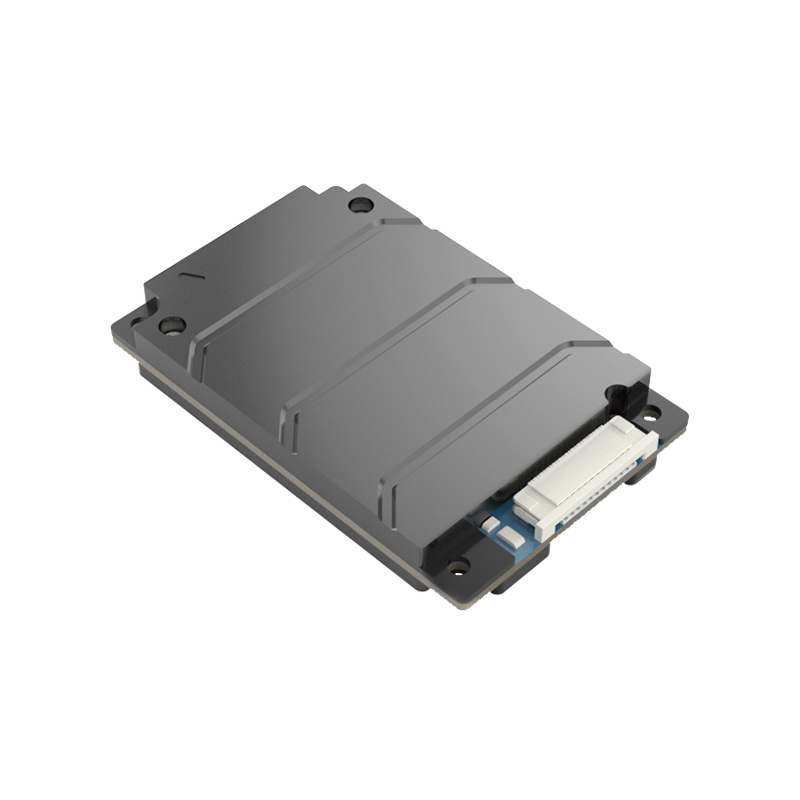

Details display

Wiring Definition
Pin	Definition	Describe
1	VCC	Power supply
2	VCC	Power supply
3	GND	Ground
4	GND	Ground
5	EN	Enable terminal, high level is valid (internal 10k resistor can be selected to pull up to VCC)
6	Reserved	reserve
7	Reserved
8	Reserved
9	RXD	Serial communication data input terminal
10	TXD	Serial communication data output terminal

11	Reserved	reserve
12	Reserved	reserve

Interface Board

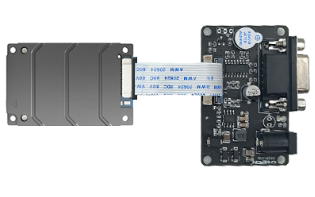

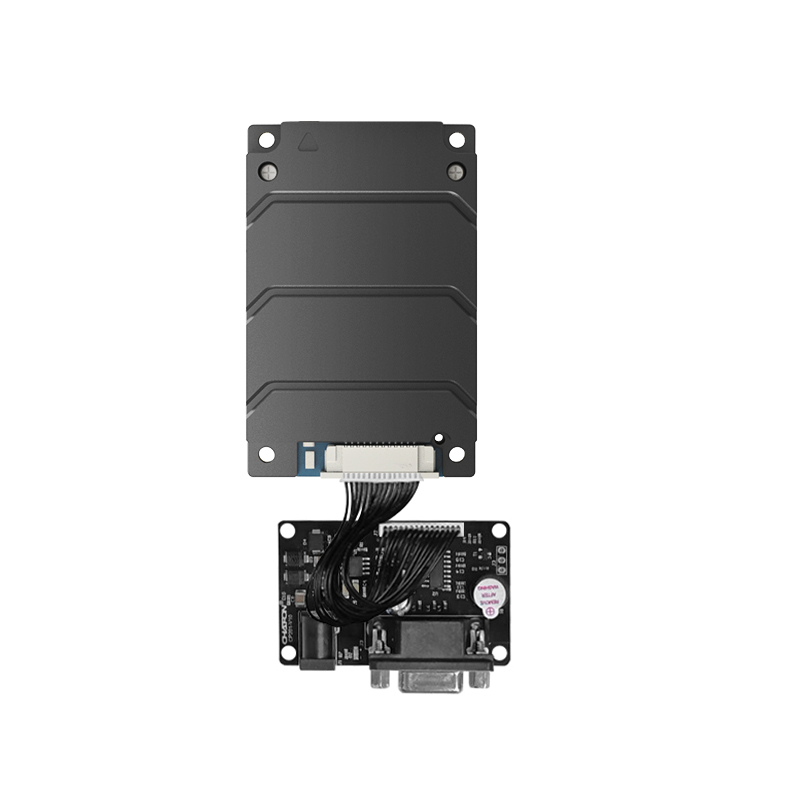

Single module	Module + RS232 interface board (optional)

Related Products

Model	MU912	MU914	MU918
Output RF Power	0dbm ~33dbm (adjustable)
Reading Speed	300pcs/s
Reading Distance	0~25 meters (depending on antenna & tag & application environment)
Antenna Port	1 MMCX female connector	4 SMA female connectors	8 SMA female connectors
