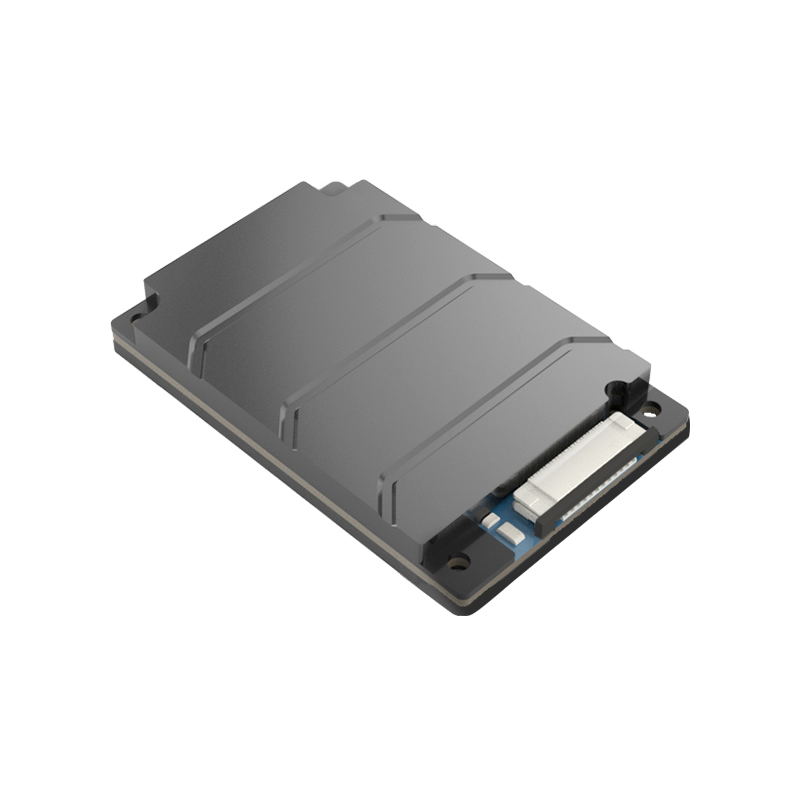

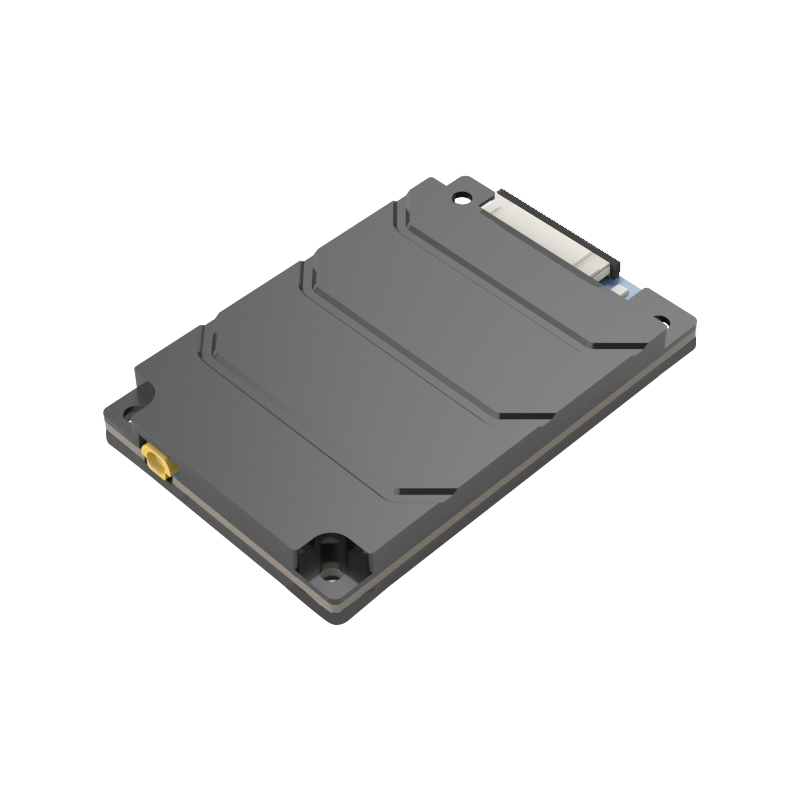

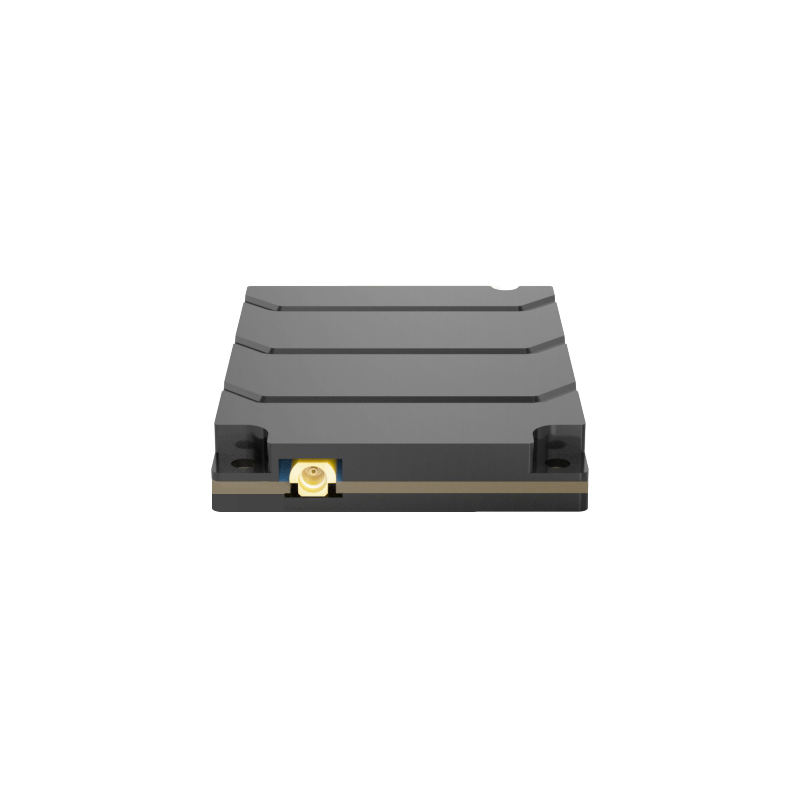

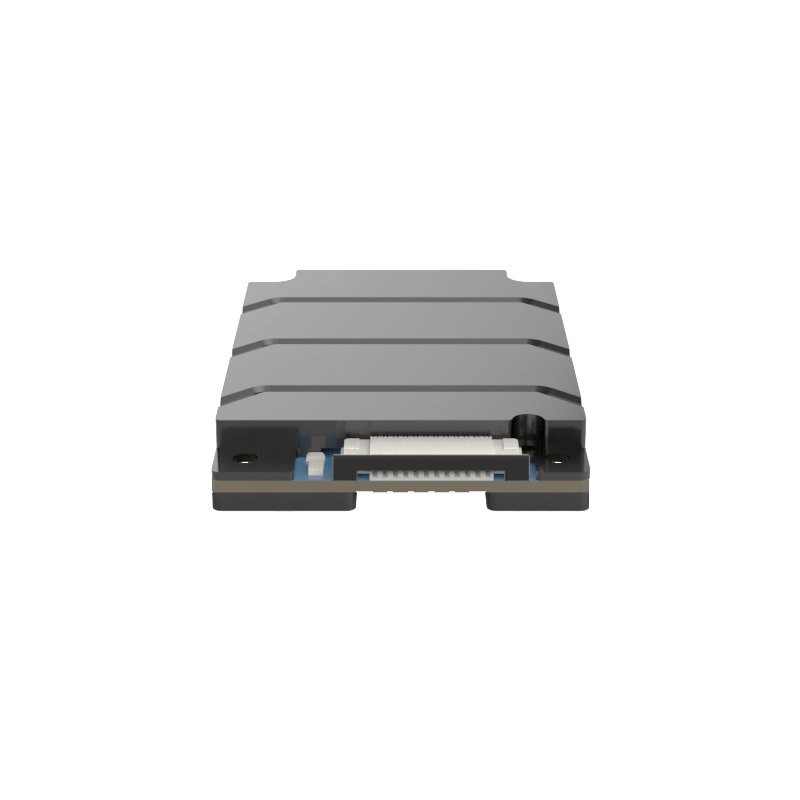

CF-E710 UHF RFID Single-channel Module

- The maximum reading speed can reach 1000 tags/s
- Support RSSI to identify tag signal distance
- 2 groups of GPI & 2 groups of GPO, can control external devices
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: warehouse management, production control, asset tracking, laundry management, smart cabinets, garbage management, etc.

Product Specifications

Technique Parameters			Data Communication

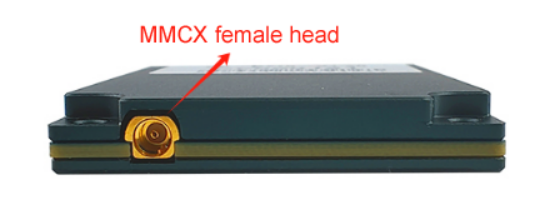

Frequency	902~928MHz (US）865~868MHz （EU）		Antenna port	1 MMCX female connector
Protocol	ISO18000-6C (EPC GEN2)		Communication interface	TTL Uart interface, baud rate 115200bps
Chip solution	Impinj E710		GPIO interface	Works in wide spectrum frequency hopping (FHSS) or fixed frequency transmission mode
RF output power	0-33dbm (adjustable)		Operating voltage	3.8--5.5V
Read speed	1000 tags/s		Operating mode power consumption	<6.9W (typical value)
Data cache	1000 @96bit EPC tags		Standby mode power consumption	0.25W
Read distance	0-30 meters (depending on the selected tag and antenna)		Sleep mode power consumption	0.05W
Working mode	Active mode Answer mode		Logic level	VIL -0.5~0.8V VIH +2~3.3V
RSSI	support		Connector	12pin pin header
Environmental parameters			Development Environment
Cooling method	External cooling		SDK	Demo software, API, examples, user manual
Operating temperature	-20℃~+55℃		Development language	C#, Delphi, Java, Python, VB and other languages
Storage temperature	-45℃~+85℃		Firmware version	Support online upgrade
Operating humidity	<95% (25℃)		Physical parameters

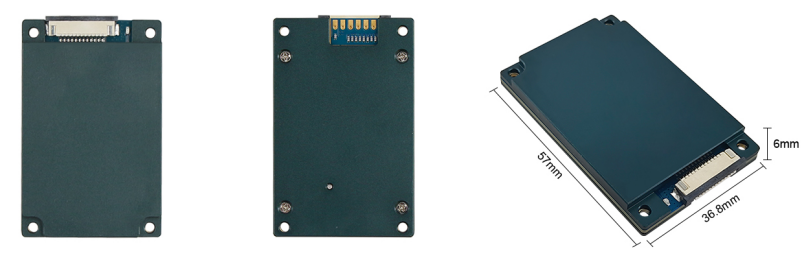

			Size	5736.86mm
			Weight	25g

Details display

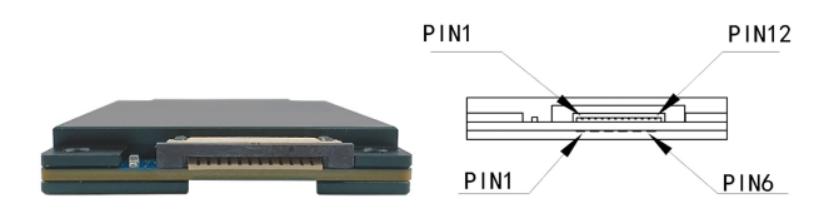

Wiring Definition

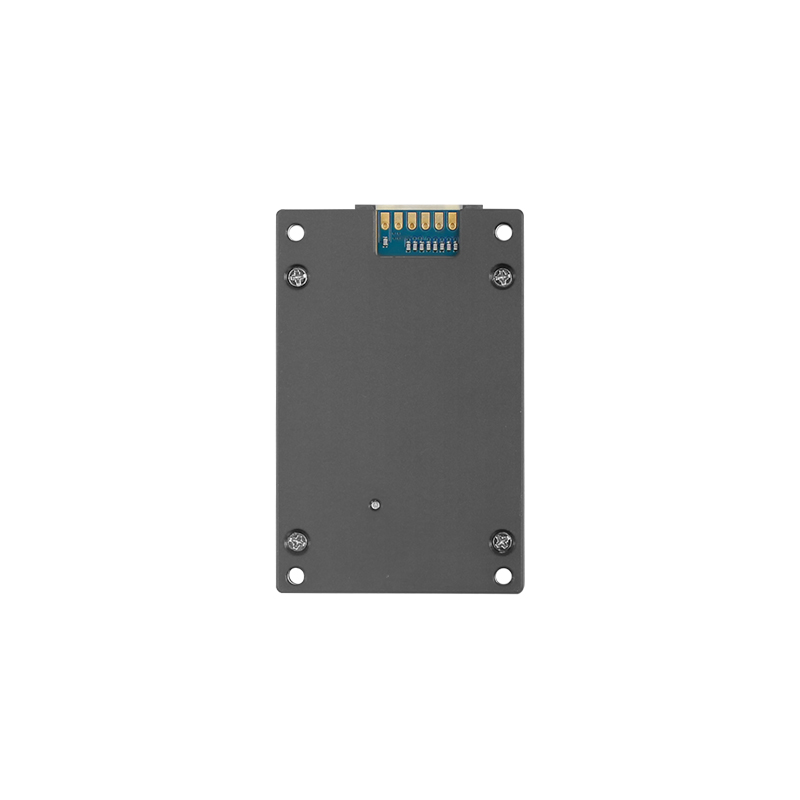

Socket number	Bottom pad number	symbol	describe
1	1	VCC	Power
2	1	VCC	Power
3	2	GND	Ground
4	2	GND	Ground
5	3	EN	Enable terminal, high level is valid (internal 10k resistor can be selected to pull up to VCC)
6		Reserved	reserve
7		Reserved	reserve

8	4	Reserved
9	5	RXD	Serial communication data input terminal

10	6	TXD	Serial communication data output terminal
11		Reserved	reserve
12		Reserved	reserve

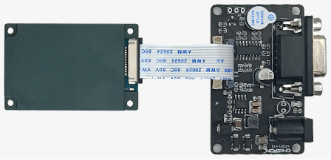

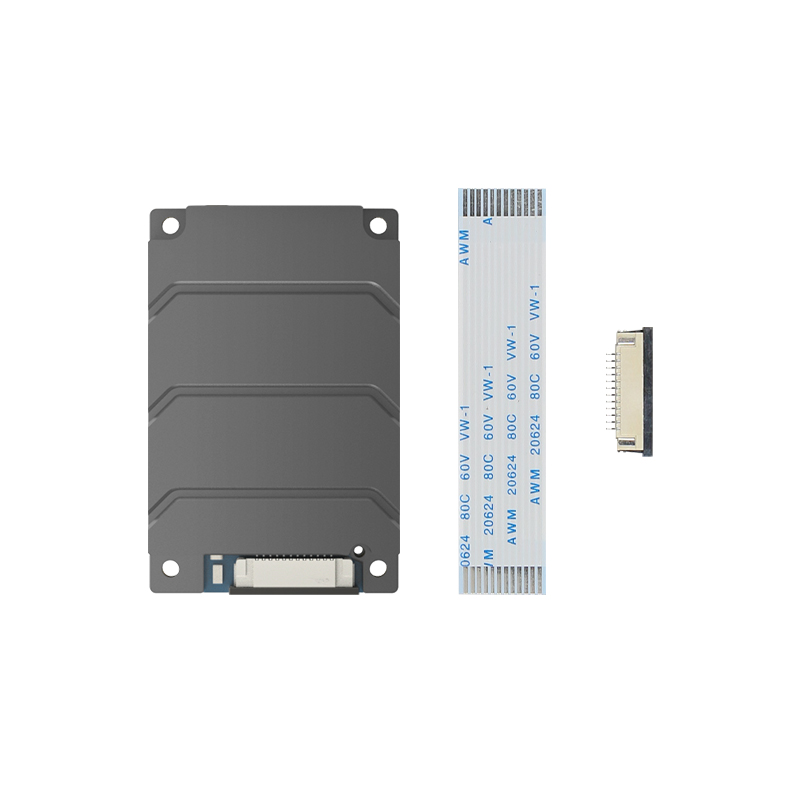

Interface Board


Single module	Module + RS232 interface board (optional)

Related Products

Model	CF-E710	CF-E714	CF-E718
RF output power	0dbm ~33dbm (adjustable)
Reading speed	1000pcs/s
Reading distance	0~30 meters (depending on antenna & tag & application environment)
Antenna port	1 MMCX female	4 SMA female	8 SMA female

Application

RFID Vehicle Management Solution

Introducing RFID technology into daily vehicle management scenarios.
UHF integrated reader can automatically read tag and upload data to the control system.
Ensure that the road gate can still be opened and closed automatically according to the vehicle identification When no one's in control.
To help property owners to effectively limit vehicles access, convenient fee management,etc.

RFID Timing System Solution

Install UHF fixed reader & UHF antenna at Start/Finish line and Checkpoint.
When runners with UHF tag passing these points, UHF fixed reader will automatically collect tag data and upload these tag data to the system.

RFID Ski Resort Ticket Management Solution

Using RFID equipment in the ticketing system of the ski resort.
Realize automatic identification of labels and automatic ticket checking.
Reduce the tedious process of manual checking tickets, reduce the waiting time for skiing enthusiasts, and improve the efficiency of the ski resort.

RFID Library Management Solution

Using RFID technology and UHF equipment to build a complete library intelligent management system.
It can not only check the inventory, but also protect the books against theft.
A complete library management system mainly includes the following five parts: label authorization, shelf management, manual borrowing and returning, self-service borrowing and returning, anti-theft detection.

RFID Intelligent Cabinet solution

Introducing RFID technology in the intelligent cabinet system can quickly and effectively manage the items in the cabinet.
It can automatically collect data in terms of item classification, inventory quantity, etc., and timely and accurately grasp the real data in the cabinet.

RFID Warehouse Management Solution

Under the existing warehouse management, warehouse management system introduces RFID technology to collect the data automately of various operational aspects such as Arrival Inspection, Inbound, Outbound, Redeployment, transfer to different location, Stock Inventory, etc.
