CF6A1E Fast UHF E710 9dbi integrated reader
- Support password/mask mode, high security
- Relays can supply power and trigger external devices to work
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: vehicle management, asset anti-theft, weighing scales, animal management, personnel management, etc.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
902~928MHz（US） 865~868MHz（EU） |
Standard interface |
RS232, Wiegand, Relay |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Optional interface |
TCP/IP、POE、WIFI |
|
|
RF output power |
0dbm-33dbm (adjustable) |
Customizable interface |
USB、TTL、RS485 |
|
|
Chip solution |
Impinj E710 |
Power supply |
12V 2A |
|
|
Built-in antenna |
9dBi |
Card reading prompt tone |
Buzzer |
|
|
Polarization mode |
Circular polarization |
Indicator light |
Strip light, red & green |
|
|
Reading distance |
0-20 meters |
Development |
|
|
|
Special functions |
Support password/mask function |
SDK |
Demo software, API, examples, user manual |
|
|
Working mode |
Active mode Trigger mode Answer mode |
Development language |
C#, Delphi, Java, Python, VB and other languages |
|
|
RSSI |
support |
Firmware version |
Support online upgrade |
|
|
Physical parameters |
|
working environment |
||
|
Material |
ABS+die cast aluminum |
IP protection level |
IP65 |
|
|
Color |
White / Black (customized) |
Operating temperature |
-10~+55℃ |
|
|

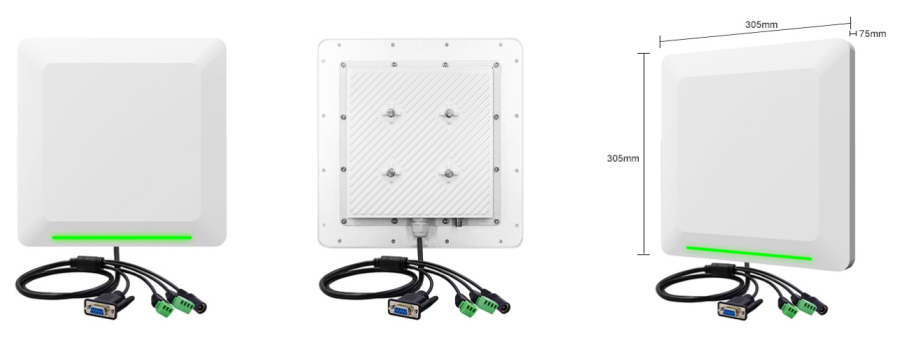

Dimensions |
305*305*75mm |
Storage temperature |
-20~+75℃ |
|
|
Net Weight |
2kg |
|
|
|
Details display
|

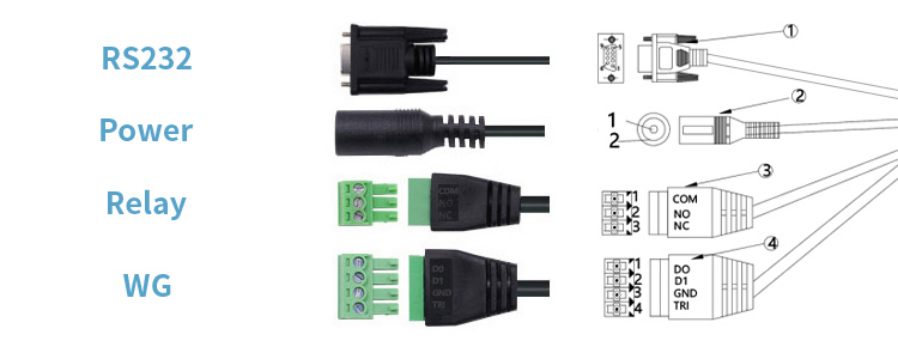

Standard interface wiring definition |
|||||||||||
|
DC Power Supply |
RS232 |
Wiegand |
Relay |
||||||||
|
12V |
GND |
TX |
RX |
GND |
D0 |
D1 |
GND |
TGIN |
NO |
NC |
COM |
|
Red |
black |
Light green |
yellow |
pink |
green |
White |
brown |
blue |
Purple |
orange |
grey |
|

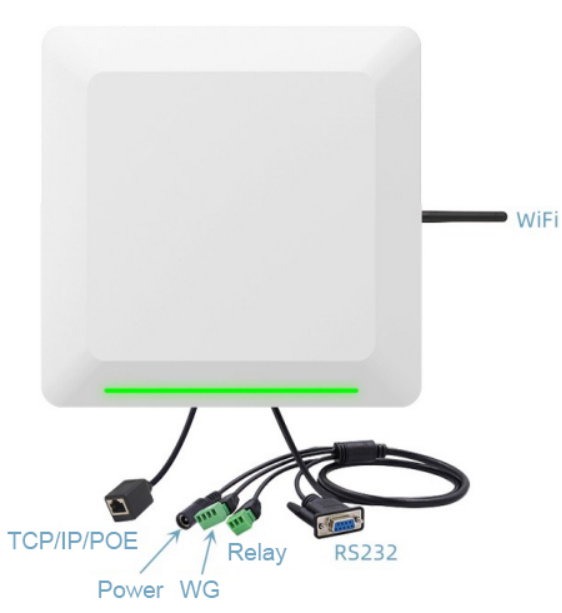

Model Definition |
|
|
Model |
Interface |
|
CF6A1E |
RS232, Wiegand, relay, power port |
|
CF6A2E |
RS232, Wiegand, relay, power port, TCP/IP |
|
CF6A3E |
RS232, Wiegand, relay, power port, POE |
|
CF6A4E |
RS232, Wiegand, relay, power port, WIFI |
|
CF6A5E |
RS232, Wiegand, relay, power port, TCP/IP, WIFI |
Related Products
|
Image |
|
|
|
|
|
Model |
CF6A1G |
CF6A1E |
CF6C1G |
CF6C1E |
|
Output RF power |
0dbm ~33dbm (adjustable) |
|||
|
Chip solution |
/ |
Impinj E710 |
/ |
Impinj E710 |
|
Reading distance |
0~15 meters (depends on antenna & tag & application environment) |
0~20 meters (depends on antenna & tag & application environment) |
0~20 meters (depends on antenna & tag & application environment) |
0~25 meters (depends on antenna & tag & application environment) |
|
Gain |
9dBi |
9dBi |
12dBi |
12dBi |
|
Polarization mode |
Circular Polarization |
Circular Polarization |
Linear polarization |
Linear polarization |
|
Dimensions |
305*305*75mm |
305*305*75mm |
415*415*67mm |
415*415*67mm |
