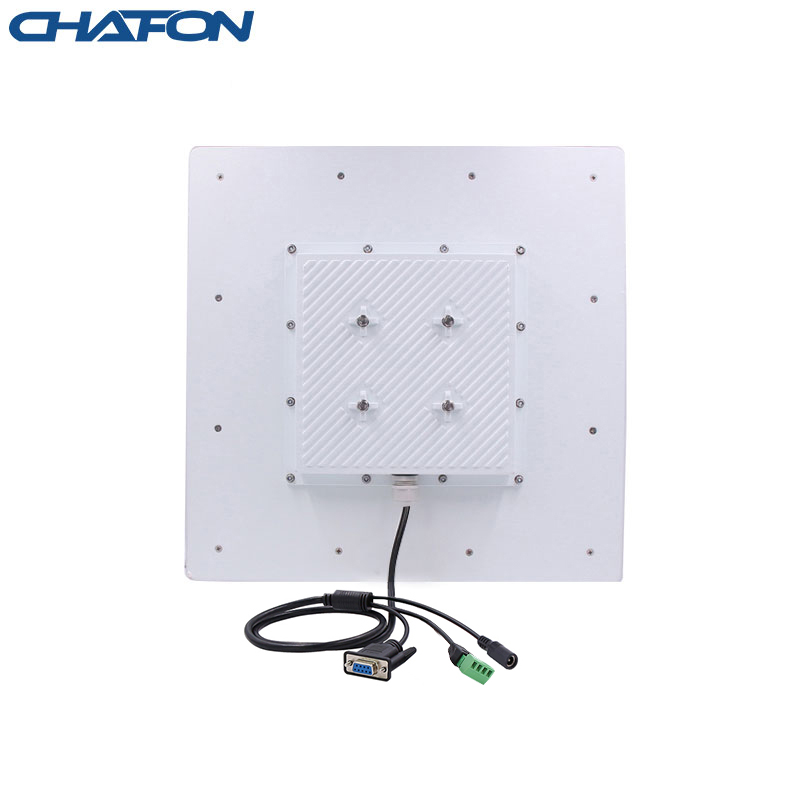

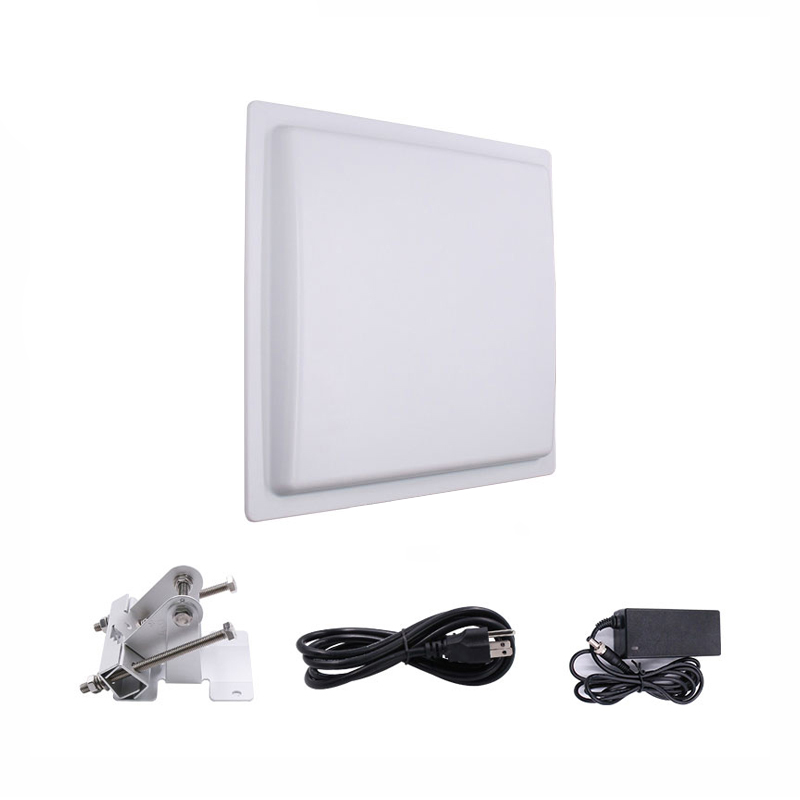

CF5C1 Access UHF 12dbi integrated reader

- Support RSSI to identify tag signal distance
- Wiegand interface is an international standard and can be connected to the gate control panel
- Support multiple language development, including C#, Delphi, Java, Python, VB, etc.
- Applications: vehicle management, asset anti-theft, weighing scales, animal management, personnel management, etc.

Product Specifications

RFID Technical Parameters



Data Communication

Frequency

902~928MHz（US）

865~868MHz（EU）

Standard interface

RS232, Wiegand, trigger, power port

or USB, Wiegand, trigger, power port

Protocol

ISO18000-6C (EPC GEN2)

Power supply

12V 2A

RF output power

0dbm-26dbm(Adjustable)

Card reading prompt tone

buzzer

Built-in antenna

12dBi

 Delopment Environment

Polarization mode

Linear polarization

SDK

Demo software, API, examples, user manuals

Working mode

Active mode

Answer mode

Trigger mode (optional)

Development language

C#, Delphi, Java, Python, VB and other languages

Reading distance

0-15 meters

Physical parameters

RSSI

Support

Material

ABS

working environment

Color

White

IP protection level

IP65

Dimensions

450*450*80mm

Operating temperature

-10~+55℃

Net Weight

3.5kg

Storage temperature

-20~+75℃

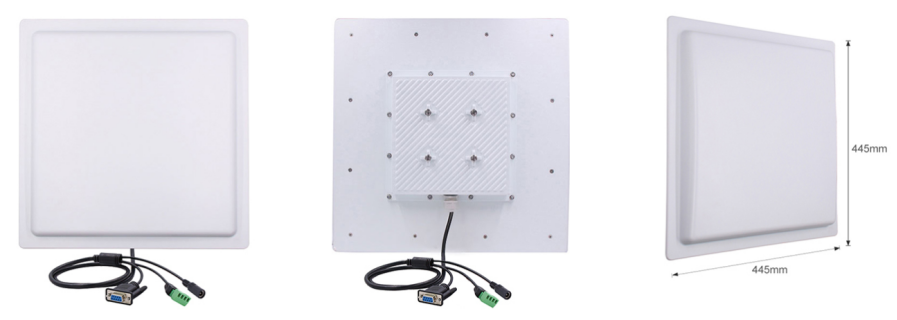

Details display

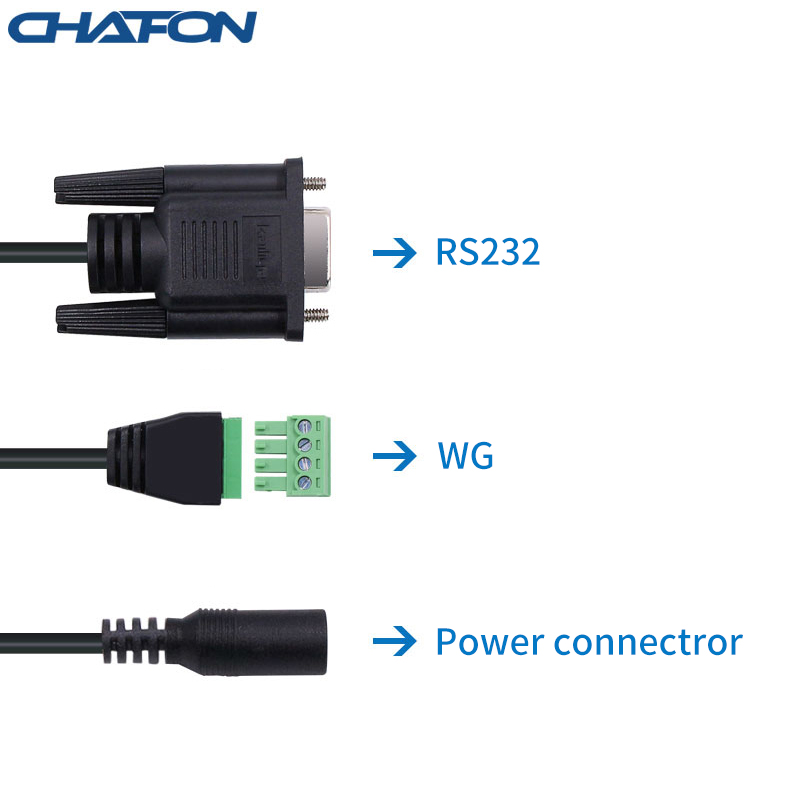

RS232, Wiegand, trigger wiring definition

Item

symbol

describe

Red

12V

Power supply (voltage 9V~24V current 0~3A)

Black

GND

Ground

Green

D0

Wiegand BITO output

White

D1

Wiegand BIT1 output

Brown

GND

Ground

Blue

TGIN

Universal input (voltage 2~5V)





Model Definition

model

interface

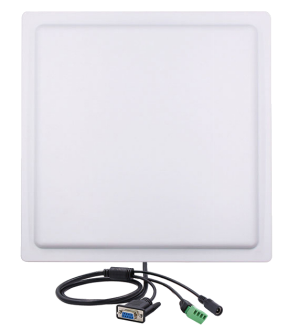

CF5C1-R

RS232, Wiegand, trigger, power port

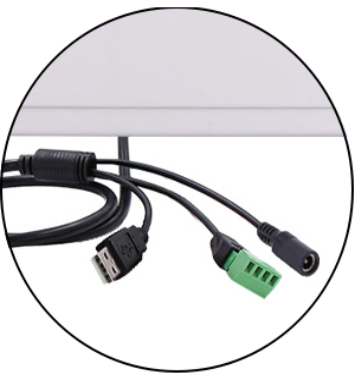

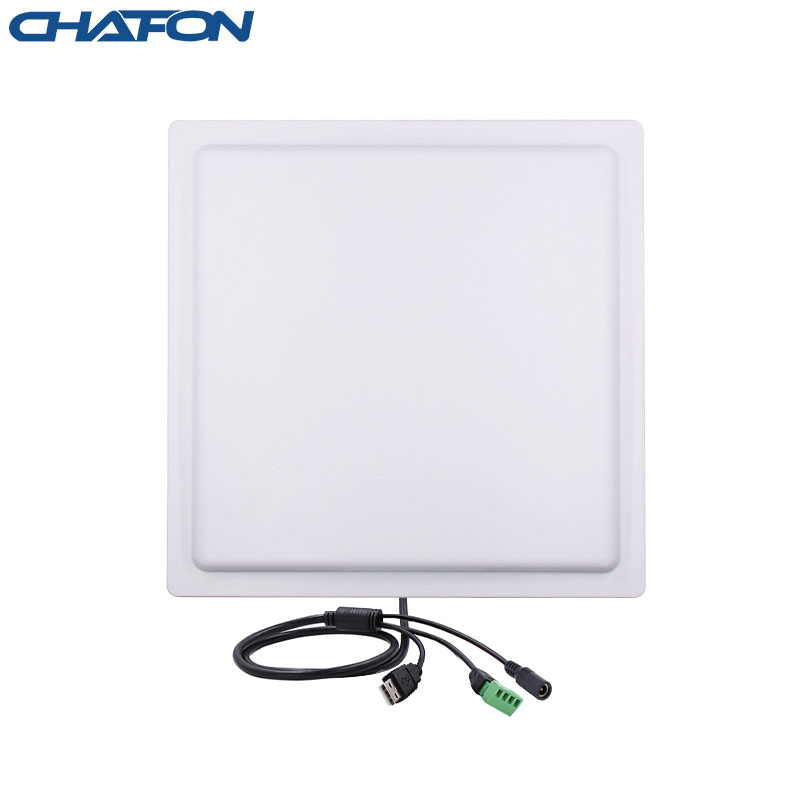

CF5C1-U

USB, Wiegand, trigger, power port



Related Products


Model

CF561

CF591

CF5C1

Output RF Power

0dbm ~26dbm (adjustable)

Reading Range

0~6 meters

(depends on antenna & tag & application environment)

0~10 meters

(depends on antenna & tag & application environment)

0~15 meters

(depends on antenna & tag & application environment)

Gain

6dBi

9dBi

12dBi

Polarization

Circular polarization

Circular polarization

Linear polarization

Dimensions

220*220*56.4mm

260*260*60mm

450*450*80mm
