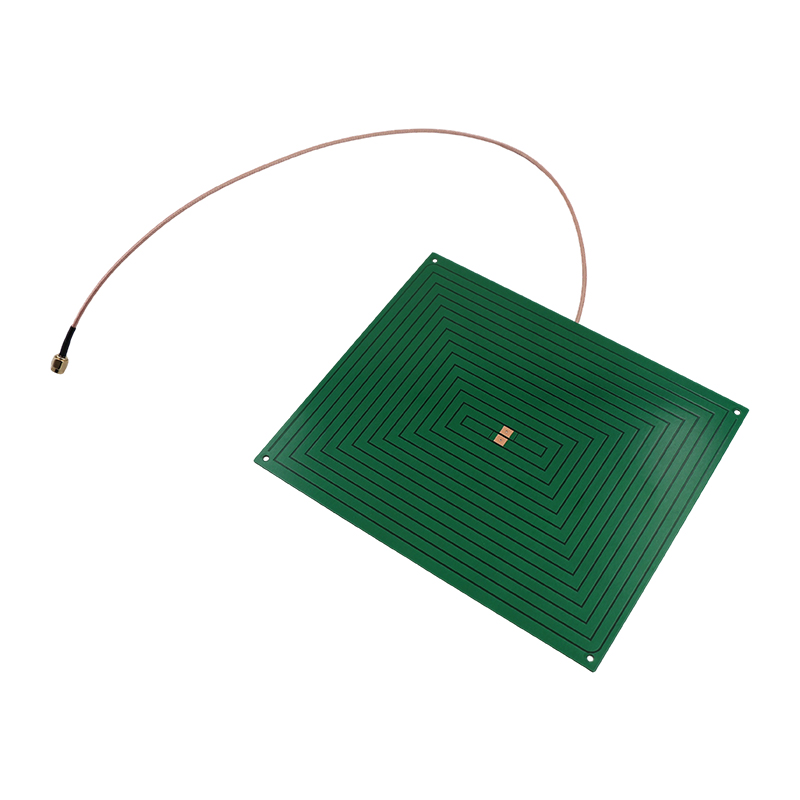

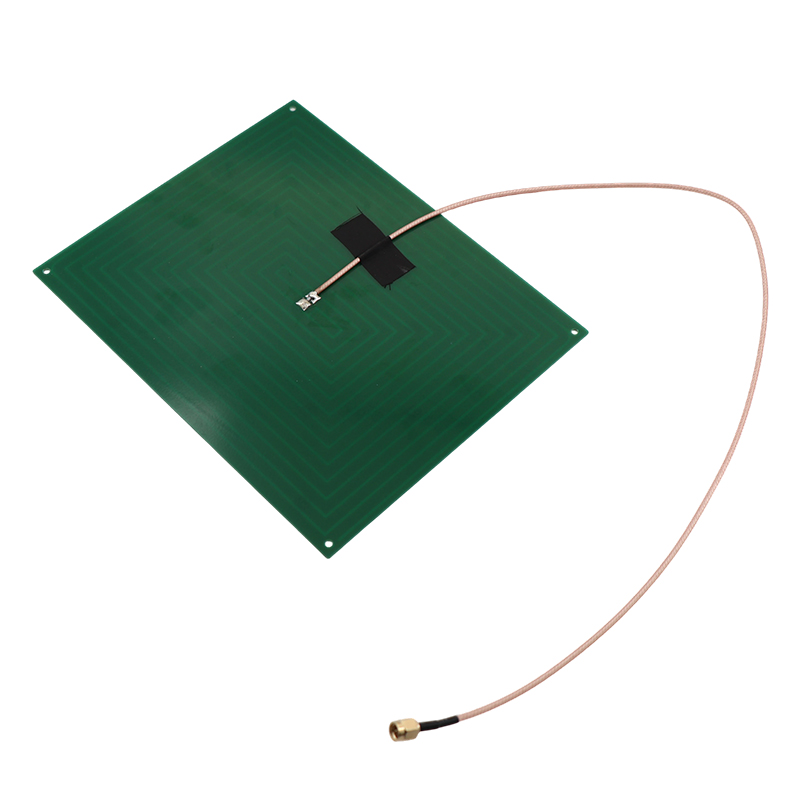

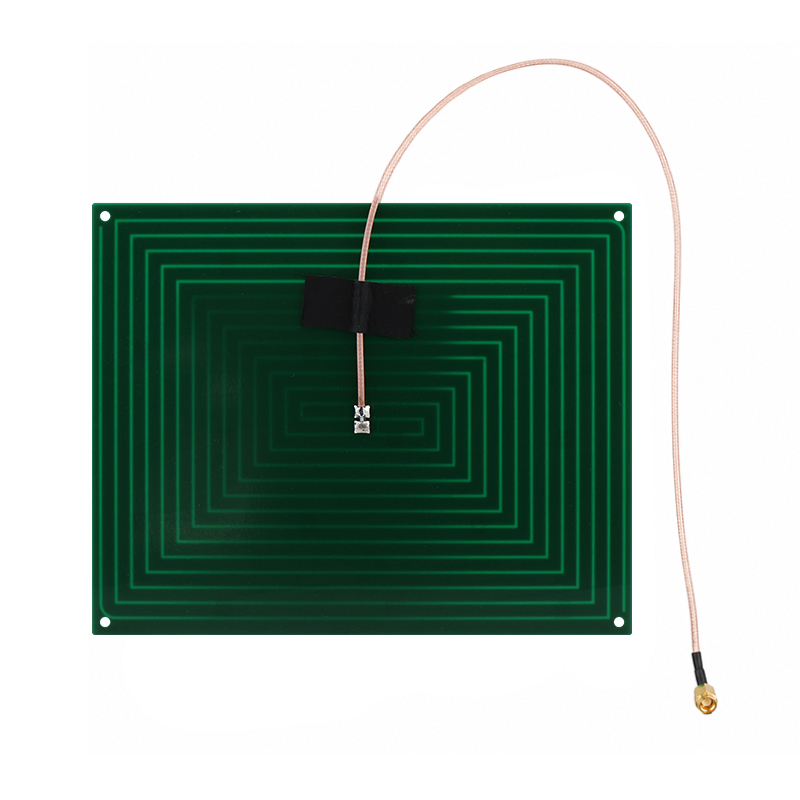

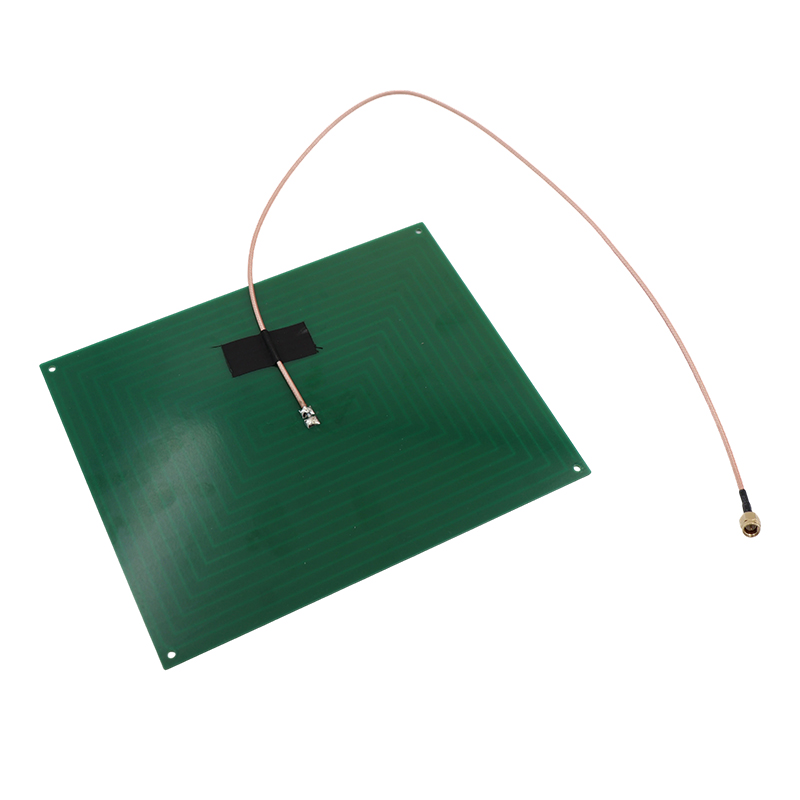

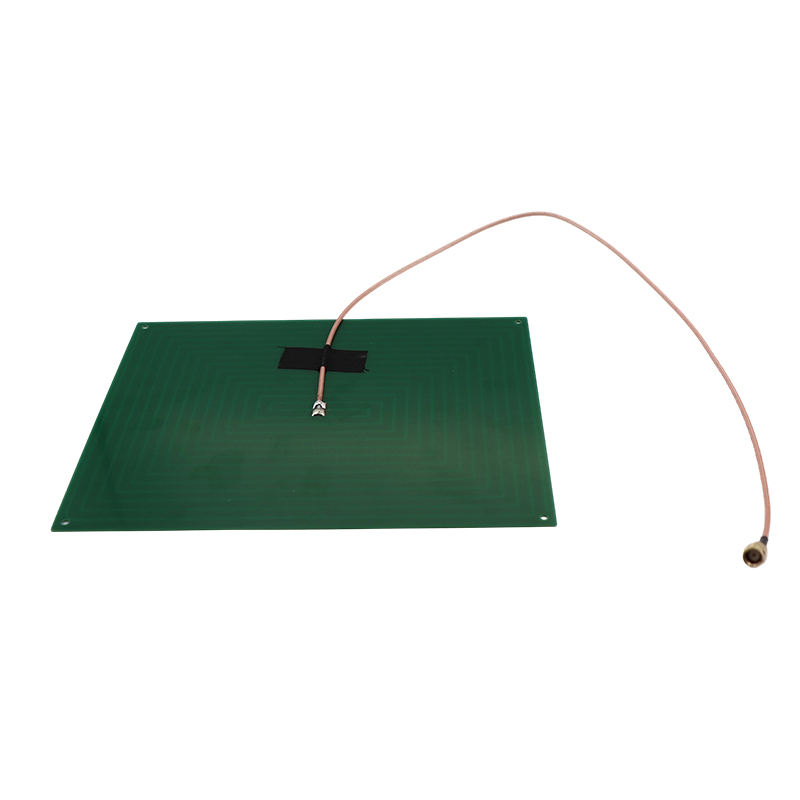

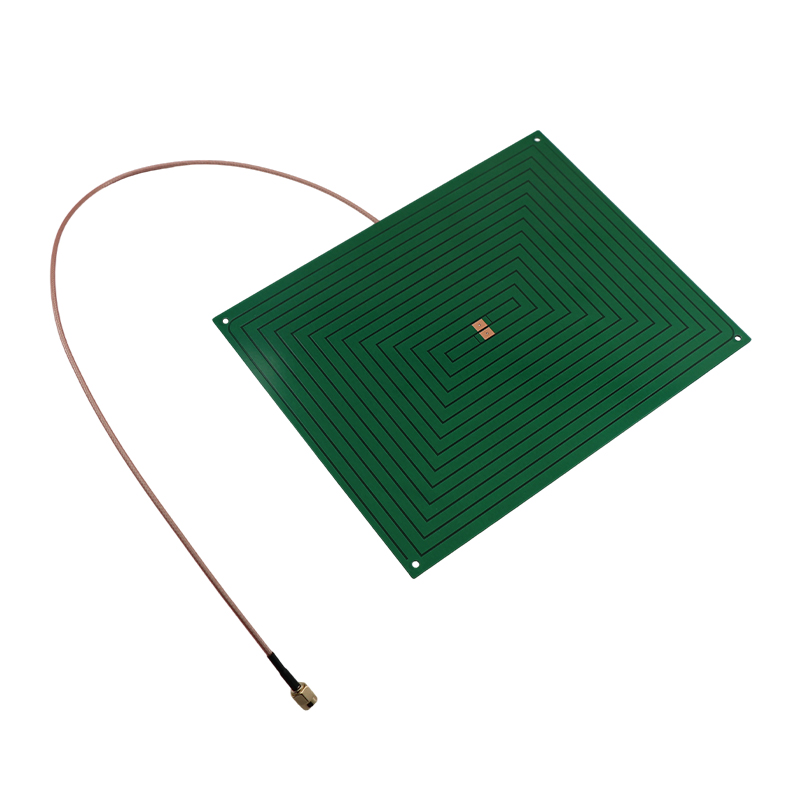

CF-RA001 RFID 0dBi Near-Field Directional PCB Antenna
Externally soldered exposed wire length: 30 cm (customizable), RG316 cable, SMA-J connector, green solder mask
Applications: Smart retail, warehouse logistics, asset management, document management, etc.
Applications: Smart retail, warehouse logistics, asset management, document management, etc.
Product Specifications
|
RFID Parameters |
|
|
Frequency |
860~940MHz |
|
Gain |
＞0dBi |
|
Impedance |
50Ω |
|
Polarization |
Circular Polarization |
|
VSWR |
≤1.3 |
|
Beam Width |
75°/93° |
|
Power Rating |
10W |
|
Connector |
SMA-J |
|
Physical Parameters |
|
|

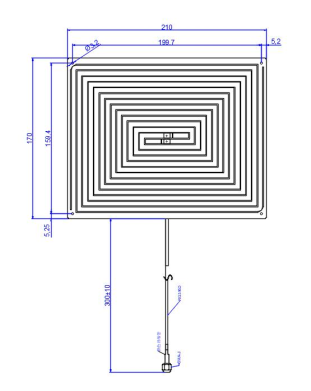

Dimensions |
210×170×1 mm |
|
Antenna body material |
PCB |
|
Color |
Green |
|
Operating Temperature |
-20~+85℃ |
|
Cable Length |
300mm |
