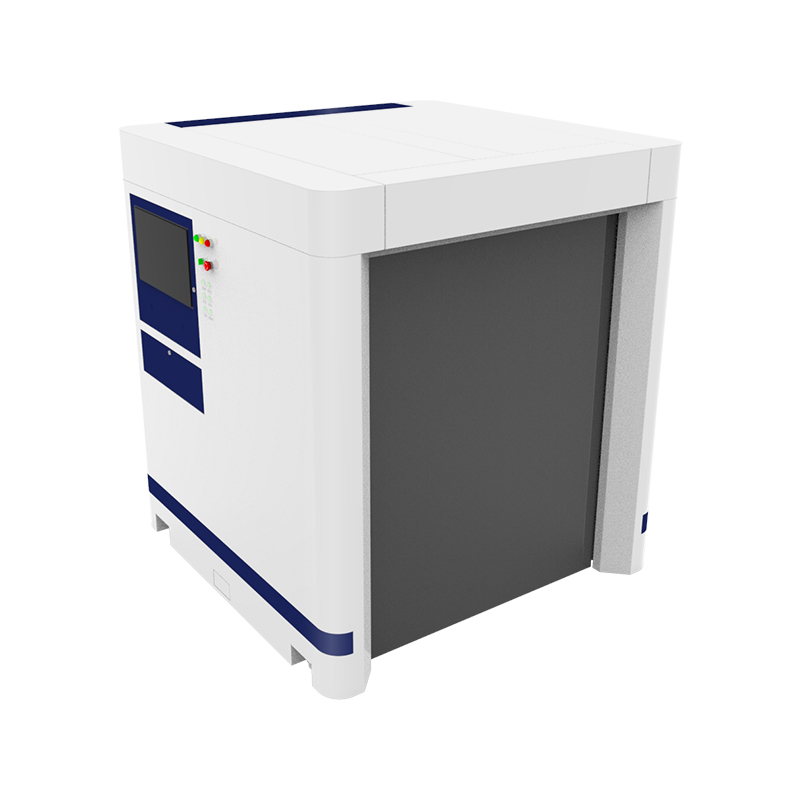

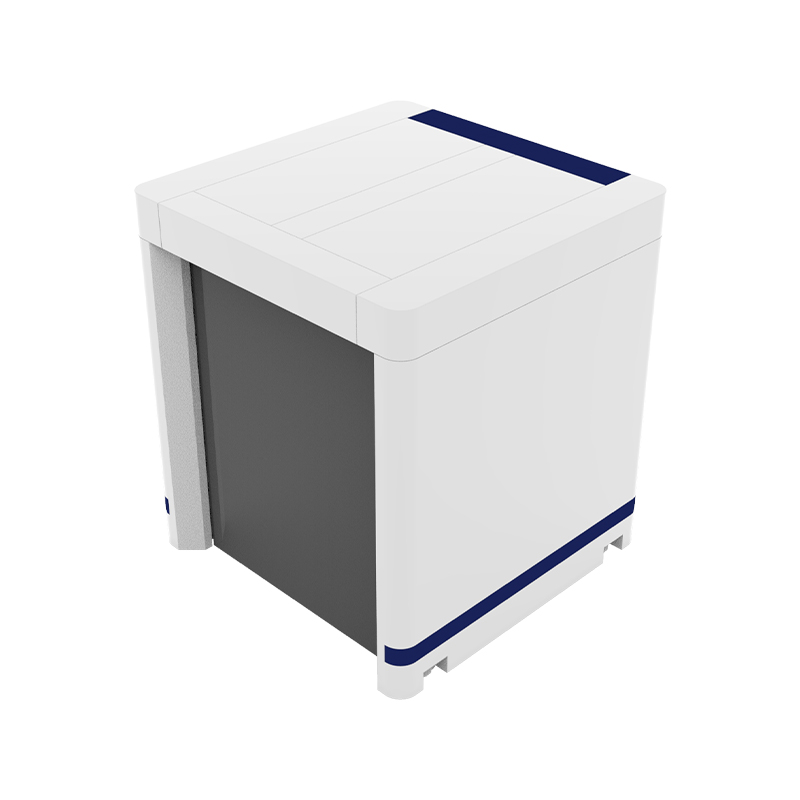

CF-CM02 UHF Small Single-Box Channel Machine
2.Professional motion control and mechanical design technology, effectively solving the problem of missed tag reads
3.Maintenance doors on both sides of the channel for easy equipment servicing
4.Provides secondary development interfaces, including DLL and Demo programs, enabling seamless integration with multiple application platforms
Product Specifications
|
UHF RFID |
|
Key Performance Indicators |
||
|
Protocol |
EPC Global Class1 Gen2/ISO 18000-6C |

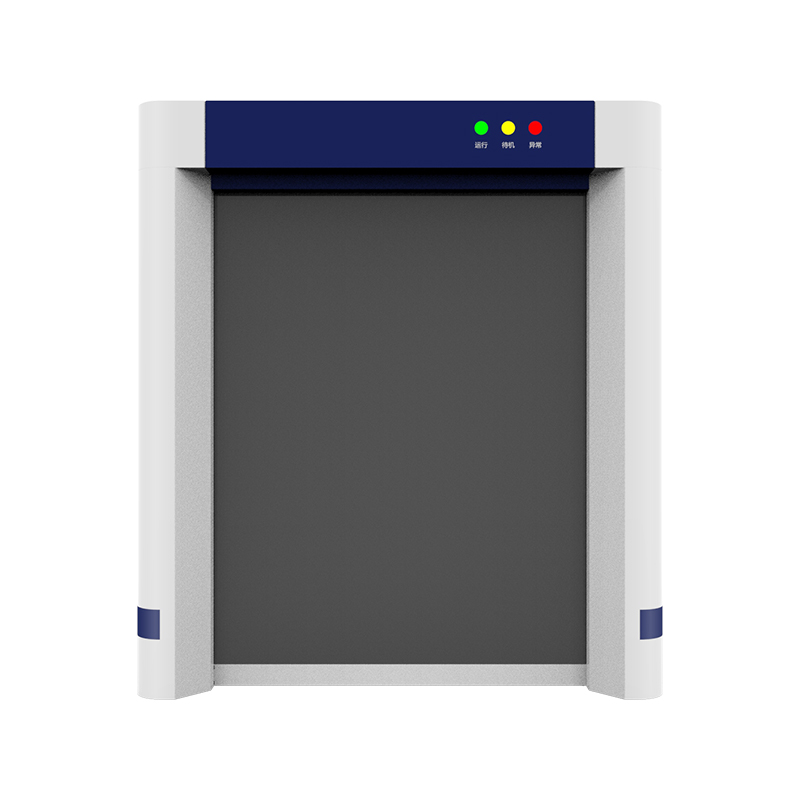

Status Indicator Lights |
Three states: Standby, Running, Abnormal |
|
|
Frequency |
Standard: 902MHz~928MHz (supports region-specific frequency bands) |

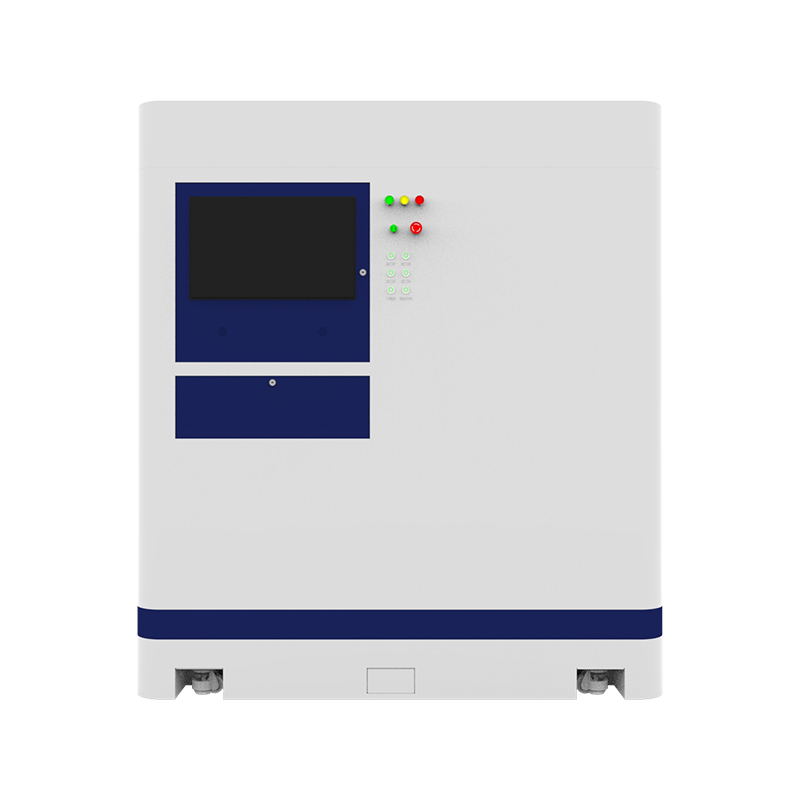

Manual Control Switches |
7 switches: Front/Rear Door Open (1), Front/Rear Door Close (1), Start Conveyor (1), Stop Conveyor (1), Front/Rear Door Reset (1), System Power On/Off (1), Emergency Stop (1) |
|
|
RFID Frequency Mode |
Fixed Frequency / Frequency Hopping, 10 hopping points |
Lifting Arm |
Available, selected based on cost |
|
|
Reader Output Power |
5-33dBm |
Programmable Controller |
Siemens PLC |
|
|
Communication Interface |
RJ45,USB*2 |
Circuit Control System |
Integrated with PLC |
|
|
Working Mode |
Automatic / Manual Mode |
Read/Write Antennas |
8 antenna positions reserved, 10dbi |
|
|
Shielding Distance |
Misread range ≤ 10cm after front/rear shielding roll-up doors close (misread range depends on tag performance) |
Door Opening Speed |
1.5seconds |
|
|
Read/Write Tag Quantity |
2000+PCS |

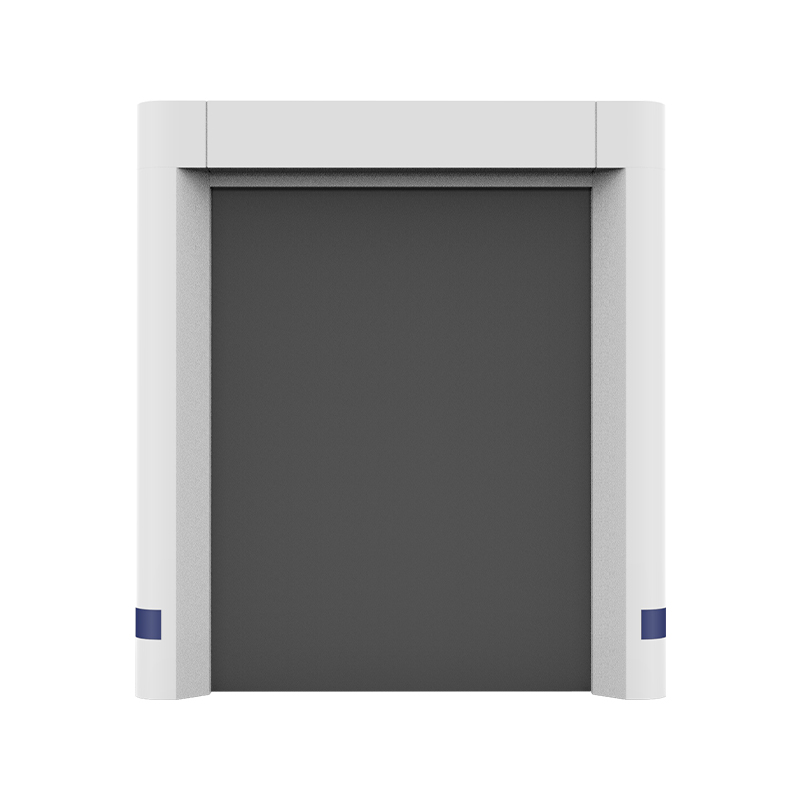

Door Opening Method |
Front/Rear motor-driven shielding roll-up doors |
|
|
Read/Write Device |
E710 (IMPINJ-R420 optional) / Domestic solution |
Motor Type |
Stepper | |
|
Reading Speed |
≤ 10 seconds for 1000 pcs of tags |
Production Line Queue Docking |
No |
|
|
Reading Mode |
Stationary |
Physical Parameters |
||
|
Performance Parameters |

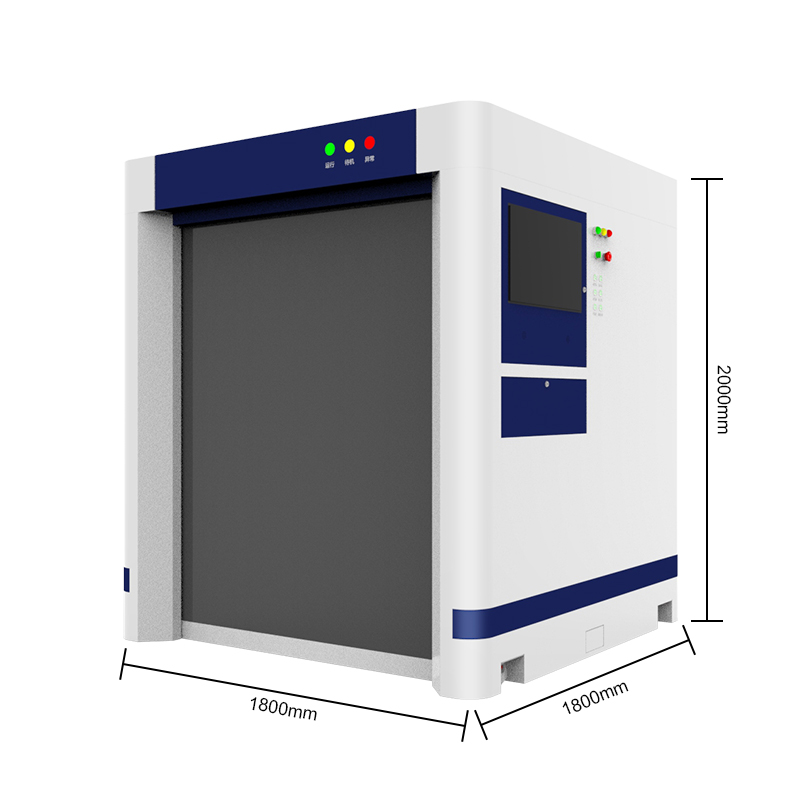

Overall size（mm） |
1800 (W) × 1800 (D) × 2000 (H) |
||
|
Industrial PC Specifications |
J6412/8G+128G /RK3399,4+32G |
Internal Dimensions (mm) |
1300 (W) × 1400 (D) × 1800 (H) |
|
|
Operating System |
Windows / Android |
Max Box Size (mm) |
1200 (W) × 1200 (D) × 1600 (H) |
|
|
Operating Environment Parameters |
Touch Screen Specifications |
15.6-inch Capacitive Screen, 1280*800 (16:9) |
||
|
Working temperature |
-20℃ ~ 60℃ (actual use: -10℃ ~ 50℃) |
Front/Rear Section (mm) |
1025 (W) × 1200 (D) × 650 (H) |
|
|
Storage Temperature |
-10℃~60℃ |
Housing Material |
Carbon Steel Spray Painting (Industrial Gray + Tech Blue) |
|
|
Operating Humidity |
20~95% (non-condensing) |
Power Supply |
|
|
|
|
|
Operating voltage |
220VAC（±10%）50±3HZ |
|
|
|
|
Power |
300W |
|
|
Image |
|
|
|
Model |
CF-CM01 |
CF-CM02 |
|
Out Power |
5-33dbm |
|
|
Reading speed |
Within 5 seconds |
|
|
Operating system |
Windows/Android optional |
|
