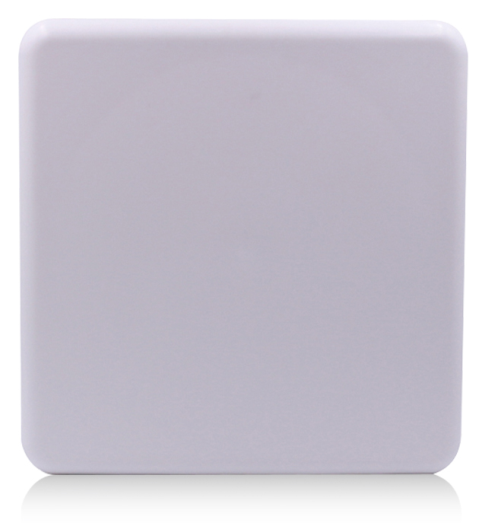

CF-RA9003 UHF 9dBi outdoor panel antenna

-IP67 protection level, suitable for outdoor scenes

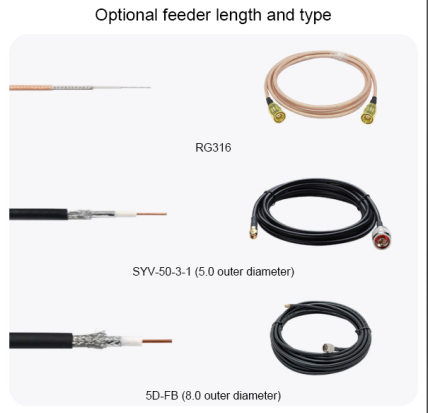

-Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
-Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.

Product Specifications

RFID parameter



Technical Parameter

Frequency

865-868MHz（EU）

902~928MHz（US）



Max Power

100W

Gain

9dBi



Wind receiving area

≦0.2m³

Reading distance

0-10meters（depend on fixed reader and tag type）



Wind Resistance

60 m/s

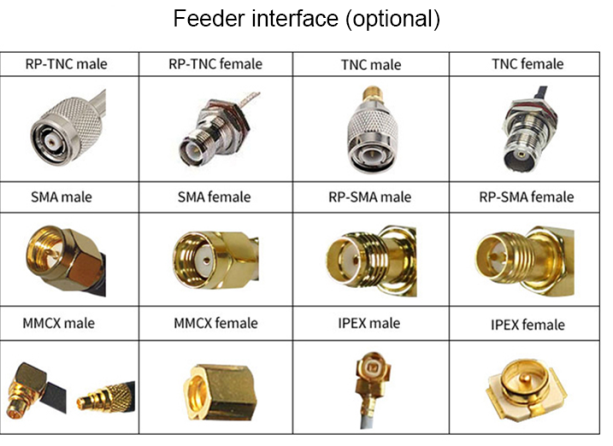

Connector

N-type female



Front-to-back ratio

≧25

Polarization

Circular polarization



VSWR

≦1.3

Radiation Angle

horizontal：65° vertical：58°



Impedance

50 Ω

Environmental parameters



Thunder Protection

DC grounding

Protection Level

IP67



Physical parameter

Working Temperature

-40～80℃



Reflector material

Aluminum Alloy

Diameter of holding pole

Φ30-Φ70 pole



Antenna cover material

ABS

Product List

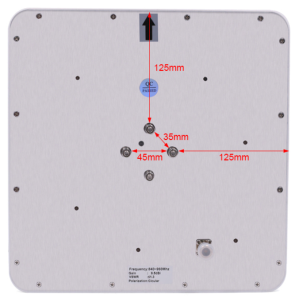

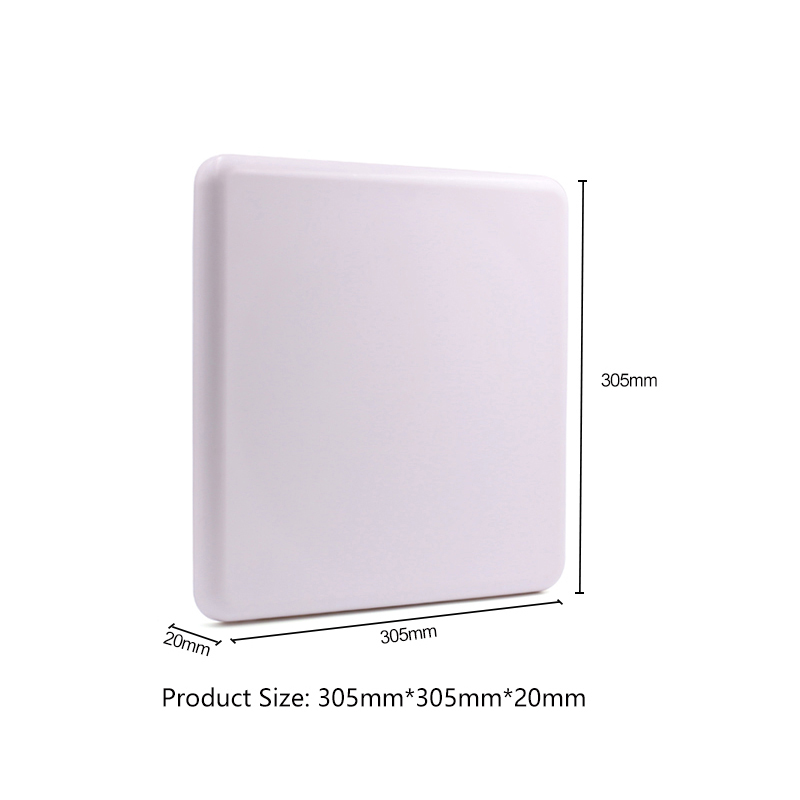

Size

305*305*20mm

Standard

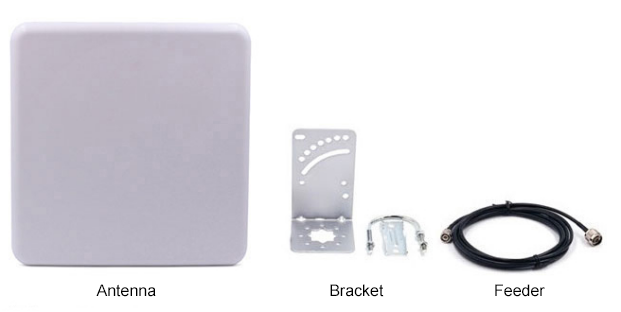

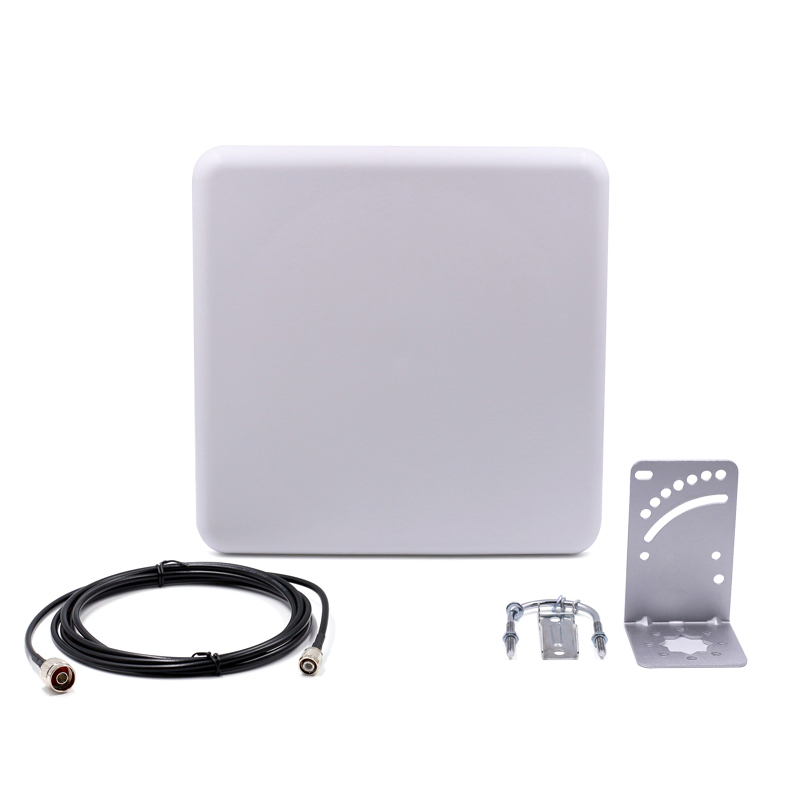

antenna*1pc

Mounting bracket*1, 3m feeder*1



Weight

3kg

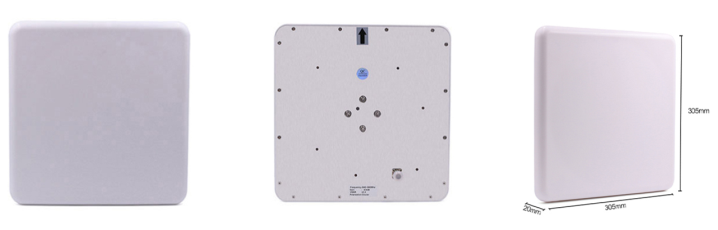

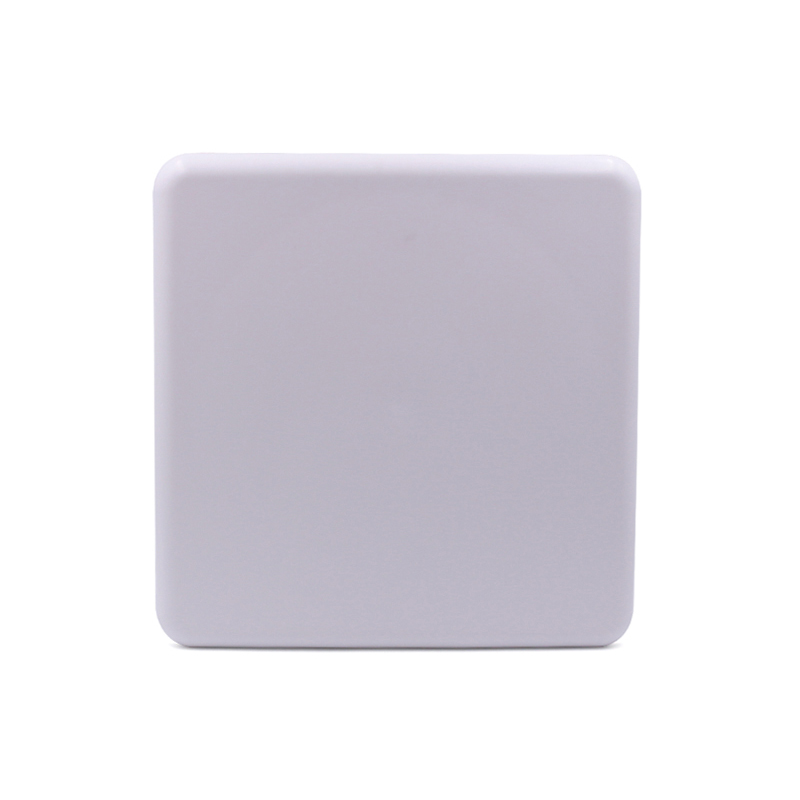

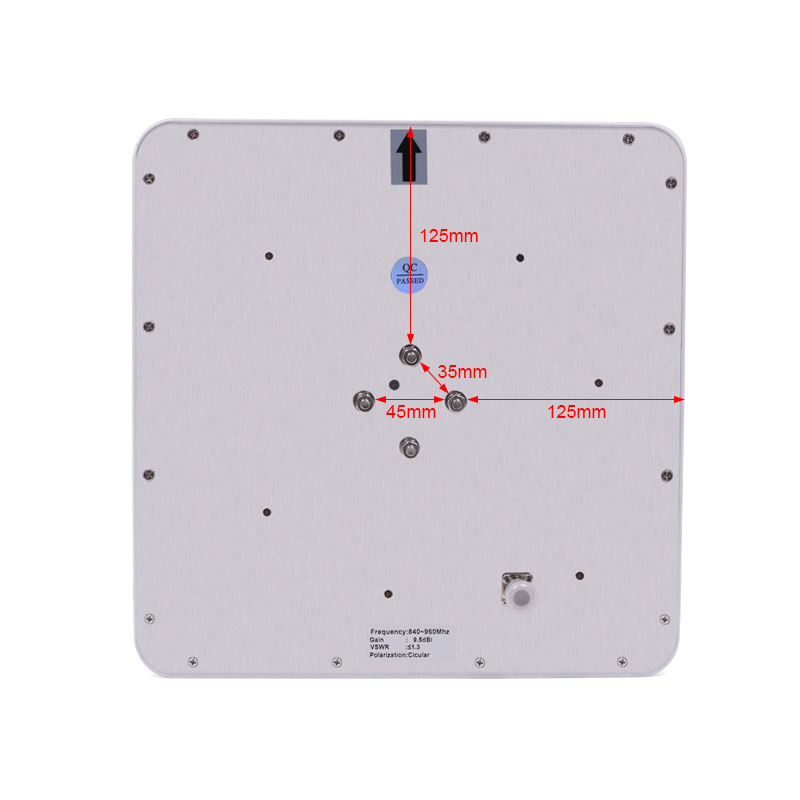

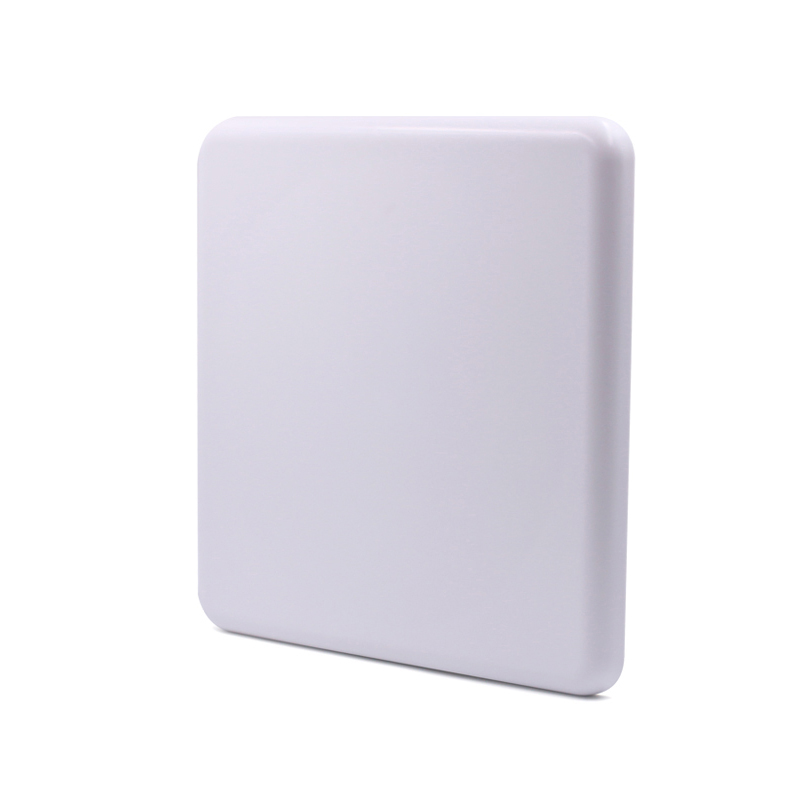

Details display





2 (9)
