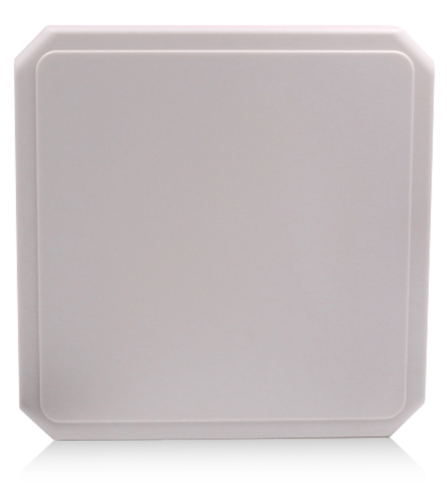

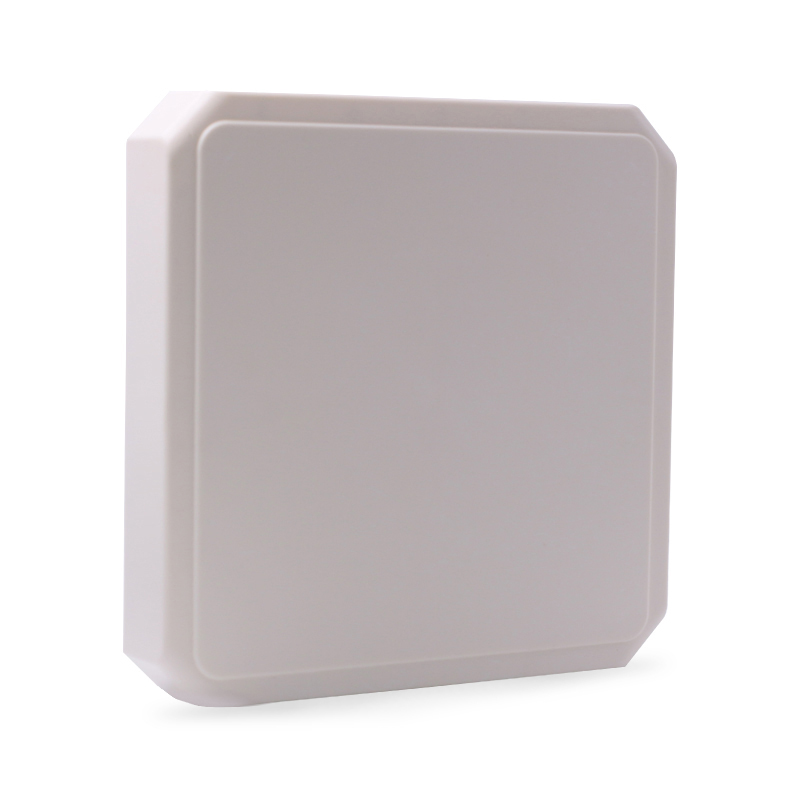

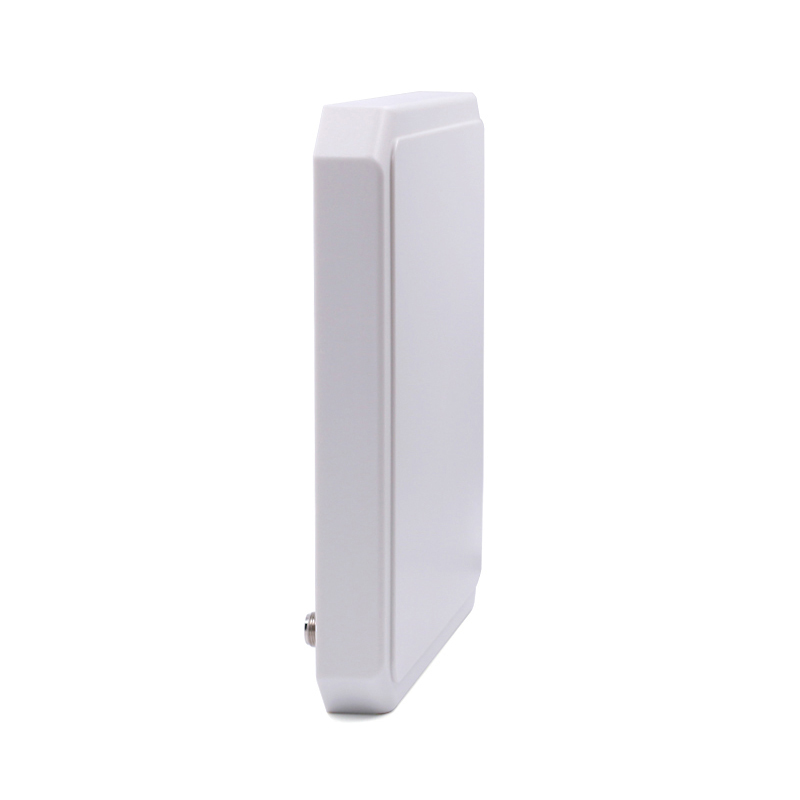

CF-RA9002 UHF 9dBi outdoor panel antenna

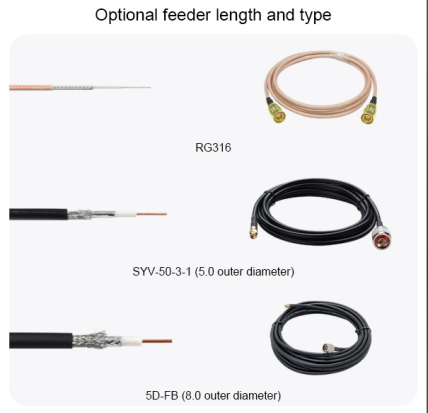

-Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
-Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.
Product Specifications
|
RFID parameter |
|
Technical Parameter |
||
|
Frequency |
865-868MHz（EU） 902~928MHz（US） |
|
Bandwidth |
100MHz |
|
Gain |
9dBi |
|
Max Power |
100W |
|
Reading distance |
0-10meters（depend on fixed reader and tag type） |
|
Wind Resistance |
60 m/s |
|

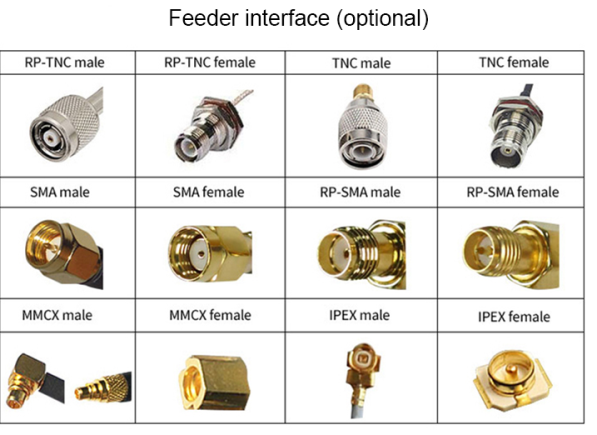

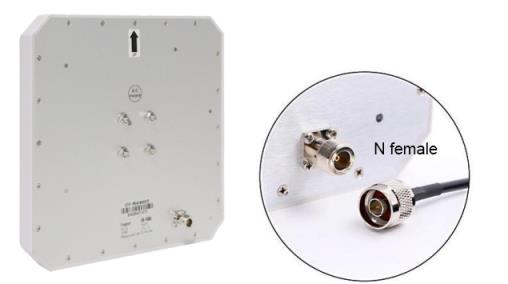

Connector |
N-type female |
|
Front-to-back ratio |
≧23 |
|
Polarization |
Circular polarization |
|
VSWR |
≦1.3 |
|
Radiation Angle |
horizontal：60° vertical：55° |
|
Impedance |
50 Ω |
|
Environmental parameters |
|
Thunder Protection |
DC grounding |
|
|
Protection Level |
IP67 |
|
Physical parameter |
|
|
Working Temperature |
-40～80℃ |
|
Reflector material |
Aluminum Alloy |
|

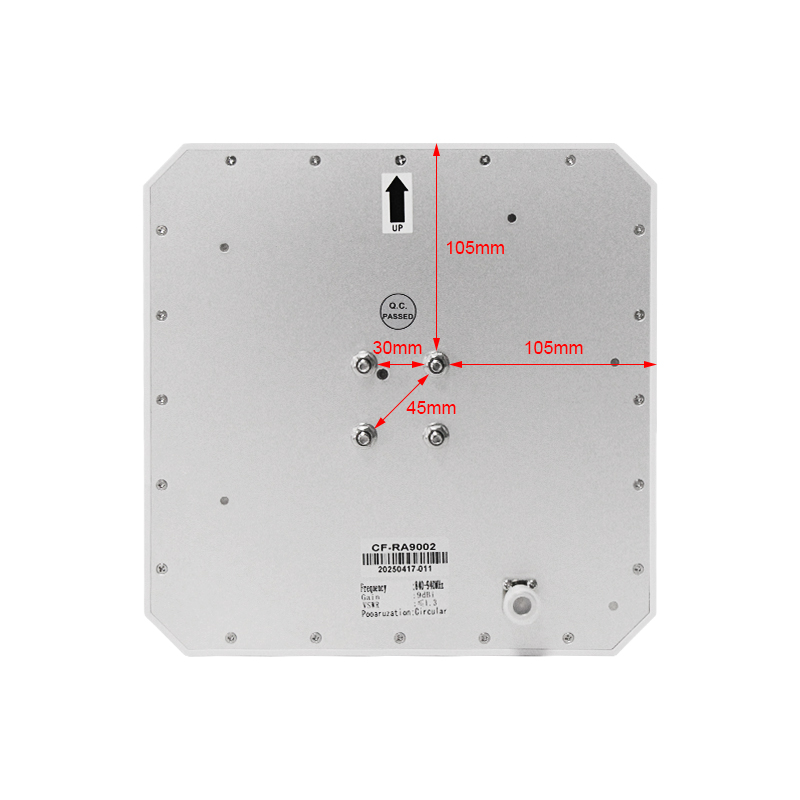

Diameter of holding pole |
Φ40-Φ75 pole |
|
Antenna cover material |
ABS |
|
Product List |
|

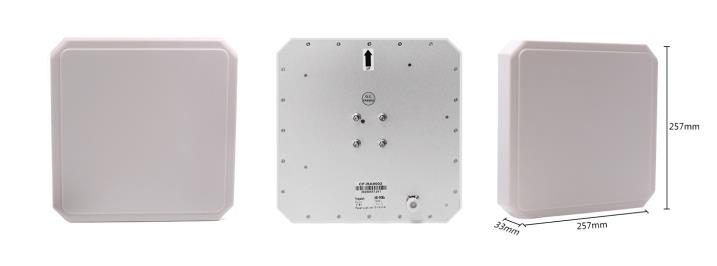

Size |

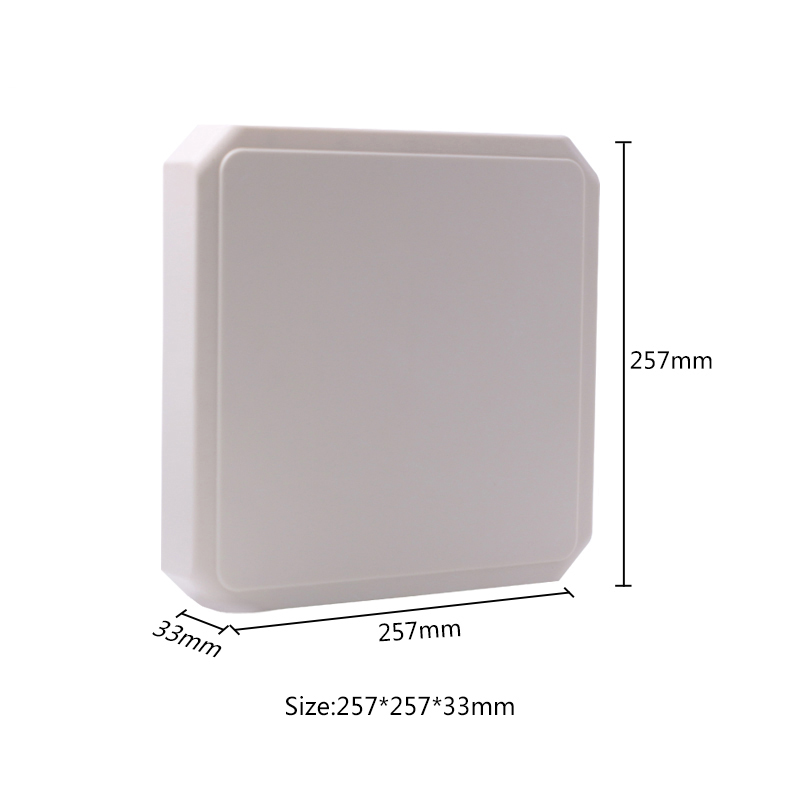

257*257*33mm |
|
|
Standard |

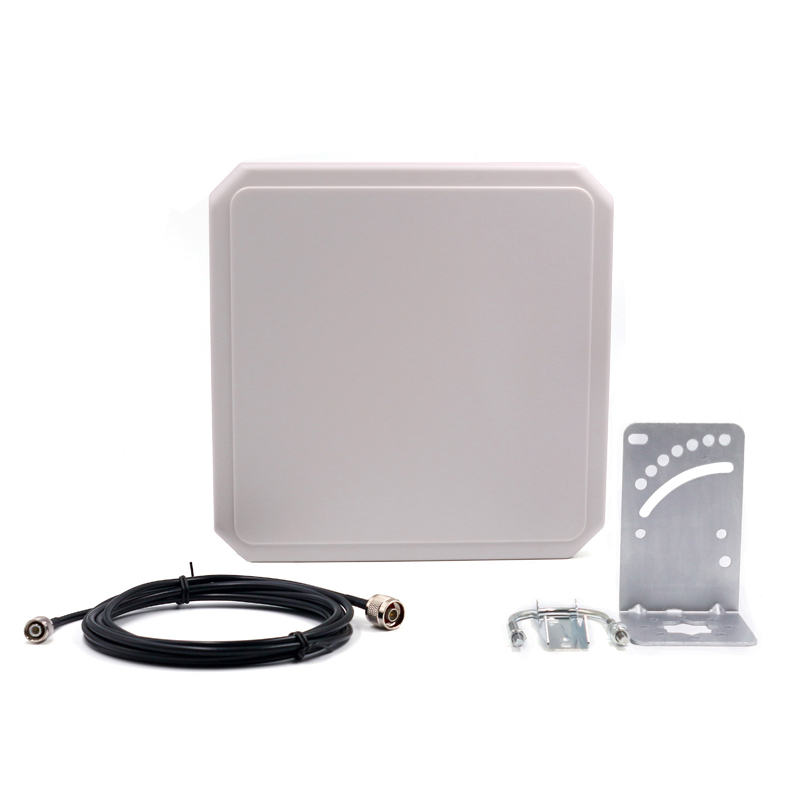

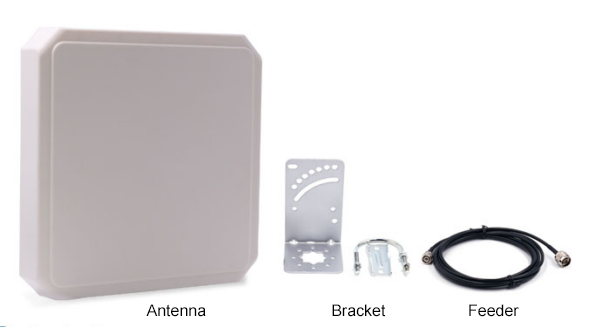

antenna*1pc Mounting bracket*1, 3m feeder*1 |
|
Weight |
0.6kg |

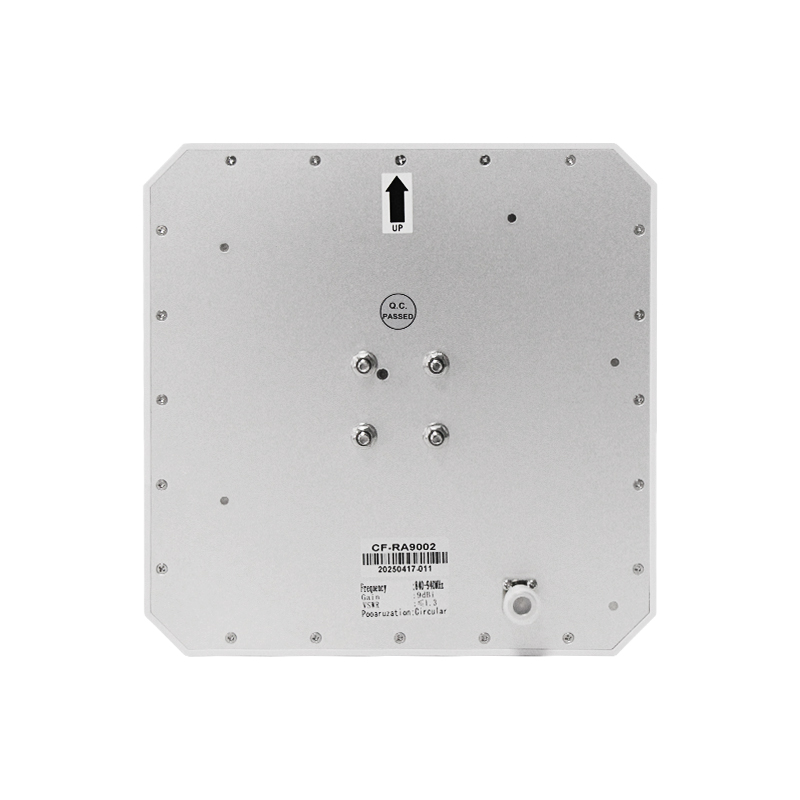

Details display
Related Products
|
Image |
|
|
|
|
Model |
CF-RA5001 |
CF-RA9002 |
CF-RA1201 |
|
Gain |
5.5dBi |
9dBi |
12dBi |
|
Polarization |
Circular Polarization |
Circular Polarization |
Linear polarization/circular polarization |
|
Reading distance reference |
0-6 meters (depending on reader and tag) |
0-10 meters (depending on reader and tag) |
0-15 meters (depending on reader and tag) |
|
Dimensions |
127*127*20mm |
257*257*33mm |
450*450*40mm |
