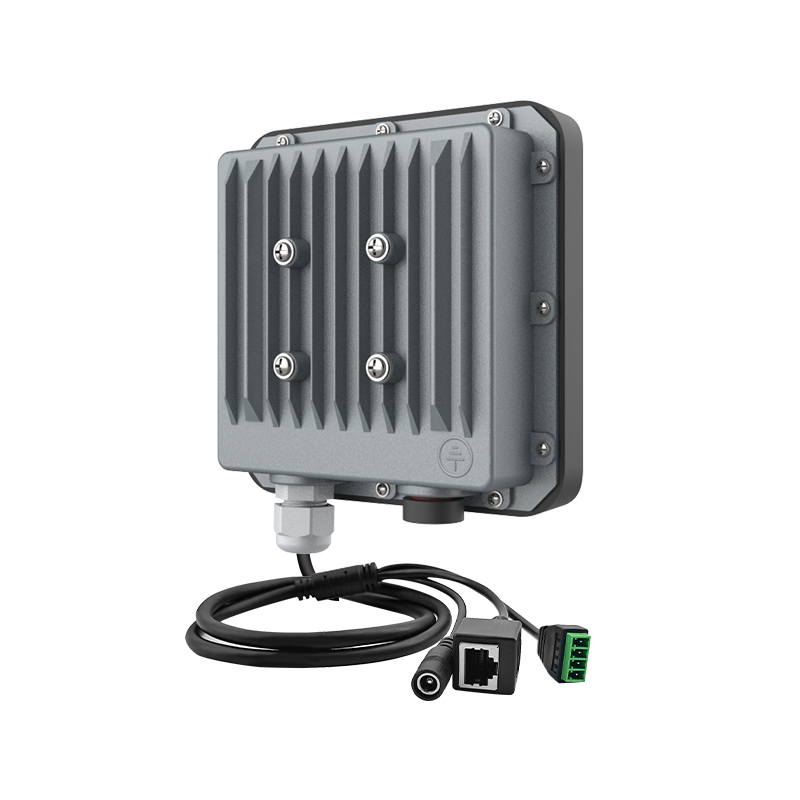

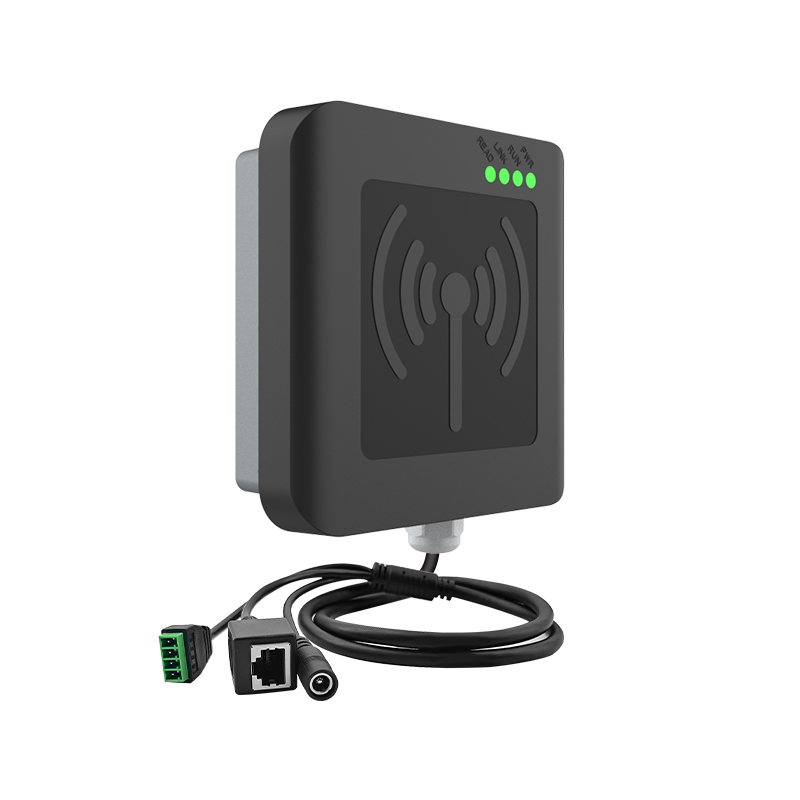

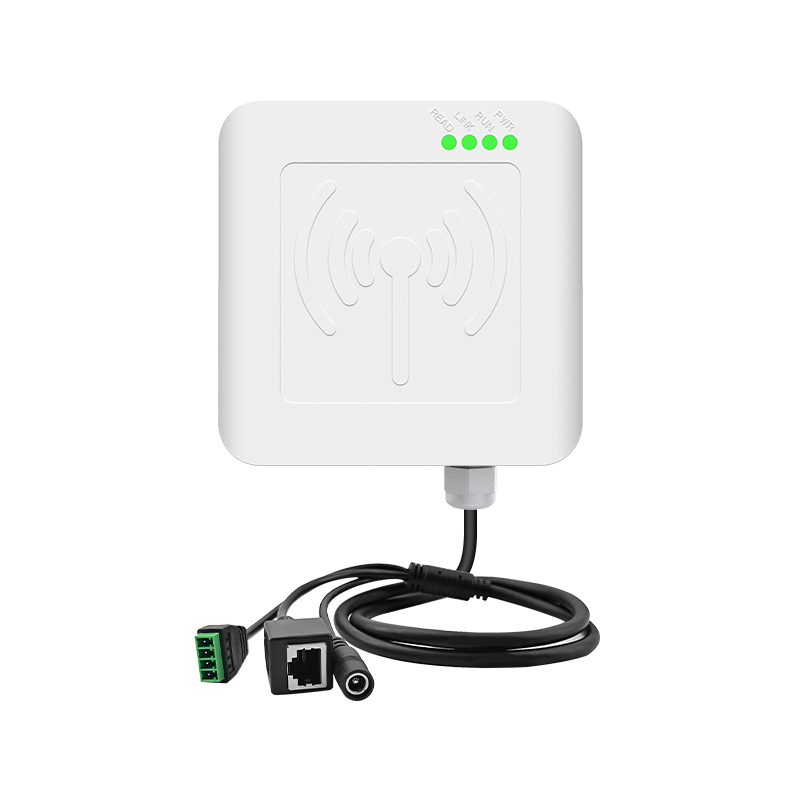

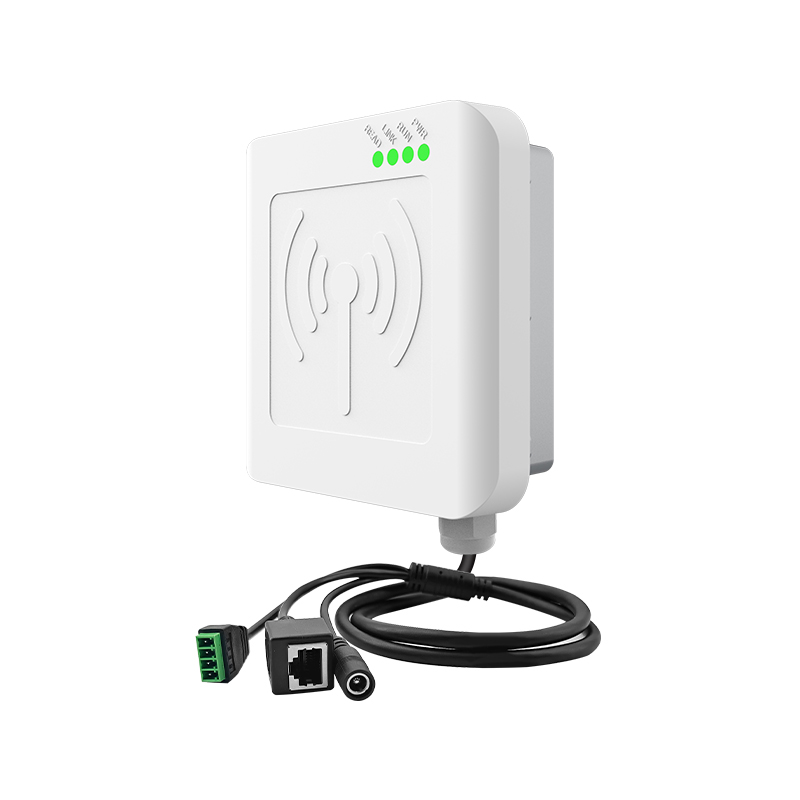

CF823 UHF Industrial Reader
-Support RSSI identification tag signal distance
-Support Modbus protocol, Profinet protocol can be customized
-Support multiple language development VB, Python, Java, Delphi, C # and other languages
-Applications: production lines, sorting lines, rhythmic logistics, automated production lines, mold management, PLC control, automotive parts and assembly lines, and other industrial scenarios.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
Frequency |
902~928MHz (US standard) 865~868MHz (European standard) |
Communication interface |
RS485/RJ45(standard) RS232/POE (optional) |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Communication Protocol |
Modbus/Profinet (customized) |
|
|
RF output power |
0dbm—26dbm (adjustable) |
Communication rate |
Serial port rate 9600~115200 bps Network port rate 10/100Mbps |
|
|

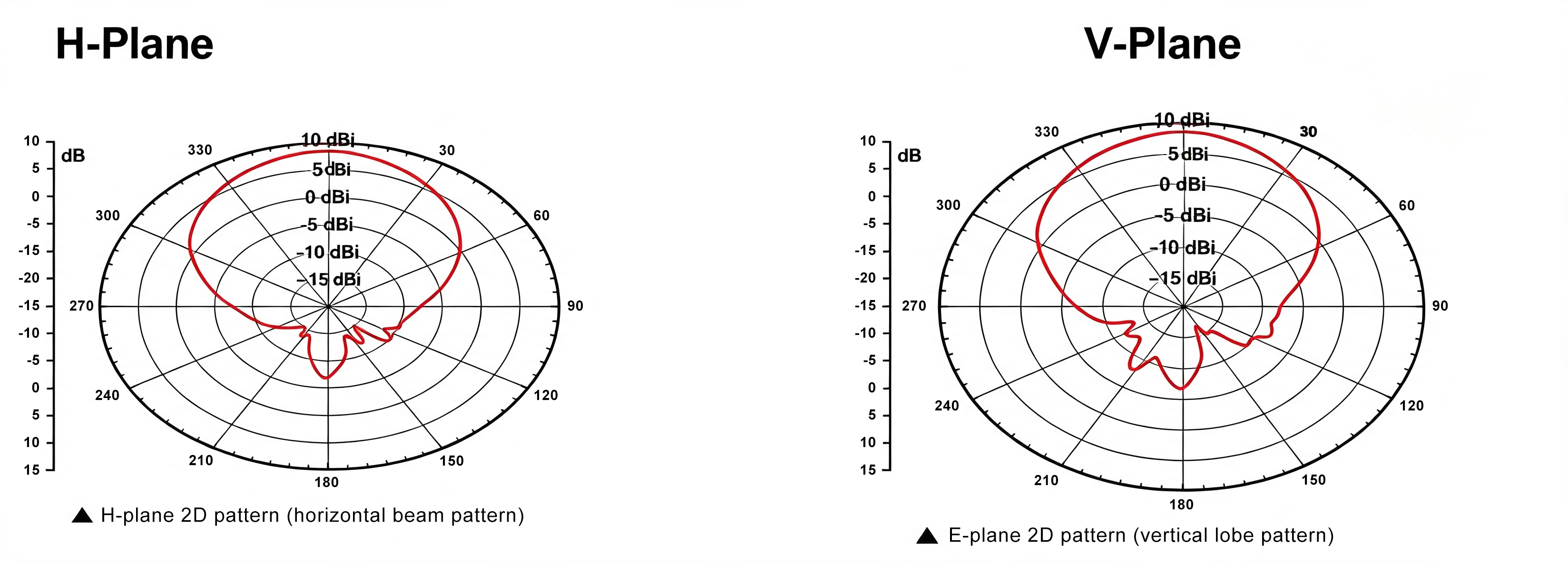

Built-in antenna |
5dbi ceramic antenna |
GPIO interface |
1 set of GPI, support customized GPO |
|
|
Card reading distance |
0~5m (related to card reader parameter configuration and tag type) |
Interface Type |
PG9L waterproof connector |
|
|
Writing distance |
0~1m |
Working status display |
4 LED indicators + buzzer |
|
|
Maximum receiving sensitivity |
-75 decibels Maximum return loss: 10dbm |
Operating voltage |
DC 9~24V |
|
|
RSSI |
support |
Development Environment |
||
|
Working Mode |
Active mode/Answer mode/Trigger mode |
SDK |
Demo software, API, examples, user manual |
|
|
Physical parameters |
Development language |
VB, Python, Java, Delphi, C#, etc. |
||
|
Material |
ABS |
Firmware version |
Support online upgrade |
|
|

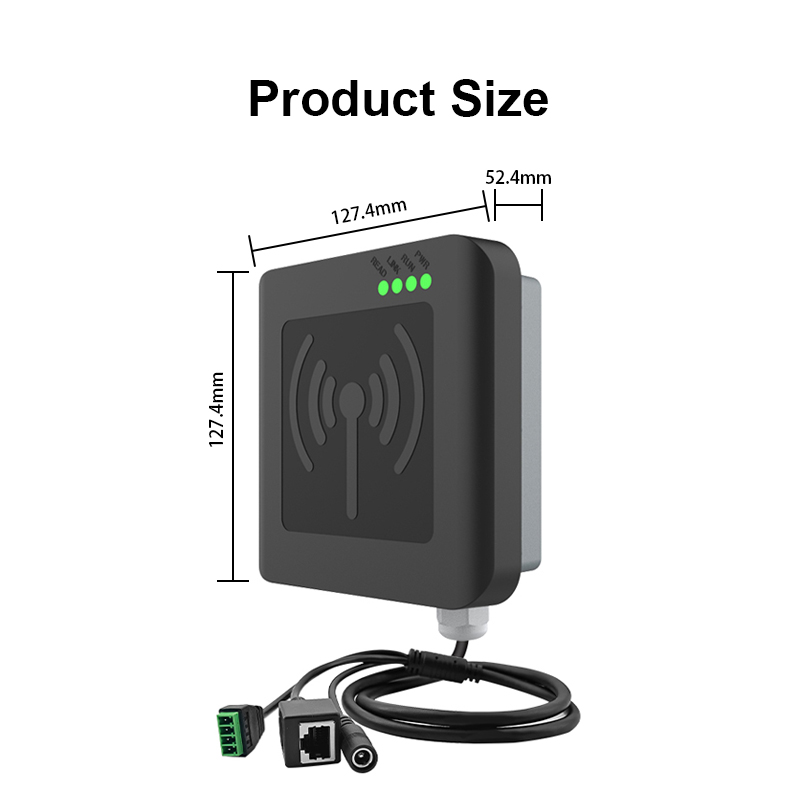

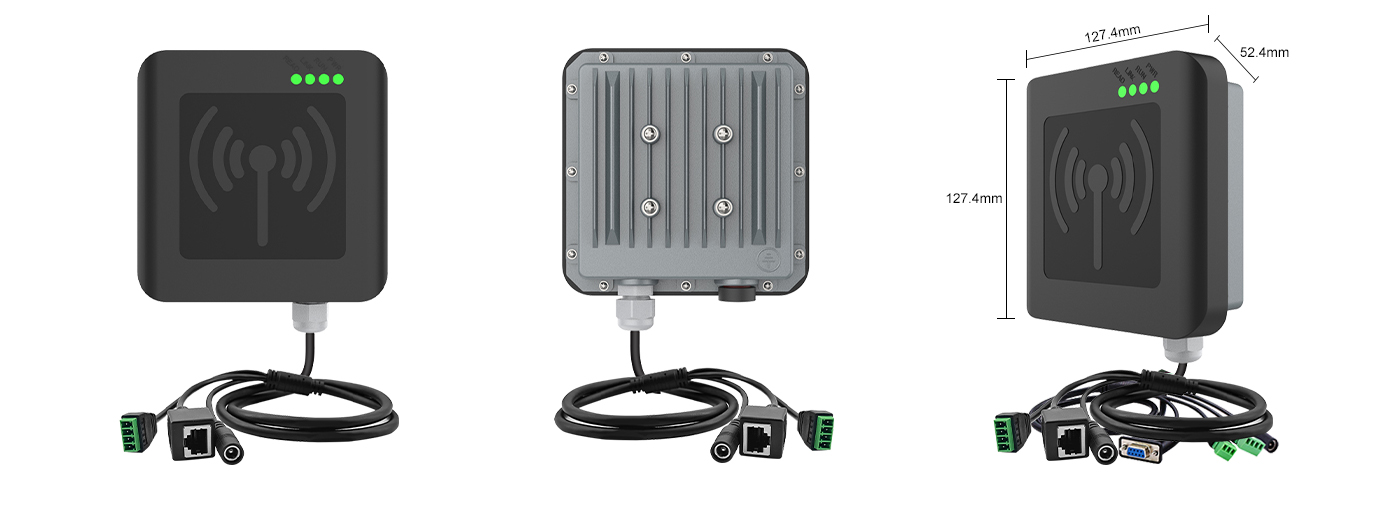

size |
127.4*127.4*52.4 mm |
Work Environment |
||
|
net weight |
543g |
IP rating |
IEC IP67 |
|
|
|
Operating temperature |
-20℃~65℃ |
||
|
Storage temperature |
-40℃~85℃ |
|||
|
|
humidity |
5%-95%, non-condensing |
||

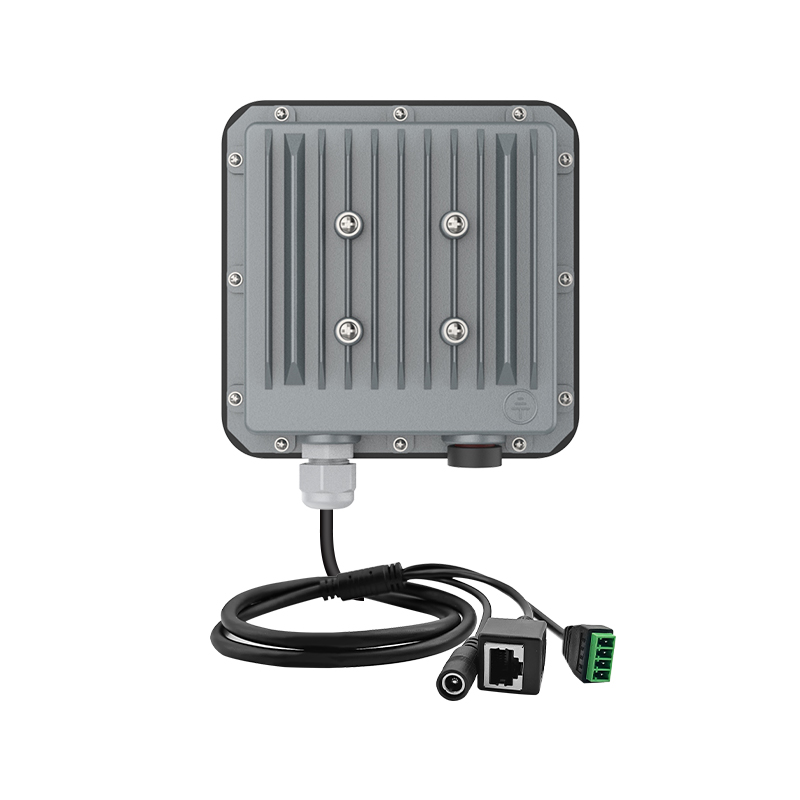

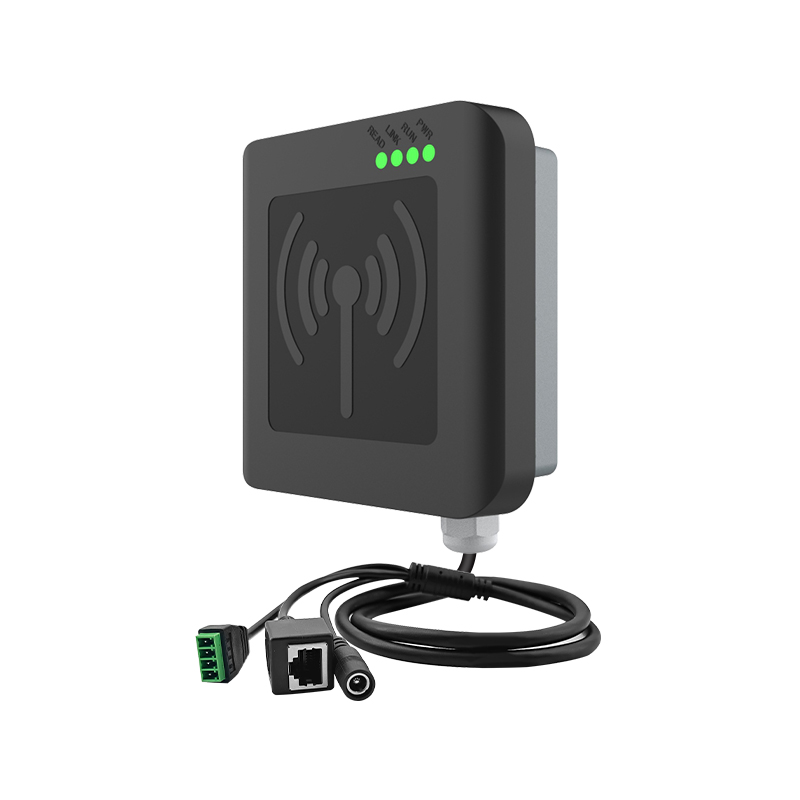

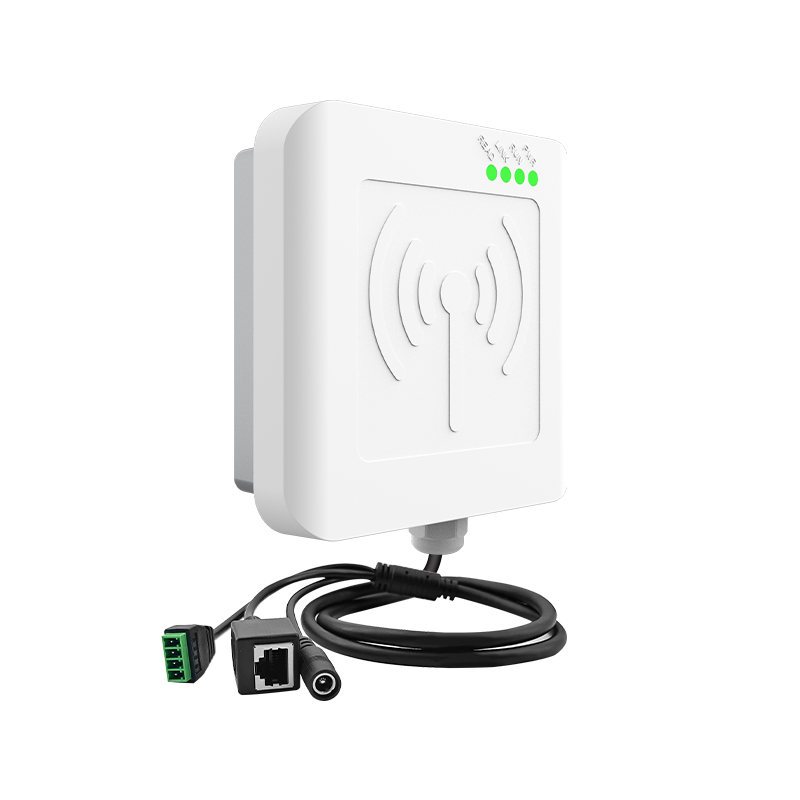

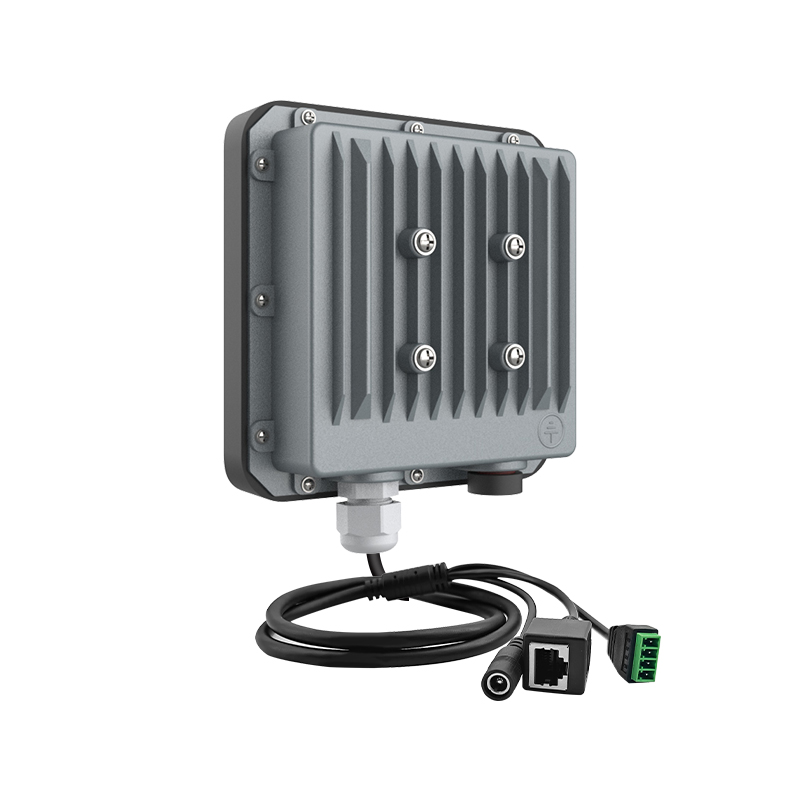

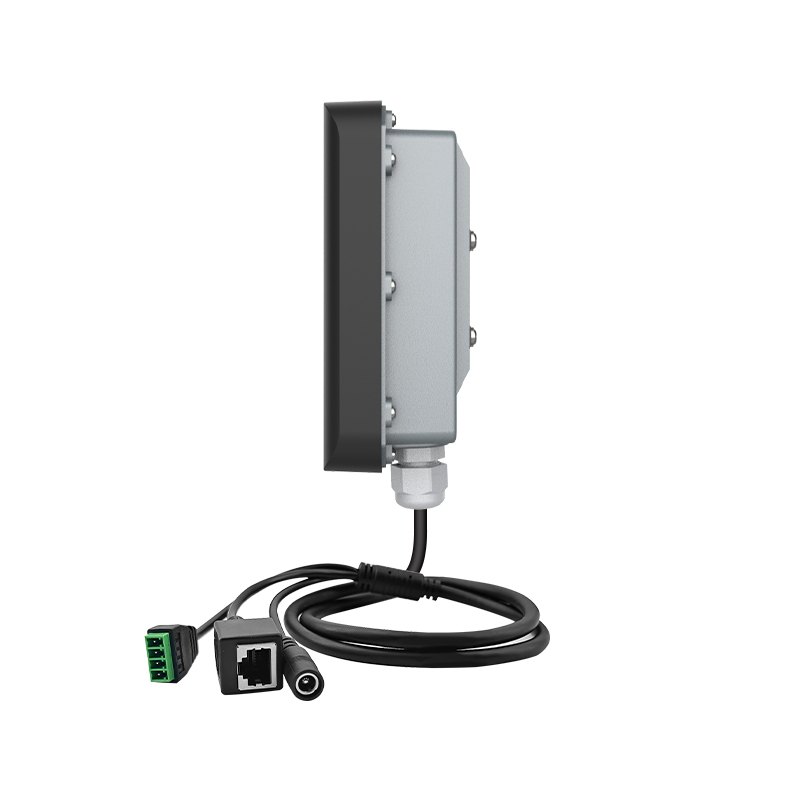

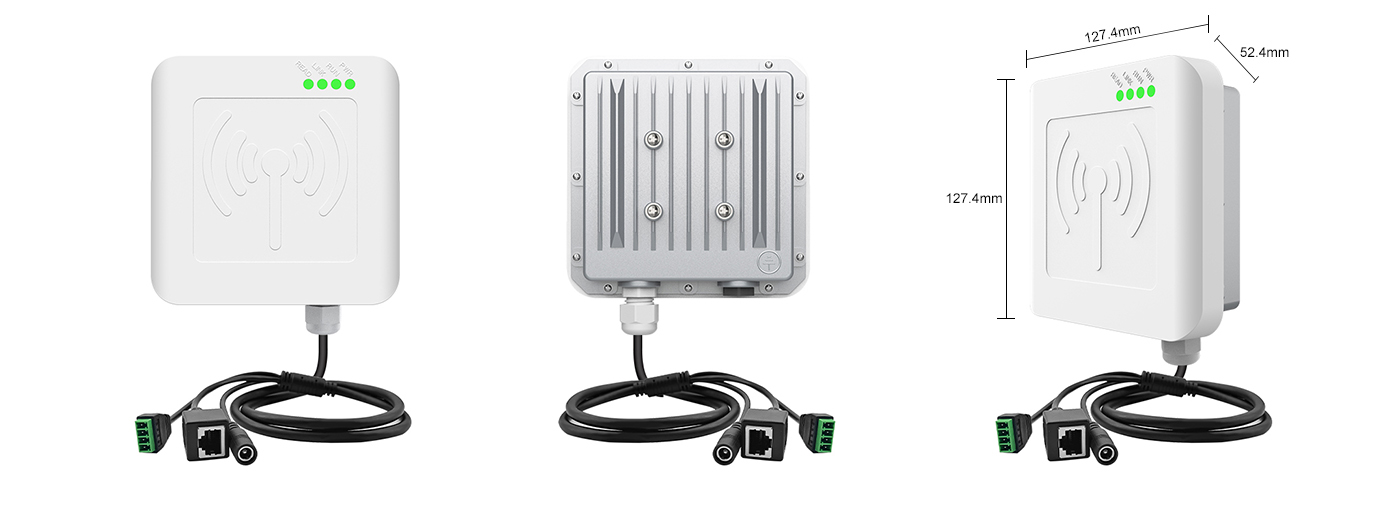

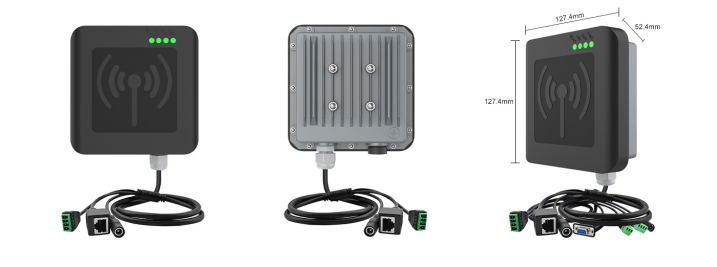

Details display
|

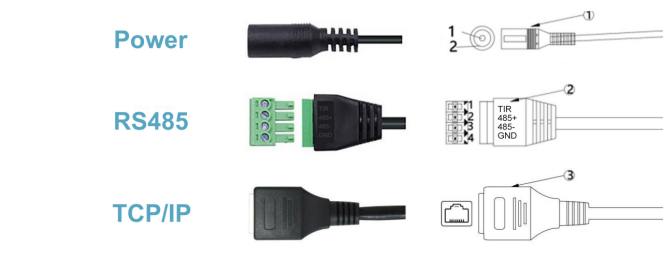

Interface Definition |
|||||||||
|
DC |
trigger |
RS485 |
RJ45 |
||||||
|
V+ |
GND |
TRI |
485- |
485+ |
GND |
T+ |
T- |
R+ |
R- |
|
rough red |
Thick Black |
Purple |
White |
Thin black |
pink |
Green White |
green |
blue white |
blue |

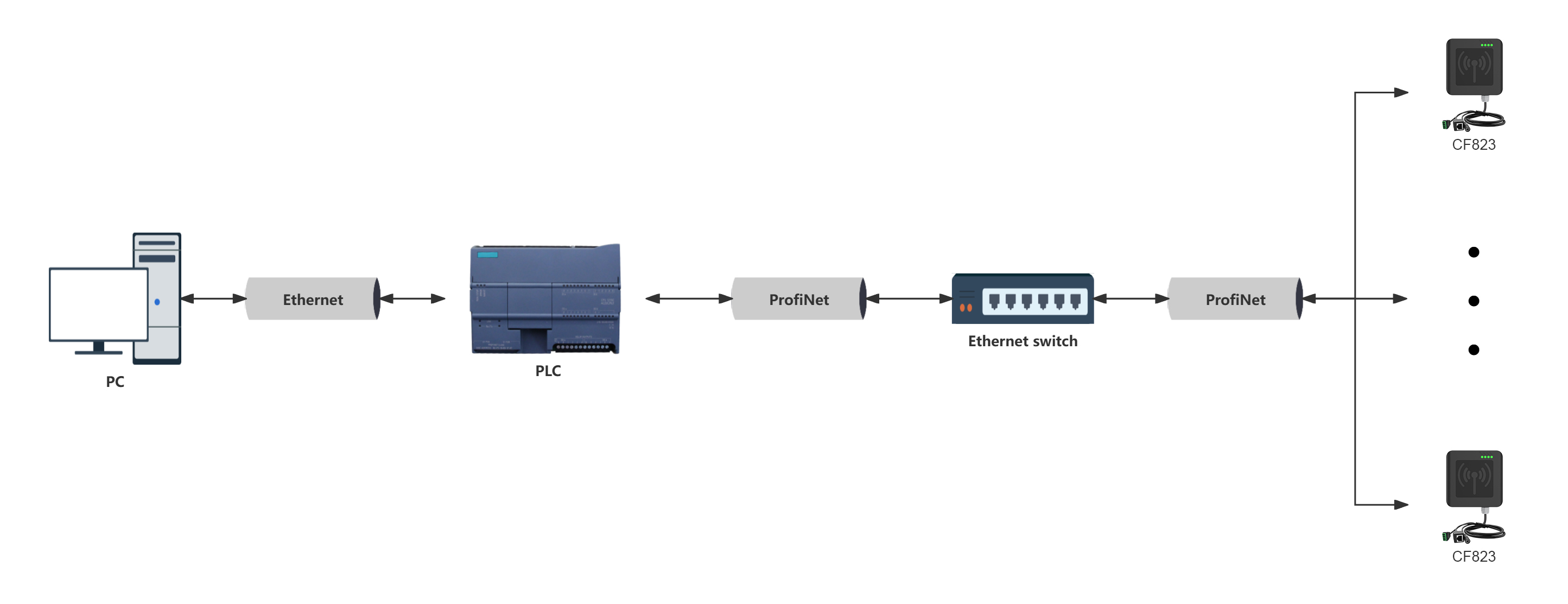

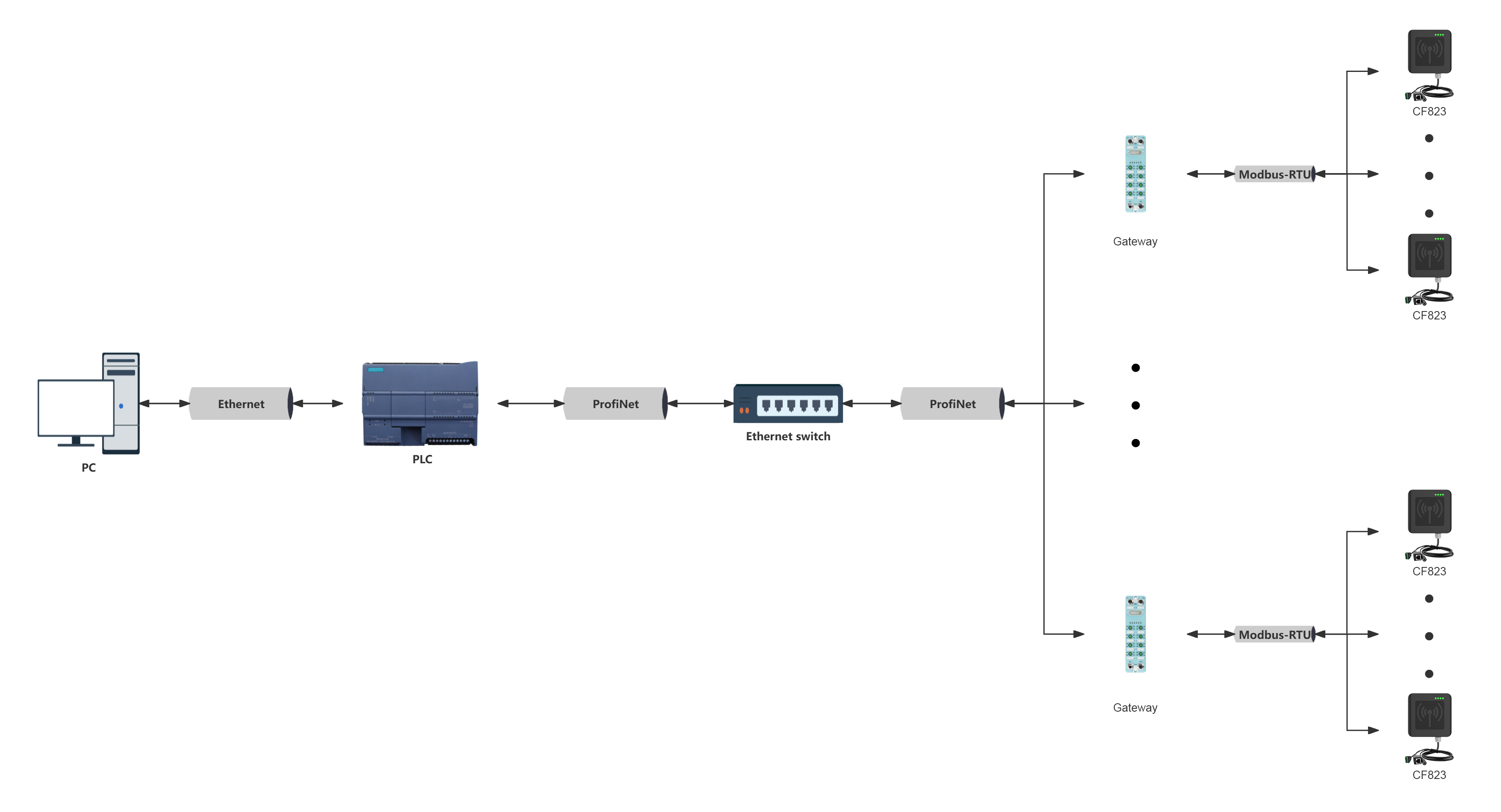

PLC connection diagram

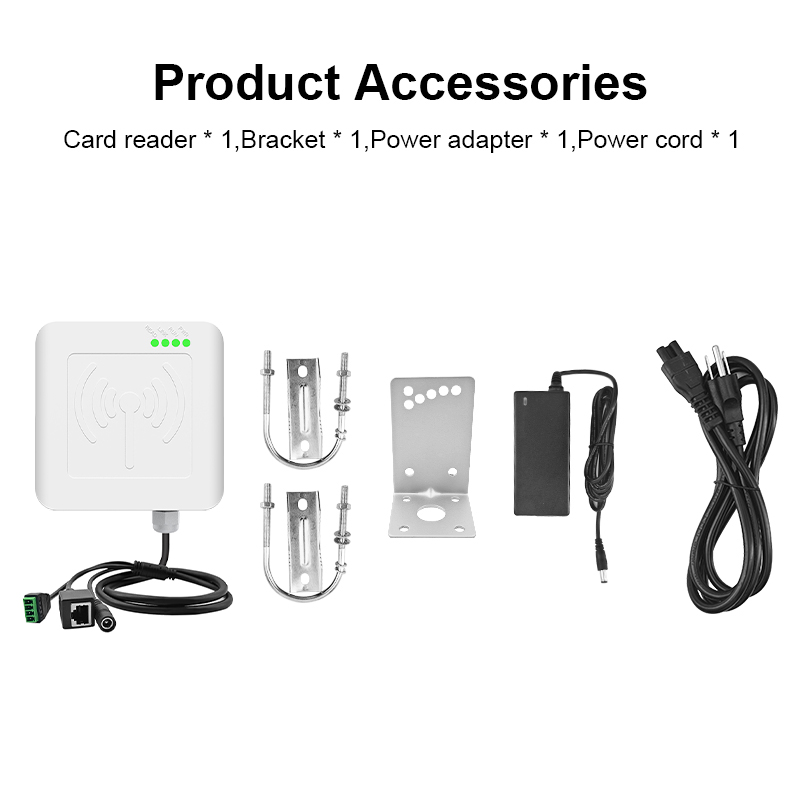

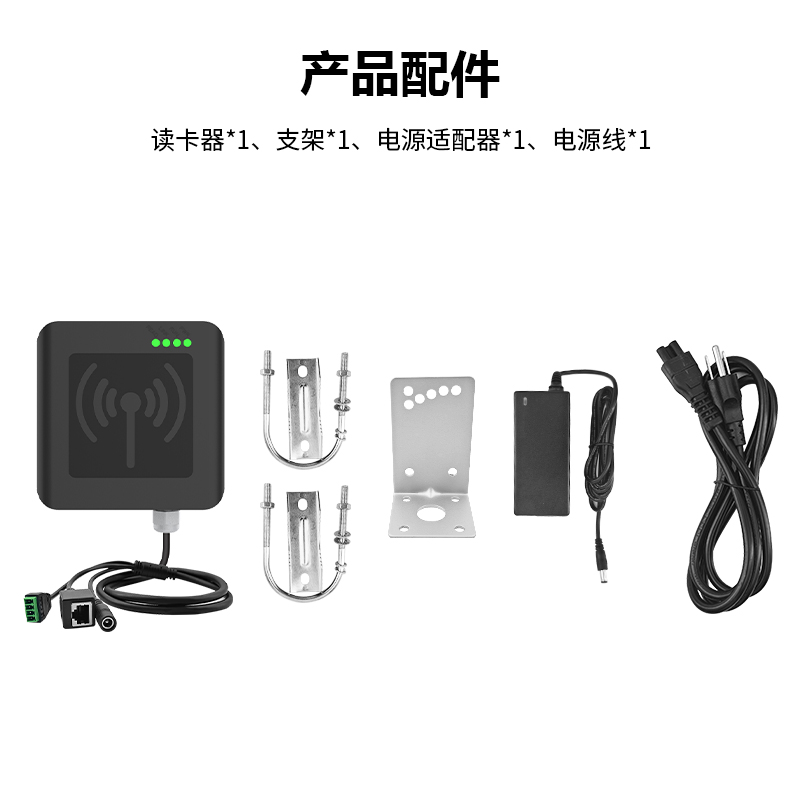

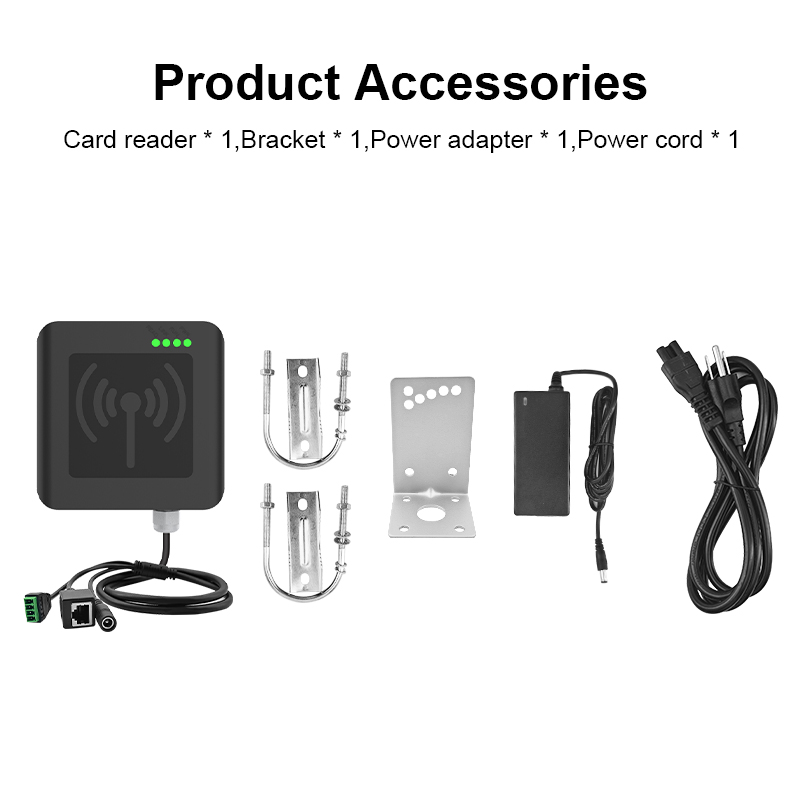

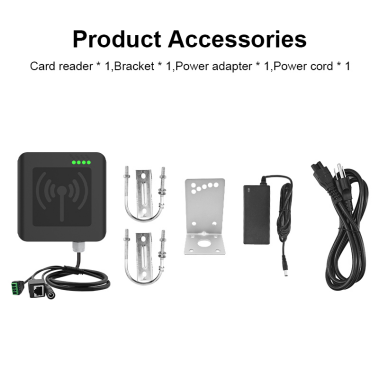

Product accessories picture
Related products
|
Picture |
|
|
|
|
Model |
CF 823 |
CF 824 |
CF 821 |
|
Output RF power |
0dbm ~ 26dbm (adjustable) |
0dbm ~ 33dbm (adjustable) |
0dbm~26dbm (adjustable) |
|
Reading distance |
0~ 8 meters (Depending on antenna & tag & application environment) |
0~ 15 meters (Depending on antenna & tag & application environment) |
0~5 meters (Depending on antenna & tag & application environment) |
|
Built-in antenna |
5dbi ceramic antenna |
|
5dbi linear polarized ceramic antenna |
|
Size |
127.4*127.4*52.4 mm |
160.7*210*29mm |
115*95*35 mm |
