CF322 Industrial-grade high-frequency reader
-Small size and high integration
-Compatible with RS232/RS485 industrial communication interface, can be connected to different control systems
-Internally integrated RF wireless communication protocol
-The operation is simple, and the data of the code carrier can be modified by simply accessing the corresponding register.
-Applications: tool management, robot data collection, intelligent p
Product Specifications
|
Electrical parameters |
|
Mechanical properties |
||
|
Operating frequency |
13.56MHZ |
Protection level |
IP67 |
|
|
Wireless transmission rate |
53 kbit/s |
Communication connection |
M12×1 connector |
|
|
Follow standards |
ISO/IEC 15693 |
Housing material |
ABS+stainless steel |
|
|
Maximum code capacity |
8K Bytes |
filling |
Silicone |
|
|
Sensing range |
Size |
Ø 18 mm × 80 mm |
||
|
Reading distance |
0~35mm (depends on the tags and working environment) |
weight |
About 40 g |
|
|
Writing distance |
0~30mm (depends on the tags and working environment) |
Other parameters |
||
|
Read and write time |
Operating voltage |
DC24V |
||
|
Read Data |
25ms |
Labor consumption |
≤1.5W |
|
|
Write Data |
32ms |
Signal Indication |
led |
|
|
|
Communication interface |
RS232 (Modbus RTU) RS485 (Modbus RTU |
||
Details display

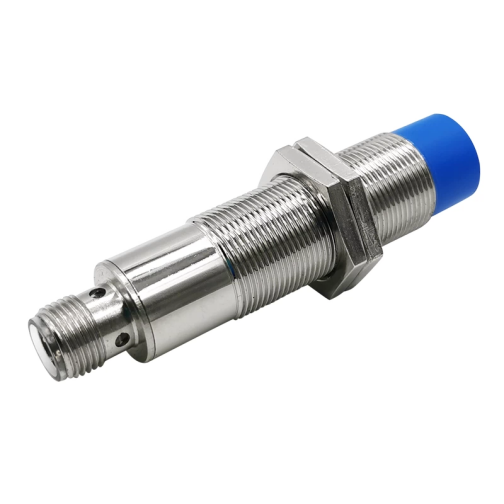

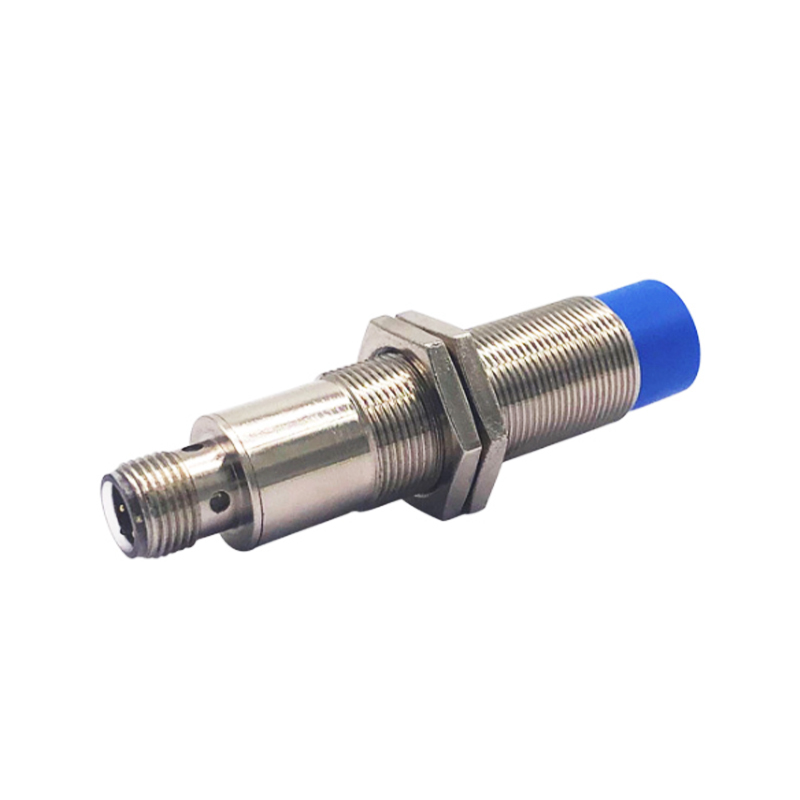

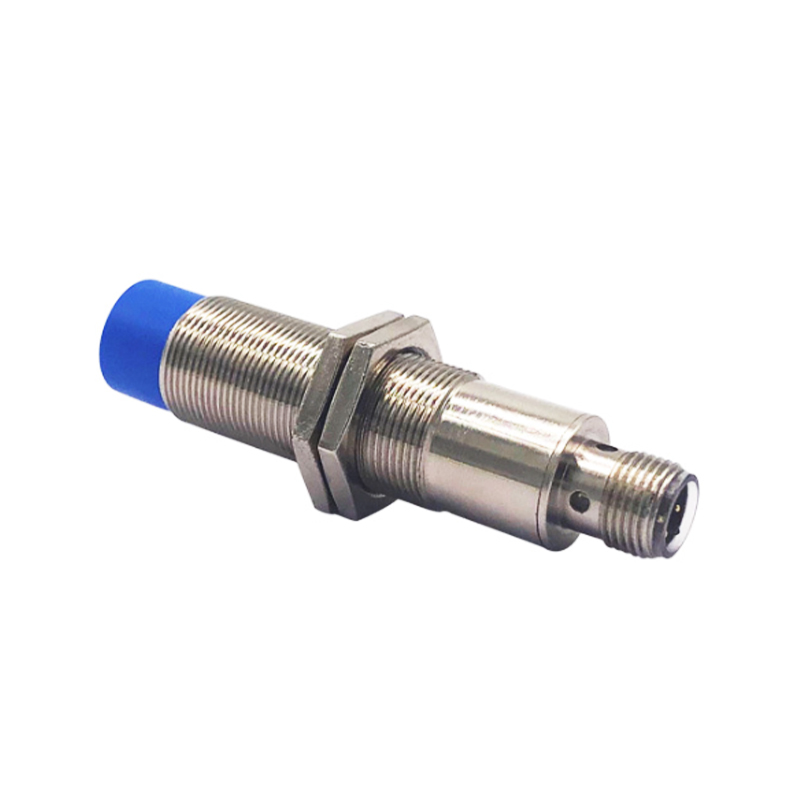

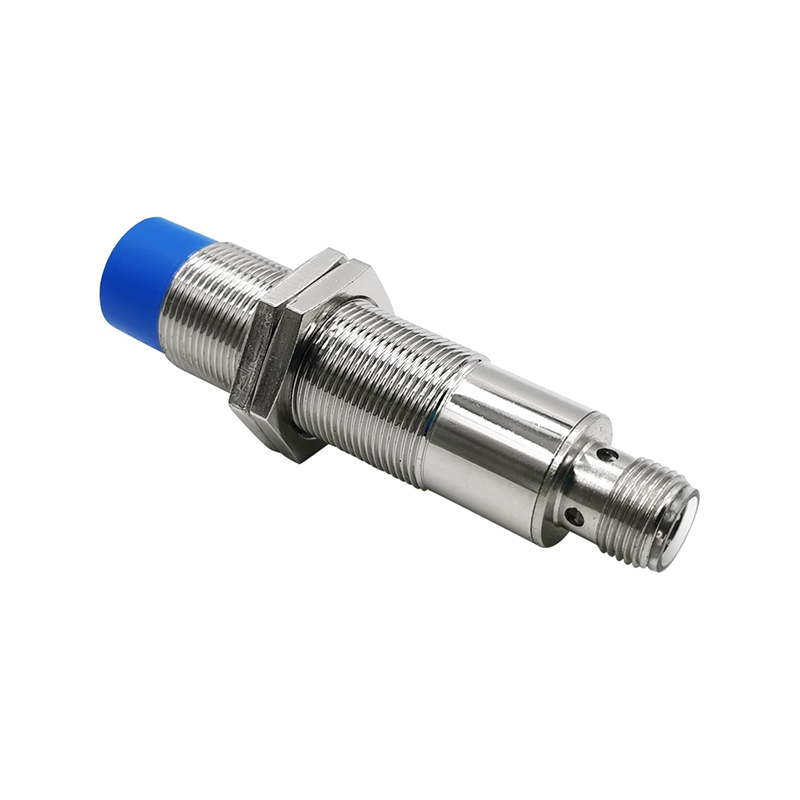

Actual picture

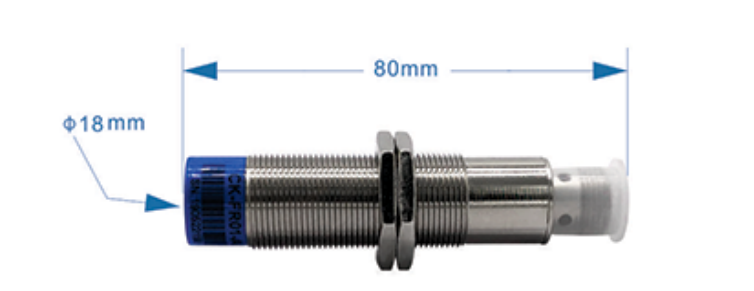

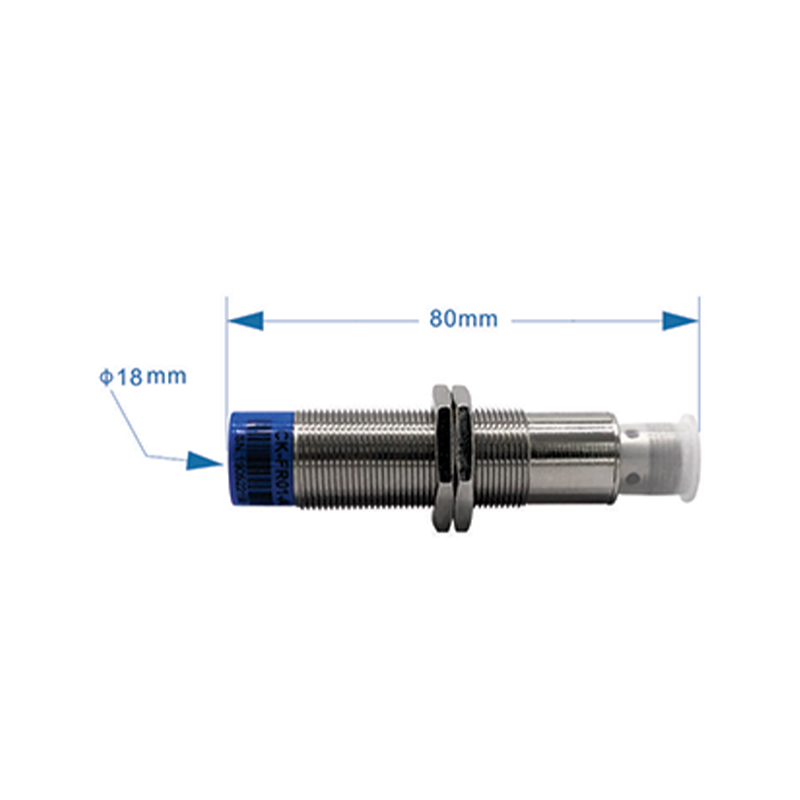

Product size
Mechanical dimensions: ø 18 mm × 80 mm
Related products
|
picture |
|
|
|
|
model |
CF321 |
CF322 |
CF323 |
|
frequency |
13.56MHZ |
13.56MHZ |
920MHZ-925MHZ |
|
Reading distance |
0~50mm |
0~35mm |
0~50mm |
|
Writing distance |
0~40mm |
0~30mm |
0~40mm |
|
Communication interface |
RS232, RS485 |
||
