CB102 UHF Smart Tool Cabinet
Characteristic
- Strong multi-tag reading capability and low missed reading rate
- Can set requirements for automatic inventory counting and automatic reporting of inventory information
- Place in an indoor environment or a safe open semi-outdoor environment
- Users can log in to the device by swiping a card and other permissions, and borrow and return tools by themselves
- The historical tracing function allows you to view historical operations and the borrowing and returning history of tools and equipment
- Tools and equipment addition, borrowing, returning, searching, inventorying, querying, and scrapping functions
- Application: Asset logistics management requires self-service borrowing, returning, inventory, and other usage scenarios
Product Specifications
|
Physical parameters |
|
Performance parameters |
||
|
Overall size (length*width*height) |
1120mm*600mm*1940mm |
operating system |
Windows (Android optional) |
|
|
Screen |
21-inch capacitive touch screen industrial control all-in-one computer |
Industrial computer |
I5, 4G+128G (RK3288, 4G+32G optional) |
|
|
Resolution |
1920*1080 |
Identification method |
UHF RFID wireless identification |
|
|
Screen ratio |
16:9 |
Frequency range |
840MHz-960MHz |
|
|
QR code reader |
Standard |
Protocol Standards |
GB/T29768-2013/ISO 18000-6C (EPC C1 G2) |
|
|
Communication interface |
Network port (WIFI optional) |
Identification |
Support multi-tag identification, tag data filtering, RSSI |
|
|
Permission Management |
High frequency card recognition (optional: face recognition, fingerprint recognition) |
Reading time |
1-6 seconds |
|
|
Monitoring and management |
Surveillance camera (optional) |
Power supply mode |
||
|
Work Environment |
Power Input |
AC220V/50Hz |
||
|
Operating temperature |
0~65℃ |
Development Support |
||
|
Operating humidity |
10%RH~95%RH |
Secondary Development |
SDK development kit (supported languages: C#, C/C++, java, android, python) |
|
Details display

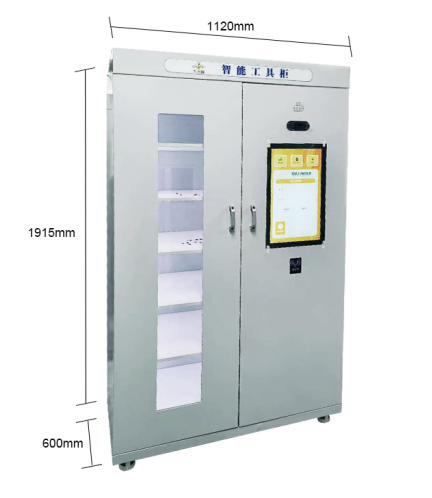

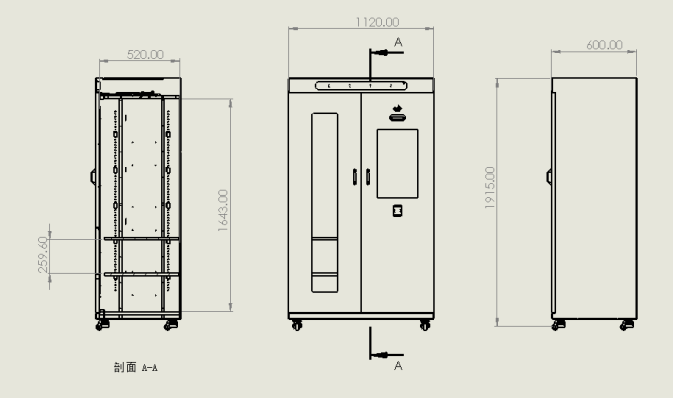

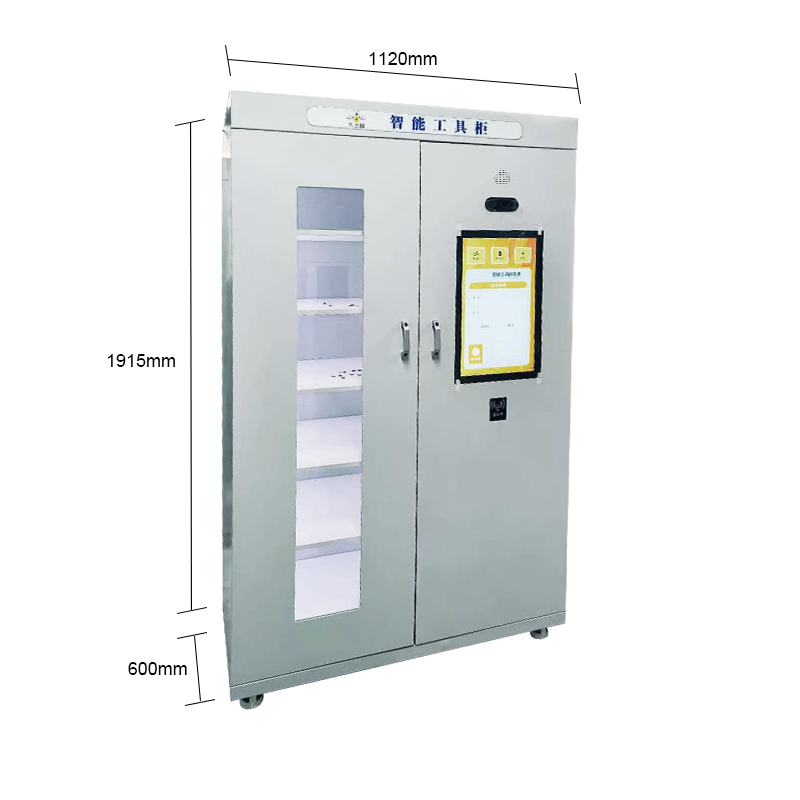

Product size:

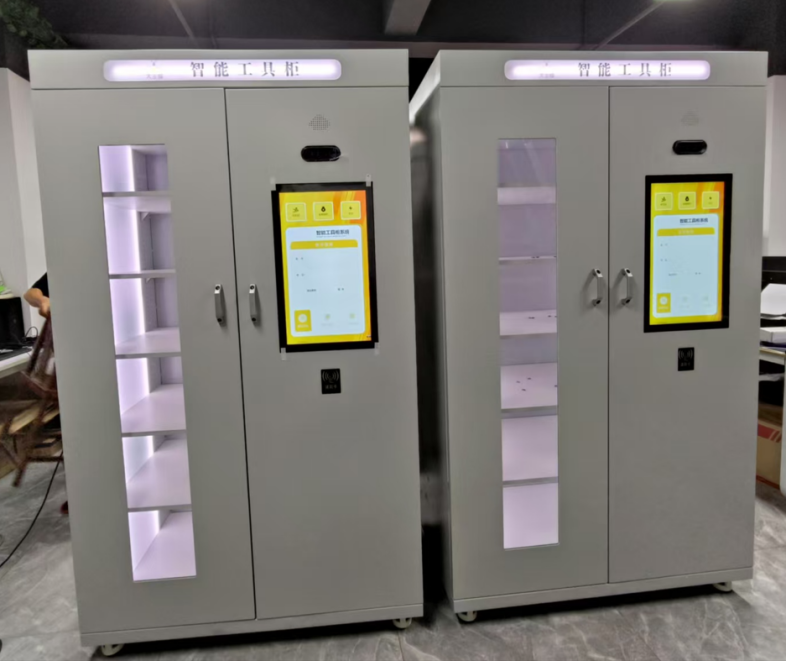

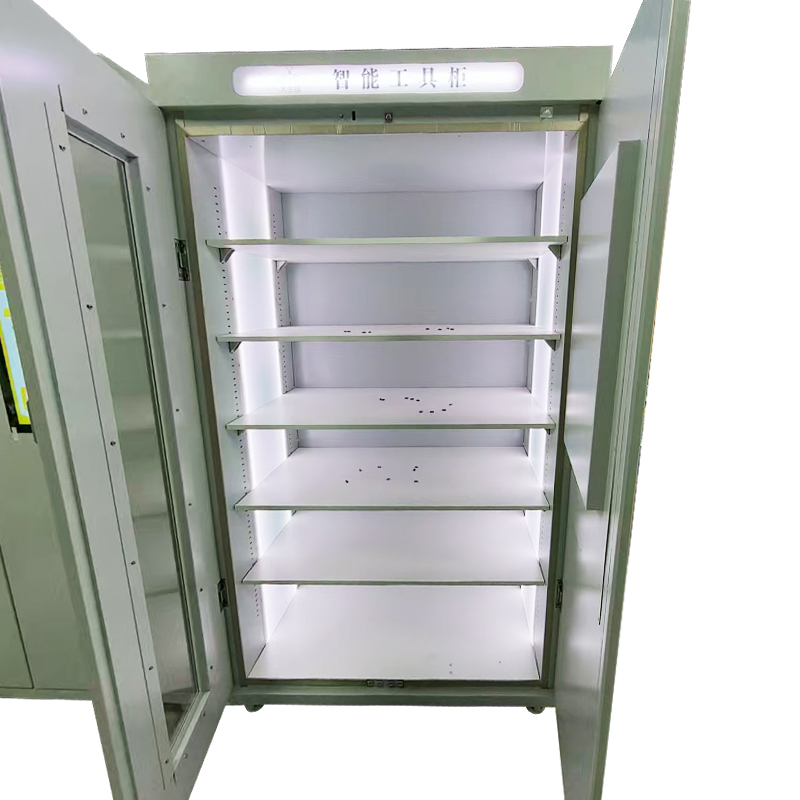

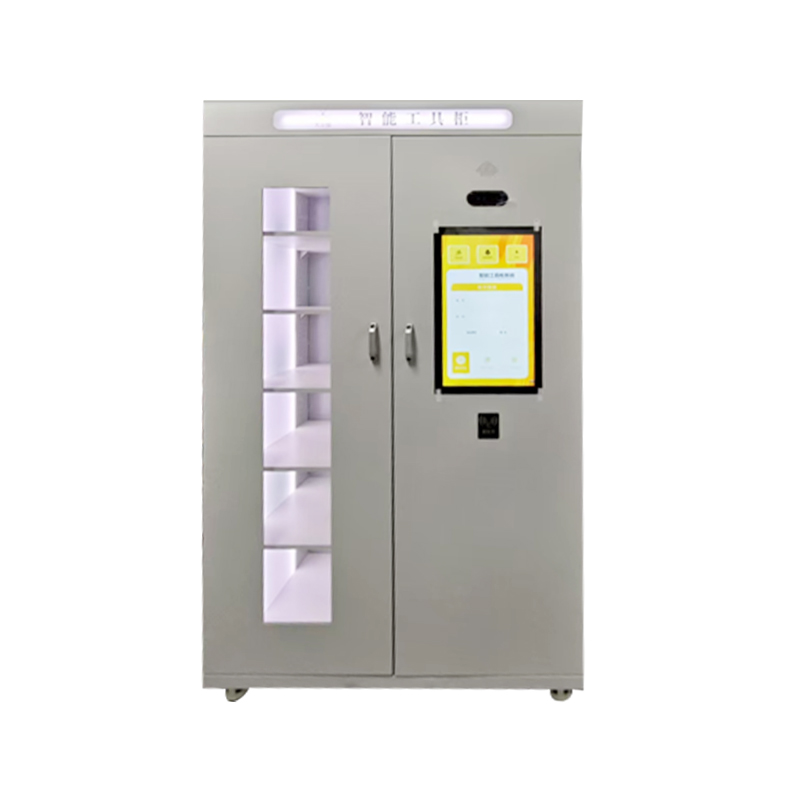

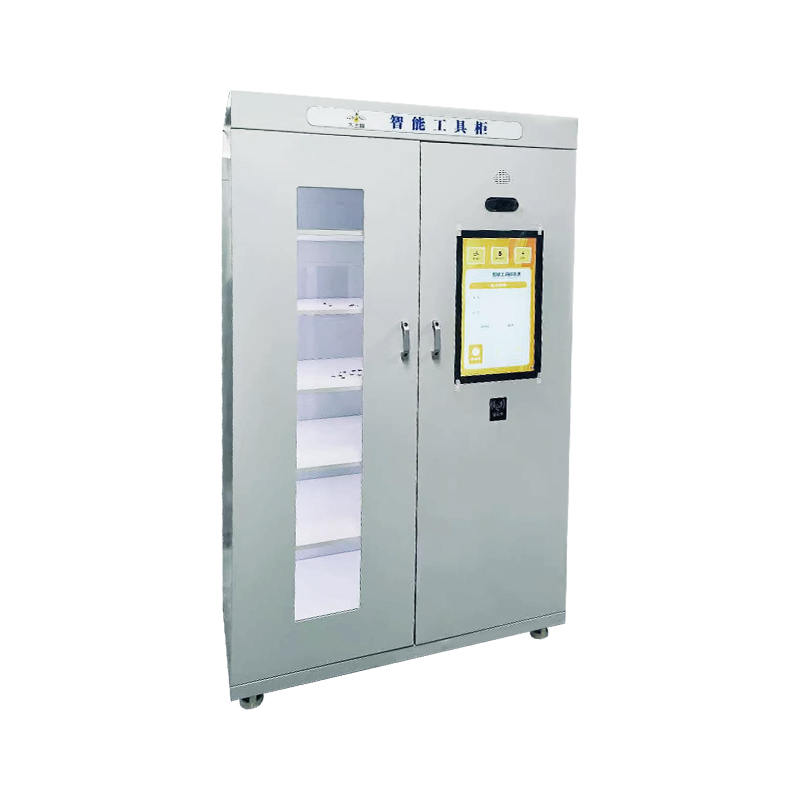

Product appearance:
