CB101 UHF Intelligent Micro Bookcase
Characteristic
- Strong multi-tag reading capability and low missed reading rate
- Can set requirements for automatic inventory counting and automatic reporting of inventory information
- Place in an indoor environment or a safe open semi-outdoor environment
- Users can log in to the device by swiping their cards and other permissions to borrow and return files by themselves
- 24-hour operation, with historical tracing function, you can view the historical operation and borrowing and returning history of file archives
- An industrial computer with a 15.6-inch touch screen can be installed, and an external computer system can be connected to control the operation of the equipment
- Application: In retail management, warehouse management, and library management, inventory, search, borrowing, and other usage scenarios
Product Specifications
|
Physical parameters |
|
Performance parameters |
||
|
Overall dimensions (width*height*depth) |
920mm*1940mm*450mm |
operating system |
Windows/Android (optional) |
|
|
Grid size (width*height*depth) |
420mm*400mm*450mm |
Industrial computer |
I5, 4G+128G/RK3288, 2G+8G (optional) |
|
|
Screen |
15.6-inch capacitive touch screen industrial control all-in-one computer (main cabinet) |
Identification method |
UHF RFID wireless identification |
|
|
Resolution |
1080*920 |
Frequency range |
840MHz-960MHz |
|
|
Screen ratio |
16:9 |
Protocol Standards |
GB/T29768-2013/ISO 18000-6C (EPC C1 G2) |
|
|
Communication interface |
Network port (WIFI optional) |
Identification |
Support multi-tag identification, tag data filtering, RSSI |
|
|
Work Environment |
Reading time |
1-13 seconds |
||
|
Operating temperature |
0~65℃ |
Development Support |
||
|
Operating humidity |
10%RH~95%RH |
Secondary Development |
SDK development kit (supported languages: C#, C/C++, java, android, python) |
|
|
Power supply mode |
|
|||
|
Power Input |
AC220V/50Hz |
|||
Details display

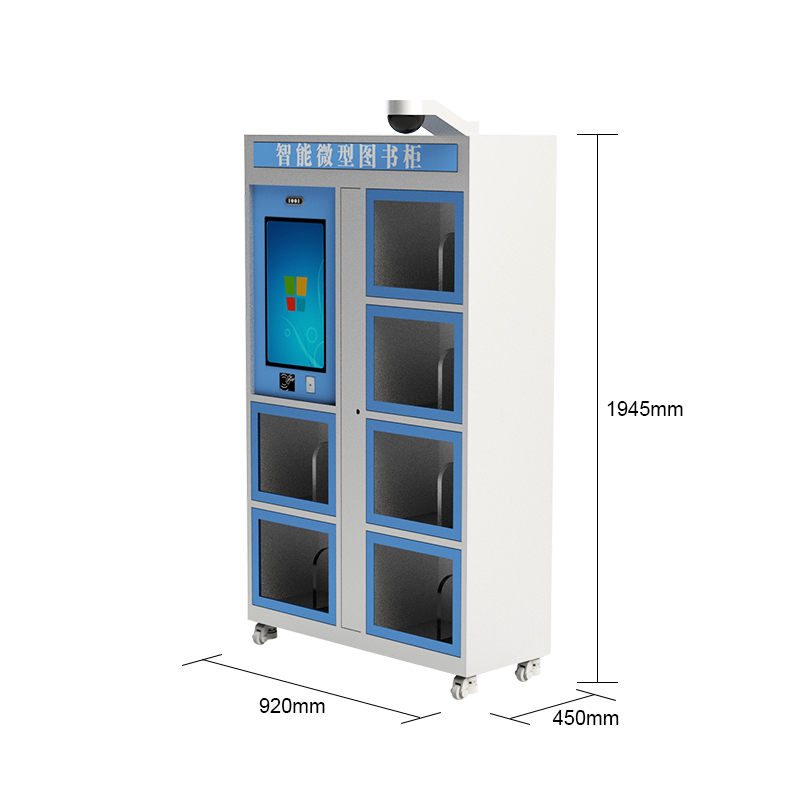

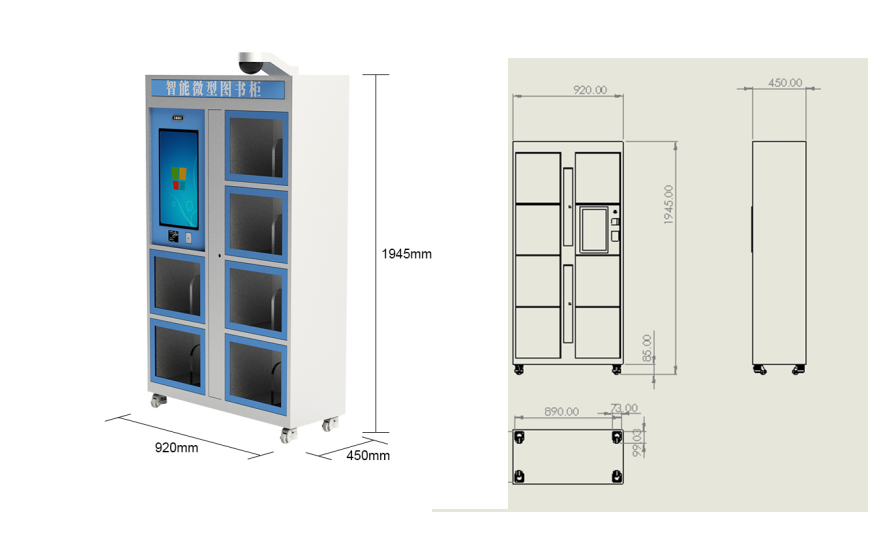

Product size:

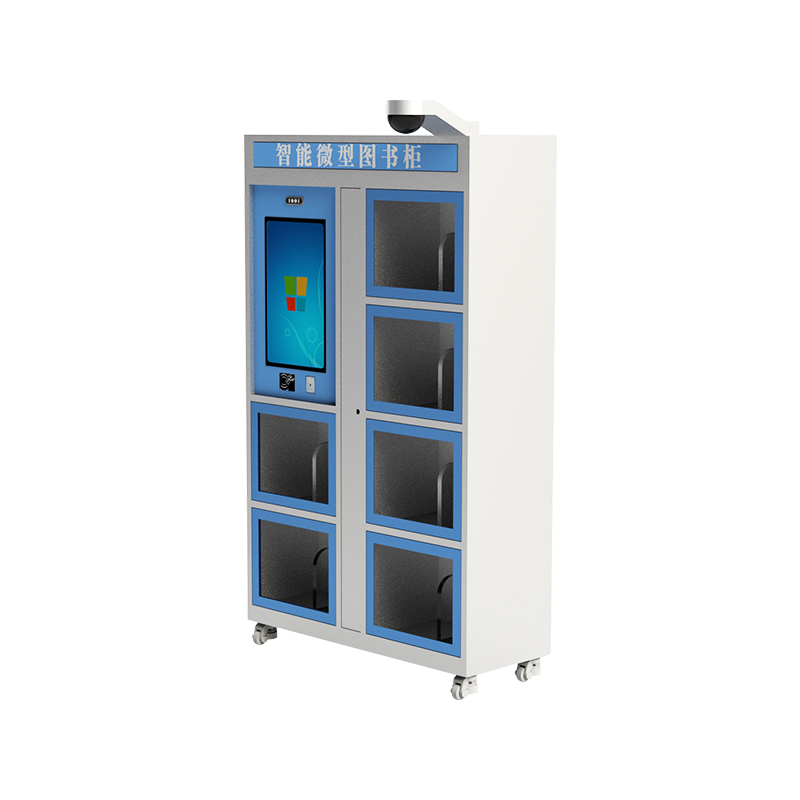

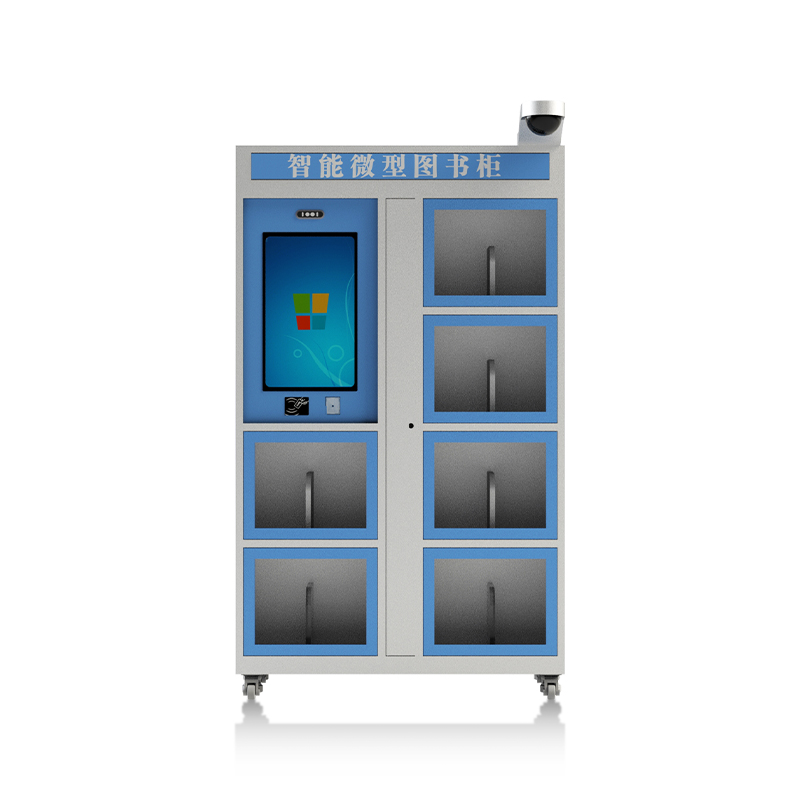

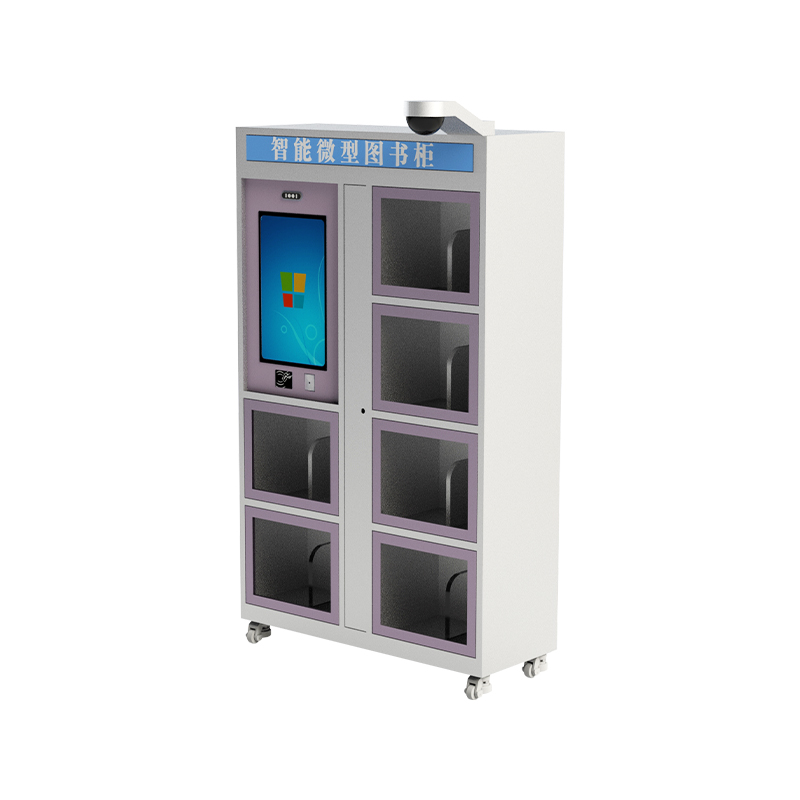

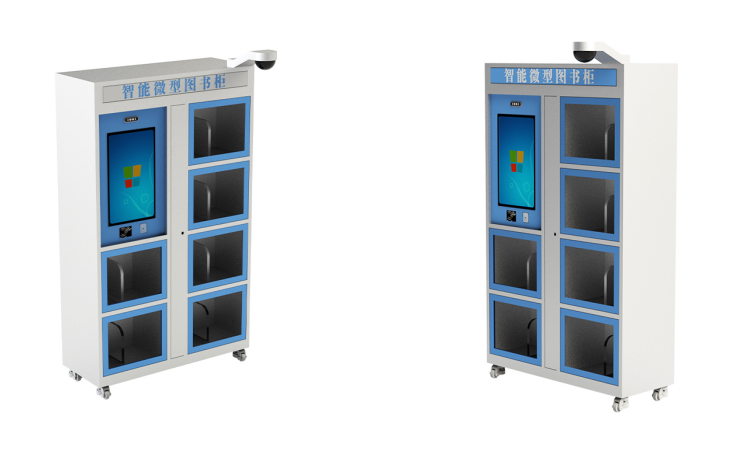

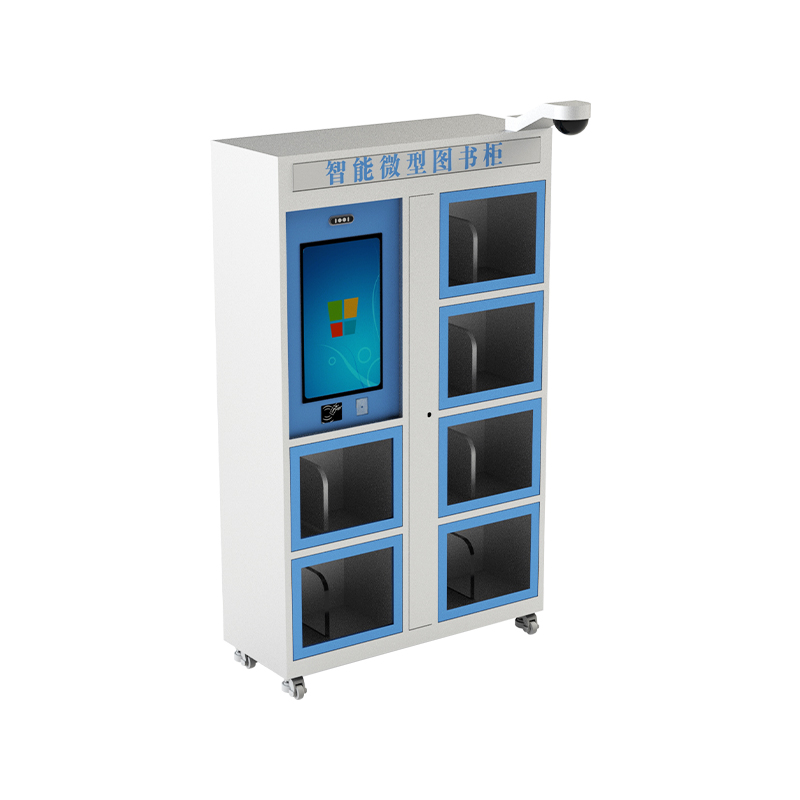

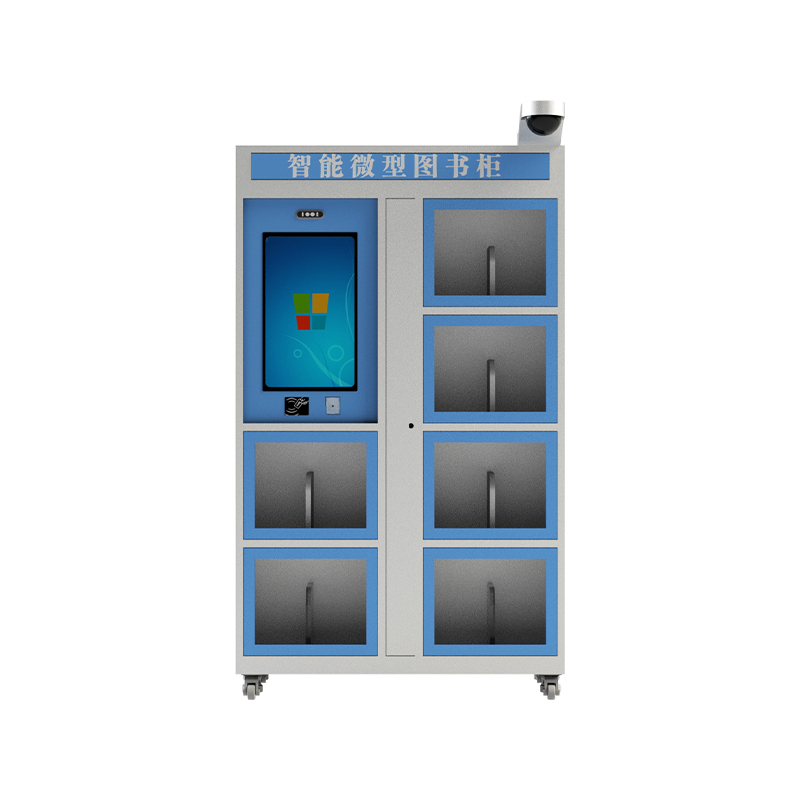

Product appearance:
