CB100 RFID Smart Bookshelf & File Cabinet
Characteristic
- Functions such as book search, reader authentication, borrowing, and returning
- SIP2 or NCIP interface to connect with library management integrated management system
- Supports borrowing and returning of multiple books at a time, and can realize remote diagnosis, monitoring, remote power on and off, etc.
- Voice broadcast function, providing detailed instructions for readers' operations, with adjustable volume
- Imported acrylic panel, wear-resistant, scratch-resistant and easy to clean
- Strong multi-tag reading capability, extremely low missed reading rate and misreading rate
- Application: Book management requires self-service borrowing and returning , automatic inventory, etc.
Product Specifications
|
RFID function (optional) |
|
IC card reader |
||
|
Operating frequency |
13.56 MHz 8 40 ~ 960 MHz ( optional ) |
Communication interface |
RS232 |
|
|
protocol |
ISO15693 / ISO18000-3 ISO18000-6C (EPC GEN2) (optional) |
Card reading distance |
0-50mm |
|
|
Communication interface |
Ethernet port or RS232 |
Mean time between failures |
Not less than 5000 hours |
|
|
Machine parameters |
|
QR code module |
||
|
Cabinet 1 |
1.5mm thick high-quality cold-rolled steel plate , environmentally friendly paint treatment , rust-proof, corrosion-resistant and wear-resistant |
Image Sensor |
640×480 CMOS |
|
|
trumpet |
8 ohms 5 watts |
Reading accuracy |
2D≥5mil, 1D≥4mil |
|
|
Power Module |
Input: 220-240V, output 12V. |
Acquisition speed |
1/120 sec. |
|
|
Machine interface |
Ethernet interface*1, USB interface*2, power switch*1, start switch*1 |
Communication interface |
USB |
|
|
Dimensions (excluding surveillance camera height) |
Main cabinet: 590*400*2285mm (width x depth x height) Sub-cabinet: 1300*400*2285mm (width×depth×height) Camera height: 220mm |
Field of view |
Diagonal 52°, horizontal 42°, vertical 32° |
|
|
Display |
|
Light control, lock control panel |
||
|
LCD screen |
2 1.5 inches, display ratio 16:9 Resolution: 1920×1080 |
Supply voltage |
DC12V/5A--DC24V/5A |
|
|
touchscreen |
Projected capacitive technology, physical tempered, Mohs 7 explosion-proof glass, Ten-point capacitive touch, scanning accuracy 4096×4096 |
Communication interface |
RS485 interface |
|
|
Binocular camera |
Signal feedback |
Manual door closing and manual door opening will have command feedback |
||
|
Support liveness detection, aperture |
F2.5 |
Lock control-light control |
Each output on the lock control board has two types of terminals. The 4P terminal is used to connect the electric spring lock, and the 2P terminal can be used to connect the light. |
|
|
Exposure, White Balance |
automatic |
Baud rate |
Default 9600 |
|
|
Maximum effective pixel |
1920*1080 |
Power control host (default Windows, optional Android) |
||
|
Resolution |
2 million pixels, frame rate: 30FPS |
|
Memory |
Intel Core I5 4th generation, 4G memory, 128G solid state drive |
|
Network surveillance camera (Optional) |
Hikvision 4-port network monitoring host, 2T hard disk storage, hemispherical explosion-proof 1.3 million camera |
operating system |
Windows7 or Windows10 operating system, (configuration can also be customized as needed) |
|
|
ID card module (optional) |
|
|||
|
ID card |
Support second-generation ID cards |
|
||
|
protocol |
Support ISO 14443 Type A/B standard proximity IC card |
|
||

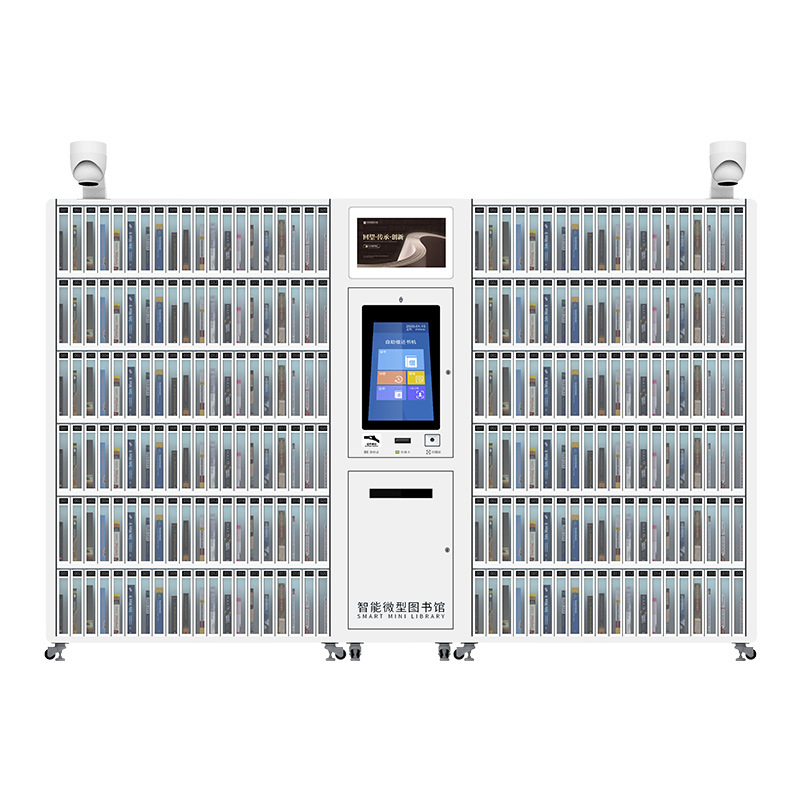

Details display

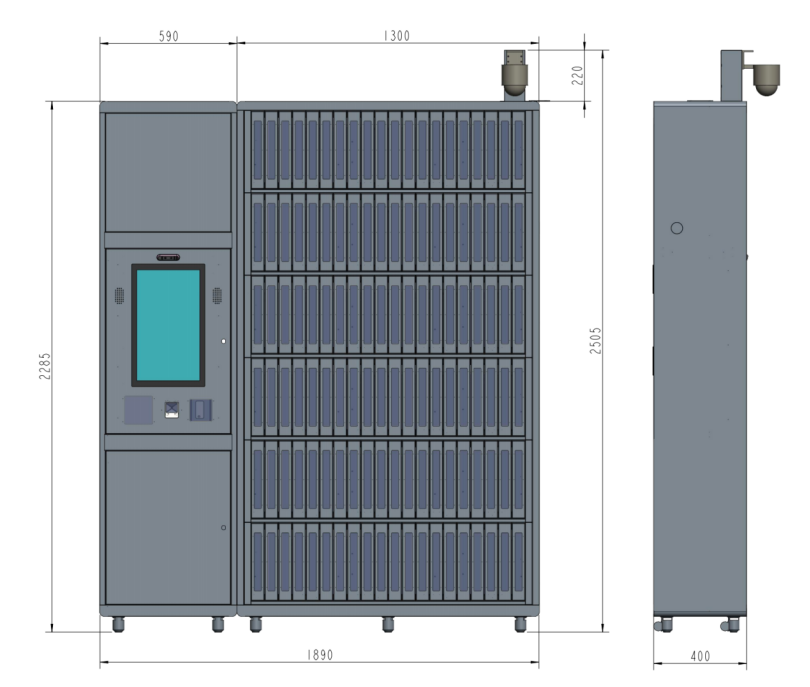

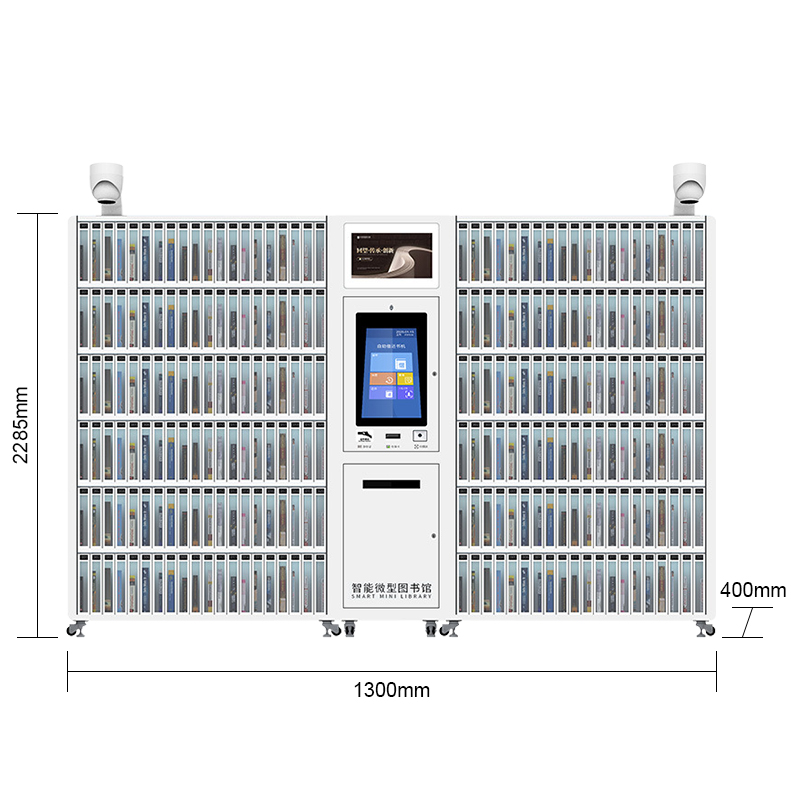

Product size:
