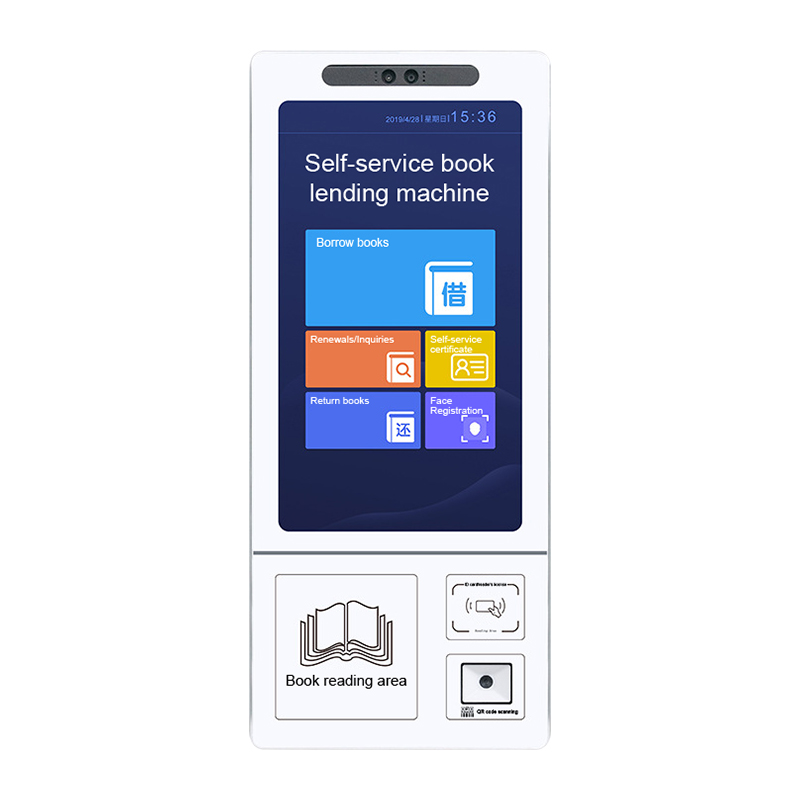

CB404 RFID Smart Book Machine
Characteristic

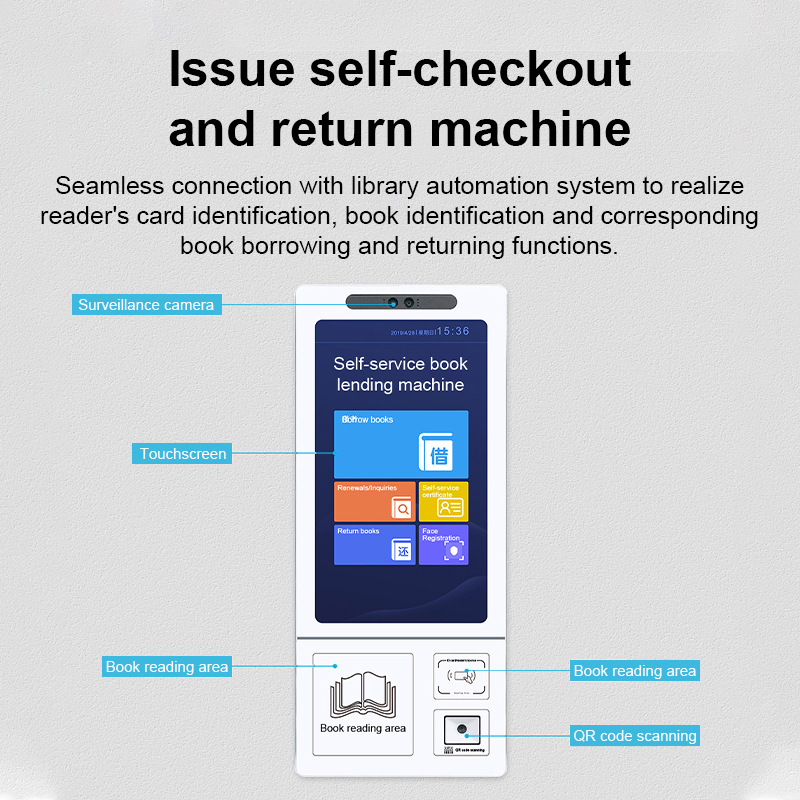

- All-in-one design , integrated with binocular camera, QR code, ID card, IC card reader and other functional modules
- 21.5-inch capacitive touch screen, with self-service borrowing and returning software, can realize book borrowing and returning, reader query, renewal and other operations
- Support high frequency or ultra-high frequency protocol (choose one of the two) , SIP2 protocol and dedicated interface to connect with library management system
- Shell aluminum alloy + sheet metal + tempered glass, strong and wear-resistant

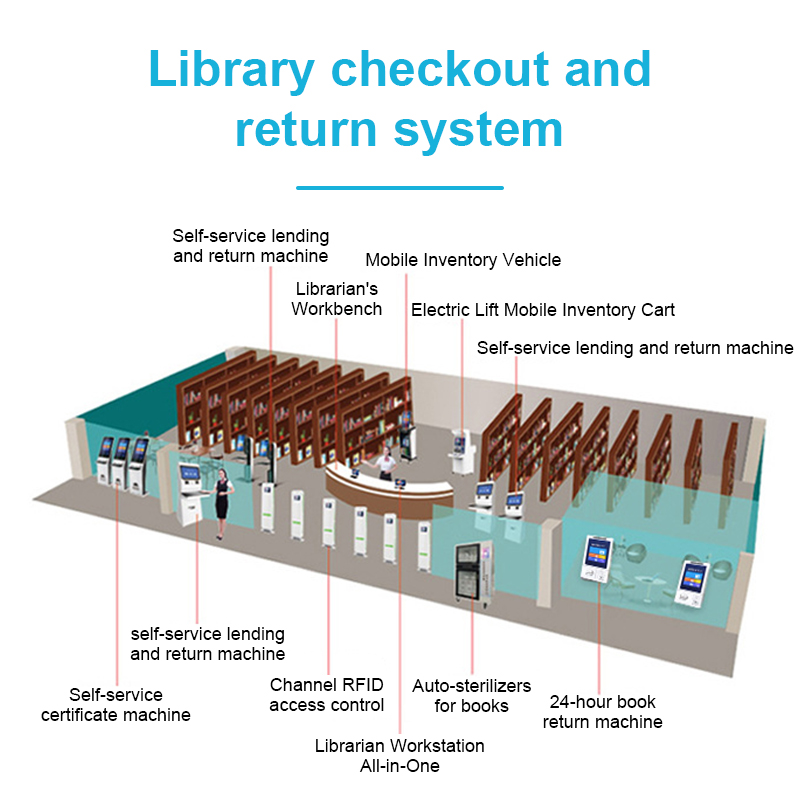

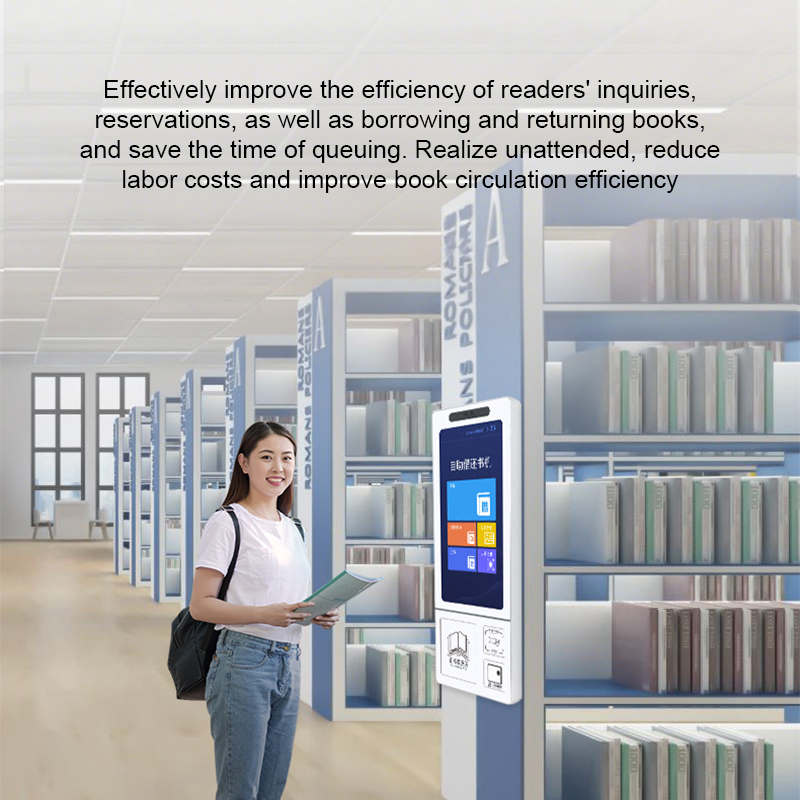

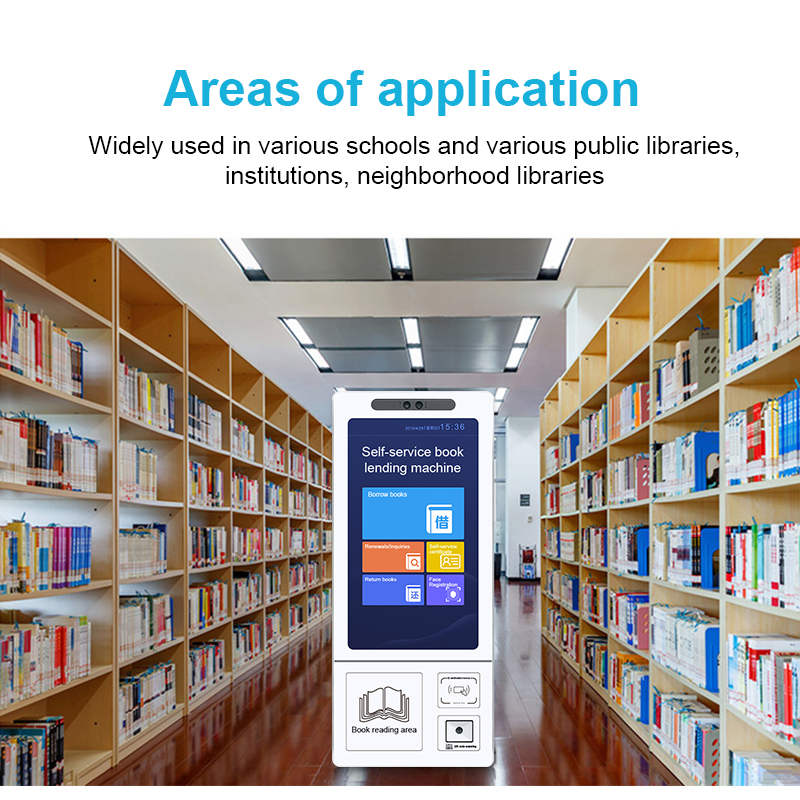

- Application: In the actual application scenarios of self-service borrowing, inquiry and renewal in library management
Product Specifications
|
Industrial control host (optional Windows) |
|
Industrial control host (optional Android) |
||
|
CPU |
Intel Core i5 4th generation quad-core processor |
CPU |
Quad-core 64-bit Cortex-A55, up to 2.0 GHz |
|
|
Memory |
DDR3 4GB |
GPU |
ARM G52 2EE supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
|
|
harddisk |
SSD 128GB |
NPU |
Computing power up to 1 TOPS |
|
|
Sound Card |
Onboard Realtek ALC897 audio decoding controller |
Memory |
4G |
|
|
Network Card |
Onboard Realtek RTL8111H (100/1000Mbps adaptive) |
Internal memory |
EMMC 32G |
|
|
Rear I/O interface |
CLR-CMOS button*1, One click restore button*1 |
operating system |
Android 11 |
|
|
Motherboard interface |
The motherboard supports up to COM 232*6, USB2.0*6, USB3.0*2 |
Play Mode |
Supports multiple playback modes such as loop, timing, and insert |
|
|
operating system |
Support Windows 7 /10 64 Bit |
Video Format Support |
Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc. |
|
|
Operating temperature |
-15°C ~ 60°C |
Image format support |
Support BMP, JPEG, PNG, GIF |
|
|
Identification zone high frequency reader (optional) |
RTC Real Time Clock |
Support and support timed switch |
||
|
Operating frequency |
13.56Mhz |
Network support |
Support 10/100M/1000M adaptive Ethernet, built-in WiFi, Bluetooth, WIFI support hotspot sharing; expandable 4G Internet access (USB 4G module required) |
|
|
Protocol Standards |
Support ISO15693 |
Work Environment |
Temperature: 0°C~70°C, Humidity: 10%~90%, no condensation |
|
|
Communication interface |
RS232 |
Identification zone UHF reader (optional) |
||
|
Binocular camera |
Operating frequency |
840-960MHz |
||
|
Support liveness detection, aperture |
F2.5 |
Protocol Standards |
Support ISO18000-6C and EPC Class1 Gen2 |
|
|
Exposure, White Balance |
automatic |
Communication interface |
Ethernet port or RS232 |
|
|
Maximum effective pixel |
1920*1080 |
QR code module (optional) |
||
|
Resolution |
2 million pixels |
Image Sensor |
640×480 CMOS |
|
|
Frame rate |
30FPS |
Reading accuracy |
2D≥5mil, 1D≥4mil |
|
|
Display |
|
light source |
White LED (6500K) |
|
|
LCD display |
21.5 inches, display ratio 16:9, resolution: 1920×1080; |
Communication interface |
USB |
|
|
Capacitive touch screen |
Projected capacitive technology, physical tempering, Mohs 7 explosion-proof glass Ten-point capacitive touch, scanning accuracy 4096×4096 |
Field of view |
Diagonal angle ≥80° |
|
|
Machine parameters |
ID card module (optional) |
|||
|
Cabinet 1 |
1.5mm thick high-quality cold-rolled steel plate and aluminum alloy frame , environmentally friendly paint process , rust-proof, corrosion-resistant and wear-resistant |
protocol |
Support ISO 14443 Type A/B standard proximity IC card |
|
|
trumpet |
8 ohms 5 watts |
ID card |
Support reading second-generation ID cards |
|
|
Power Module |
Input: DC 12V |
IC card reader |
||
|
Machine interface |
Ethernet interface*1, USB interface*2, power switch*1, start switch*1 |
Communication interface |
RS232 |
|
|
Dimensions |
517×379×499mm (length×width×height) |
Card reading distance |
0-50mm |
|
|
other |
Mean time between failures |
Not less than 5000 hours |
||
|
Equipment material |
Aluminum alloy, sheet metal, tempered glass |
|
||
|
Installation |
Wall Mount |
|||
|
powered by |
AC 220V 50Hz |
|||
|
|
||||
Details display

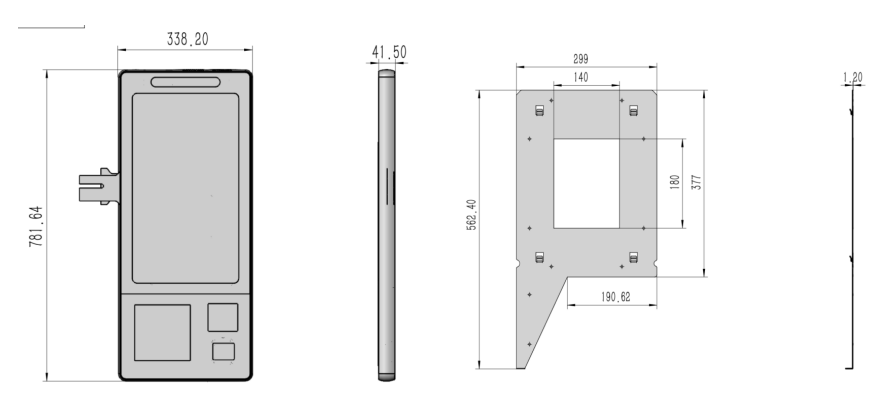

Product size:

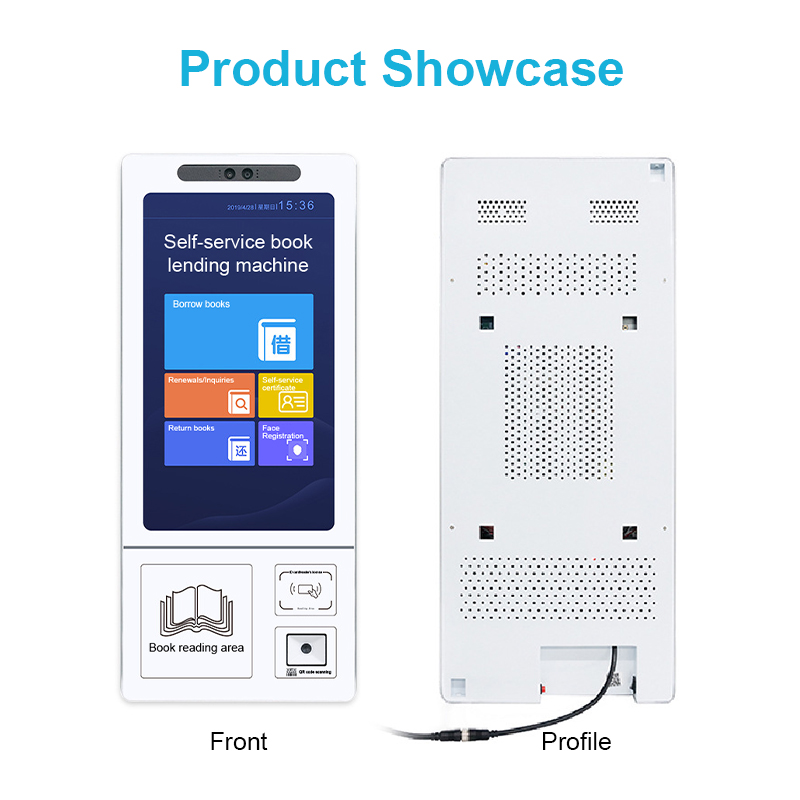

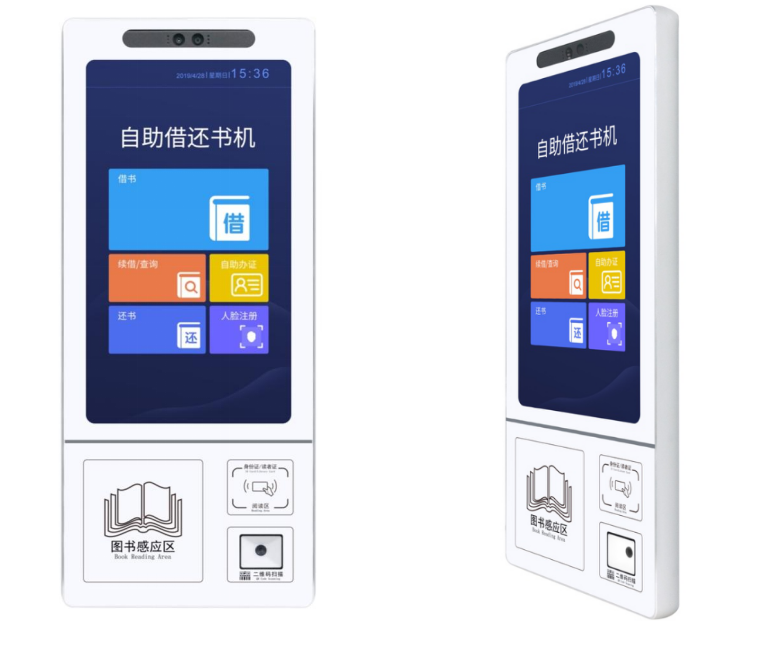

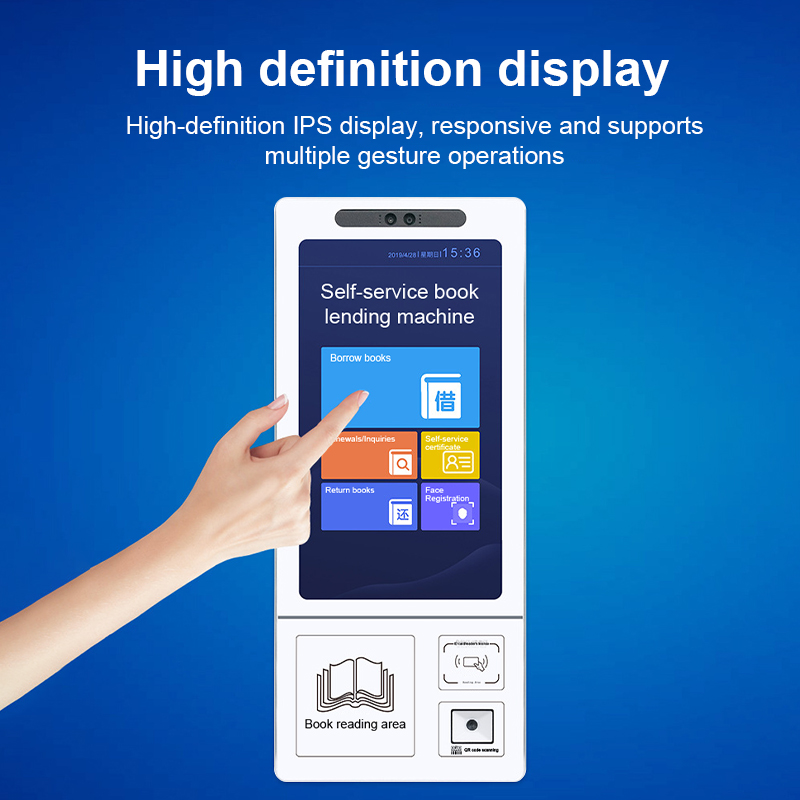

Product appearance
