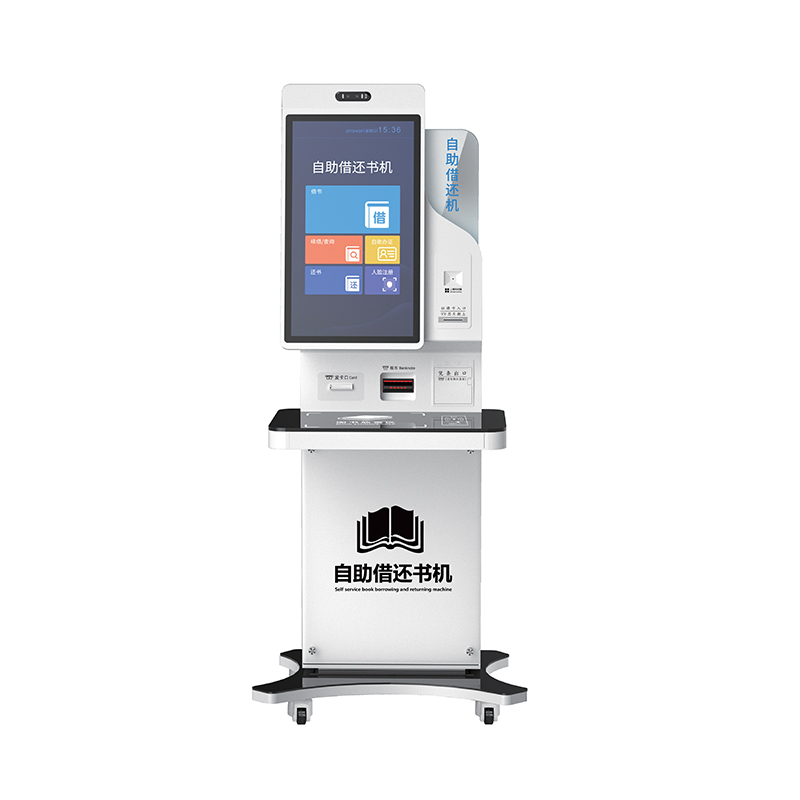

CB403 RFID Smart Book Machine

Industrial control host (optional Windows)

Industrial control host (optional Android)

CPU

Intel Core i5 4th generation quad-core processor

CPU

Quad-core 64-bit Cortex-A55, up to 2.0 GHz

Memory

DDR3 4GB

GPU

ARM G52 2EE supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

harddisk

SSD 128GB

NPU

Computing power up to 1 TOPS

Sound Card

Onboard Realtek ALC897 audio decoding controller

Memory

4G

Network Card

Onboard Realtek RTL8111H (100/1000Mbps adaptive)

Internal memory

EMMC 32G

Rear I/O interface

CLR-CMOS button*1, One click restore button*1

operating system

Android 11

Motherboard interface

The motherboard supports up to COM 232*6, USB2.0*6, USB3.0*2

Play Mode

Supports multiple playback modes such as loop, timing, and insert

operating system

Support Windows 7 /10 64 Bit

Video Format Support

Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc.

Operating temperature

-15°C ~ 60°C

Image format support

Support BMP, JPEG, PNG, GIF

Identification zone high frequency reader (optional)

RTC Real Time Clock

Support and support timed switch

Operating frequency

13.56Mhz

Network support

Support 10/100M/1000M adaptive Ethernet, built-in WiFi, Bluetooth, WIFI support hotspot sharing; expandable 4G Internet access (USB 4G module required)

Protocol Standards

Support ISO15693

Work Environment

Temperature: 0°C~70°C, Humidity: 10%~90%, no condensation

Communication interface

RS232

Identification zone UHF reader (optional)

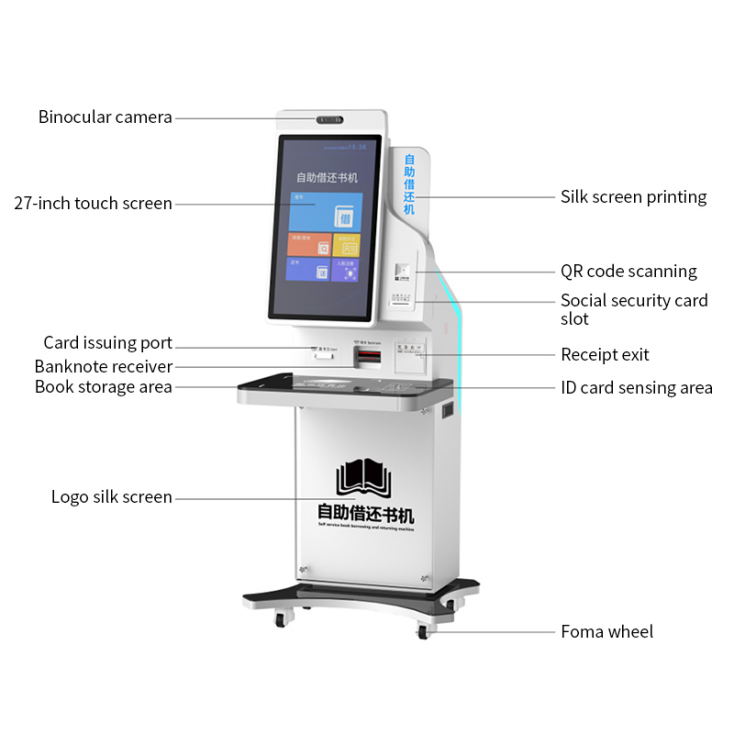

Binocular camera

Operating frequency

840-960MHz

Support liveness detection, aperture

F2.5

Protocol Standards

Support ISO18000-6C and EPC Class1 Gen2

Exposure, White Balance

automatic

Communication interface

Ethernet port or RS232

Maximum effective pixel

1920*1080

QR code module (optional)

Resolution

2 million pixels

Image Sensor

640×480 CMOS

Frame rate

30FPS

Reading accuracy

2D≥5mil, 1D≥4mil

Display

Acquisition speed

1/120 sec.

LCD display

27 inches, display ratio 16:9, resolution: 1920×1080;

Communication interface

USB

Capacitive touch screen

Projected capacitive technology, physical tempering, Mohs 7 explosion-proof glass

Ten-point capacitive touch, scanning accuracy 4096×4096

Field of view

Diagonal 52°, horizontal 42°, vertical 32°

Electric card issuing machine (optional)

Banknote dispenser, cash box (optional)

Feature 1

The card machine has the functions of sending and receiving cards and reading and writing IC/RF cards (IC/RF cards must comply with relevant standards)

Feature 1

A new sensor layout for the anti-counterfeiting features of RMB, effectively identifying various types of counterfeit banknotes

Feature 2

With card empty, card pre-empty detection and voice control alarm function

Feature 2

The machine has its own clock chip, which can record the time of banknote reception (the host computer needs to set the machine system clock first)

Feature 3

Internal card recycling function, with a dedicated recycling card box; removing the card box and steel column of the card issuing machine can make it into a card recycling channel mode

Feature 3

Anti-coin withdrawal (phishing) sensor design effectively prevents malicious withdrawal of banknotes

Feature 4

With the function of front-end card input, reading and writing RF cards

Feature 4

Highly reliable optical and contactless electromagnetic sensors for detecting anti-counterfeiting features of banknotes

Concave card adjustment mechanism

Patented technology, can be adjusted according to the thickness of the card, simple and convenient operation

Feature 5

There is no restriction on the way of feeding money. Money can be fed from any position on all four sides (no folding or corner folding), which is convenient for customers to use.

Communication interface

RS-232C control mode, can realize multi-machine communication

Function 6

The machine starts up with self-checking and automatically detects sensors to ensure the reliability of the machine

Card issuance speed

About 14.8cm/s

Feature 7

Double safety lock design for removing and opening the cash box

Loading card capacity

The standard card quantity is 120pcs (based on 0.76mm thick cards, optional additional mobile card box, maximum capacity is 500pcs)

Function 8

The beltless transmission channel design effectively avoids the trouble of banknote jams

Social security card module (optional)

Feature 9

Dust-proof door design to reduce the impact of external dust

Social Security Card Module

The corresponding social security card module needs to be selected according to different regions

Denomination identification

RMB banknotes 100 yuan, 50 yuan, 20 yuan, 10 yuan, 5 yuan, 1 yuan

ID card module (optional)

Cash collection speed

3s, recognition rate: ≧98%

protocol

Support ISO 14443 Type A/B standard proximity IC card

Cash box capacity

1000 sheets, stacked in order

ID card

Support reading second-generation ID cards

IC card reader

Machine parameters

Communication interface

RS232

Cabinet 1

1.5mm thick high-quality cold-rolled steel plate , environmentally friendly paint treatment , rust-proof, corrosion-resistant and wear-resistant

Card reading distance

0-50mm

trumpet

8 ohms 5 watts

Mean time between failures

Not less than 5000 hours

Power Module

Input: 220-240V, output 12V

Thermal printer (optional)

Machine interface

Ethernet interface*1, USB interface*2, power switch*1, start switch*1

Print density

Professional 80mm thermal receipt printer, print density: 8 dots/mm

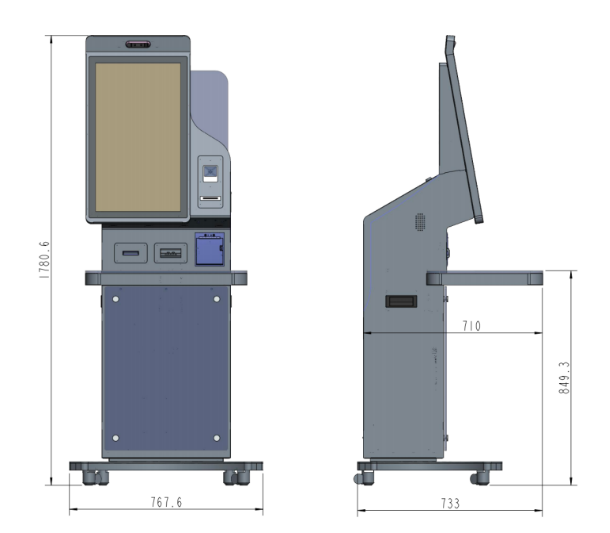

Dimensions

767*733*1780 (width×depth×height)

Print speed

150mm/s (Max)

other

Printing direction

Paper feed direction

Equipment material

Sheet metal tempered glass

Paper width

79.5±0.5mm

Installation

Vertical (with casters)

Paper handling method

Automatic paper cutting

powered by

AC 220V 50Hz
