CB301 RFID Smart Inventory Car
characteristic
- Integrated design, supports wired , wireless , high frequency , ultra-high frequency (choose one of the two) communication modes
- The display adopts ultra-narrow frame design , can rotate 360 degrees horizontally, flip up and down ≥ 90 degrees , and supports horizontal and vertical screens
- SIP2 protocol and dedicated interface to connect with library management system
- Intelligent library management, stable performance, stylish appearance and strong sense of technology
- The shell is made of sheet metal + tempered glass, which is strong and reliable
- Application: Scenarios that require automated mobile inventory in library management
Product Specifications
|
Industrial control host (optional Windows) |
|
Industrial control host (optional Android) |
||
|
CPU |
Intel Core i5 4th generation quad-core processor |
CPU |
Quad-core 64-bit Cortex-A55, up to 2.0 GHz |
|
|
Memory |
DDR3 4GB |
GPU |
ARM G52 2EE supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
|
|
harddisk |
SSD 128GB |
NPU |
Computing power up to 1 TOPS |
|
|
Sound Card |
Onboard Realtek ALC897 audio decoding controller |
Memory |
4G |
|
|
Network Card |
Onboard Realtek RTL8111H (100/1000Mbps adaptive) |
Internal memory |
EMMC 32G |
|
|
Rear I/O interface |
CLR-CMOS button*1, One click restore button*1 |
operating system |
Android 11 |
|
|
Motherboard interface |
The motherboard supports up to COM 232*6, USB2.0*6, USB3.0*2 |
Play Mode |
Supports multiple playback modes such as loop, timing, and insert |
|
|
operating system |
Support Windows 7 / 10 64 Bit |
Video Format Support |
Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc. |
|
|
Operating temperature |
-15°C ~ 60°C |
Image format support |
Support BMP, JPEG, PNG, GIF |
|
|
Identification zone high frequency reader (optional) |
RTC Real Time Clock |
Support and support timed switch |
||
|
Operating frequency |
13.56Mhz |
Network support |
Support 10/100M/1000M adaptive Ethernet, built-in WiFi, Bluetooth, WIFI support hotspot sharing; expandable 4G Internet access (USB 4G module required) |
|
|
Protocol Standards |
Support ISO15693 |
Work Environment |
Temperature: 0°C~70°C, Humidity: 10%~90%, no condensation |
|
|
Communication interface |
RS232 |
Identification zone UHF reader (optional) |
||
|
High frequency wireless inventory counter (optional) |
Operating frequency |
840-960MHz |
||
|
Operating frequency |
13.56Mhz |
Protocol Standards |
Support ISO18000-6C and EPC Class1 Gen2 |
|
|
Protocol Standards |
Support ISO15693 and ISO18000-3M1 |
Communication interface |
Ethernet port or RS232 |
|
|
Lithium battery capacity |
3350mAH |
UHF wireless inventory counter (optional) |
||
|
Display |
1.44 inches, 65K color LCD display, 128*128 resolution |
Operating frequency |
920-925MHz/902-928MHz/865-868MHz |
|
|
Communication interface |
Bluetooth, WIFI, Micro USB2.0 |
Protocol Standards |
ISO18000-6C and EPC Class1 Gen2 |
|
|
Display |
|
Battery capacity |
5200mAh, working time about 6 hours (UHF group reading) |
|
|
LCD display |
21.5 inches, display ratio 16:9, resolution: 1920×1080; |
Display |
1.77 inches, resolution: 128X160 |
|
|
Capacitive touch screen |
Projected capacitive technology, physical tempering, Mohs 7 explosion-proof glass Ten-point capacitive touch, scanning accuracy 4096×4096 |
Communication interface |
Micro-USB |
|
|
Machine parameters |
Data Communication |
Support Bluetooth 4.0 and Bluetooth BLE |
||
|
chassis |
1.5mm thick high-quality cold-rolled steel plate, environmentally friendly paint treatment, rust-proof, corrosion-resistant and wear-resistant |
Lithium battery |
||
|
trumpet |
8 ohms 5 watts |
Rated Power |
120W |
|
|
Power Module |
Input: AC 220V 50Hz |
Battery voltage |
12.8V |
|
|
Machine interface |
Ethernet interface*1, USB interface*3, start switch*1, WIFI module*1 (optional) |
Battery capacity |
40AH |
|
|
Dimensions |
500×715×1633mm (length×depth×height) |
DC output voltage |
12V 10A |
|
|
other |
Voltage display mode |
LCD screen |
||
|
Equipment material |
Sheet metal, tempered glass |
Cooling method |
Intelligent air cooling |
|
|
Installation |
Vertical (with casters) |
|
||
|
powered by |
AC 220V or lithium battery power supply |
|||

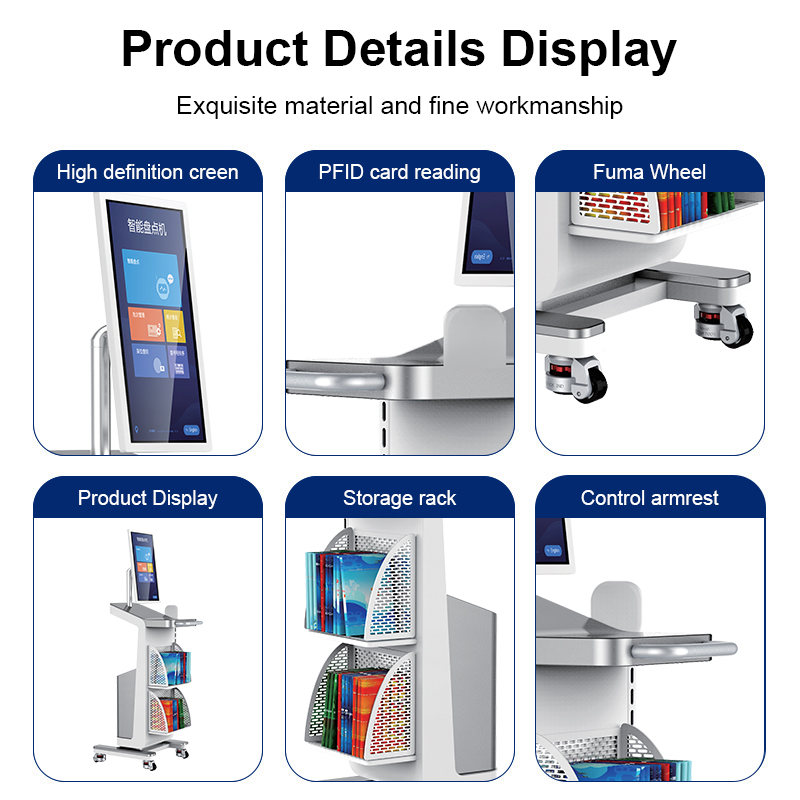

Details display

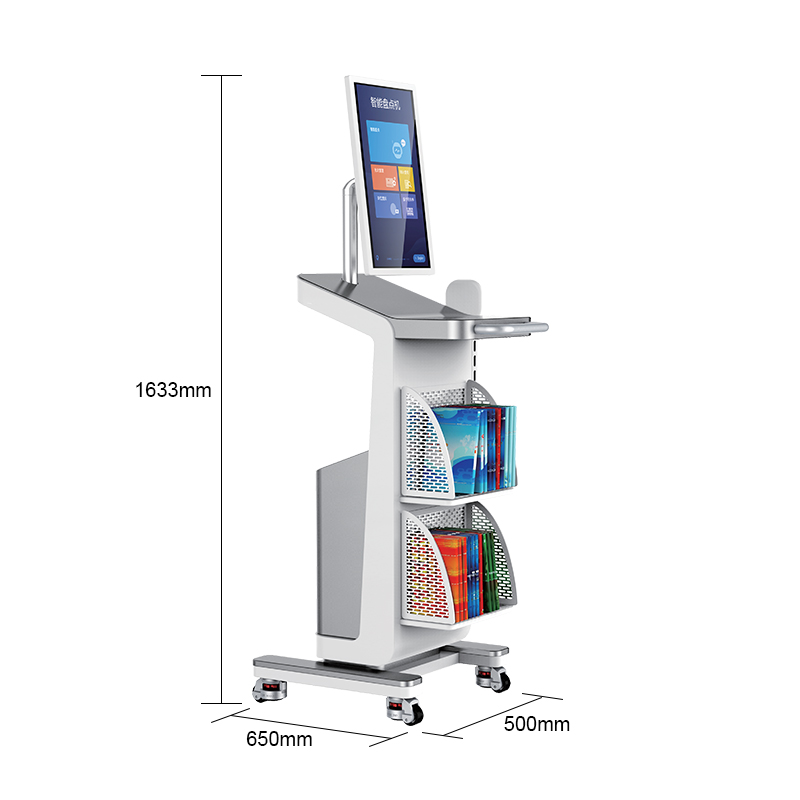

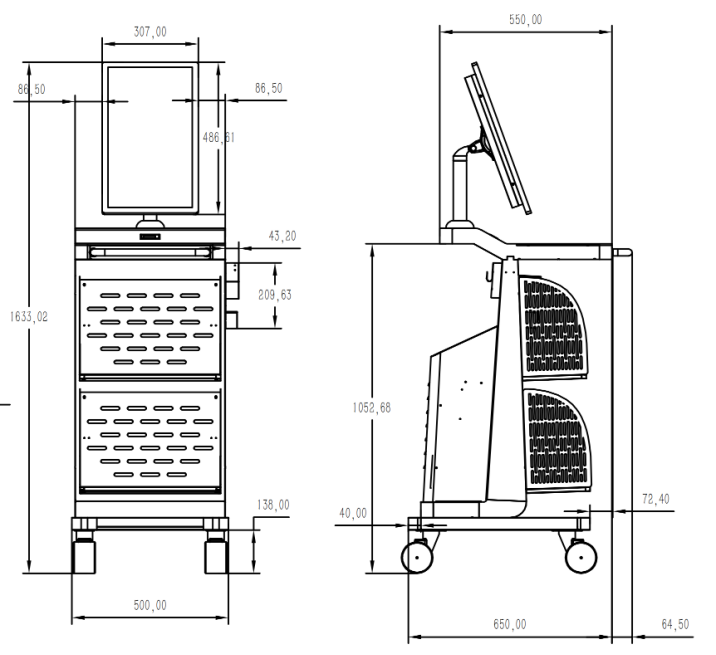

Product size:

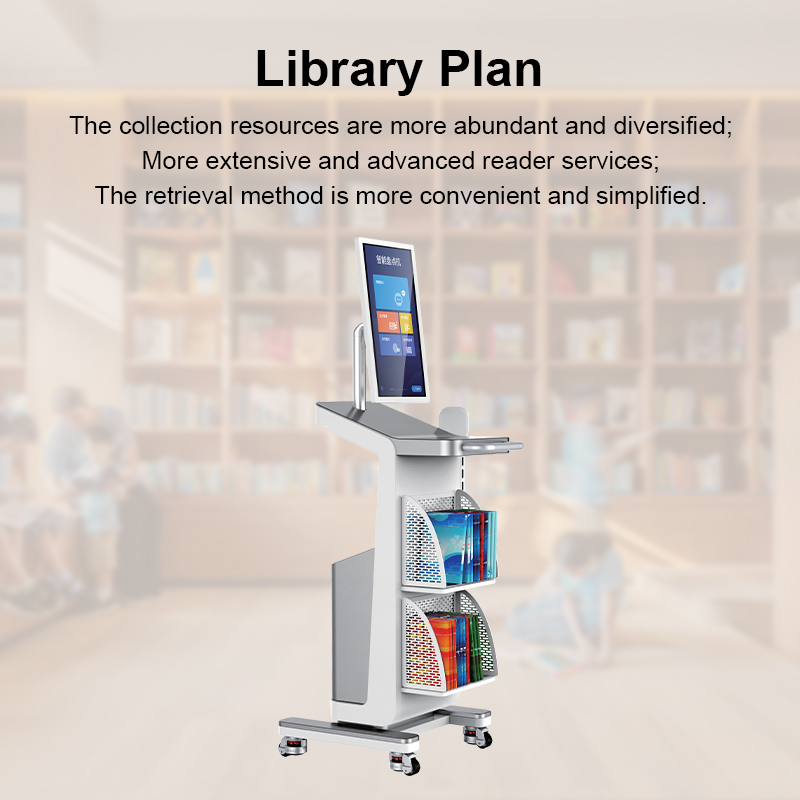

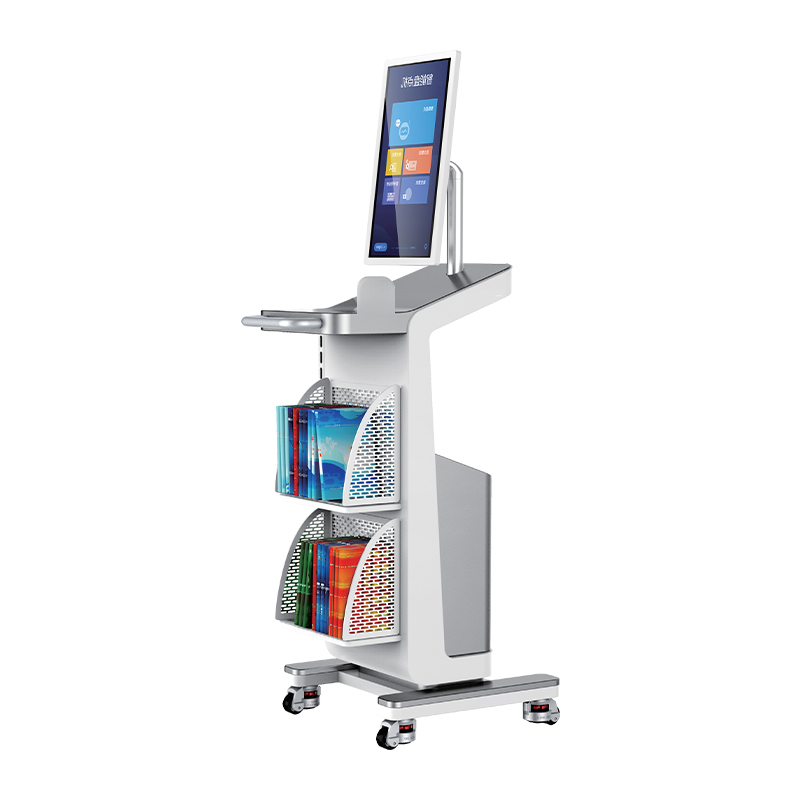

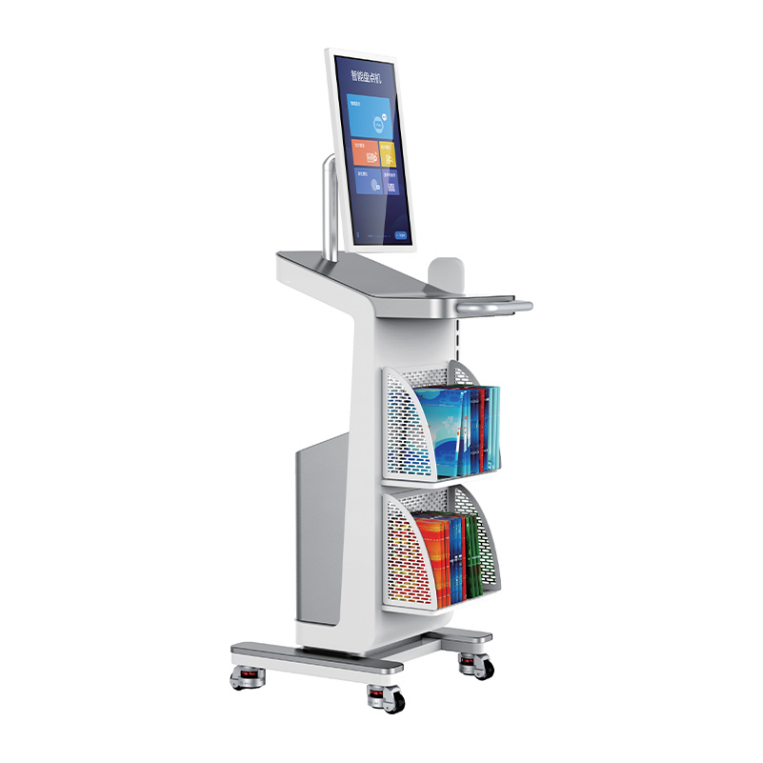

Product appearance
