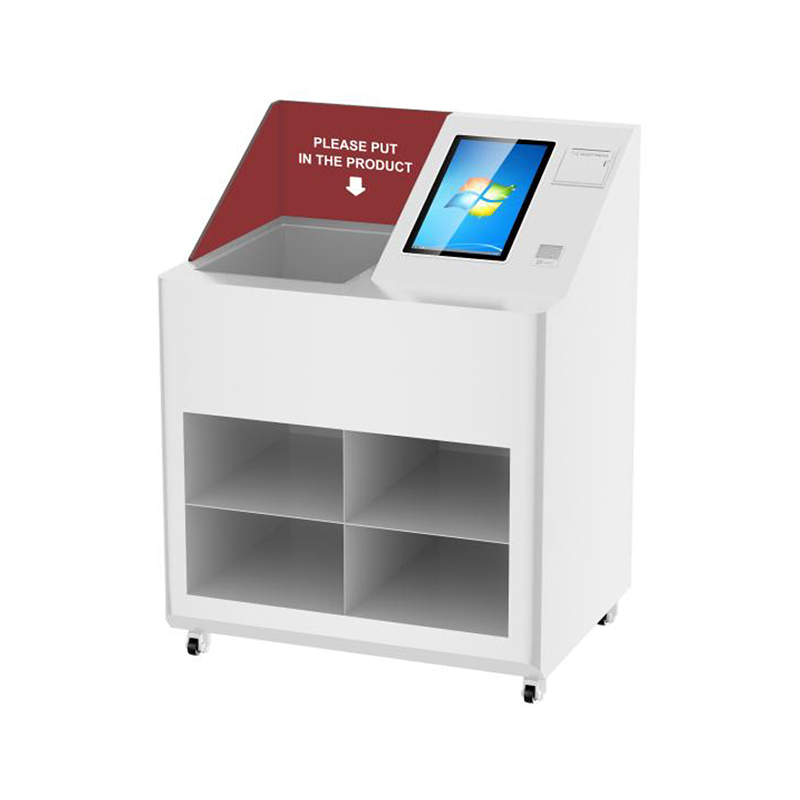

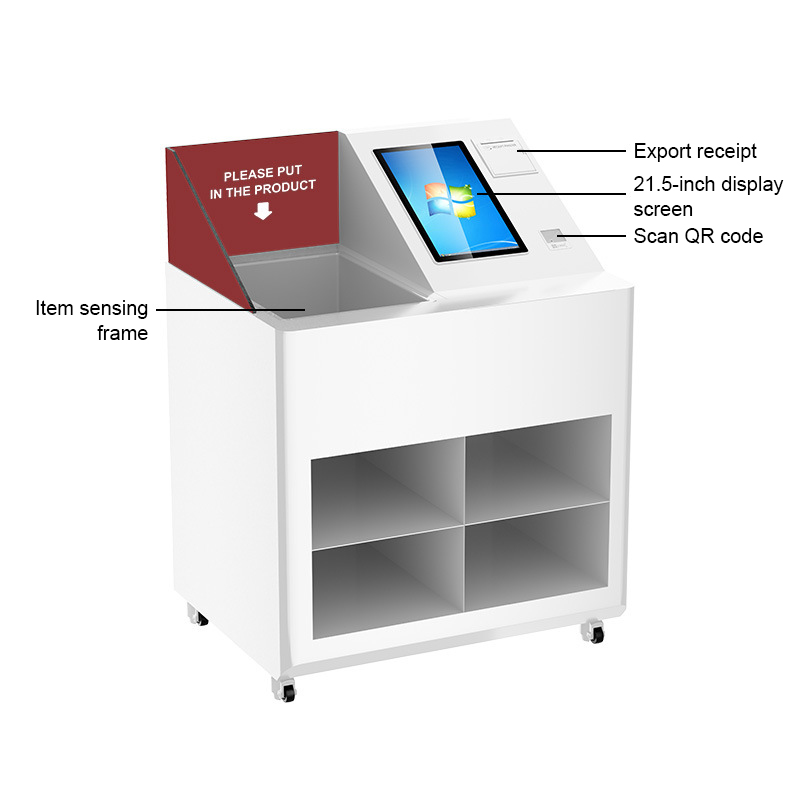

CB200 Retail self-service checkout counter

Application: Clothing Management Retail Management

Characteristic

Integrated design, with various optional functional modules

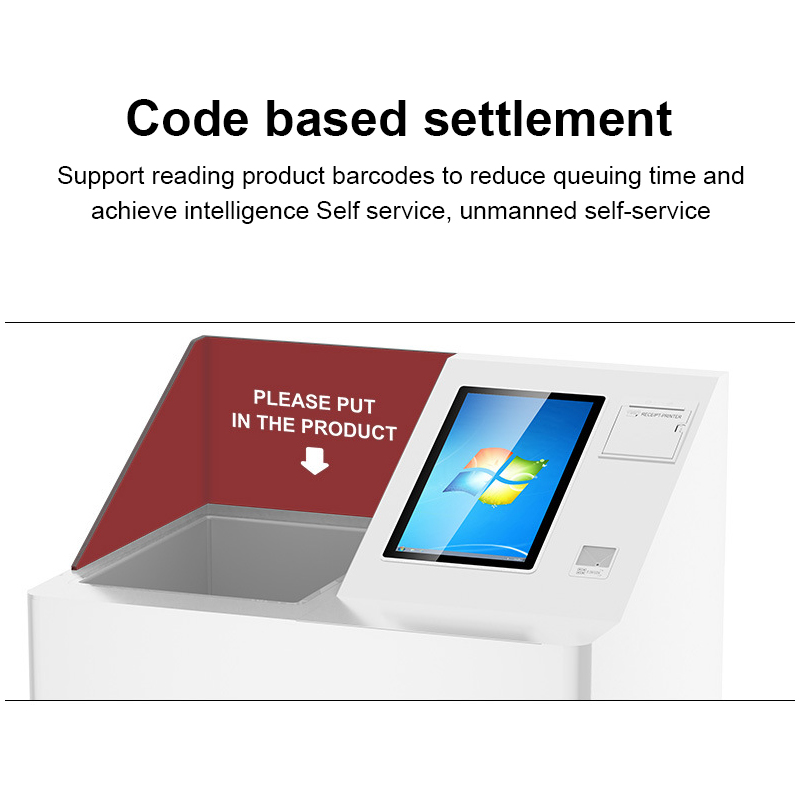

Optional binocular camera, receipt printer, 1D/2D code, POS machine and other functional modules
Can be connected with the store's multi-cash register system, inventory management system, and ERP system
Stable performance, stylish appearance and ergonomics
The shell is made of sheet metal + acrylic, which is strong and wear-resistant
Application: Clothing Management Retail Management

Product Specifications

Industrial control host (optional Windows)		Industrial control host (optional Android)
CPU	Intel Core i5 4th generation quad-core processor	CPU	Quad-core 64-bit Cortex-A55, up to 2.0 GHz
Memory	DDR3 4GB	GPU	ARM G52 2EE supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
harddisk	SSD 128GB	NPU	Computing power up to 1 TOPS
Sound Card	Onboard Realtek ALC897 audio decoding controller	Memory	4G
Network Card	Onboard Realtek RTL8111H (100/1000Mbps adaptive)	Internal memory	EMMC 32G
Rear I/O interface	CLR-CMOS button1, One click restore button1	operating system	Android 11
Motherboard interface	The motherboard supports up to COM 2326, USB2.06, USB3.0*2	Play Mode	Supports multiple playback modes such as loop, timing, and insert
operating system	Support Windows 7 /10 64 Bit	Video Format Support	Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc.
Operating temperature	-15°C ~ 60°C	Image format support	Support BMP, JPEG, PNG, GIF
Identification zone UHF reader		RTC Real Time Clock	Support and support timed switch
Operating frequency	840-960MHz	Network support	Support 10/100M/1000M adaptive Ethernet, built-in WiFi, Bluetooth, WIFI support hotspot sharing; expandable 4G Internet access (USB 4G module required)
Protocol Standards	Support ISO18000-6C and EPC Class1 Gen2	Work Environment	Temperature: 0°C~70°C, Humidity: 10%~90%, no condensation
Communication interface	RS232	Display
Machine parameters		LCD display	15.6 inches, display ratio 16:9, resolution: 1920×1080
Cabinet	1.5mm thick high-quality cold-rolled steel plate, environmentally friendly paint treatment, rust-proof, corrosion-resistant and wear-resistant	Capacitive touch screen	Projected capacitive technology, physical tempered, Mohs 7 explosion-proof glass, Ten-point capacitive touch, scanning accuracy 4096×4096
trumpet	8 ohms 5 watts	Binocular camera (optional)
Power Module	Input: 220-240V, output 12V (optional)	Support liveness detection, aperture	F2.5
Machine interface	Ethernet interface1, power switch1, start switch*1	Exposure, White Balance	automatic

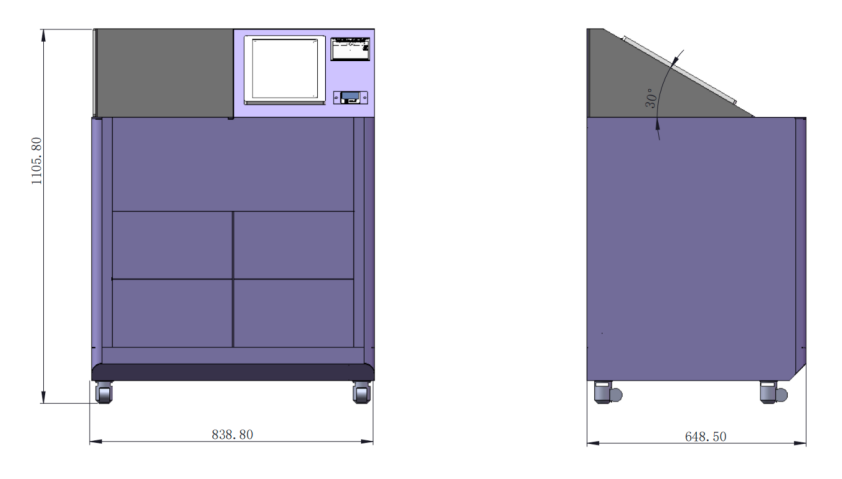

Dimensions	8406501019 (width×depth×height)	Maximum effective pixel	1920*1080
QR code module		Resolution	2 million pixels, frame rate: 30FPS

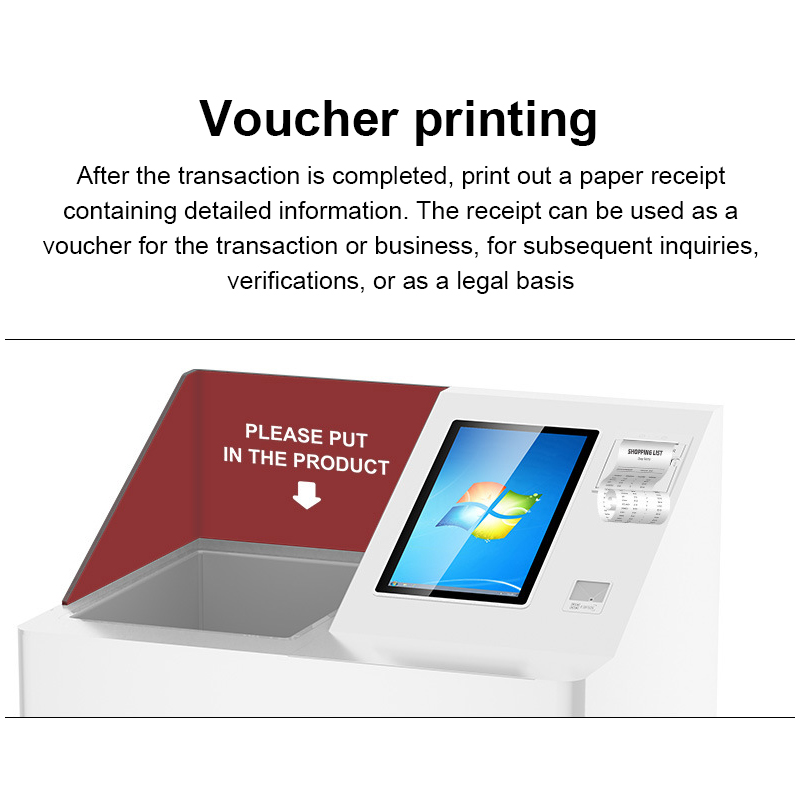

Image Sensor	640×480 CMOS	Thermal Printer
Reading accuracy	2D≥5mil, 1D≥4mil	Print density	Professional 80mm thermal receipt printer, print density: 8 dots/mm
Acquisition speed	1/120 seconds; Communication interface: USB	Print speed	150mm/s (Max)
Field of view	Diagonal 52°, horizontal 42°, vertical 32°	Printing direction	Paper feed direction
other		Paper width	79.5±0.5mm
Equipment material	Sheet metal, acrylic	Paper handling method	Automatic paper cutting
Installation	Vertical (with casters)
POS terminal	Provided by the customer
