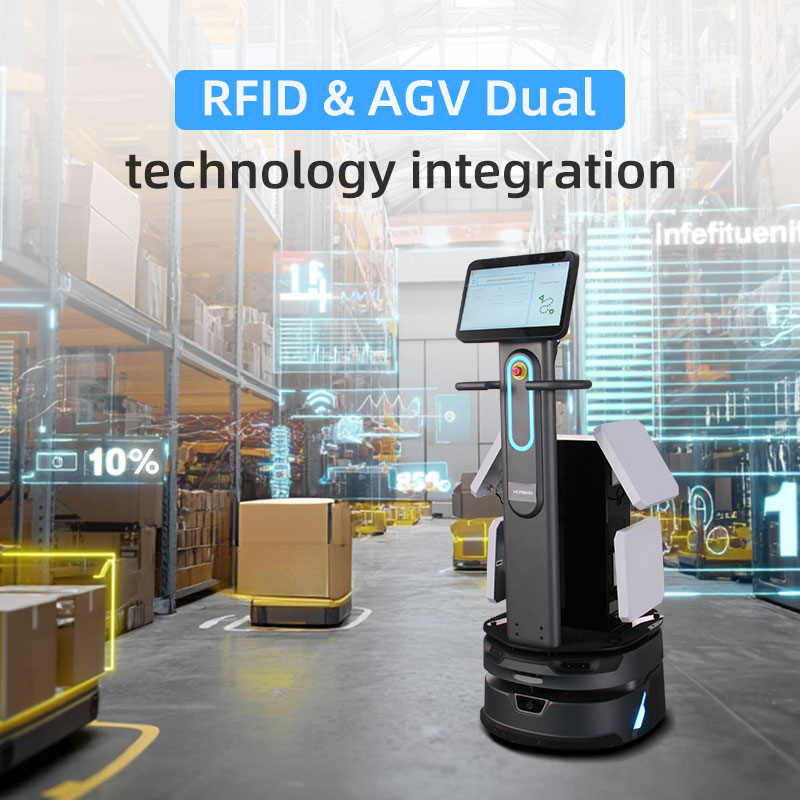

W100 RFID Smart Inventory Robot
-Support editing routes and timed routes

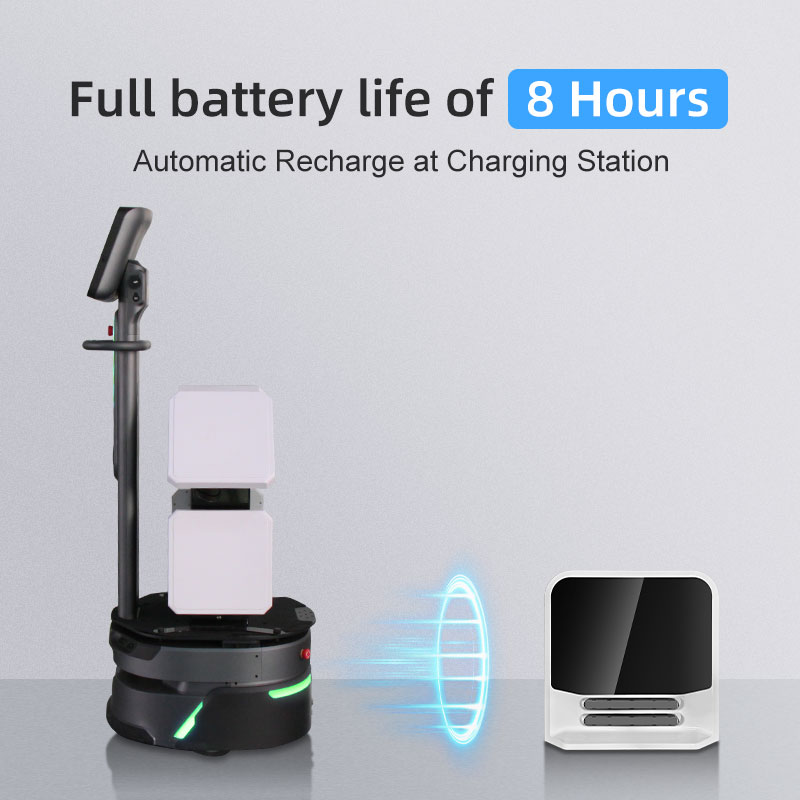

-When the battery is low, the wireless charging station will automatically recharge the battery, and the battery life is 8 hours when fully charged.
-Support Android platform development, SDK can be provided
-Supports operating the car via a web platform
-Application: Warehouse management and other scenarios that require automated mobile inventory
Product Specifications
|
RFID Technical Parameters |
Data Communication |
|||
|
frequency |
902~928MHz (US standard) 865~868MHz (EU standard) |
Standard interface |
USB-A 2.0 *1;Max 5V-1.5A DC-12V*1A 4G, WiFi supports 2.4G/5G Wireless charging station |
|
|
Protocol |
ISO18000-6C (EPC GEN2) |
Prompt sound |
speaker |
|
|
RF Output Power |
0dbm-33dbm (adjustable) |
Indicator Lights |
Blue light when running, green light when charging |
|
|
External antenna |
9dBi antenna*4, circular polarization (customizable) |
System Performance |
||
|
Reading distance |
0-15 meters (depending on the label and environment) |
Hardware Platform |
Qualcomm 8-core chip + industrial-grade MCU |
|
|
Special Features |
Mixed Query |
operating system |
RobotOS operating system deeply customized based on Android 9.0 |
|
|
Read rate |

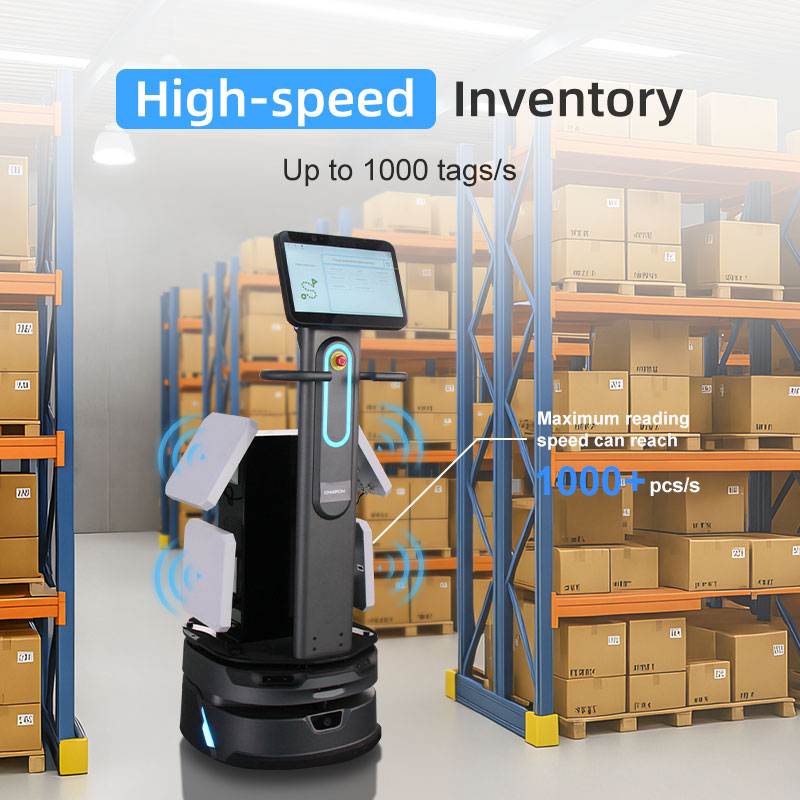

1000 tags/second |
RAM (memory) |
8GB |
|
|
Card reading prompt tone |
support |
ROM(capacity) |
64GB |
|
|
RSSI |
support |
Mic Array |
6-microphone array with full-range sound reception and noise reduction, 360° sound source positioning |
|
|
Physical parameters |

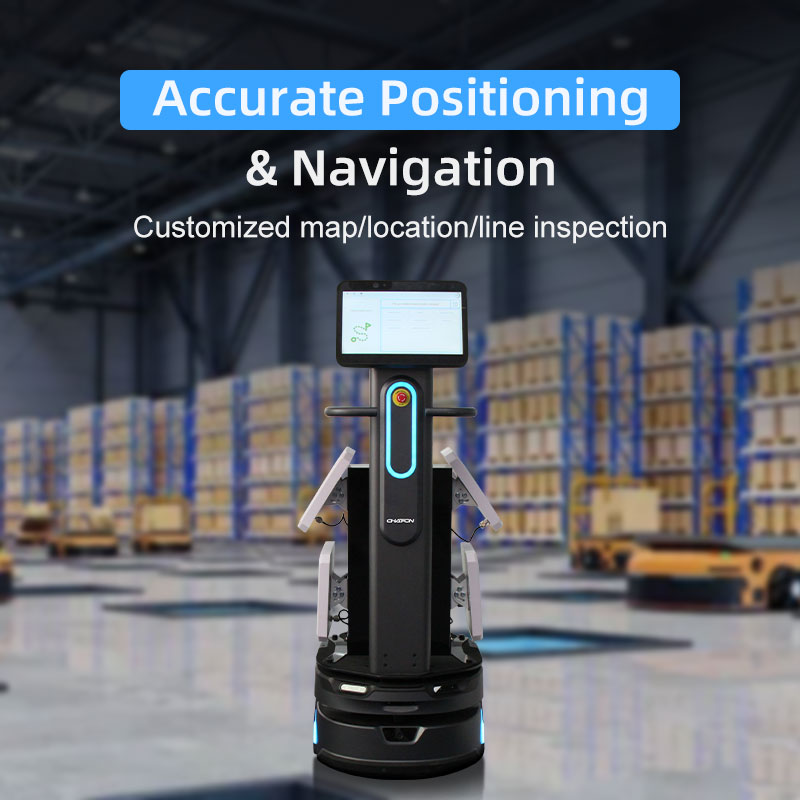

Positioning accuracy |
Centimeter level |
||
|
Material |
High strength PC+ ABS+aluminum profile |
Development Environment |
||
|
color |
Technology gray + white |
SDK |
aar, apk, source code, user manual |
|
|
size |

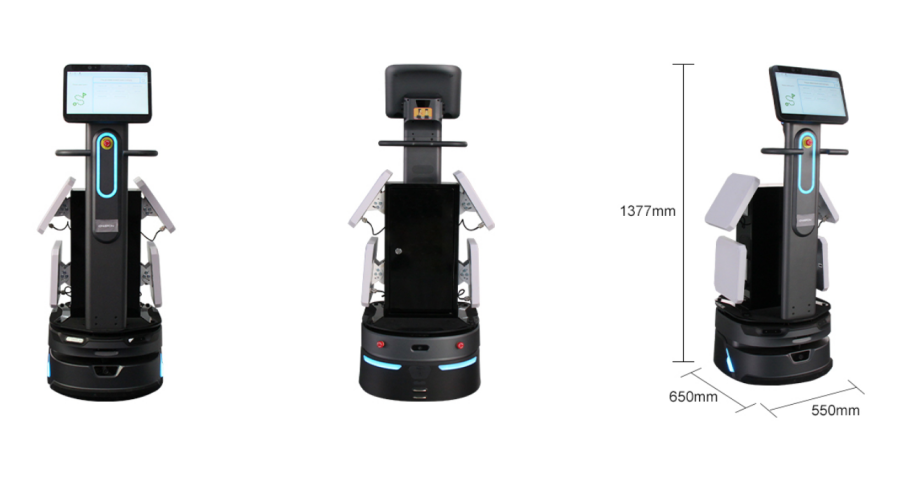

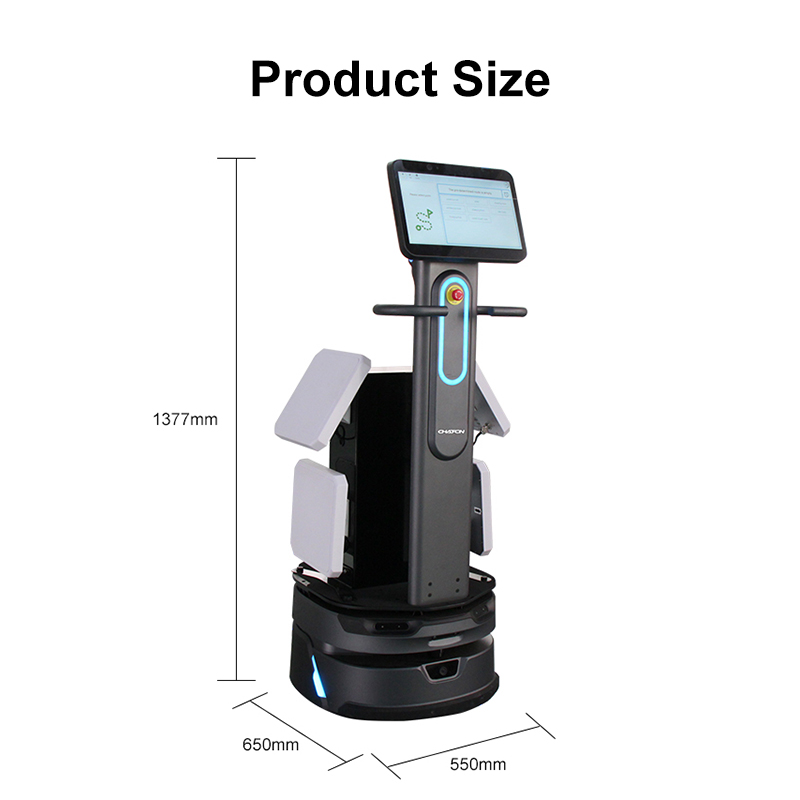

650mm(L)x525mm(W)x1377mm(H) |
Development Language |
java |
|
|
Screen size |
14 inches, Full HD 1080P |
Navigation performance |
||
|
net weight |
64.7kg |
Navigation Sensor |

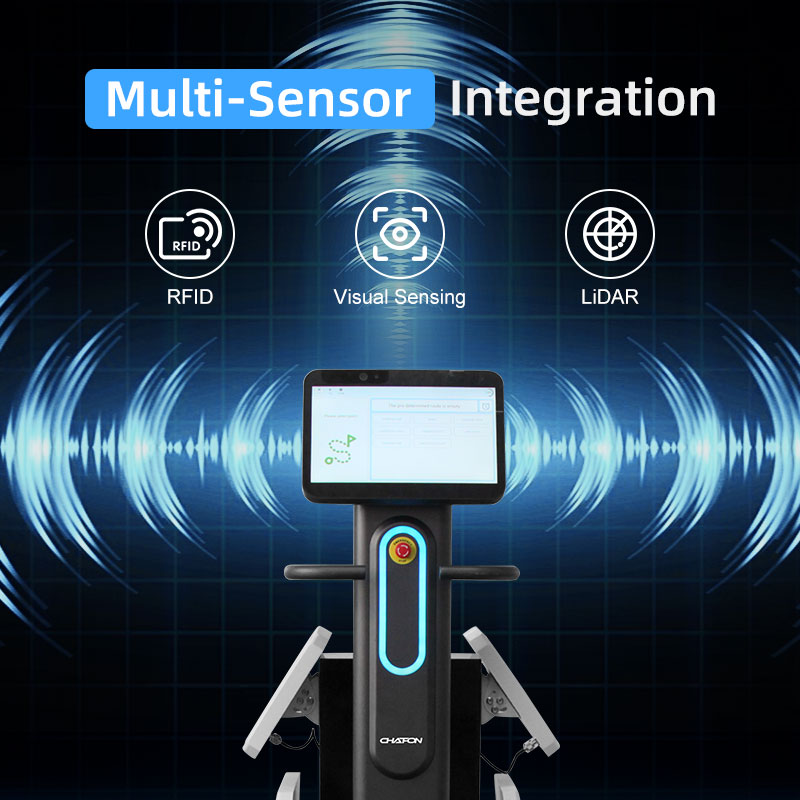

LiDAR × 1 + Depth Vision Sensor × 3 + Fisheye Camera × 2 + Infrared Camera × 2 + Odometer + Inertial Measurement Unit × 1 |
|
|
Charging station and adapter |
|
Navigation accuracy |
±10mm, ±1.5° |
|
|
Charging pile parameters |
Input: DC 32V /MAX 7.8A Output: DC 32V /MAX 7.5A |
|
Navigation |
LiDAR + visual positioning |
|
Adapter Parameters |
Input: AC100-240V, 50/60Hz, 3.5A MAX |
|
No code |
Supported, ceiling height up to 35m |
|
Charging pile size |
350mm*142mm*342mm |
|
Work Environment |
|
|
Athletic ability |
|
IP rating |
IP55 |
|
|
Gradeability |
3° |
|
Operating temperature |
-10~+45℃ |
|
Movement speed |
0.5~1.0m/s |
|
Storage temperature |
-20~+55℃ |
|
Passability |
Standard: 75cm Limit: 65cm The limit is achieved by adjusting the safety radius to -2. |
|
Battery Performance |
|
|
Climbing height |
Standard: 10mm |
|
Charging time |
Within 5 hours |
|
Crossing capability |
Standard: 30mm |
|
Battery life |
Patrolling + card reading: more than 8 hours (Extreme Case) |
|
Inter-floor transport |
Not supported |
|
Battery capacity |
Ternary lithium battery, 24.3Ah/25.55V |
|
Lifting capacity/chassis lifting |
Not supported |
|
Charging method |
Automatic recharging of charging pile |

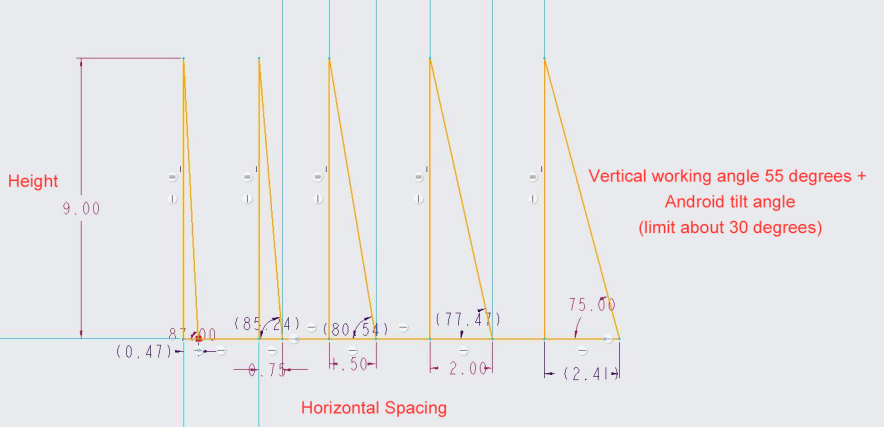

Antenna Radiation Angle Diagram Reference
