WA100 RFID household garbage truck intelligent management
-Wireless long distance data transmission
-Only need to configure parameters once, then plug and play
-Supports configuration of heartbeat time to confirm the online status of the device at any time
-Provide development kit to support secondary development
Product Description

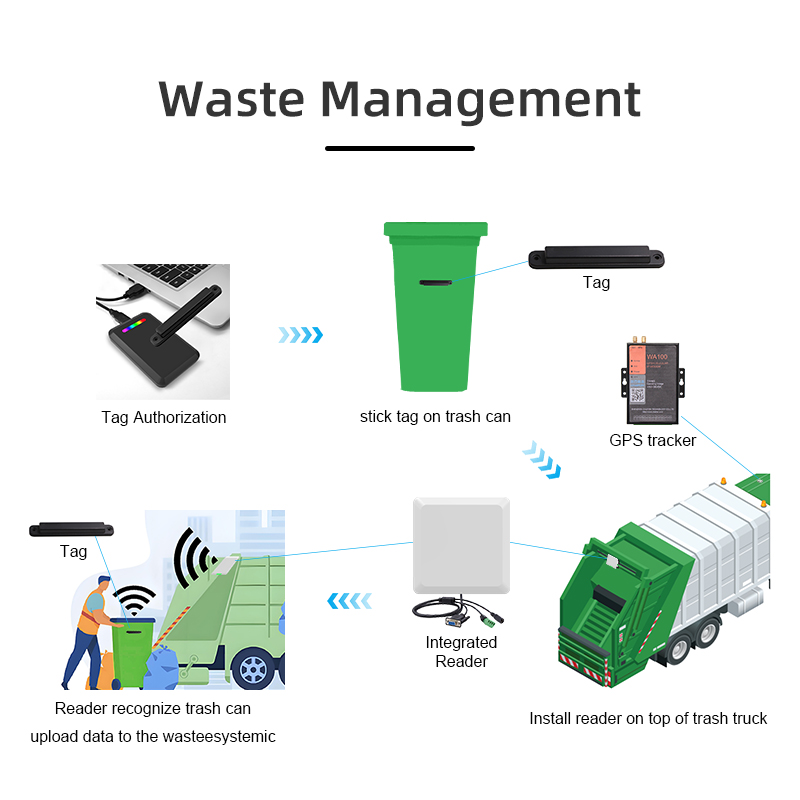

Card reading data and GPS positioning data can be uploaded to the server via 4G. It is specially designed for the intelligent management of urban domestic garbage trucks and is used with customized software.
Product Specifications
|
RFID Technical Parameters |
|
Data Communication |
||
|
frequency |
902~928MHz (American standard) 865~868MHz (European standard) |
Communication interface |
RS232, Wiegand, trigger, power port, 4G, TCP/IP, GPS+Beidou |
|
|
protocol |
ISO18000-6C (EPC GEN2) |
power supply |
Card reader: 9-24V (with 12V 2A power adapter) DTU module: 5-36V (with 12V 0.5A power adapter) |
|
|
Working Mode |
Active Mode Answer Mode Trigger mode (optional) |
4G operating frequency band |
LTE FDD:B 1/3/5/7/8/20/28 LTE TDD:B 38/40/41 WCDMA:B 1/5/8 GSM/GPRS/EDGE:850/900/1800MHz |
|
|
Internal antenna |
6dBi circular polarization |
GPS+Beidou |
Support GPS+Beidou fusion positioning |
|
|
RF Output Power |
0dbm-26dbm (adjustable) |
Network Protocol |
Support TCP/IP, Http protocol, (MQTT and other protocols can be customized) |
|
|
Reading distance |
0-6 m |
Work Environment |
||
|
RSSI |
support |
IP rating |
IP65 |
|
|
Physical parameters |
Operating temperature |
-10~+55℃ |
||
|
size |
220*220*56.4mm |
Storage temperature |
-20~+75℃ |
|
|
weight |
0.95kg |
|
Material |
ABS |
Details display

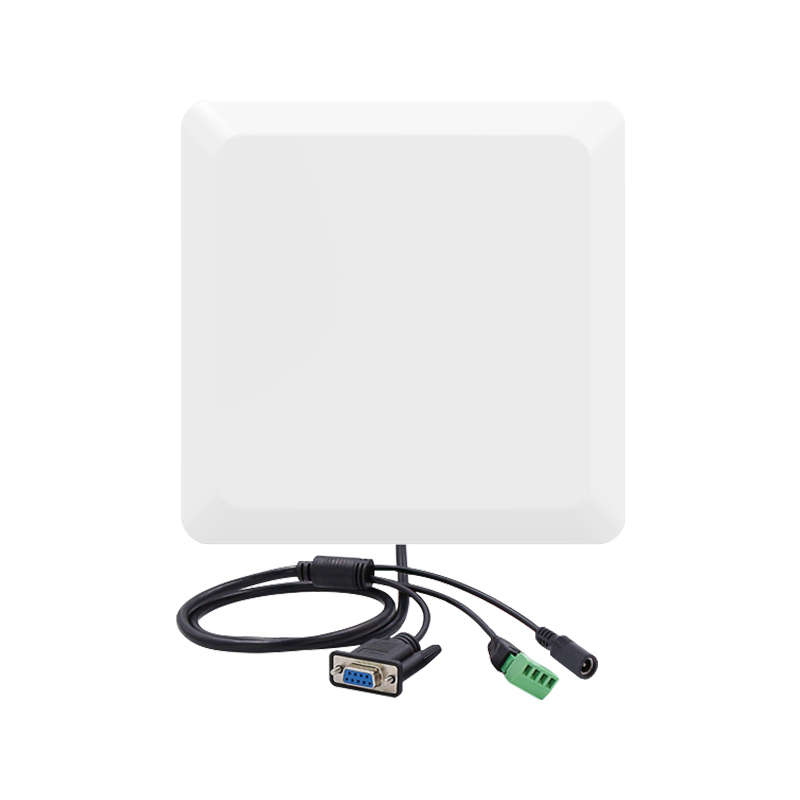

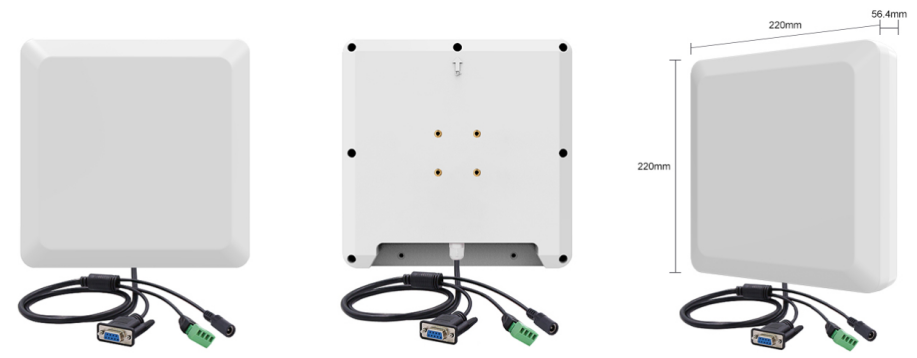

RFID card reader
|
CF561 standard interface wiring definition |
||||||||
|
Power port |
RS232 |
Wiegand |
||||||
|
12V |
GND |
TX |
RX |
GND |
D0 |
D1 |
GND |
TGIN |
|
red |
black |
Light green |
yellow |
pink |
green |
White |
brown |
blue |

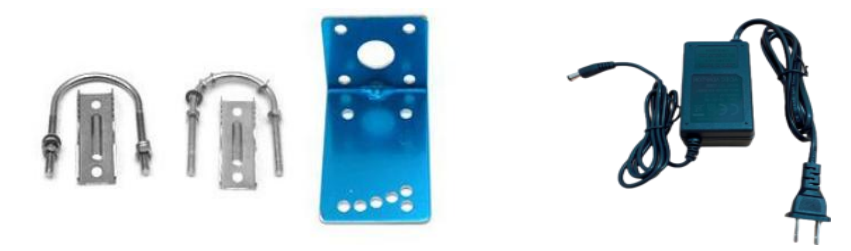

Product accessories: bracket*1 set plug + power adapter*2 sets

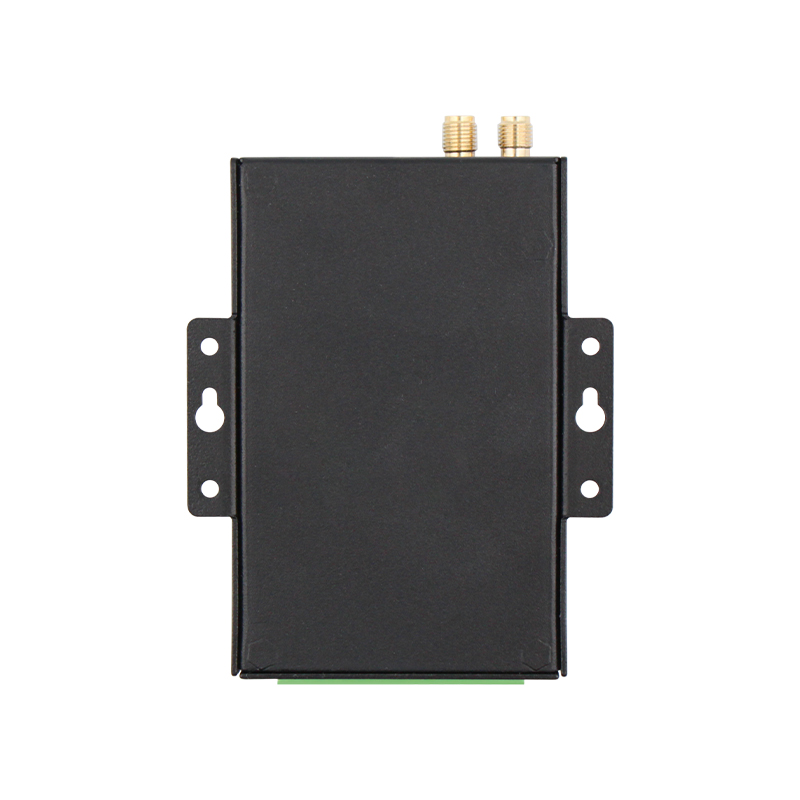

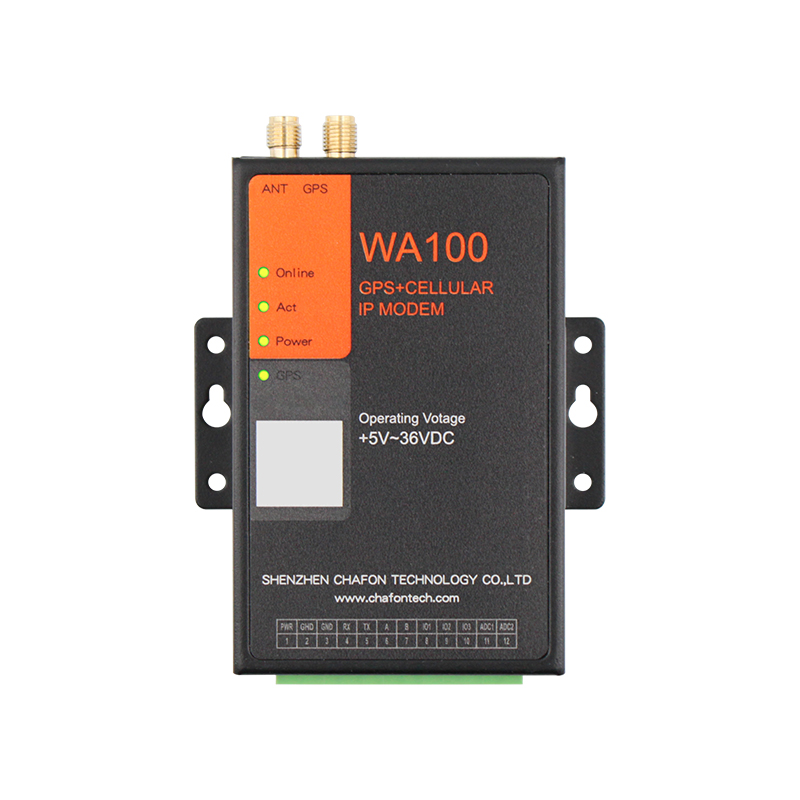

4G, GPS+Beidou, RS232
|

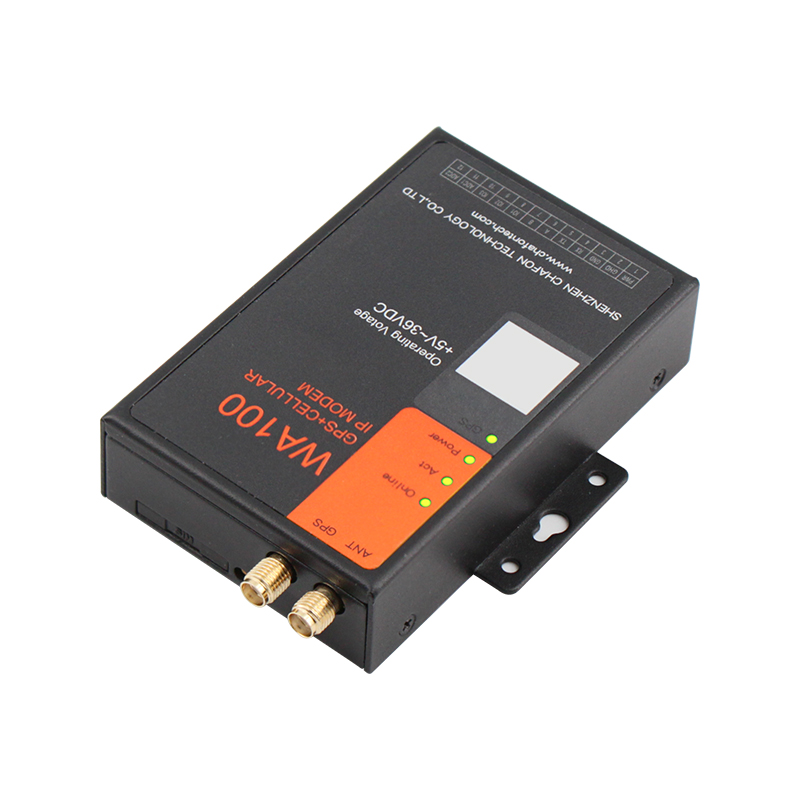

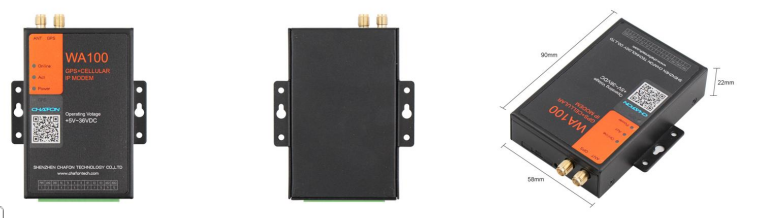

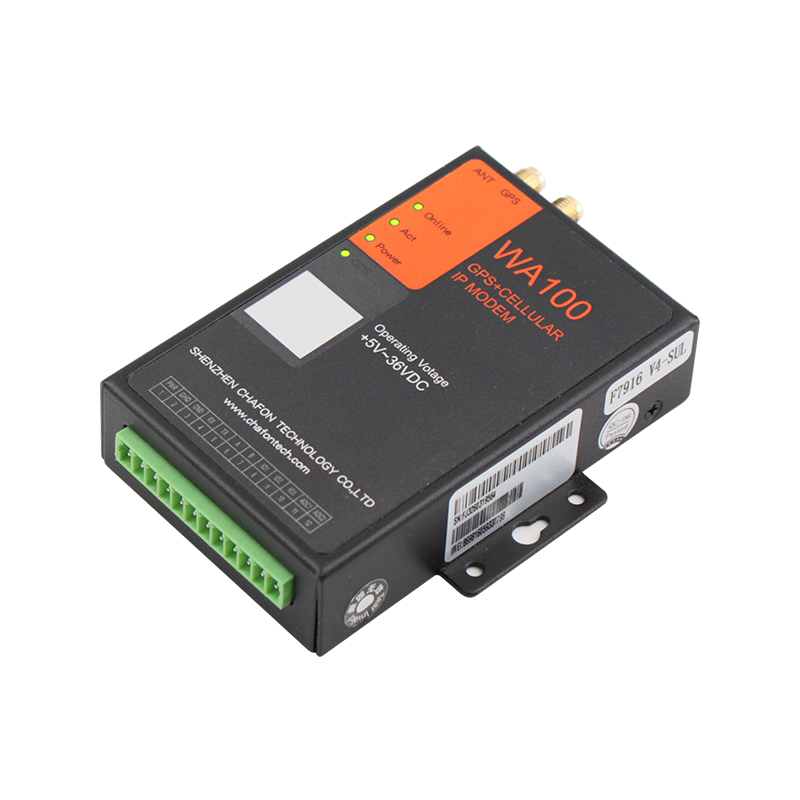

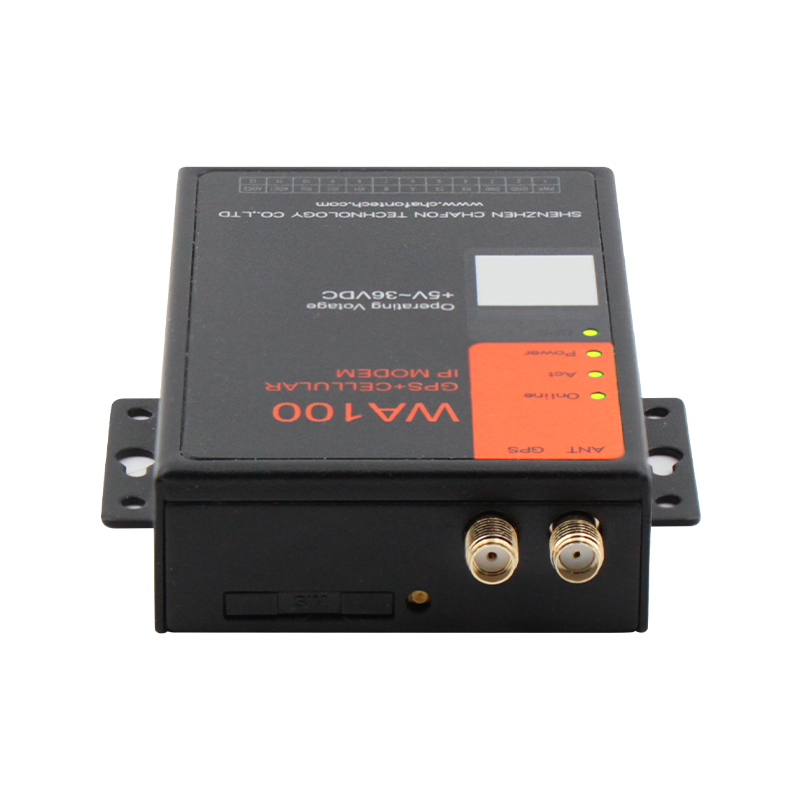

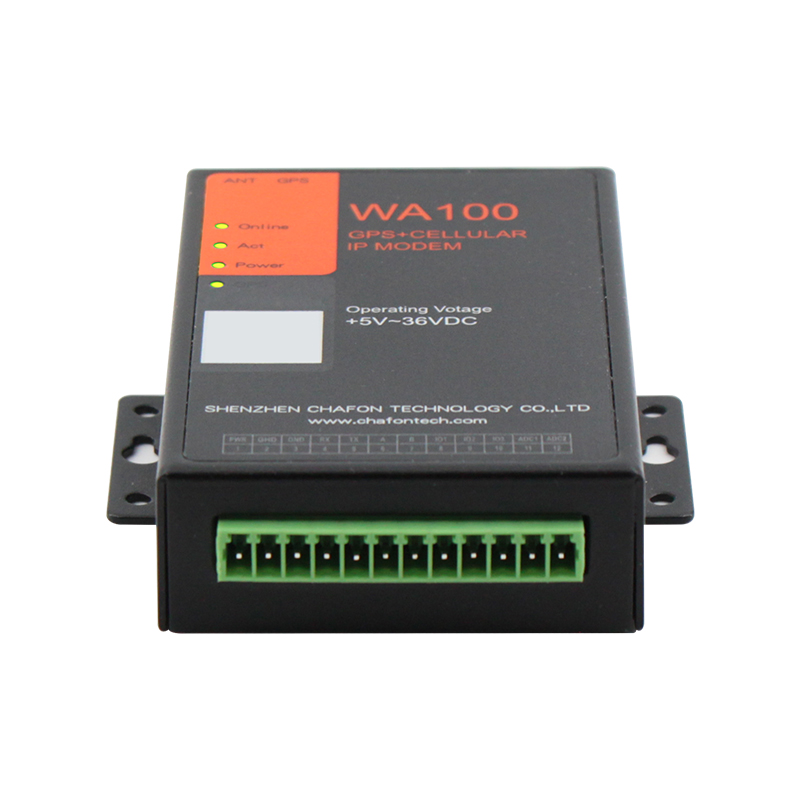

WA100 standard interface wiring definition |
||||||
|
Power port |
RS232 |
GPS+Beidou |
4G |
|||
|
PWR |
GND |
TX |
RX |
GND |
Support GPS, Beidou and hybrid positioning |
LTE FDD:B 1/3/5/7/8/20/28 LTE TDD:B 38/40/41 WCDMA:B 1/5/8 GSM/GPRS/EDGE:850/900/1800MHz (Please contact the salesperson to check whether more frequency bands are supported) |
|
Adapter black and white cable |
Adapter black wire |
blue |
brown |
black |
||
