G8101 UHF Pallet Tag
- It made by PVC high temperature tape film material

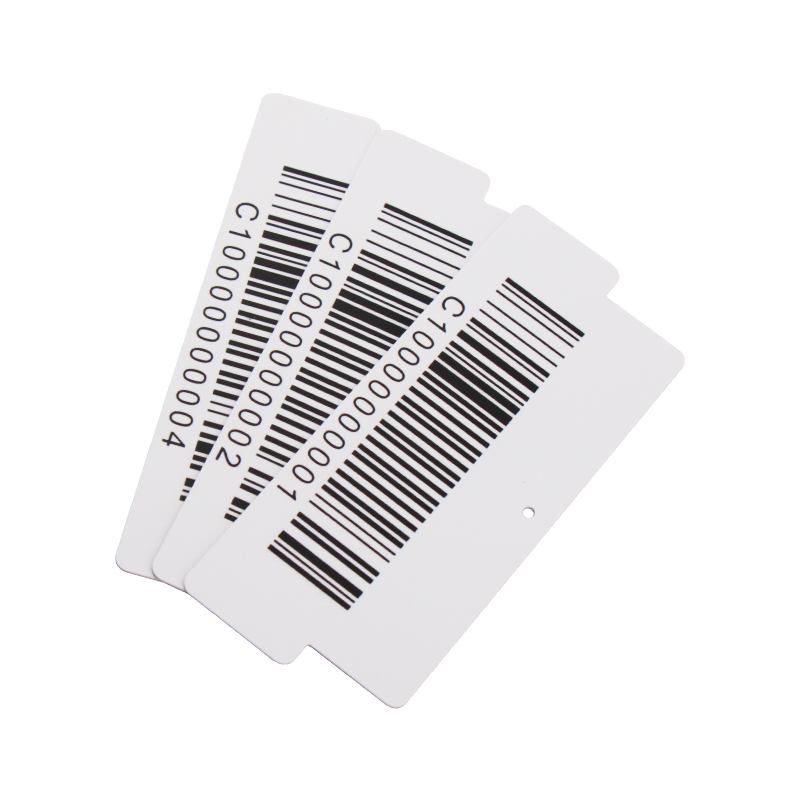

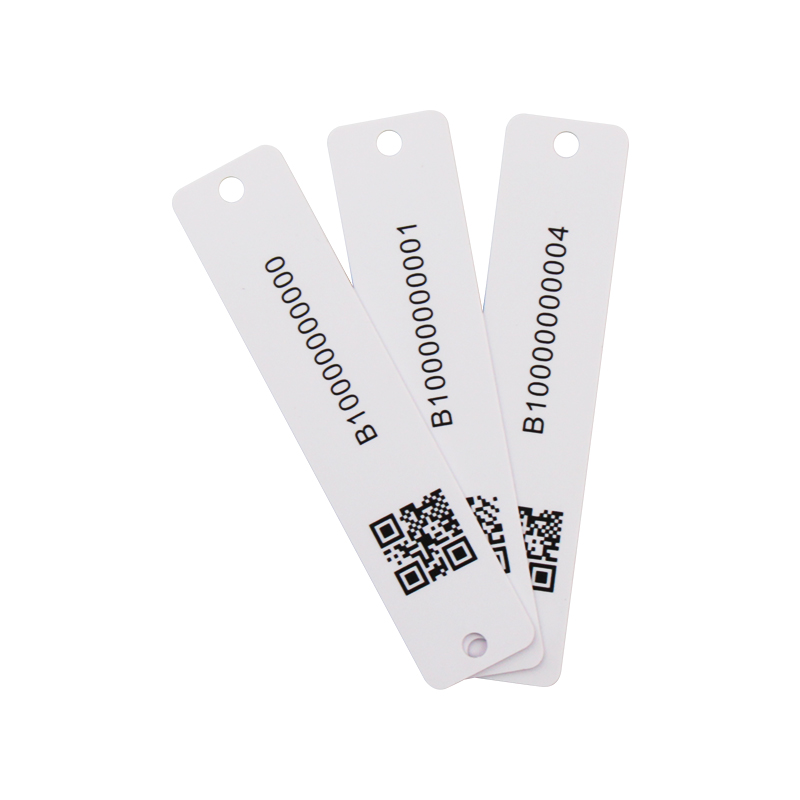

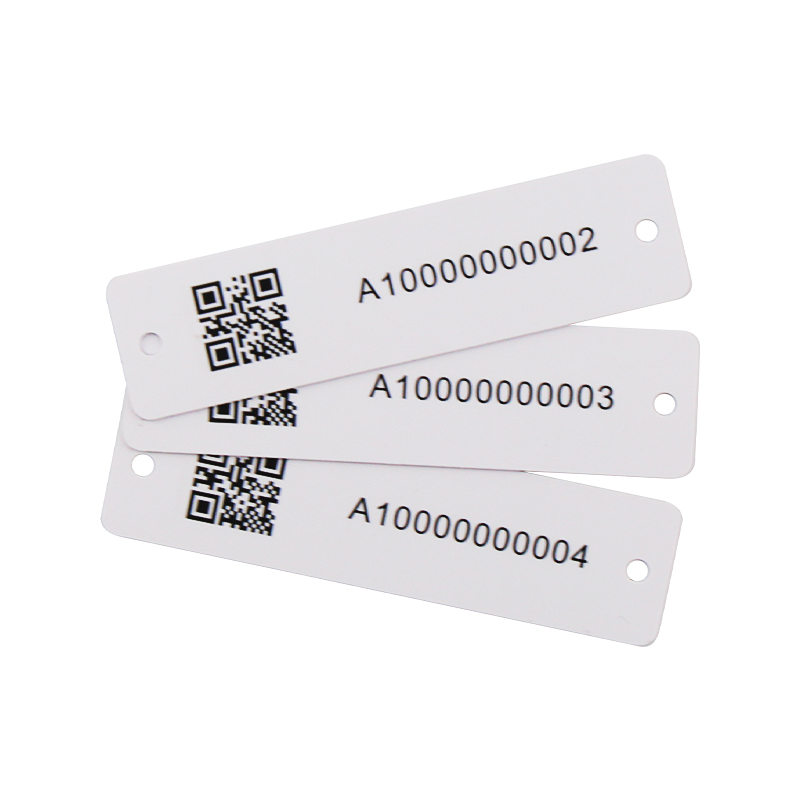

- Supports LOGO ,Barcode ,Serial number printing
- Support multiple size & color customized
- Suitable for plastic/wooden pallet tracking in warehouse
- Supports LOGO ,Barcode ,Serial number printing
- Support multiple size & color customized
- Suitable for plastic/wooden pallet tracking in warehouse
|
Technical parameter |
|
|
Frequency |
860~960MHz |
|
Protocol |
EPC Class1 Gen2; ISO18000-6C |
|
Chip |
NXP U code 9 |
|
Memory |
EPC:96 bits / TID:96 bits / Reserved:32 bits |
|
Work mode |
Read & Write (10,000 times) |
|
Data storage |
Above 10 years |
|
Reading distance |
0~7 meters（ depends on reader） |
|
Physical properties |
|
|
Size |

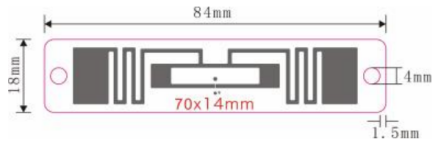

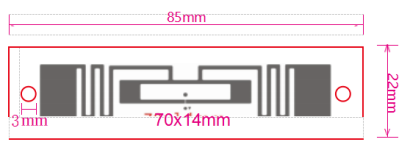

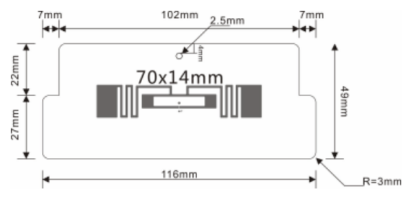

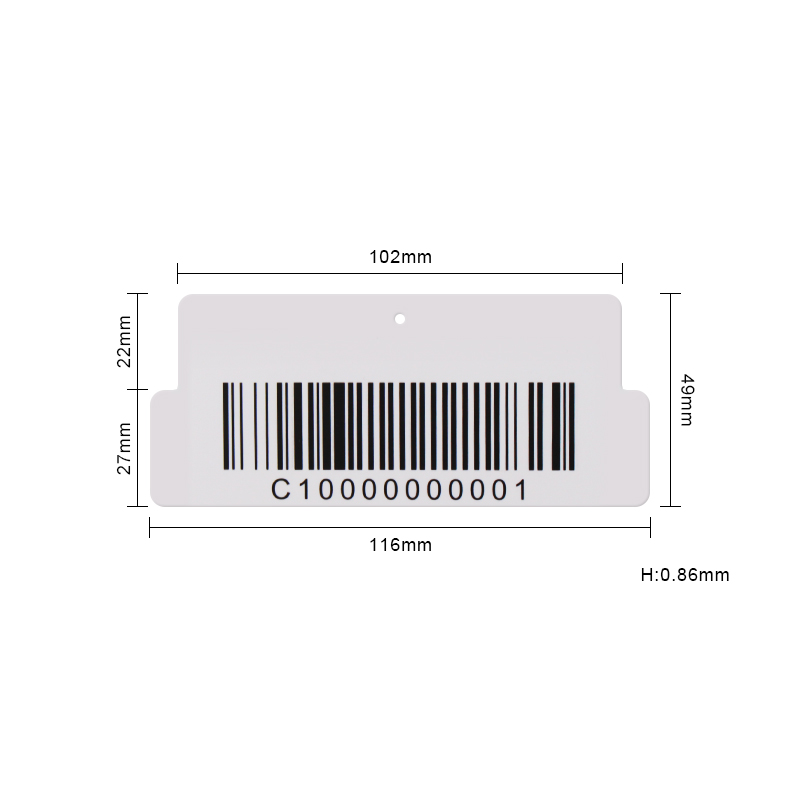

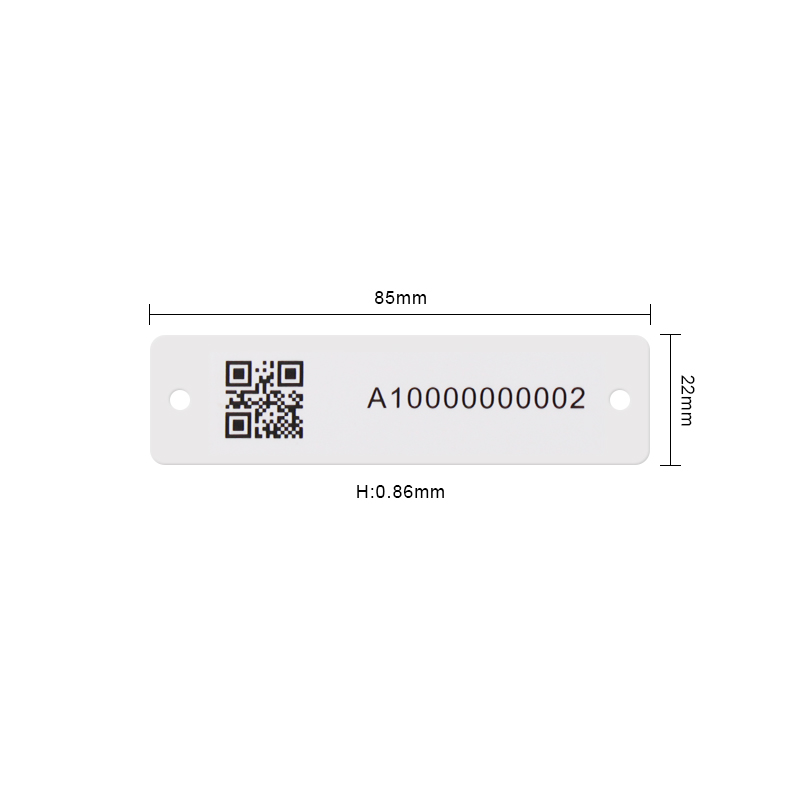

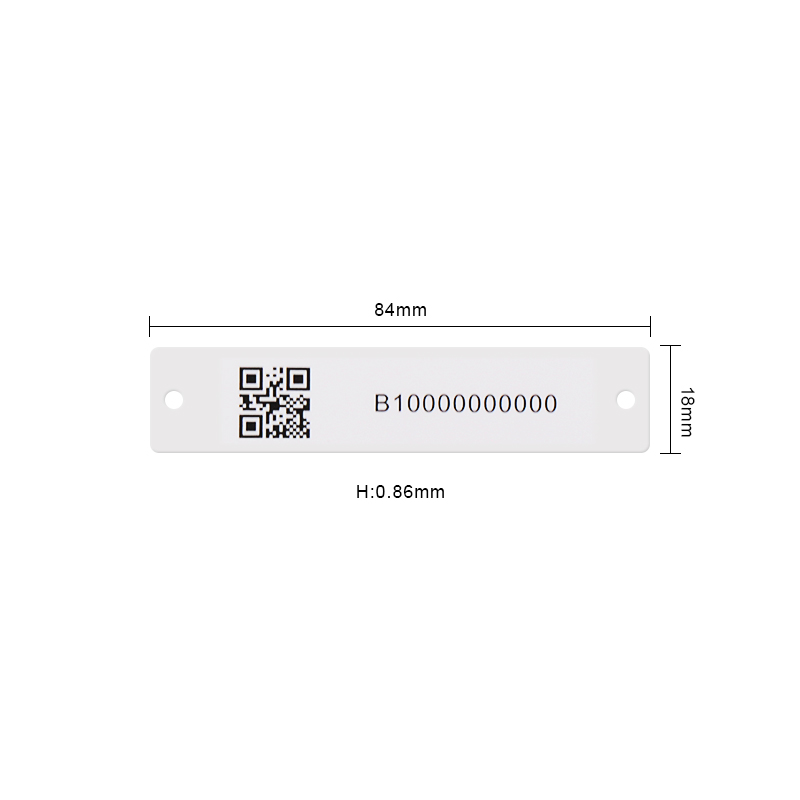

84*18*0.86mm (hole 4mm) 85*22*0.86mm (hole 3mm) 116*49*0.86mm（hole 2.5mm） |
|
Material |

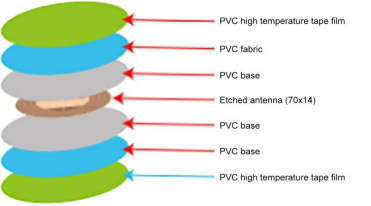

PVC+Aluminum etching (AL 10μm)+PET (50μm) |
|
Color |
White ( Customizable) |
|
Installation |
Riveting |
|
Working Temperature |
-40℃-+105℃ |
|
Storage Temperature |
-40℃-+85℃ |
|
IP level |
IP68 |
