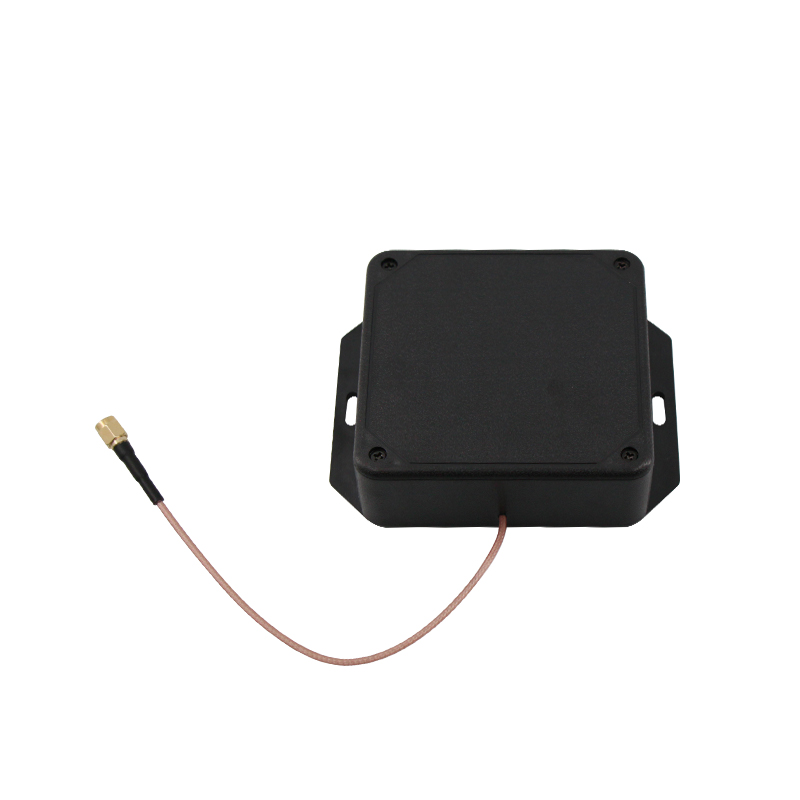

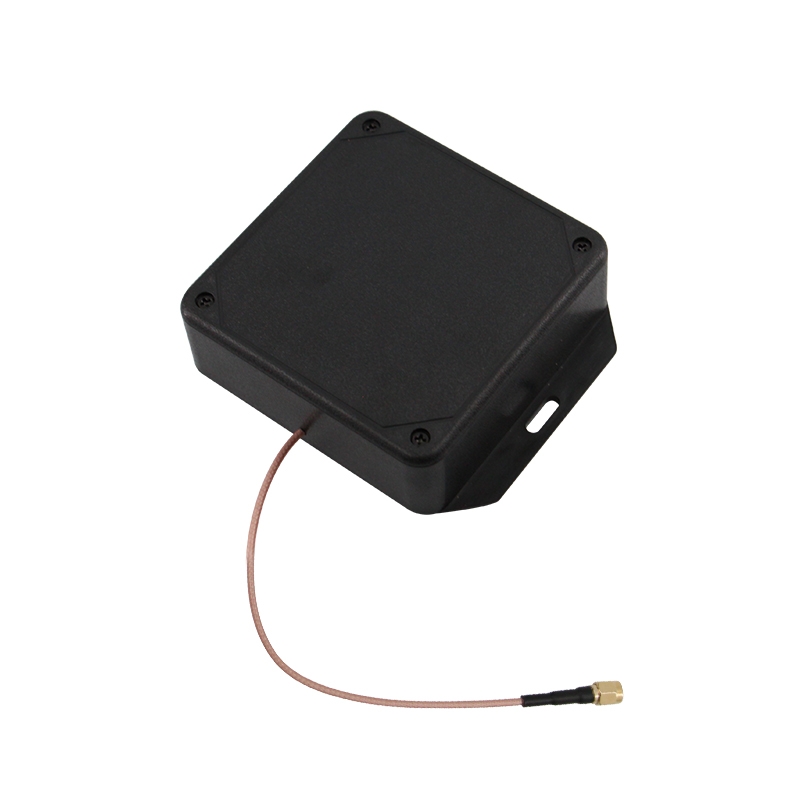

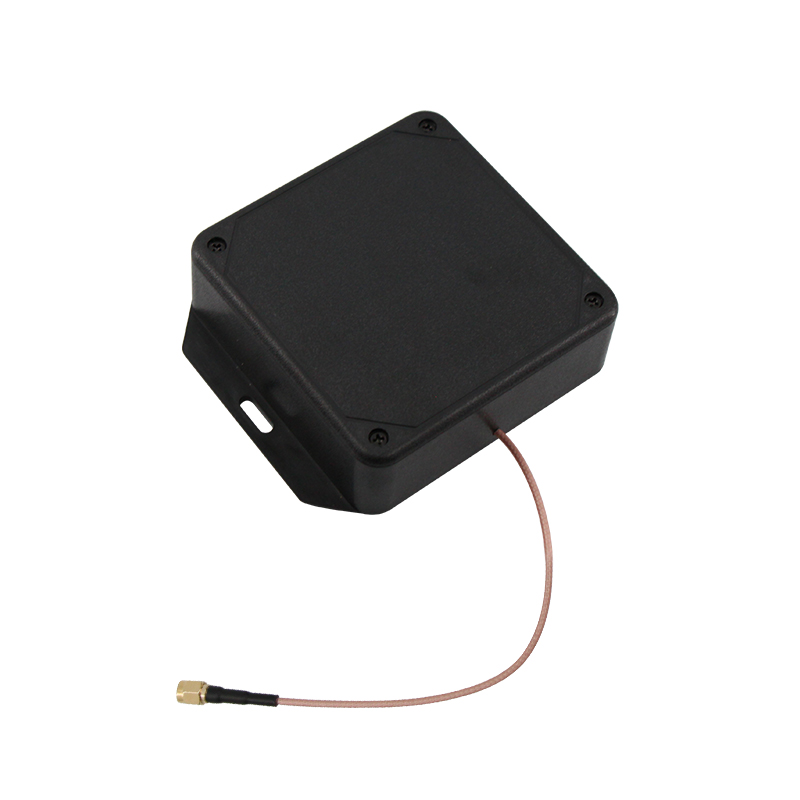

CF-RA5009 UHF 5dBi Smart cabinet antenna

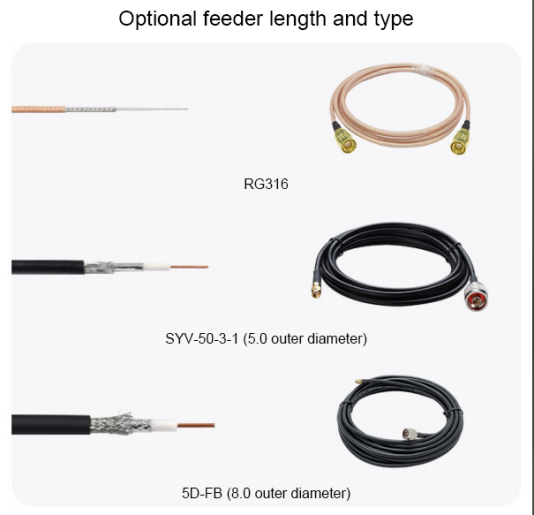

- With standard 1meter cable by RG316 material, line machine integration
- Applications: vehicle management, book file management, tool and consumables management, medical equipment management, intelligent cabinet management and other scenarios
Specification
|
Electrical Specifications |
|
Mechanical Specifications |
||
|
Frequency |
902-928MHz |
|

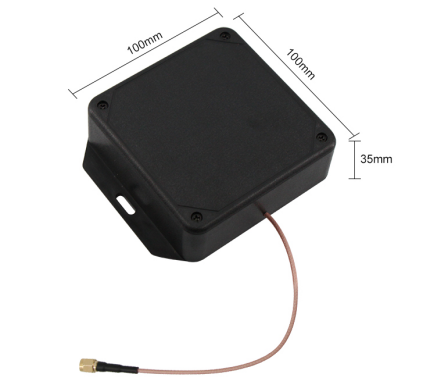

Size |
100*100*35mm |
|
Gain |
5dBi |
|
Net weight |
0.3kg |
|
Radiation Angle |
Hor：160° Ver：95° |
|
packing |
- |
|
Polarization |
circular |
|
Gross weight |
0.4kg |
|
VSWR |
≤1.5 |
|
Material |
ABS |
|
Impedance |
50Ω |
|
Color |
black |
|
Maximum input power |
100W |
|
working temperature |
-20-60℃ |
|
|
|
|
Installation |
Earring installation |

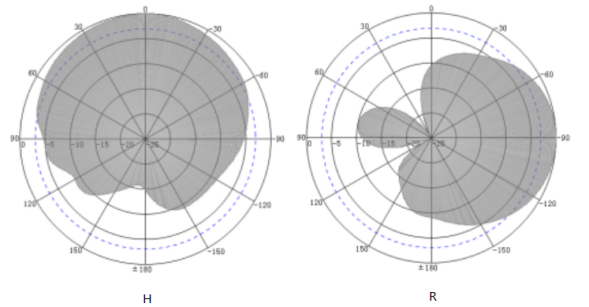

Radiation Angle

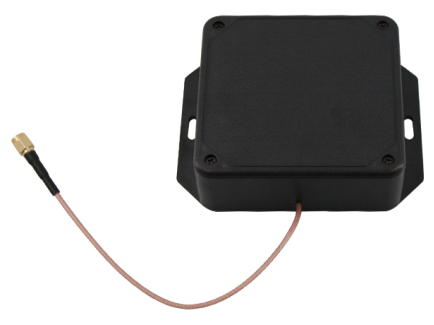

Display
