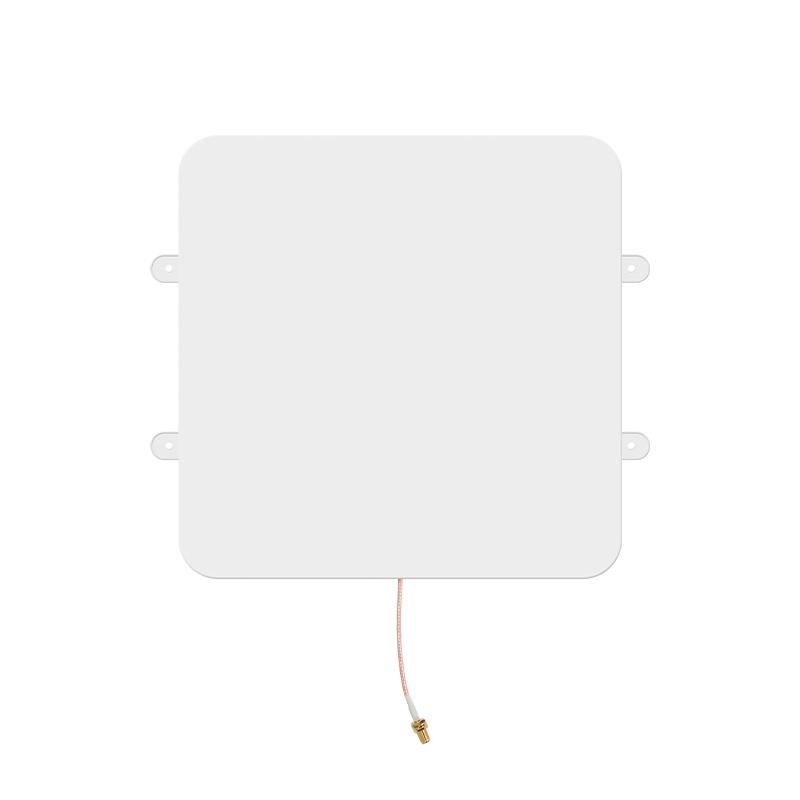

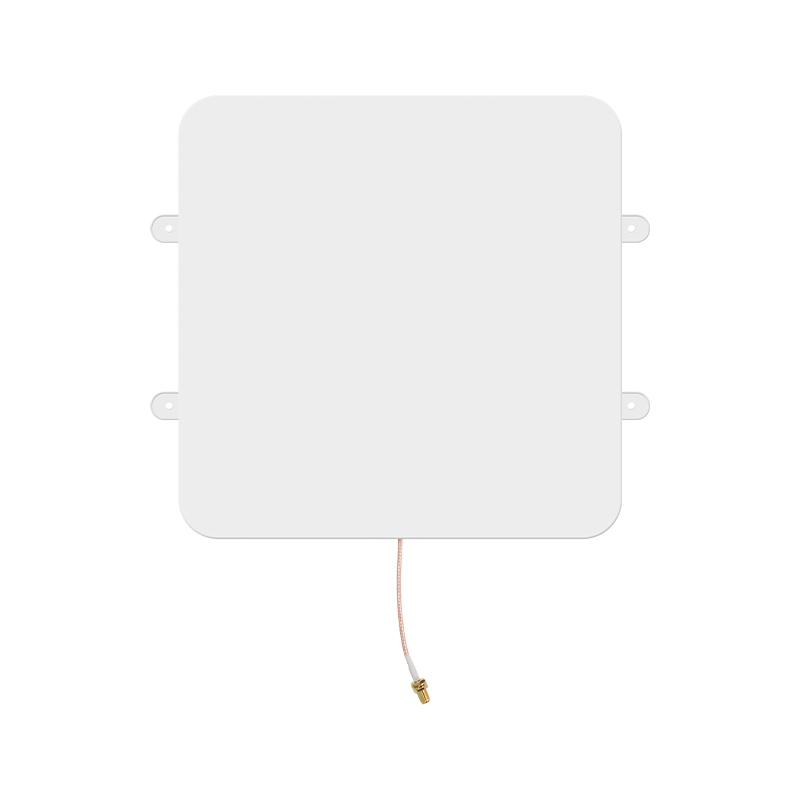

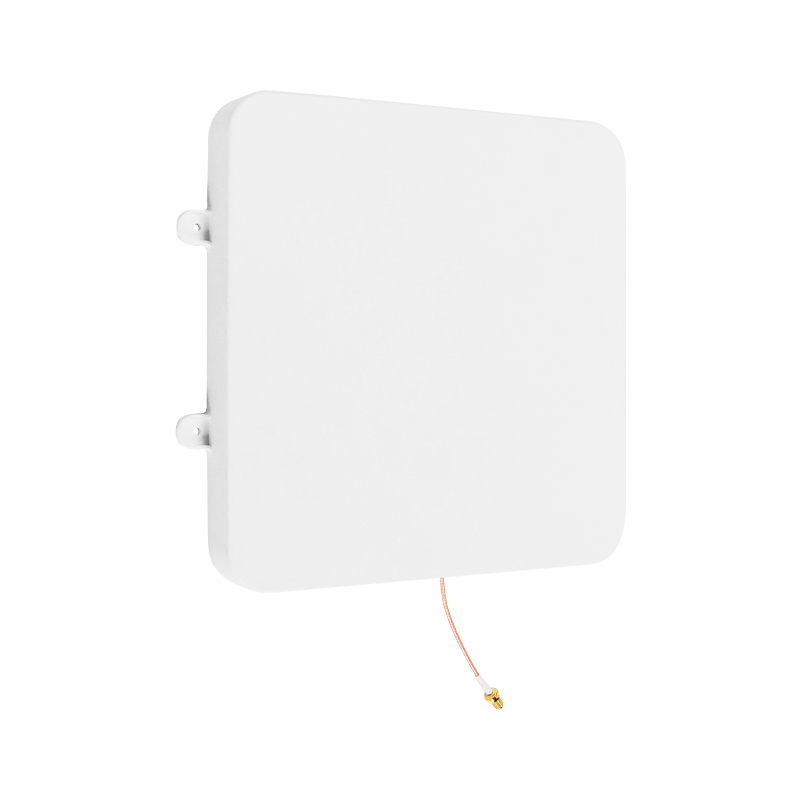

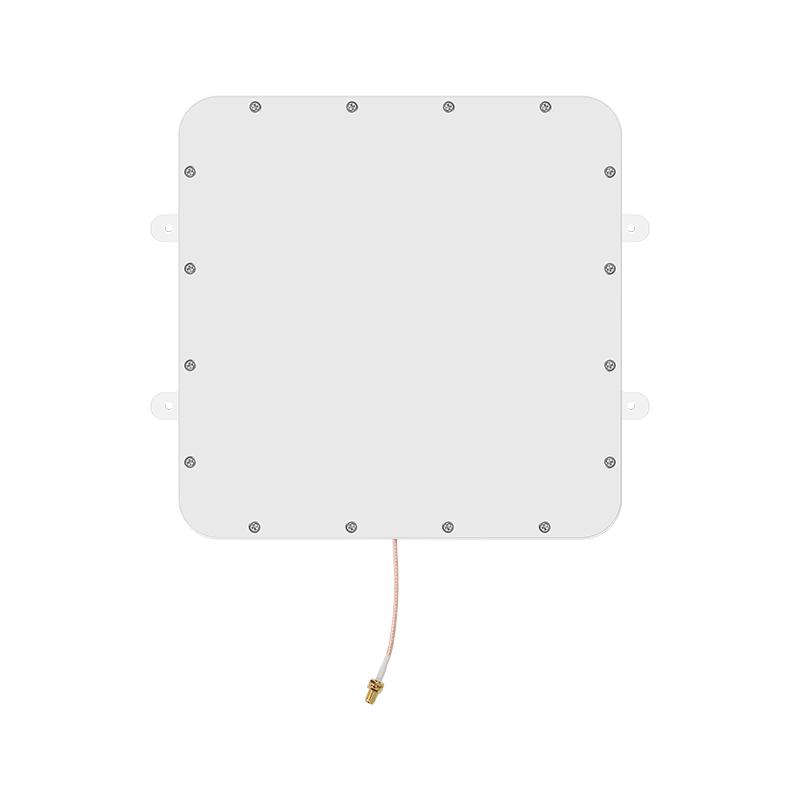

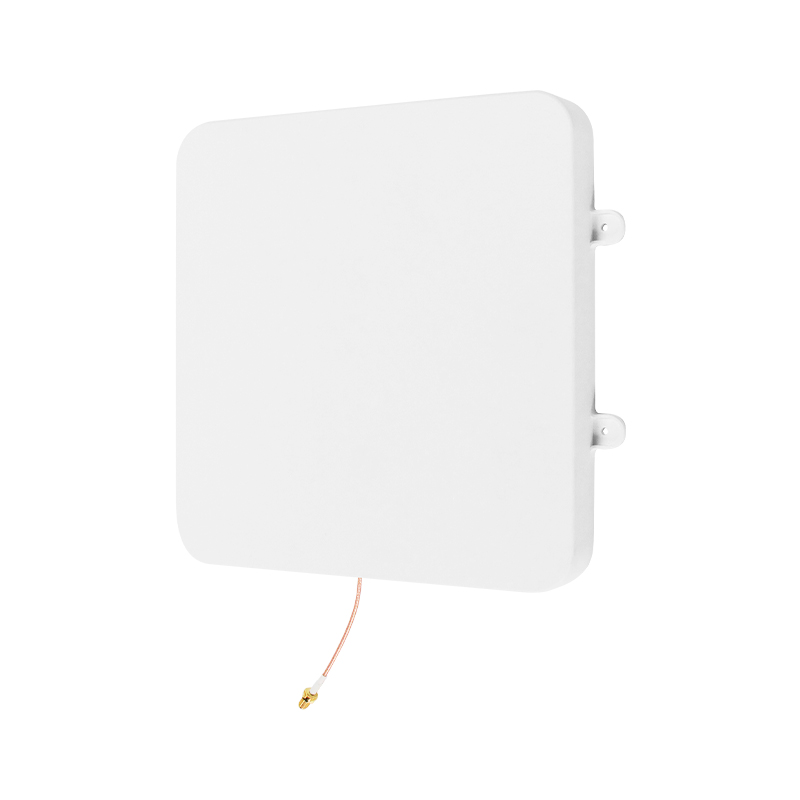

CF-RA8001 UHF 8dbi Smart Cabinet antenna
suitable for Smart Cabinet management
CF-RA8001
UHF 8dBi Smart cabinet antenna
Widely used in warehouse management, clothing management, animal management, logistics management, production management, intelligent cabinet management, etc.
1.Product parameters
|
CF-RA8001UHF 8dBi circularly polarized antenna |
|
|
frequency |
902~928MHz (US） |
|
Gain |
8dBi |
|
Polarization mode |
circular polarization |
|
Lobe width |
Hor：68±3° Ver：68±3° |
|
standing wave ratio |
≤1.3:1 |
|
front-to-back ratio |
≥22dB |
|
impedance |
50Ω |
|
Maximum power |
100W |
|
Lightning protection |
DC ground |
|
Connector |
SMA-customizable |
|
Connector location |
side lead |
|
Antenna size |
220*220*24mm |
|
net weight |
0.45kg |
|
Shell material |
Engineering ABS |
|
Radome color |
milky |
|
Operating temperature |
-20～80 cº |
|
Pole diameter |
Chassis mounting ear installation |
2、Antenna connector
(1) The default line machine is integrated, with a standard 30cm feeder RG316, the length can be customized, and the default output interface is SMA female.
Connectors can be selected according to the connected split devices and modules. Common connectors are as follows:
（2）Optional feeder SYV-50-3-1 (5.0 outer diameter), thick feeder 5D-FB (8.0 outer diameter)

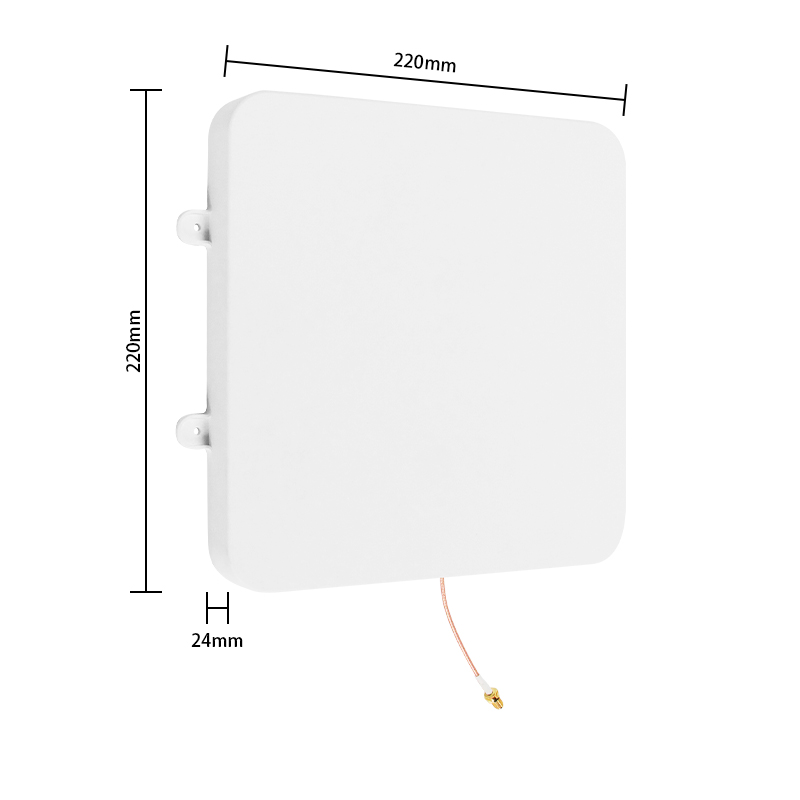

3.Standard sizes
4.Radiation direction
5、Related Products
（1）Smart cabinet antennas with different gains
|
|
|
|
|
|
3dbi antenna CF-RA3002 circular polarization Size 100*200*20mm |
2.5dbi antenna CF-RA5007 circular polarization Size 260*210*13mm |
6dbi antenna CF-RA6002 circular polarization Size 130*130*18mm |
8dbi antenna CF-RA8005 circular polarization Size 454*164*16mm |
（2）Supported fixed readers and modules
|
|
|
|
|
|
Four channel fixed reader CF810 RS232.TCP/IP.USB Size 184*161.7*26mm |
Eight-channel fixed reader CF811 RS232.TCP/IP.USB Size 147*184*26mm |
Four channel module MU914 TTL communication Size 67*51.5*7.9mm |
Eight channel module MU918 TTL communication Size 91*69.5*7.75mm |
6、Application scenario
|
|
|
|
|
|
|
|
