H103 UHF Bluetooth Handheld Reader
Max 10m distance
Bluetooth 5.3
Support 1D/2D barcode scanning
H103
UHF RFID Sled Reader
Widely used in jewelry inventory, document inventory, warehouse management, shelf management, clothing inventory, warehousing inventory, etc.
1、Specification
|
H103 UHF RFID Sled Reader |
|
|
Model |
H103 |
|
Protocol |
EPC C1 GEN2 / ISO18000-6C |
|
Frequency |
860Mhz – 960Mhz |
|
Chip |
IMPINJ E710 |
|
Compatible mobile phone |
All brand |
|
Reading speed |
>200pcs/s |
|
RF power |
4dBm-33dBm adjustable，step by 1.0dBm |
|
Antenna |
4dbi circular antenna |
|
Reading distance |
>10m (6dBiL antenna，tag E41) |
|
Writing distance |
Writing distance 0-3m（depend on tag and environment） |
|
Bluetooth |
Bluetooth 5.3 BLE |
|
Barcode |
Support 1D&2D |
|
Communication port |
Type C |
|
Status indicator |
Battery indicator, working status indicator, Bluetooth connection indicator, buzzer |
|
Battery capacity |
6400mAh（Typical value） |
|
Back clip width |
68-86mm |
|
Working hours |
4-6 hours |
|
Environmental properties |
Operating temperature：-20℃ ~ +50℃ Storage temperature：-40℃ ~ +65℃ |
|
Material |
Plastic, aluminum alloy |
|
Protection level |
IP54 |
|
Drop test |
1.5m Concrete ground |
|
Size |
155(H)×78(W)×133(L)mm |
|
Weight |
450g |
2、Accessories
|
Standard |
40W fast charge, data communication cable × 1, mobile phone communication line × 1 |
|
Optional |
hand rope |
Barcode/QR code scanning function specifications
|
Function |
One-dimensional and two-dimensional image scanning engine (optional 1) |
|
Resolution ratio |
300,000 pixels，640*480 |
|
Rotate view |
Spin Roll: ±360°，Test Conditions：CODE39,10mil/0.25mm,PCS90% |
|
Up and down tilt angle |
deviation from normal angle ±60°，Test Conditions：CODE39,10mil/0.25mm,PCS90% |
|
Shift angle of view left and right |
deviation from normal angle ±55°，Test Conditions：CODE39,10mil/0.25mm,PCS90% |
|
Reading depth of field |
30mm~400mm(Different barcodes, different ranges) |
|
Field of view |
36°*28° |
|
Decoding speed |
25CM/S |
|
Support symbols |
1D：UPC-A，UPC-E，EAN-8，EAN-13，ISBN,ISSN, Code 128， Code 39，Code 32, Code 93， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar（NW-7），Code 11,MSI Plessey etc. 2D: QR Code, Micro QR Code, Data Matrix，PDF417,Aztec, etc. |
|
lighting, projection |
White LED，red LED |
|
Minimum printing contrast |
≥25% |

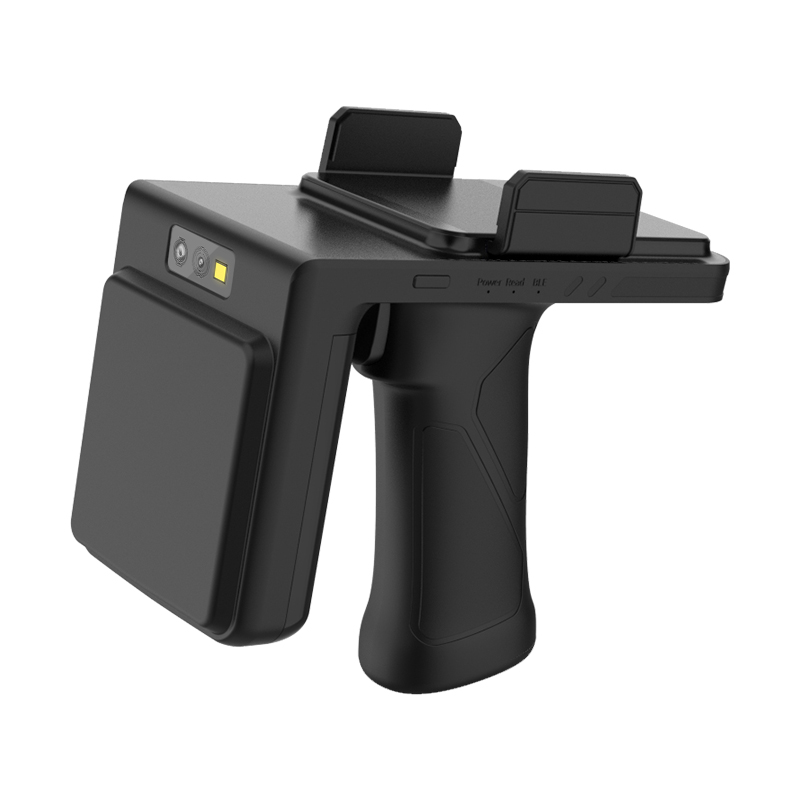

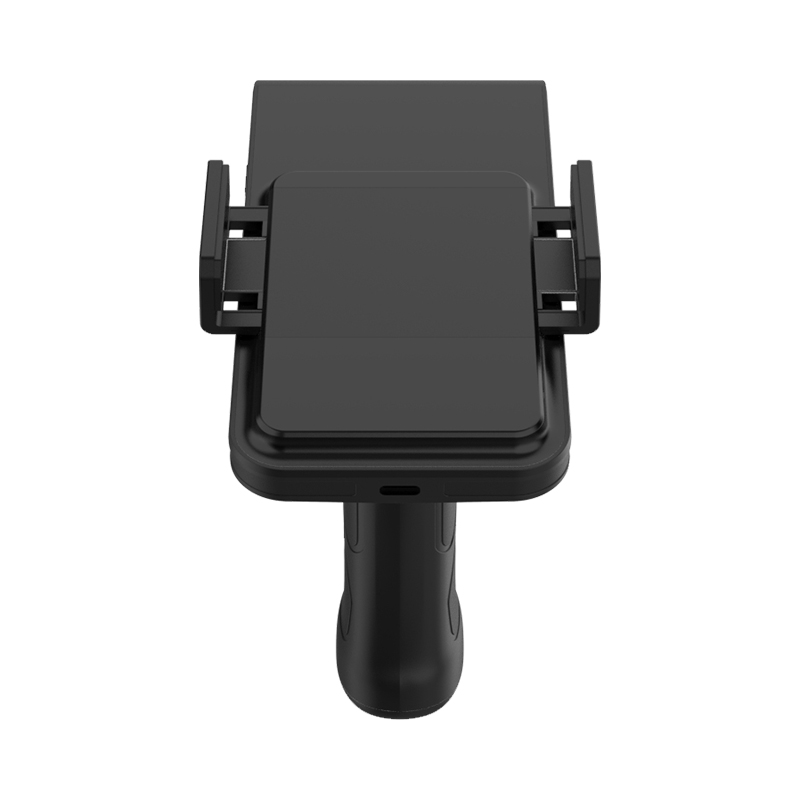

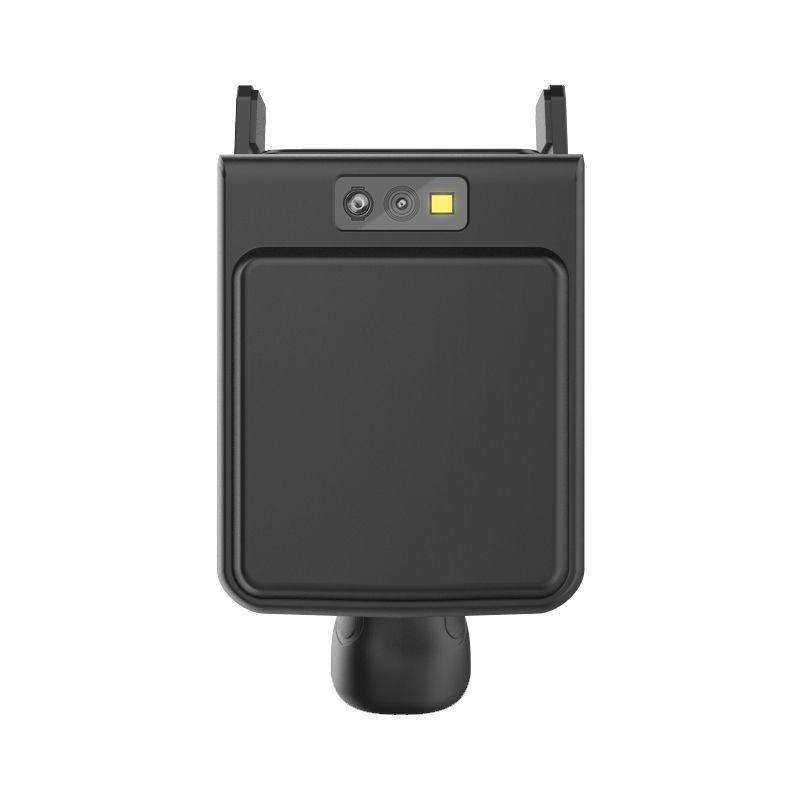

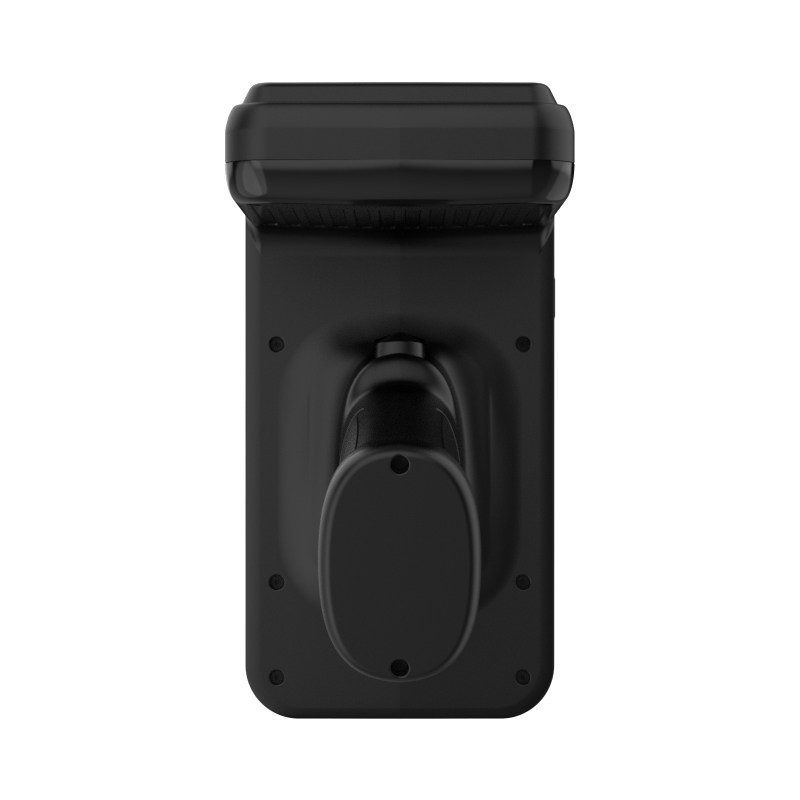

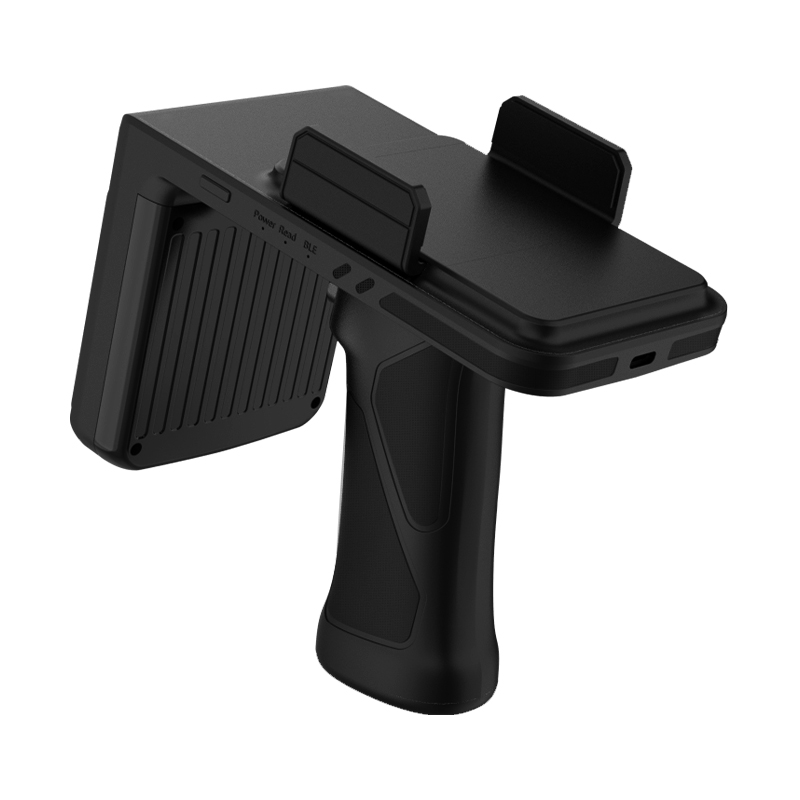

4.Product details
