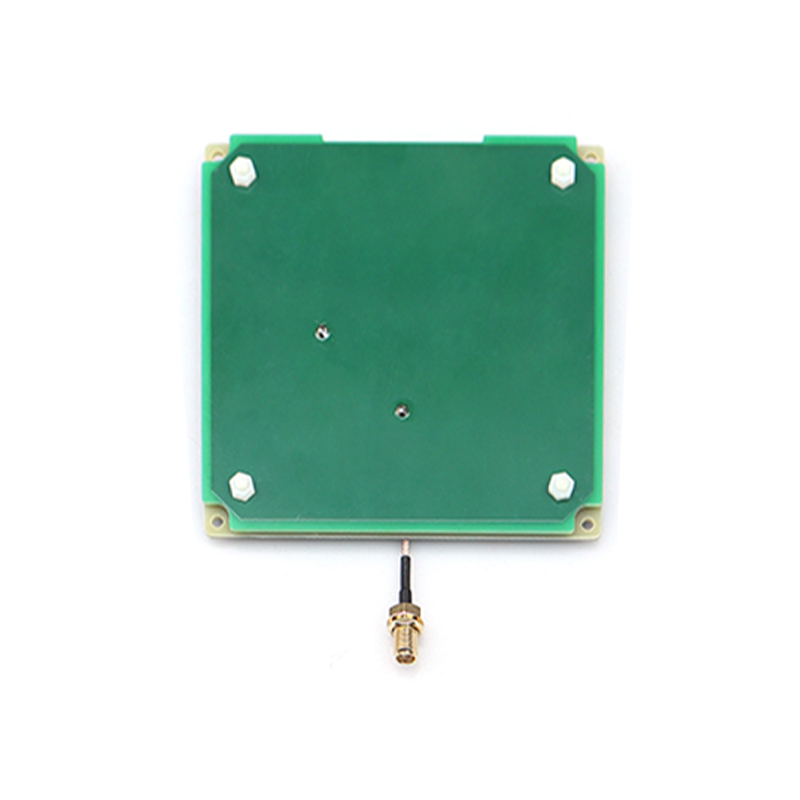

CF-RA4001 UHF Directional PCB Antenna
PCB material
size: 101*101*10mm
UHF Directional PCB Antenna
CF-RA4001
902-928MHz RFID frequency identification system.
Desktop cashier and settlement desk, book borrowing and returning machine,
linen washing and inventory equipment, ceiling access control.
Asset management and other systems are widely used.
1、Product Parameters
CF-RA4001 |
|
Frequency Range |
902-928 MHz |
Gain |
4dBi |
Polarization |
circular |
Reading distance |
0~4m(depend on reader and tag) |
Beam Width |
Hor:70° Ver:70° |
VSWR |
≤1.5 |
Impedance |
50Ω |
axial ratio |
≤3dB |
MAX.Power |
50w |
Lightning protection |
DC ground |
Connector |
SMA Female |
Connector position |
draw out the sides |
Dimension |
101*101*10mm |
Antenna weight |
0.18 kg |
Reflector material |
FR4 |
Radome color |
Green |
Operating temperature |
-40~55℃ |
2、Interface
(1) SMA Female
(2) Standard 1m cable,length can be customized
Fittings can be adapted to the equipment:
3. Radiation direction
4. Product Size
