CF-RA1009 UHF Counter Antenna
150*150*7mm、200*200*7 mm、300*300*9mm、
400*400*9mm、550*400*9mm、770*360*9mm
UHF Counter Antenna
CF-RA1009
Widely used in warehouse management, clothing management, animal management, logistics management, production
1、Product Features
Smart cabinet antenna, Widely used in checkout systems, smart retail, freezer management, asset management, jewelry management, etc.

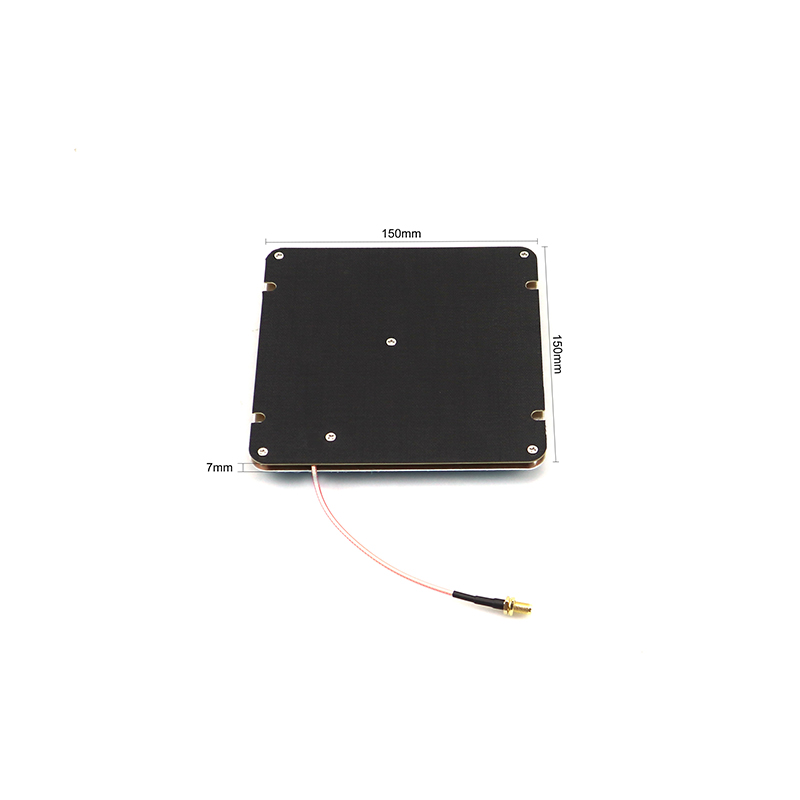

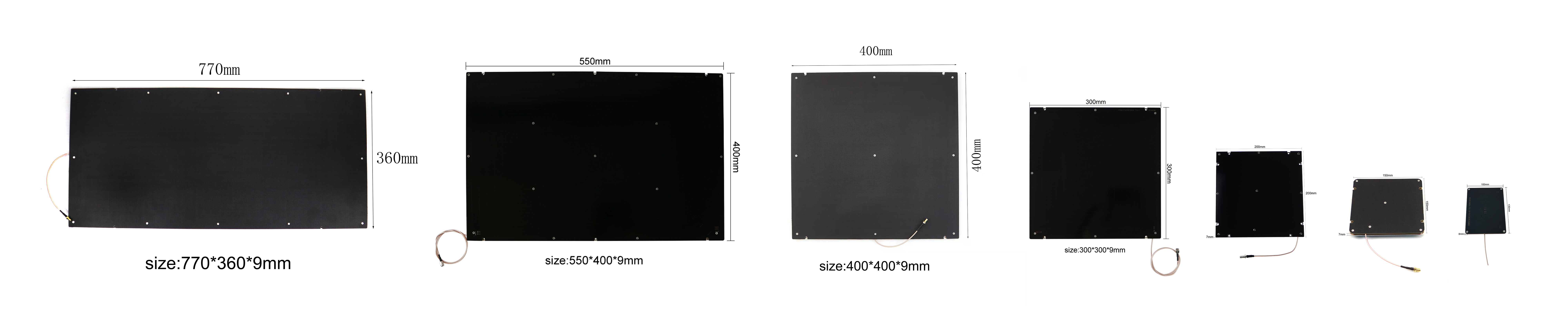

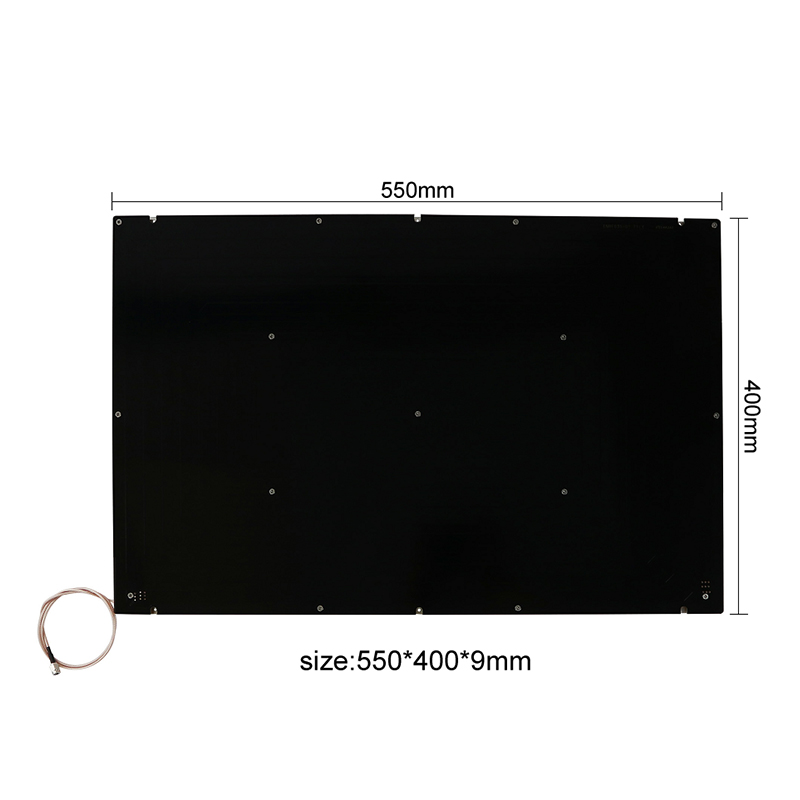

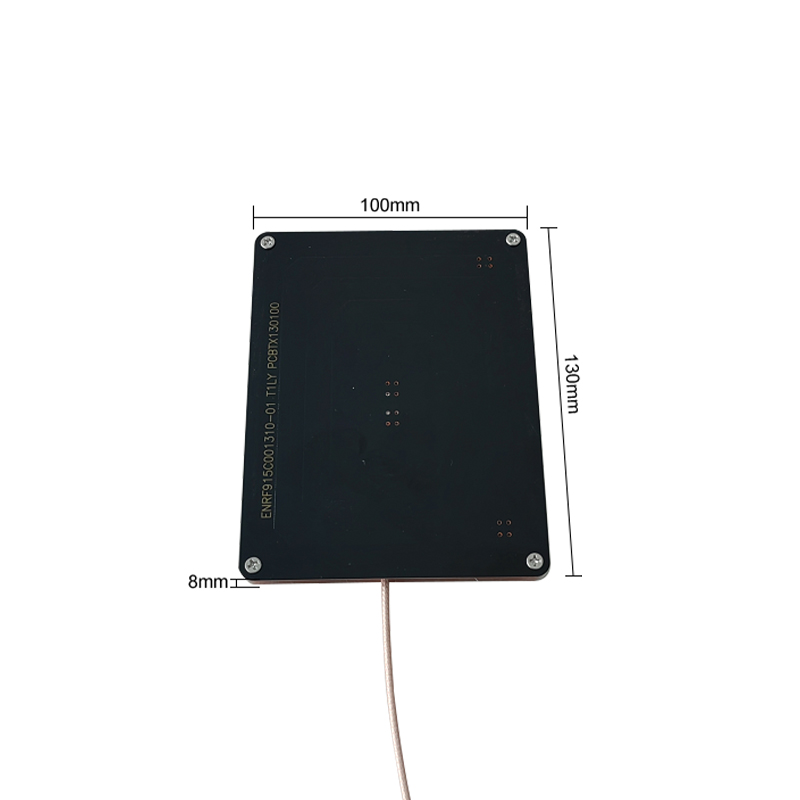

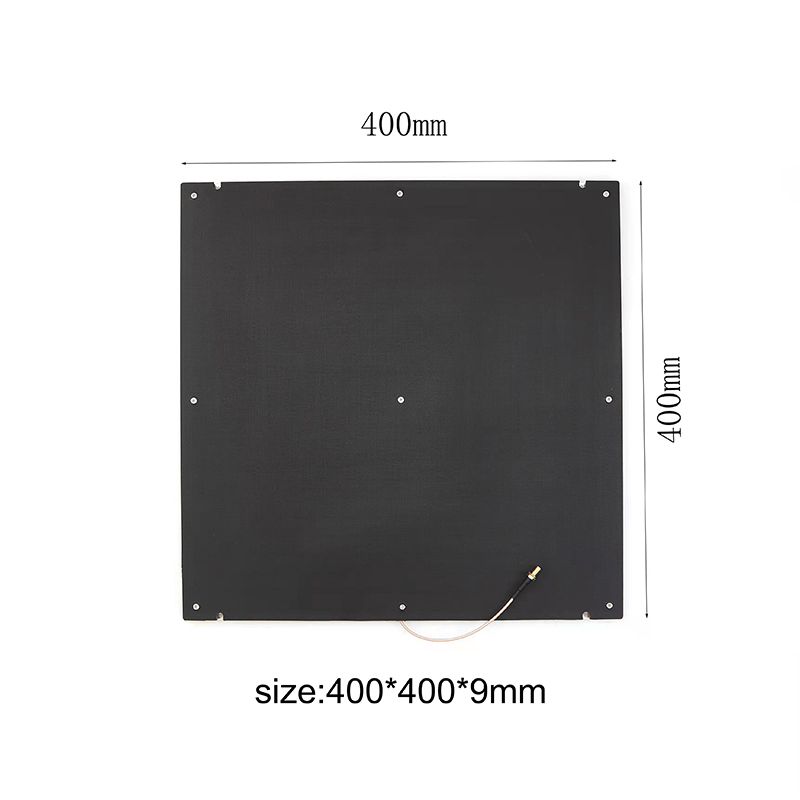

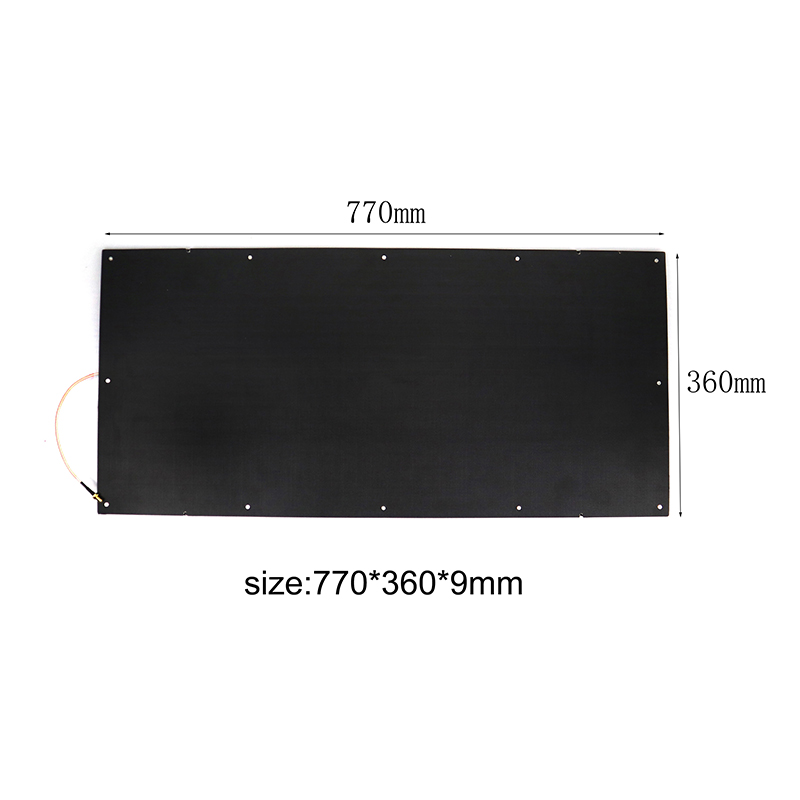

Available in various sizes：130*100*8mm 、150*150*7mm、200*200*7 mm、300*300*9mm、400*400*9mm、550*400*9mm、770*360*9mm
|
UHF Counter Antenna CF-RA1009 |
|||||||
|
Frequency |
902~928MHz (US）/ 865~868MHz (EU） |
||||||
|
Polarization |
circular |
||||||
|
Connector |
SMA-J/Specified(integrated with antenna) |
||||||
|
Cable |
Standard 3meter（customizable） |
||||||
|
VSWR |
≤2.0 |
||||||
|
Impedance |
50Ω |
||||||
|
Lightning protection |
DC ground |
||||||
|
Color |
Black |
||||||
|
Size（mm） |
130*100*8 |
150*150*7 |
200*200*7 |
300*300*9 |
400*400*9 |
550*400*9 |
770*360*9 |
|
Gain |
-6dBi |
0dBi |
-3dBi |
-6dBi |
-7dBi |
-5dBi |
-10dBi |
|
Max power |
50W |
50W |
50W |
10W |
10W |
10W |
10W |
|
dB |
≤3dB |
≤3dB |
≤3dB |
≤5dB |
≤5dB |
≤5dB |
≤5dB |
|
Reflector material |
PCB |
PCB |
PCB |
Copper Clad Laminate |
Copper Clad Laminate |
Copper Clad Laminate |
Copper Clad Laminate |
|
Weight |
|
0.15kg |
0.225kg |
0.49kg |
|
|
1.1kg |
2、Connector
(1) Standard 3-meter cable RG316, the outlet connector is SMA male, the length and connector are optional:
Common connectors are as follows:
3. Product View
4. Related Products
（1）Smart cabinet antennas with different gains
|
|
|
|
|
|
3dbi antenna CF-RA3002 circular Size: 100*200*20mm |
2.5dbi antenna CF-RA5007 circular Size: 260*210*13mm |
6dbiantenna CF-RA6002 Circular Size:130*130*18mm |
8dbi antenna CF-RA8005 Circular Size:454*164*16mm |
（2）Related fixed readers and modules
|
|
|
|
|
|
CF810 UHF 4 ports fixed reader 4 RP TNC female 0-15m reading range RF power 0-33dbm Size:184*161.7*26mm |
CF811 UHF 8 ports fixed reader 8 SMA female 0-15m reading range RF power 0-33dbm Size:147*184*26mm |
MU914 UHF 4 ports module 4 SMA female 0-15m reading range RF power 0-33dbm Size:67*51.5*7.9mm |
MU918 UHF 8 ports module 8 SMA female 0-15m reading range RF power 0-33dbm Size:91*69.5*7.75mm |
5、Application
