H100 UHF portable bluetooth reader
Compatible Android/IOS phone
reading distance up to 50cm
HID keyboard emulation
H100
UHF Portable Bluetooth Reader
Widely used in label inventory application scenarios such as jewelry inventory, parts inventory, warehouse management, shelf management, etc.
1. Parameters
|
H100 UHF Portable Bluetooth Reader |
|
|
Model |
H100 |
|
Frequency |
902-928MHZ（US） /865-868MHZ（EU） |
|
Protocol |
ISO18000-6C(EPC GEN2) |
|
RF output |
0-20dbm（adjustable） |
|
Reading speed |
>30pcs/s |
|
Reading distance |
0-50cm |
|
Bluetooth communication |
BLE 5.3 |
|
Wired communication |
Type-C enables online charging and serial port upgrades |
|
Card reading prompts |
LED flashes |
|
Button |
Button switch machine |
|
Shell material |
ABS+Silica gel |
|
Operating temperature |
-10℃~50℃ |
|
Storage temperature |
-30℃~70℃ |
|
Battery |
lithium battery（3.7V-1000mAh） |
|
Operating current |
<=145mA |
|
Standby current |
<=100uA |
|
Length of work |
Working continuously for over 6 hours |
|
Standby time |
More than 1 year |
|
Charging time |
1hour |
|
Size |
76（length）*37（width）*39（height）mm |
|
Weight |
71g |
2. Size：76*37*39mm

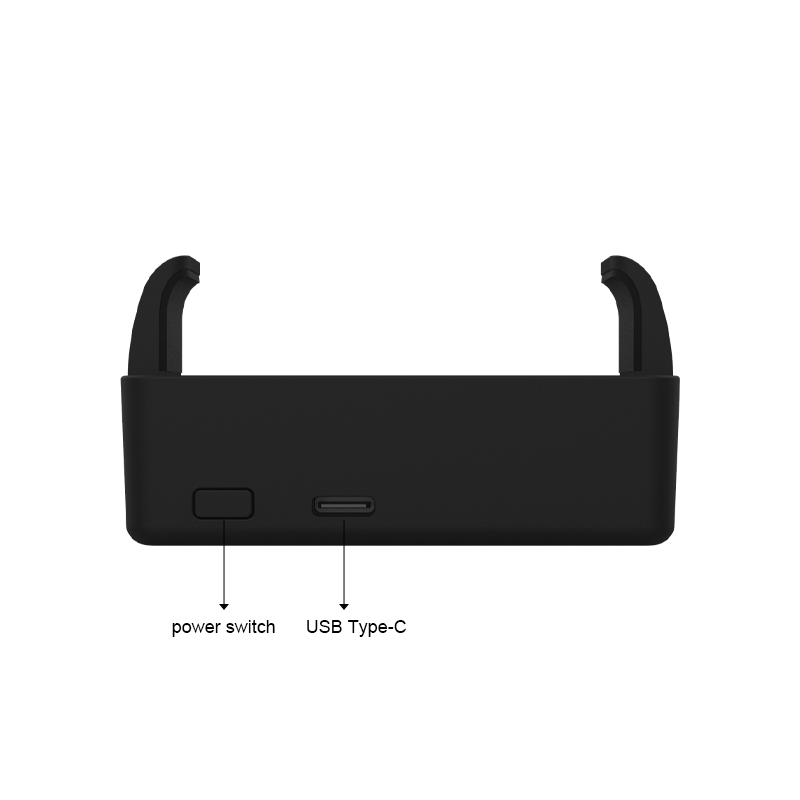

3 On/off and charging：Press and hold the button for three seconds to turn on and off and charge through the Type-C port

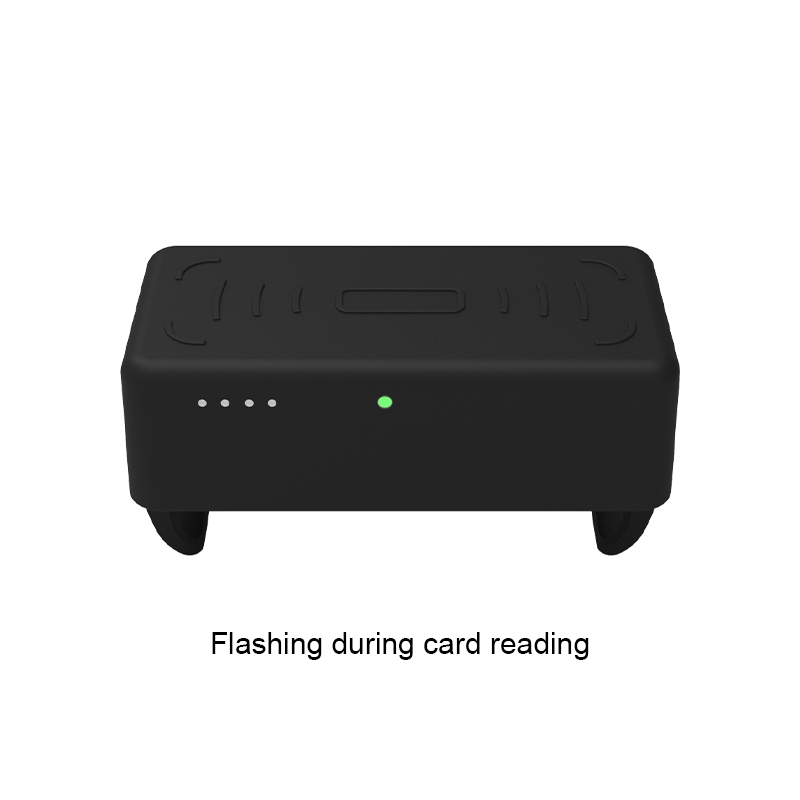

4. LED working indicator：Four battery indicator lights and one card reading indicator light.
The left side lights up green when the reader is turned on, and the right side light flashes when the label being read.

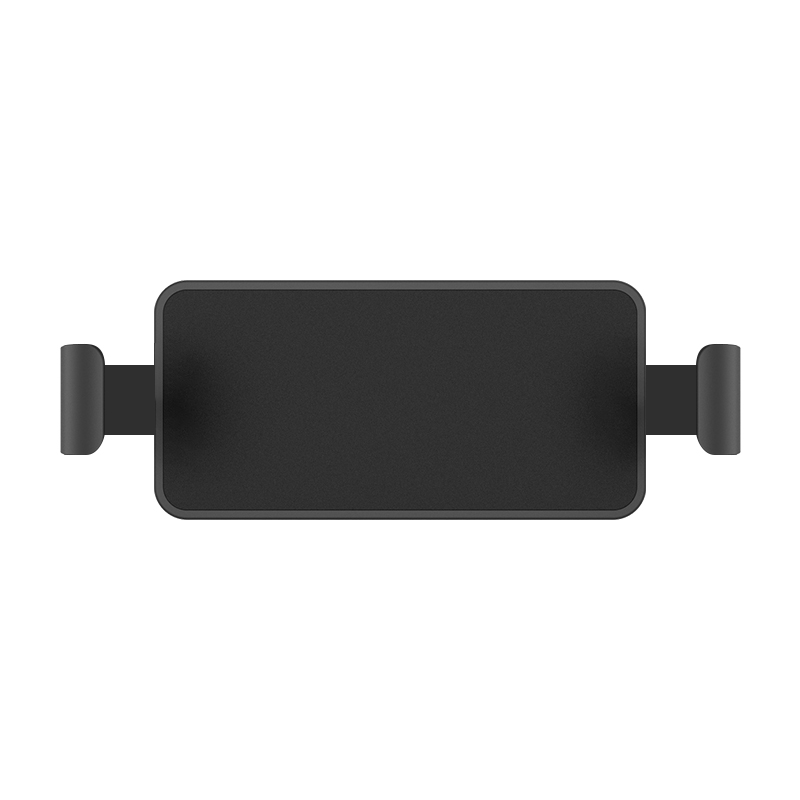

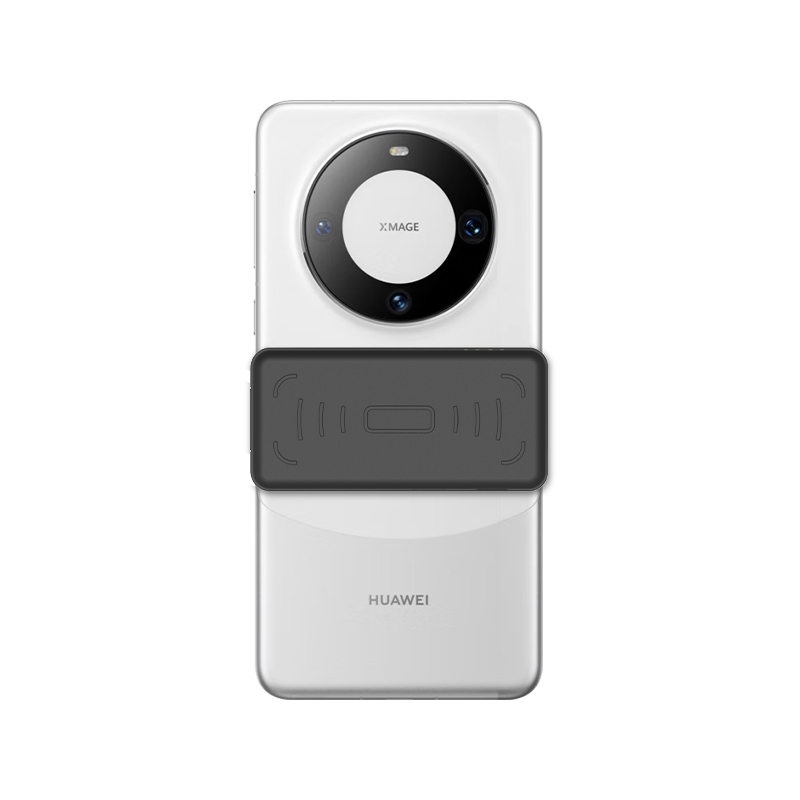

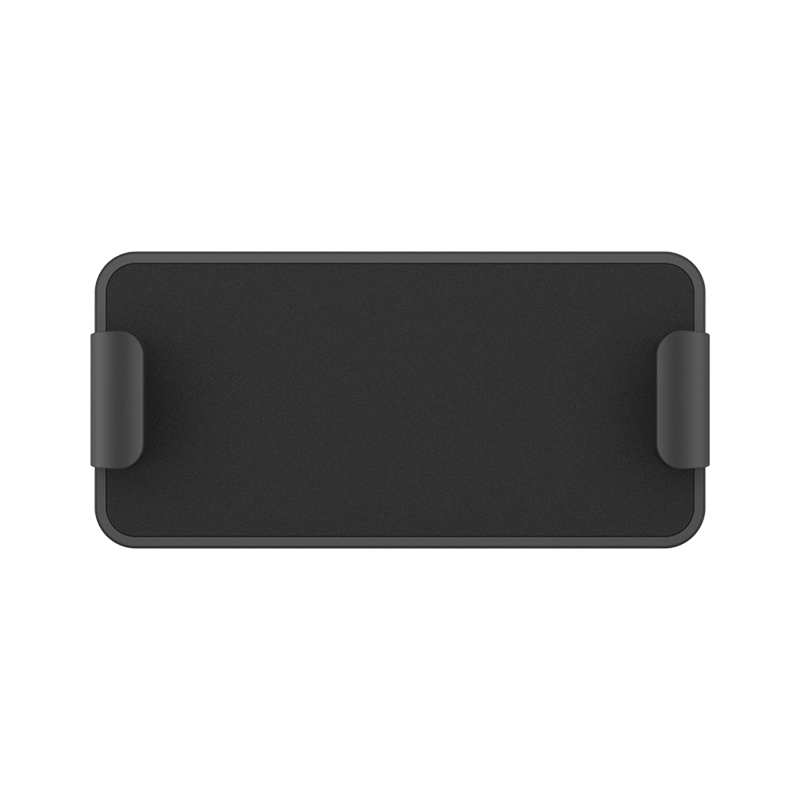

5 Retractable back clip fixation: can be clipped on the back of the mobile phone for use

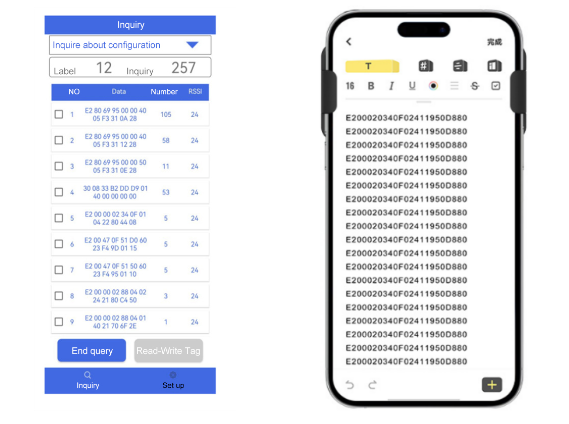

6. Two working mode
Serial Net mode：Open the software to search and connect to Bluetooth to set parameters, receive tag data, and write tag data.

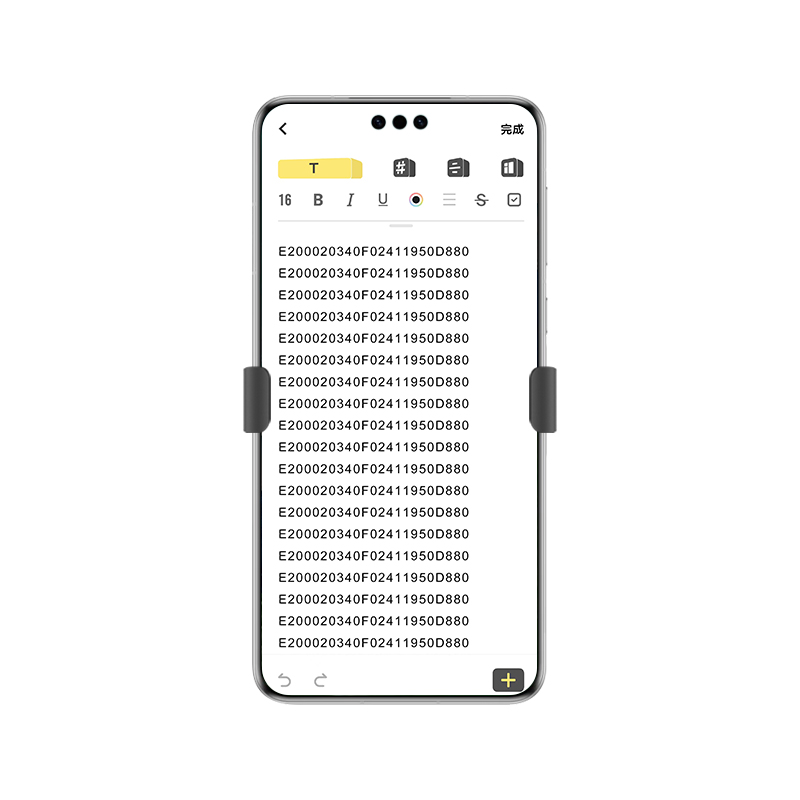

HID mode：The mobile phone can directly search and connect to Bluetooth, and data can be received at the cursor, such as notepad and input box.
|
