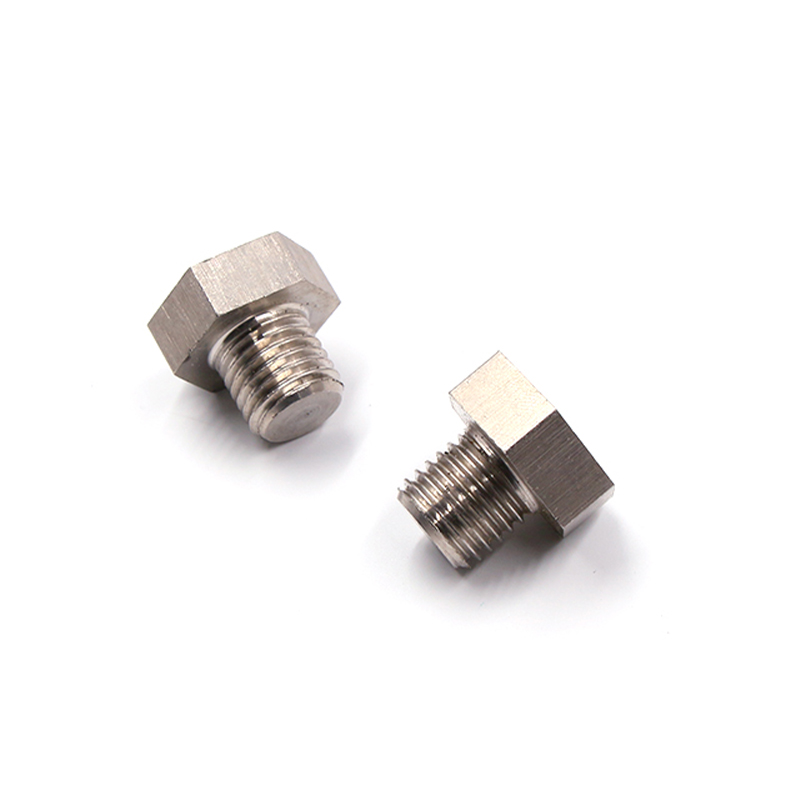

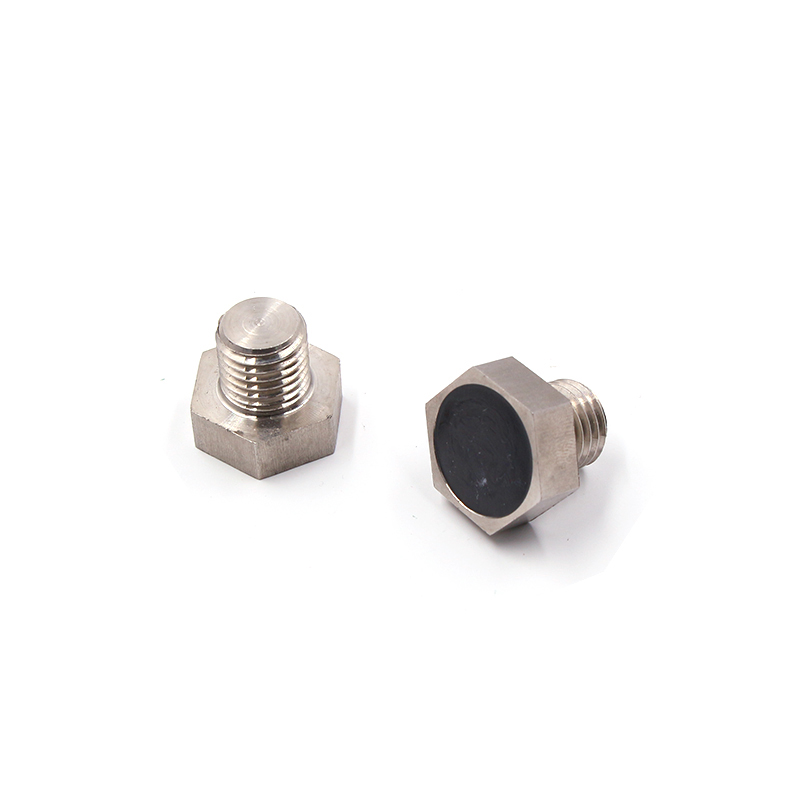

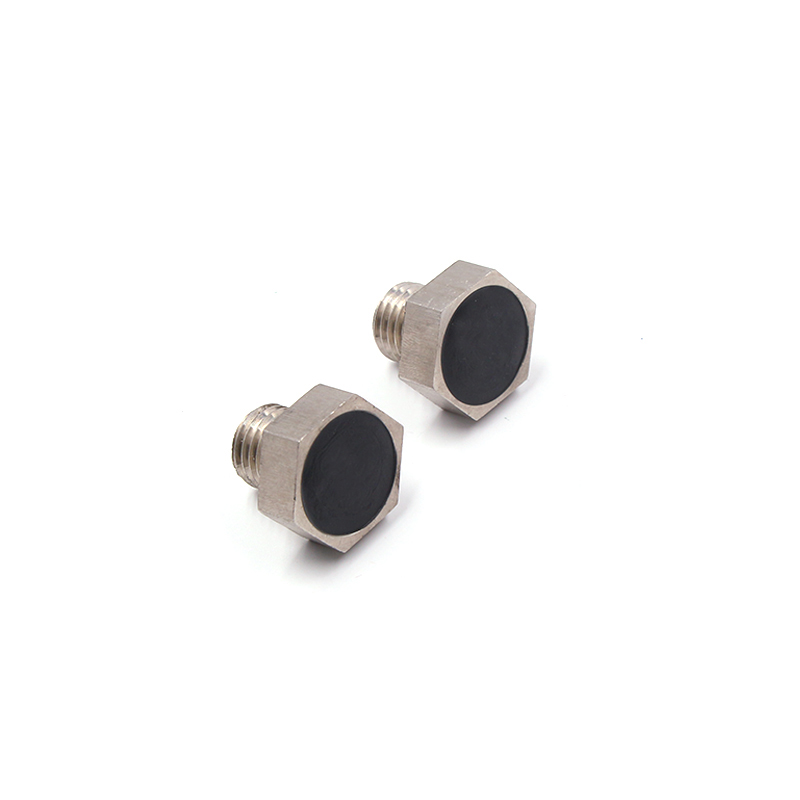

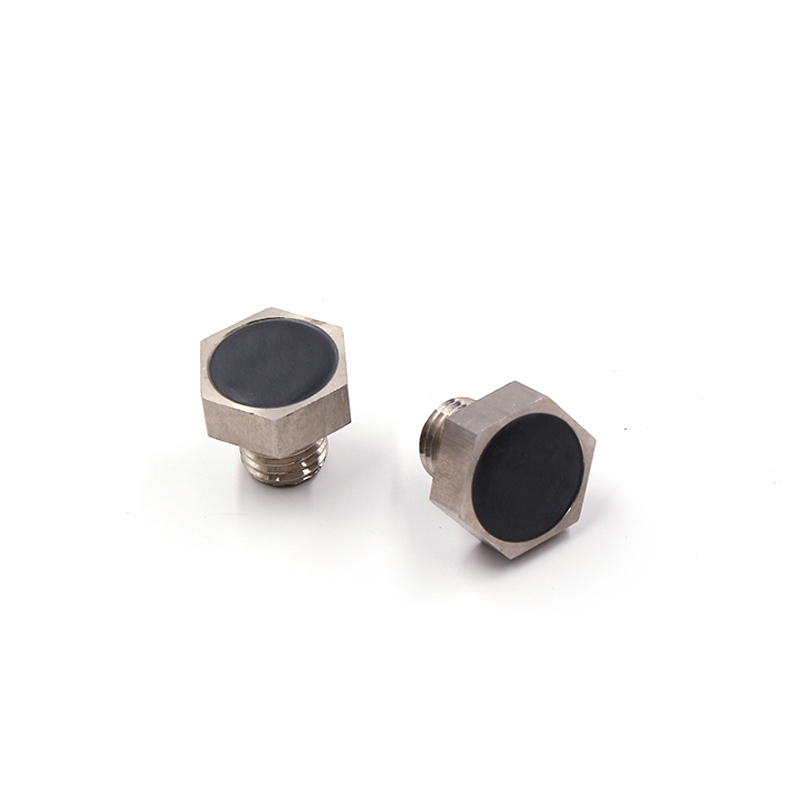

G9847 UHF screw anti-metal tag
Chip:Impinj R6/NXP U8
Size:29x25mm
Material:PC
Size:29x25mm
Material:PC
Product name: UHF screw tag
Product name: G9847
Physical parameters:
|

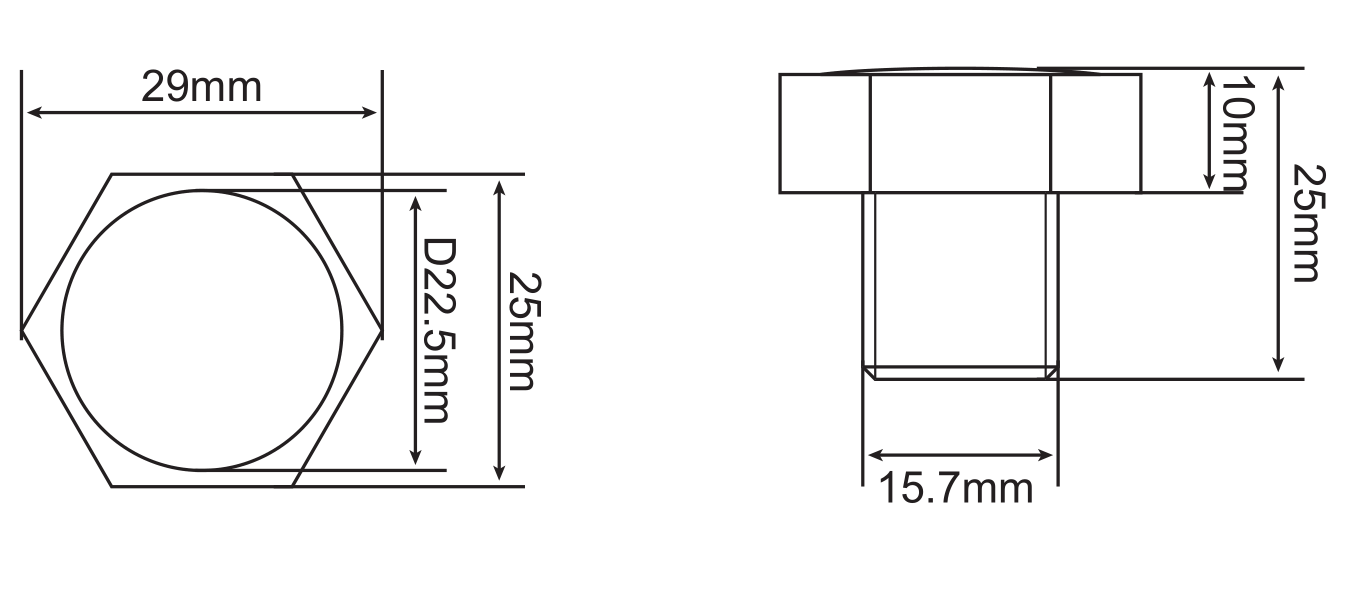

Size |
Diameter 29mm, (total length 25mm) |
|
Material |
304 steel |
|
Color |
Silver grey |
|
Weight |
50g |
|
Physical parameters |
EPC Class1 Gen2, ISO18000-6C |
|
Frequency |
(US) 902-928MHz, (EU) 865-868MHz |
|
Chip |
Alien H3 |
|
storage |
EPC: 96bits , User: 512bits, TID:64bits |
|
Writable times |
100,000times |
|
Work mode |
Read and write |
|
Data storage |
50 years |
|
Application surface |
Metal surface |
|
Reading distance (4W fixed reader 36dbm) |
200cm |
|
Reading distance（2W handheld reader -30-33dbm） |
120cm |
|
Shelf life |
1 year |
|
waterproof level |
IP68 |
|
storage temperature |
-40°С to +150°С |
|
Operating temperature |
-40°С to +100°С |
