G9825 PCB UHF anti-metal tag
Chip:Impinj R6/NXP U8

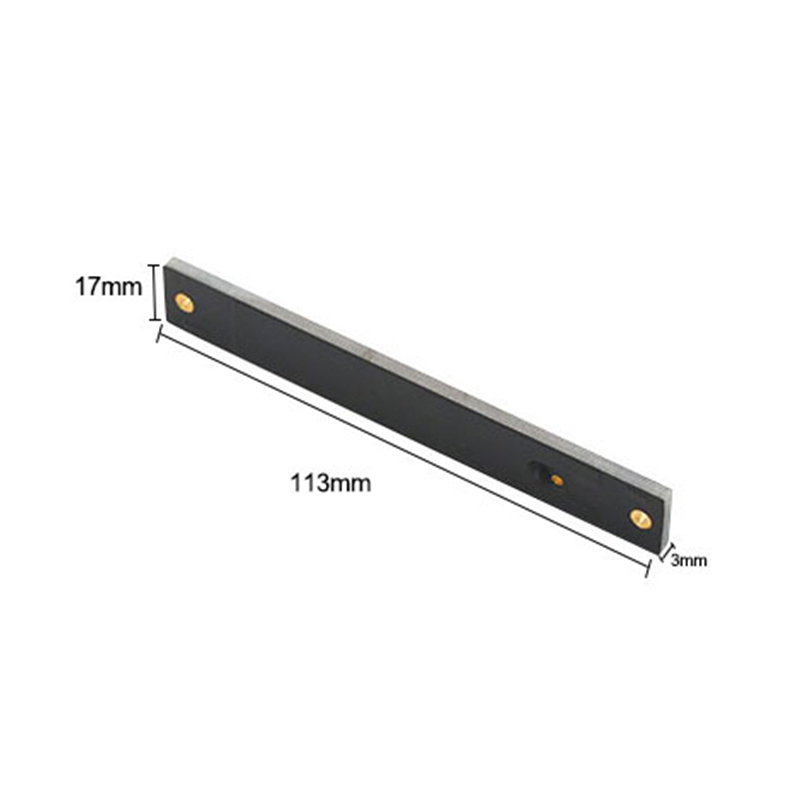

Size:113*17*3mm
Material:PCB
Size:113*17*3mm
Material:PCB

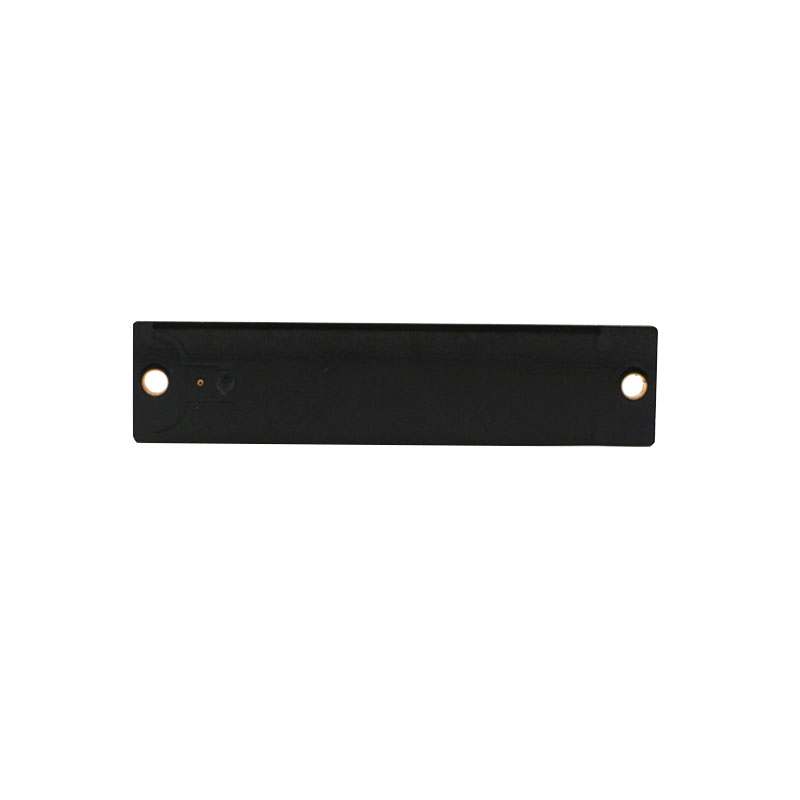

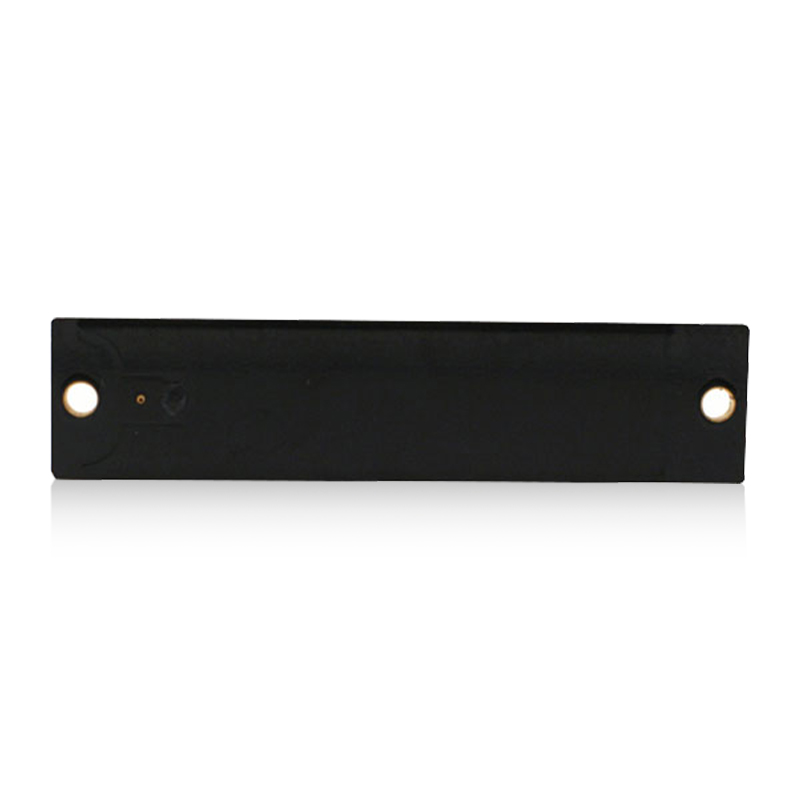

Product name: PCB UHF anti-metal tag
Product model: G9825
Physical parameters:
|
Size |
113*17*3mm |
|
Thickness |
3mm |
|
Material |
PCB |
|
colour |
black |
|
Installation method |
Adhesive or screws |
|
Weight |
15g |
Physical parameters:
|
RFID Protocol |
ISO18000-6C |
|
Chip |
H3 |
|
Chip memory |
TID:64，EPC:128 ，User：512 |
|
Re writeable times |
100,000 times |
|
Work mode |
Read and write |
|
Data storage |
10 years |
|
Application surface |
Metal surface |
|
Reading distance |
0～10m metal surface |
|
Shelf life |
1 year |
|
waterproof level |
IP67 |
|
storage temperature |
-20℃～+110℃ |
|
Operating temperature |
-10℃～+100℃ |
