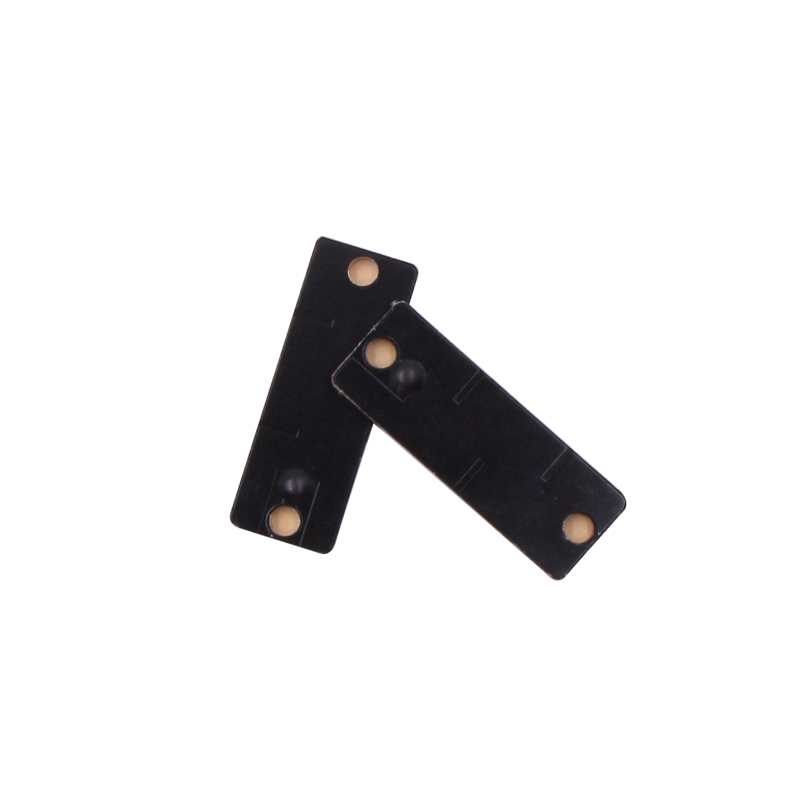

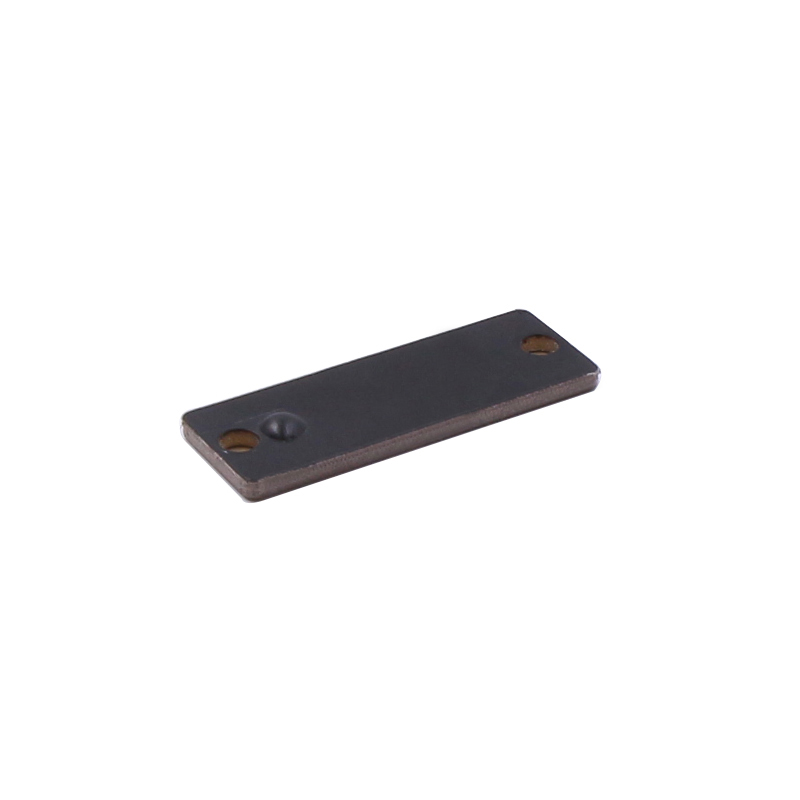

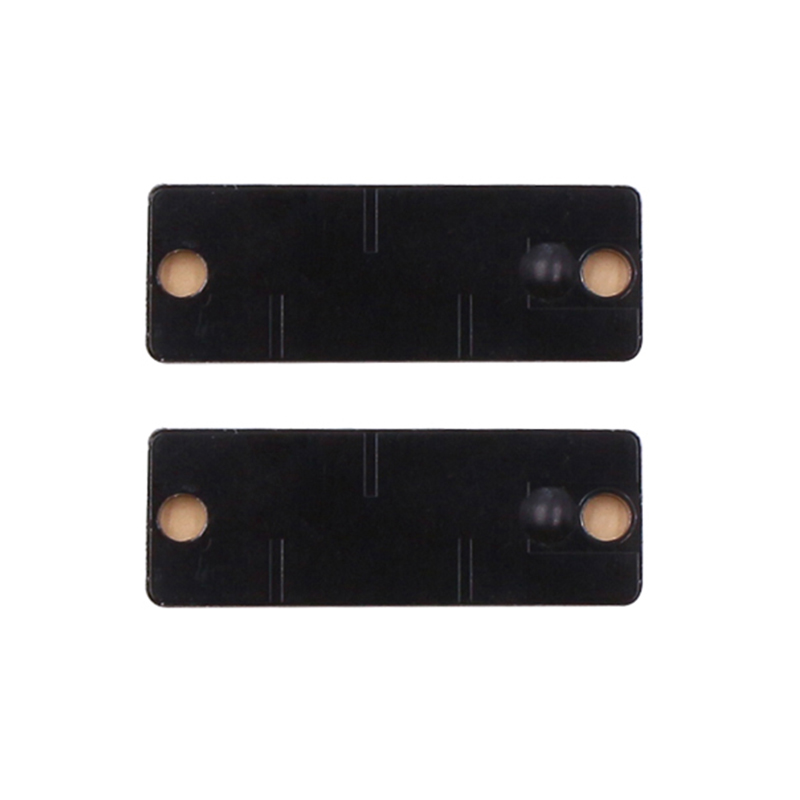

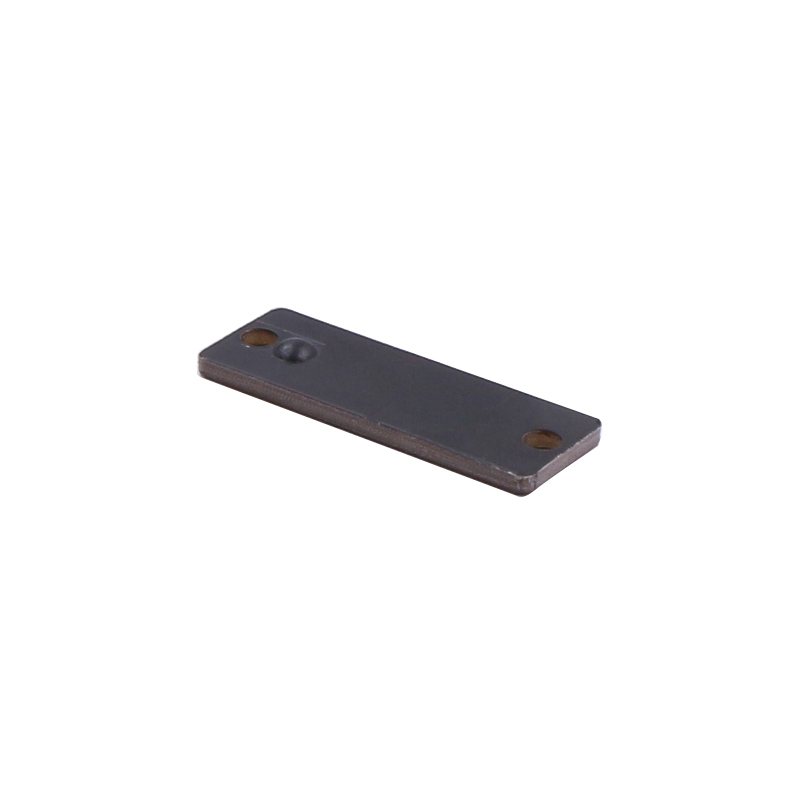

G9835 UHF high temperature resistant tag

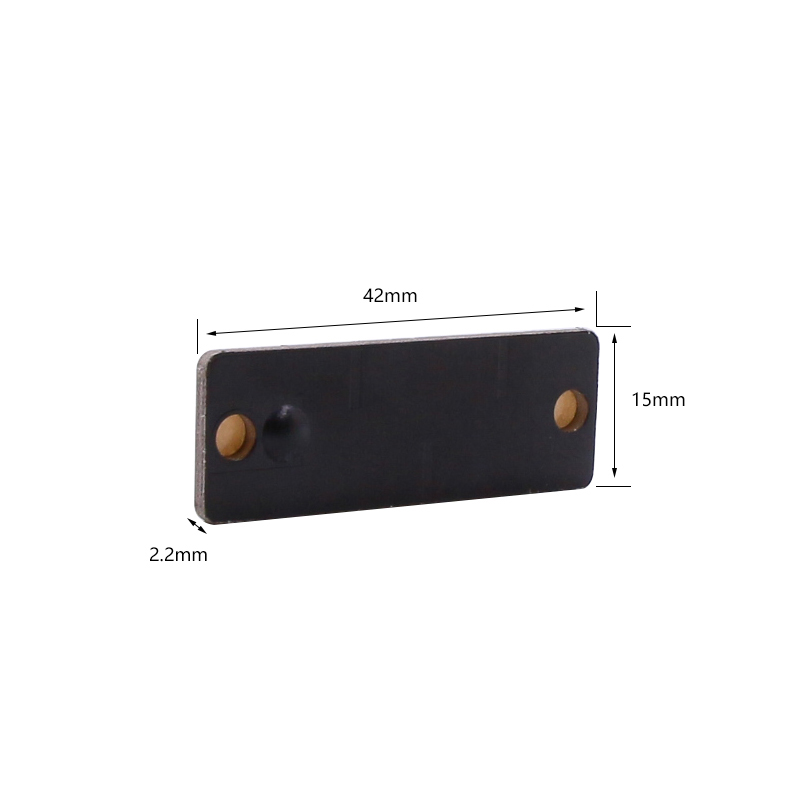

Size:42*15*2.2mm
Material:High temperature material

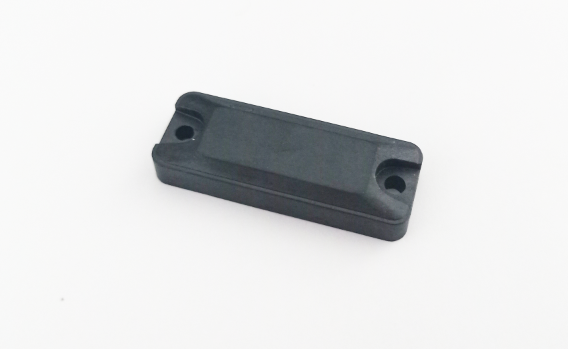

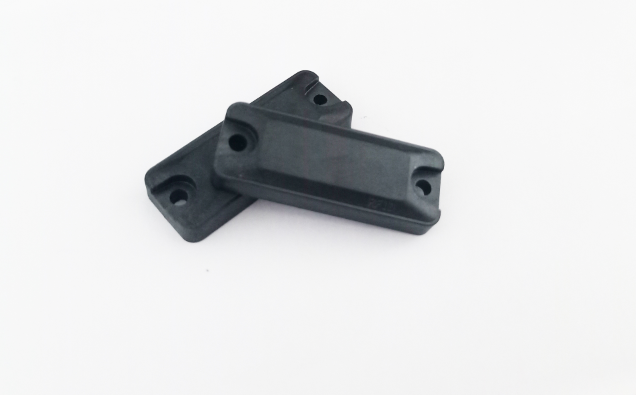

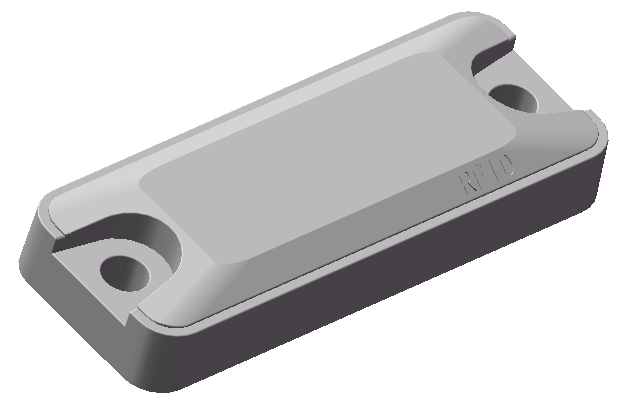

UHF High temperature resistant tag（G9835）
1.Product
2.Application：
Production line process management; high temperature mold high temperature tool management; IT facility chassis management; small and medium metal container management.
3.Product features
(1) The surface of the label can be screen printed, and the surface can be laser marked.
(2) resistant to weak acid and weak alkali, waterproof
(3) Long-term high temperature resistance and low temperature
(4) Label paper on which the product surface can be pasted or printed
4.Product parameters
|
Protocol |
EPC Class1 Gen2; ISO18000-6C |
|
Frequency |
902-928MHz （customized） |
|
Chip type |
Alien H3 |
|
Chip memory |
EPC 96bits, TID:32bits,User:512bits,Access password:32bits |
|
Work mode |
Read and write |
|
Chip life time |
20 years |
|
Warranty |
1year |
|
Material |
High temperature resistant injection molding material and ceramic material |
|
Color |
Black（customized） |
|

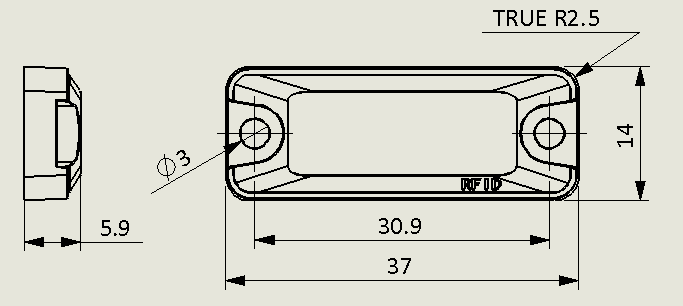

Size |
37mm *14mm* 5.9mm |
|
Packing |
carton |
|
Weight |
~12g/pc |
|
Positioning hole size |
The positioning hole for product fixing is 4.12mm, and the centering distance of positioning hole is 143mm. |
|
Operating Temperature |
-25℃ to +115℃ (But the performance is attenuated when it exceeds 70℃, and it will return to normal after the temperature drops) |
|
Storage temperature |
-40℃~ +200℃ |
|
Storage humidity |
5%～95% |
|
Installation method |
Screws, rivets, super glue, double-sided adhesive; (not standard, optional) |
|
IP rating |
IP67 |
|
Polarization mode |
Linear polarization |
|
Read distance |
1~3M(depends on tag and work environment) |
|
Drop test |
1M 10 drops test pass (with ceramic inside, does not support more drops) |
|
Alcohol test |
95% concentration alcohol test passed |
|
Gasoline test |
No. 92 gasoline wiped through |
|
High and low temperature alternating test |
-40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 days of test pass |
|
RF performance consistency test |
100% tested and passed (tested with the European Finnish Voyantic Tagformace tester) |
