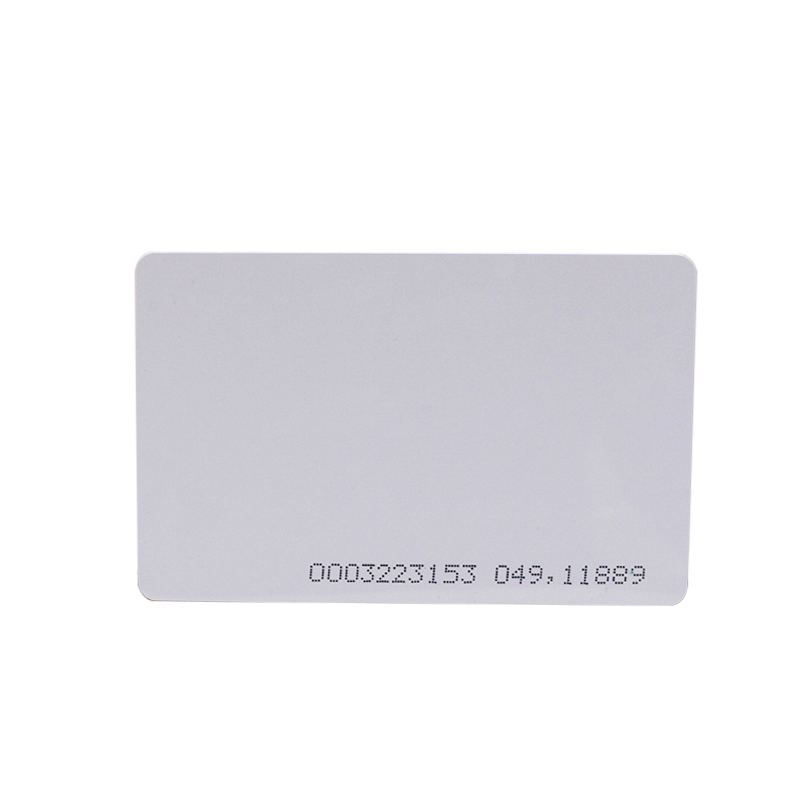

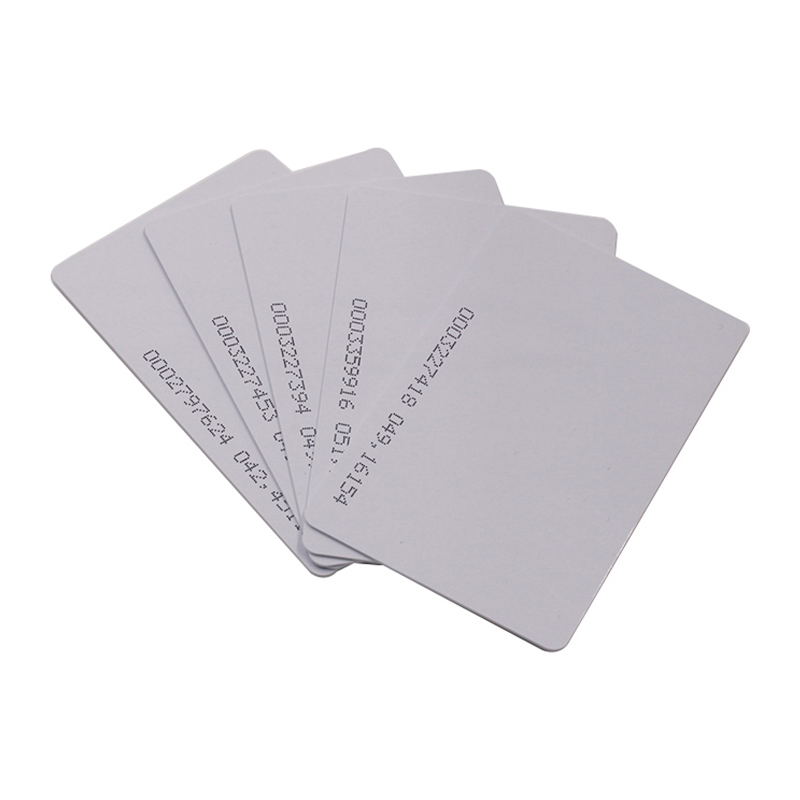

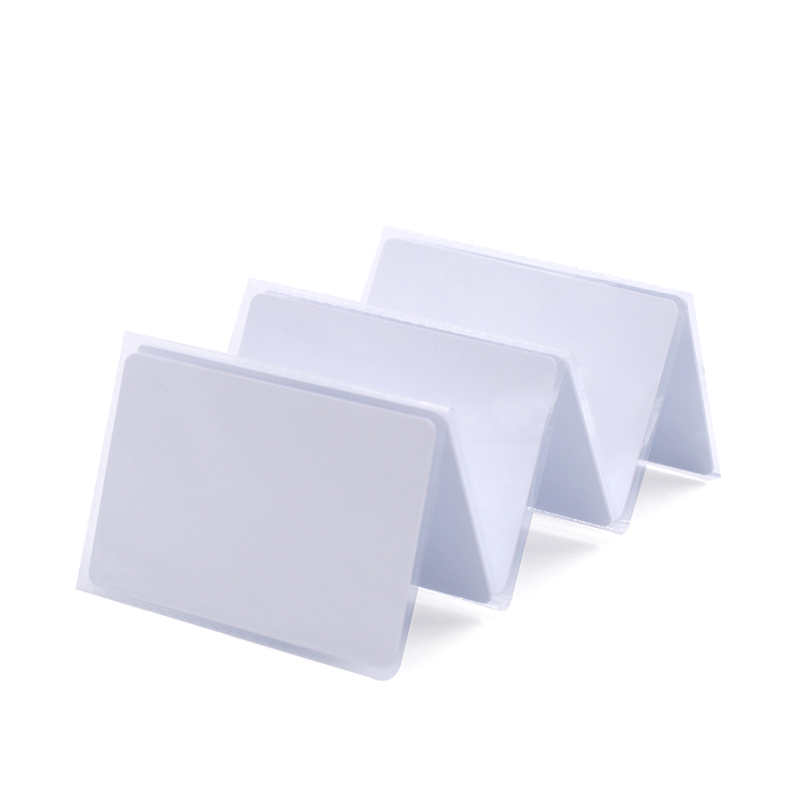

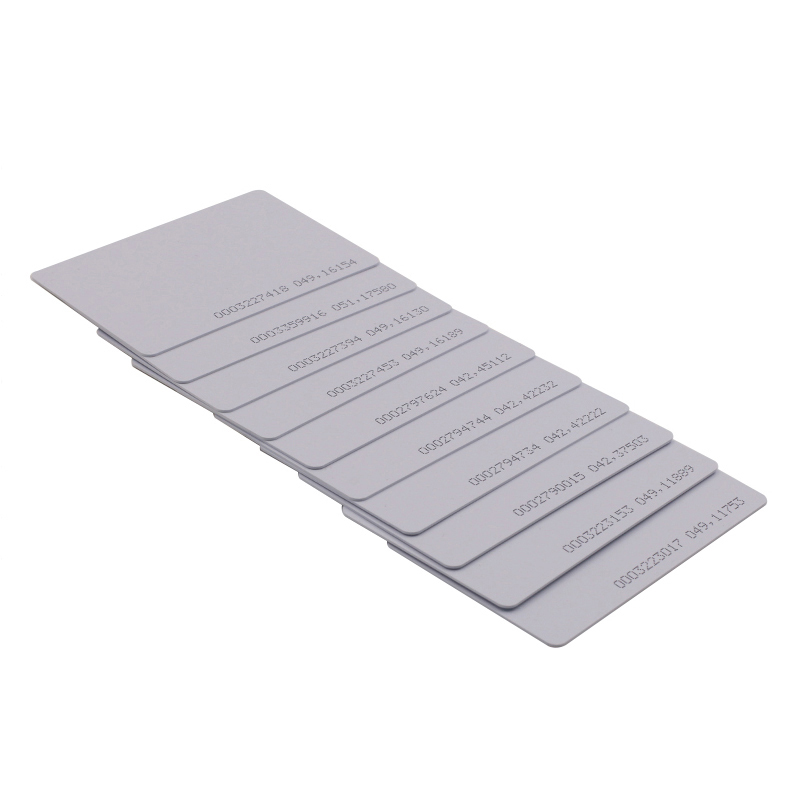

G9102 RFID card
86*54*0.8mm size
Material:PVC or PET
Product name: RFID PVC card
Product number: G9102
Product character：
1. Frequency:125KHz,13.56MHz,UHF
2. Material: PVC or PET
3. In accordance with the requirements of customers printing picture, LOGO, serial number, barcode etc.
Product technique:
|
Performance Specifications |
|
|
Product model |
G9102 |
|
Frequency |
125KHz,13.56MHz,UHF |
|
Chip type |
125KHz: EM4200,TK4100(compatible chip),T5577,EM4305 13.56MHz: FM11RF08; MIFARE® Classic 1K; MIFARE® Classic 4K; MIFARE® Ultralight;NTAG203,NTAG213,NTAG215,NTAG216,I-CODE2,I-code SliX UHF : ALIEN H3、IMPINJ M4 |
|
Working mode |
read or write |
|
Read distance |
Depends on the chip type and reader |
|
Write distance |
Depends on the chip type and reader |
|
Data retention |
10(yrs) |
|
Anti-collision |
yes |
|
Physical Characteristics |
|
|
Size |

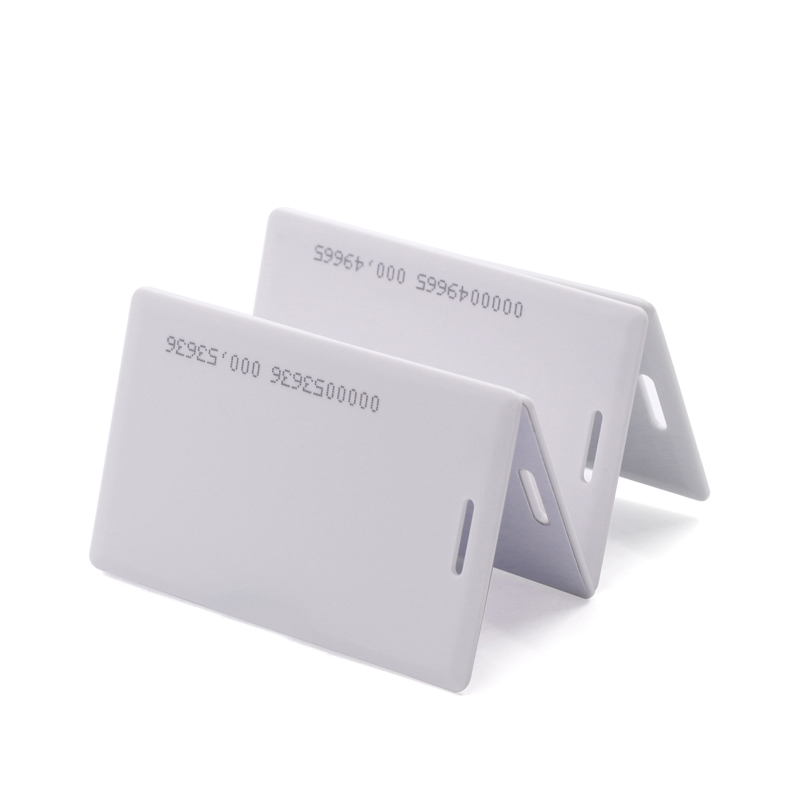

86mm*54mm*0.78mm (standard) 86mm*54mm*1.8mm （ID thickness card） Card diameter:20/25/27.5/30/54.2mm (ID or IC) |
|
Base material |
PET/PVC |
|
Antenna material |
aluminum |
|
Operating temperature |
-25℃~+70℃ |
|
Storage temperature |
-20℃~+50℃ |
|
Operating humidity |
≤80% |
|
Package |
200pcs/box |
|
Weight |
1.5kg/box |
Application:
1. Primarily on the basis of the requirements of customers into different package sizes of cards
2. Can be used for vehicle management
3. Applied to personnel management
4. Applied to product control
