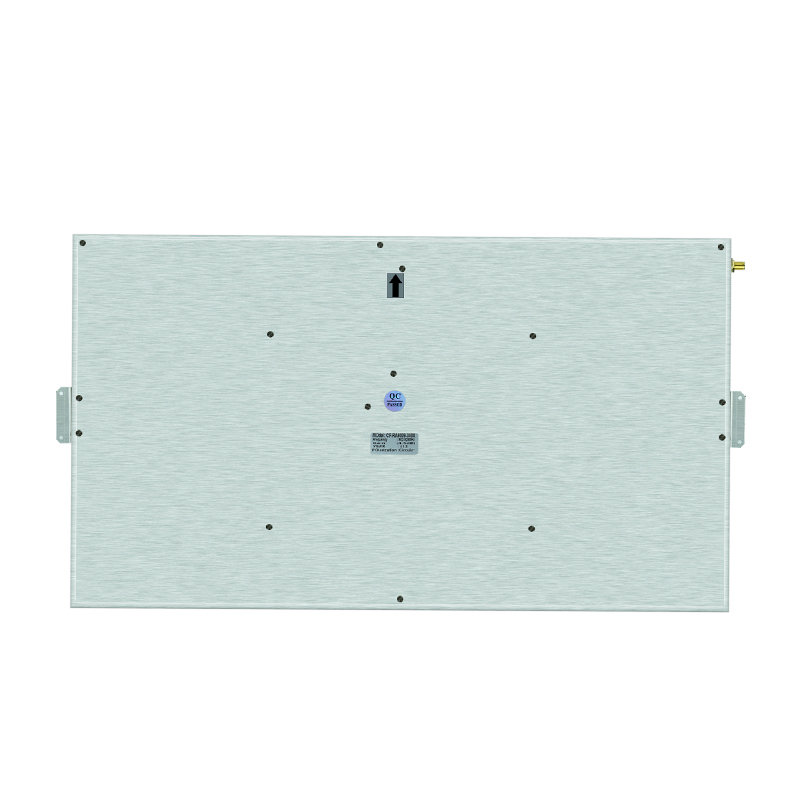

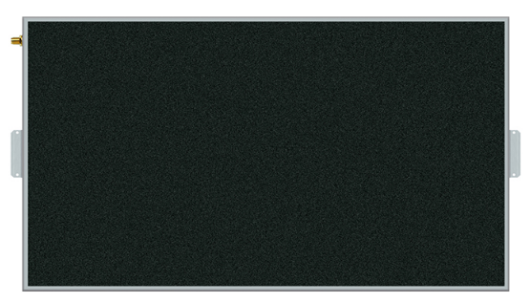

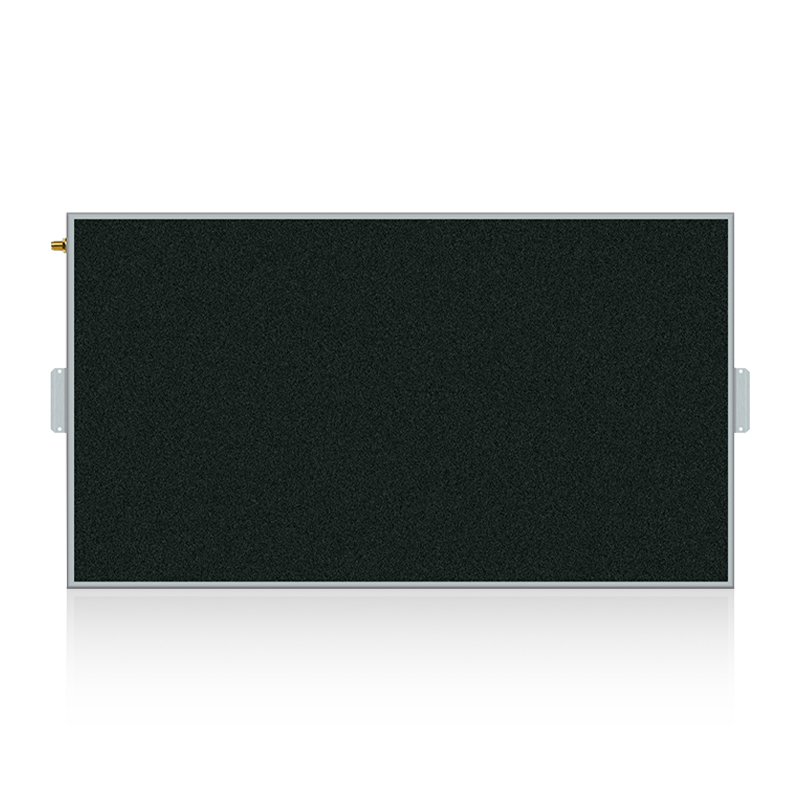

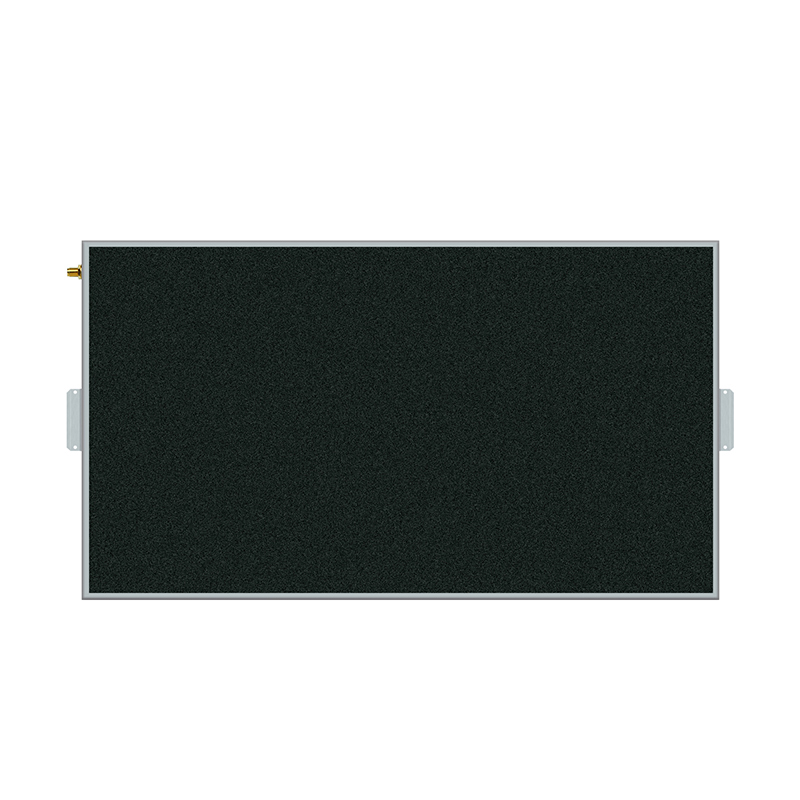

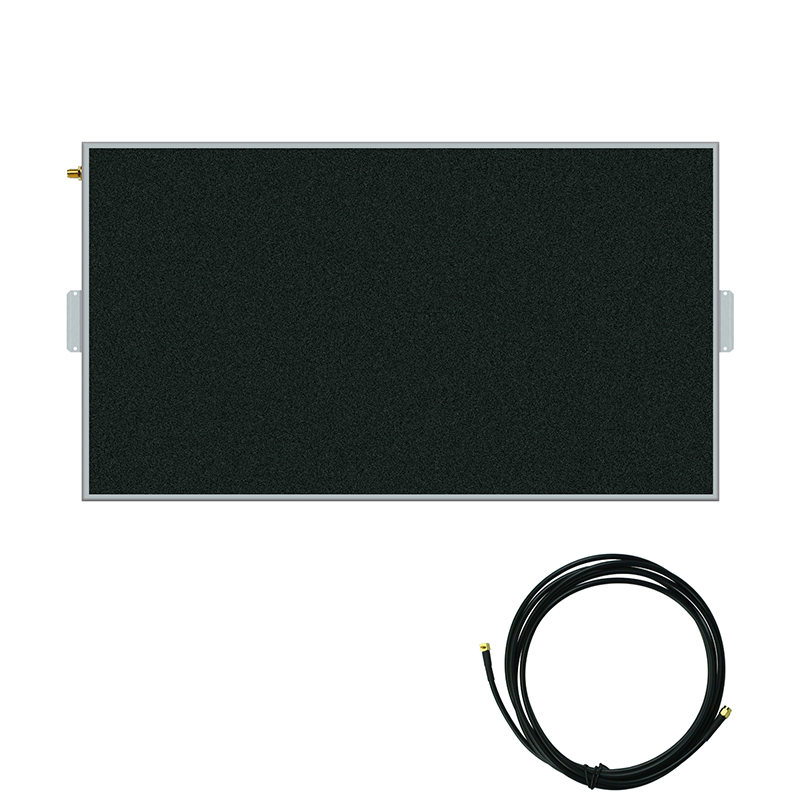

CF-RA8003 UHF 10dBi indoor access control antenna

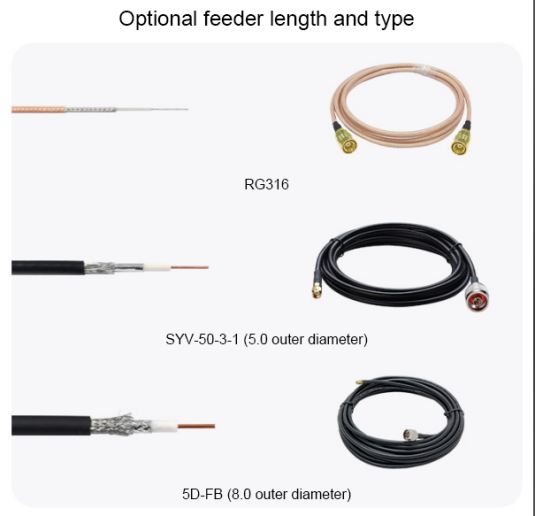

- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
- Application: warehouse management, clothing management, personnel management, logistics management, production management, smart cabinet management, etc.
Product Specifications
|
RFID Parameters |
|
Technical Parameters |
|||
|
Frequency |
865-868MHz（EU） 902~928MHz（US） |
|
Maximum power |
200W |
|
|
Gain |
10dBi |
|
Bandwidth |
26MHz |
|
|
Reading distance reference |
0-10 meters (depending on reader and tag) |
|
F/B ratio |
≥22 |
|
|

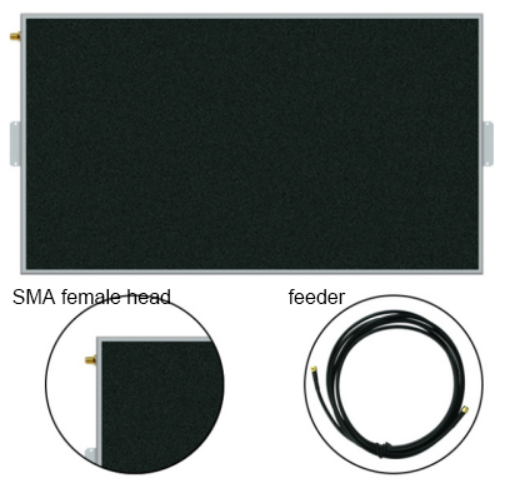

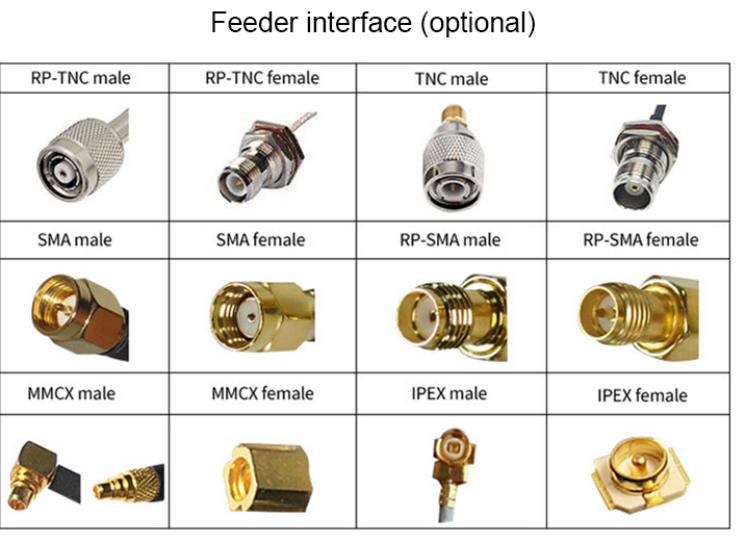

Interface type |
SMA female connector |
|
VSWR |
≤1.3 |
|
|
Polarization mode |
Linear polarization |
|
Impedance |
50 Ω |
|
|
Radiation angle |
Horizontal: 28° Vertical: 30° |
|
Lightning protection |
DC grounding |
|
|
Environmental parameters |
|
Physical parameters |
|||
|
Operating temperature |
-40～80℃ |
|
Antenna reflector material |
Aluminum Alloy |
|
|
Installation method |
Mounting ear installation |
|
Antenna cover material |
Rubber Tile |
|
|
Wind-exposed area |
≤0.2㎡ |
|

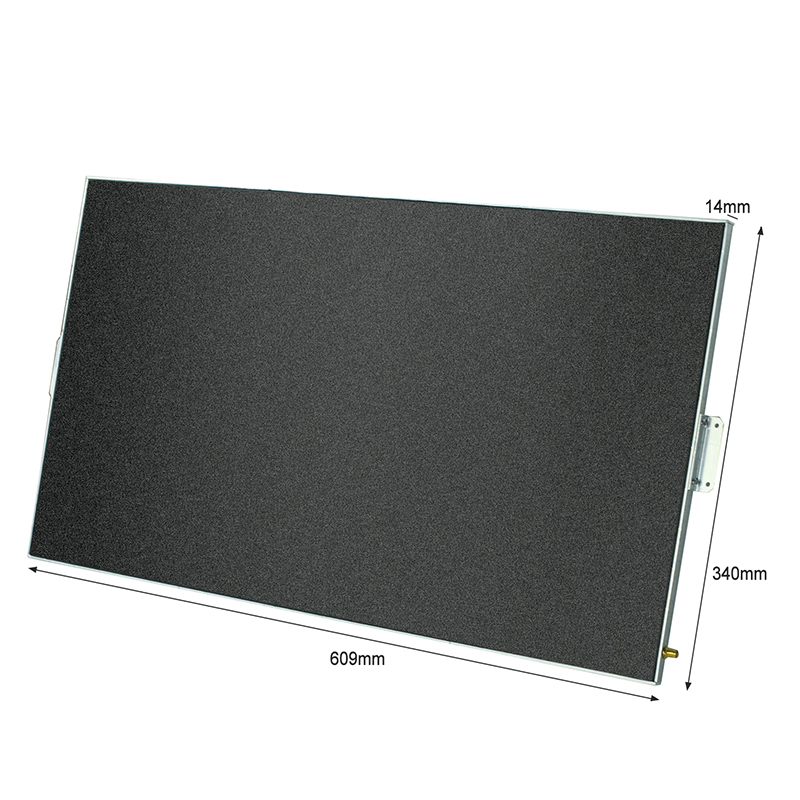

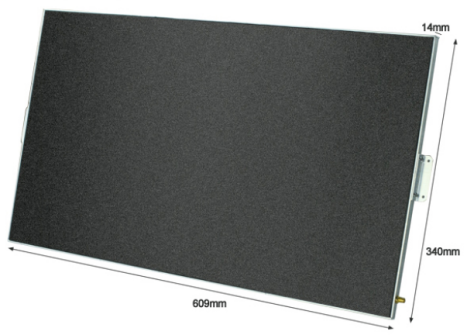

Antenna size |
609*340*14mm |
|
|
Rated wind speed |
60m/s |
|
Antenna net weight |
1.7kg |
|
|
Product List |
|
|
|
||
|
Standard |
Antenna*1, 3m feeder*1 |
|
|
|
|

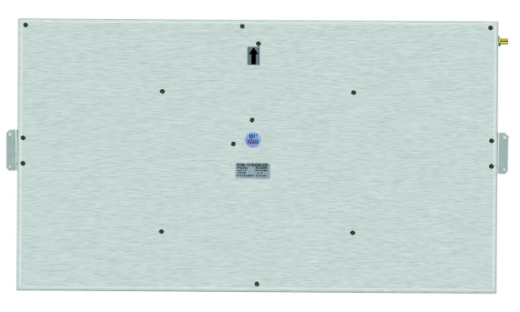

Details display
