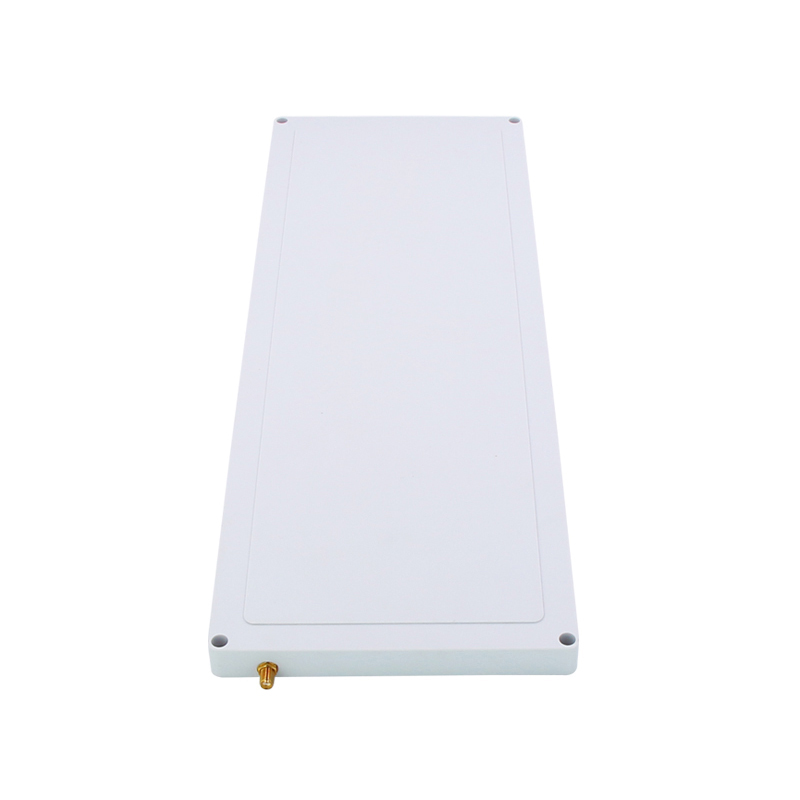

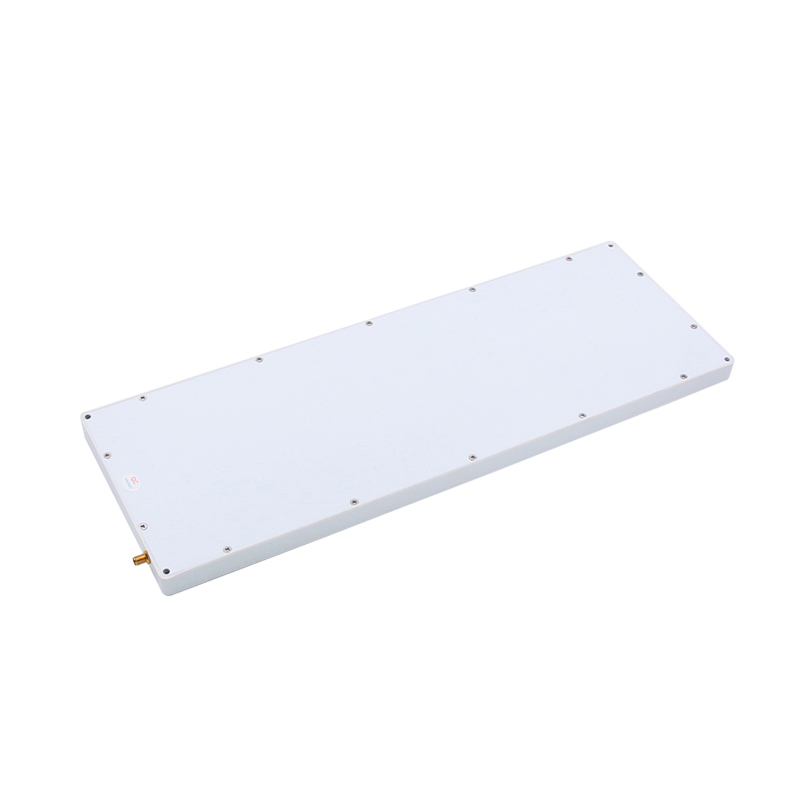

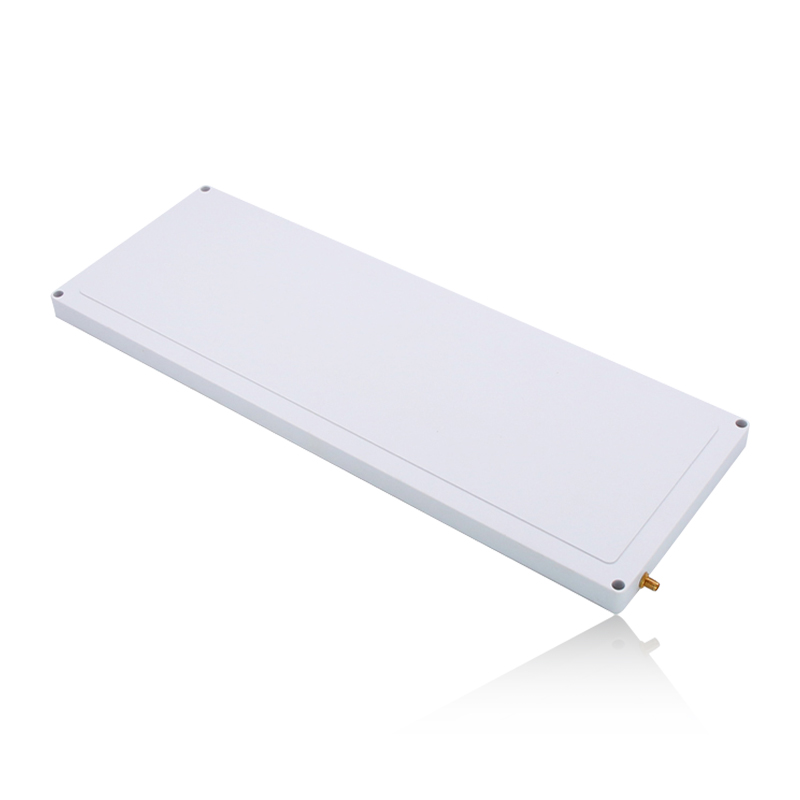

CF-RA8004 UHF 8dBi smart cabinet antenna

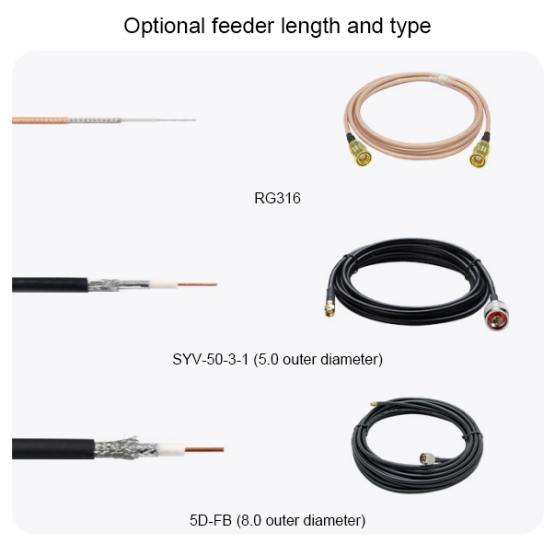

- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
- Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.
Product Specifications
|
RFID Parameters |
|
Technical Parameters |
||
|
Frequency |
865-868MHz（EU） 902~928MHz（US） |
|
Maximum power |
50W |
|
Gain |
8dBi |
|
Front-to-back ratio F/B |
≧20 |
|
Reading distance reference |
0-8 meters (depending on reader and tag) |
|
Standing wave ratio |
≦1.4 |
|

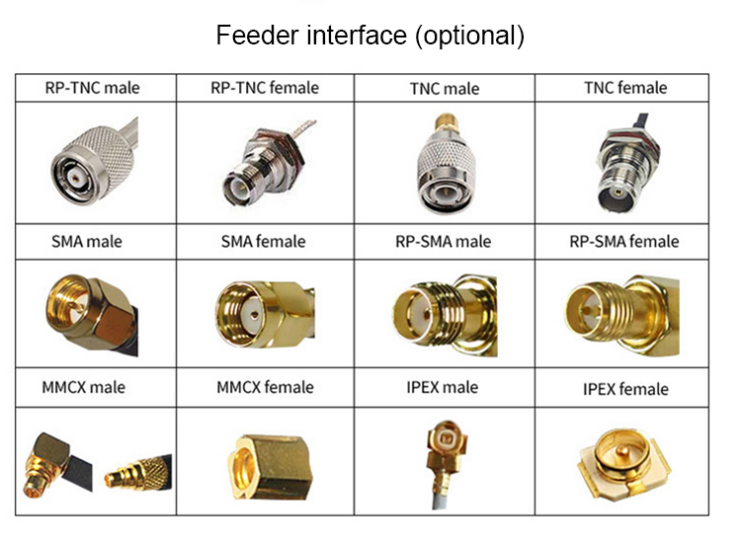

Interface type |
SMA female connector |
|
Impedance |
50 Ω |
|
Polarization mode |
Circular polarization |
|
Lightning protection |
DC grounding |
|
Radiation angle |
Horizontal: 35° Vertical: 65° |
|
Physical parameters |
|
|
Environmental parameters |
|
Antenna cover color |
White |
|
|
Operating temperature |
-40～70℃ |
|
Antenna cover material |
ABS |
|
Installation method |
Screw hole installation |
|

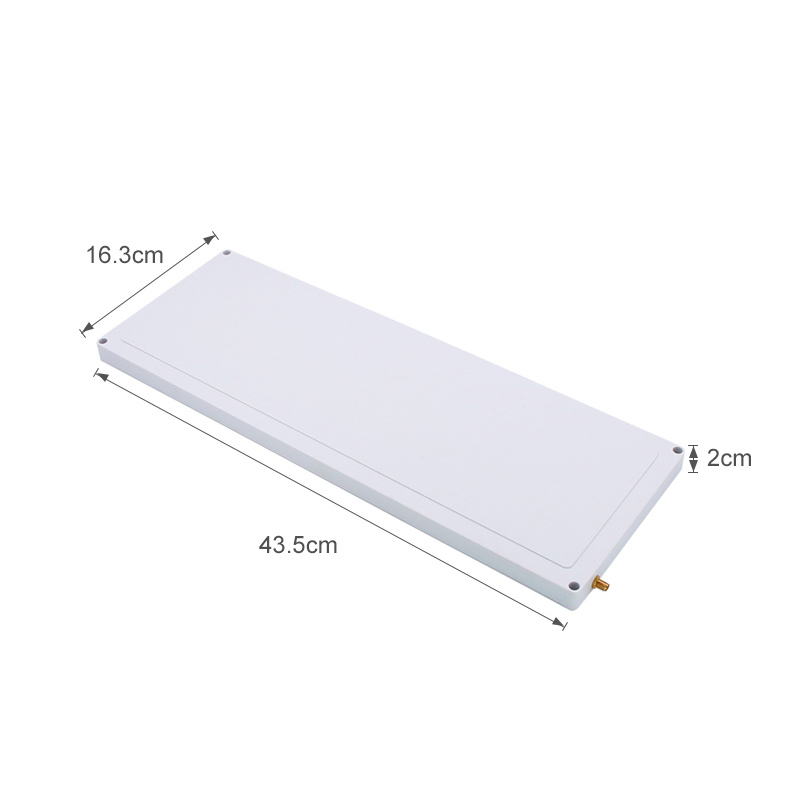

Antenna size |
453*163*20mm |
|
Wind-exposed area |
≦0.2㎡ |
|
Antenna Net Weight |
0.7kg |
|
Rated wind speed |
60m/s |
|
Package Size |
49*22*3cm |
|
Product List |
|
Antenna gross weight |
1.2kg |
|
|
Standard |

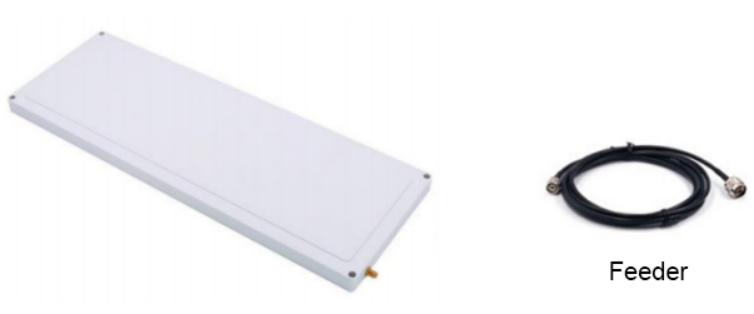

Antenna*1, 3m feeder*1 |
|
|
|
Radiation Angle

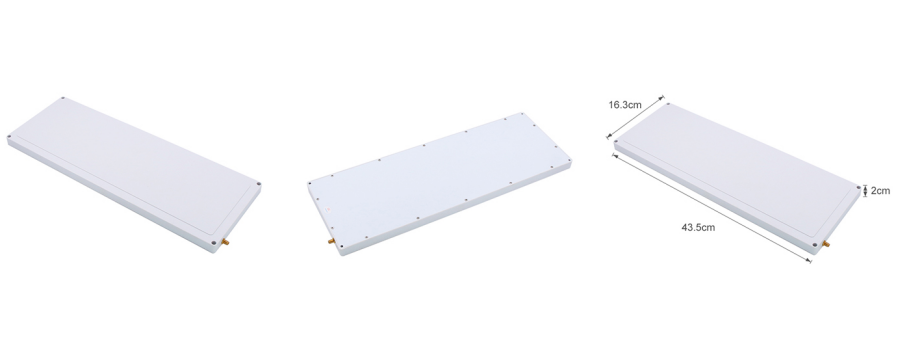

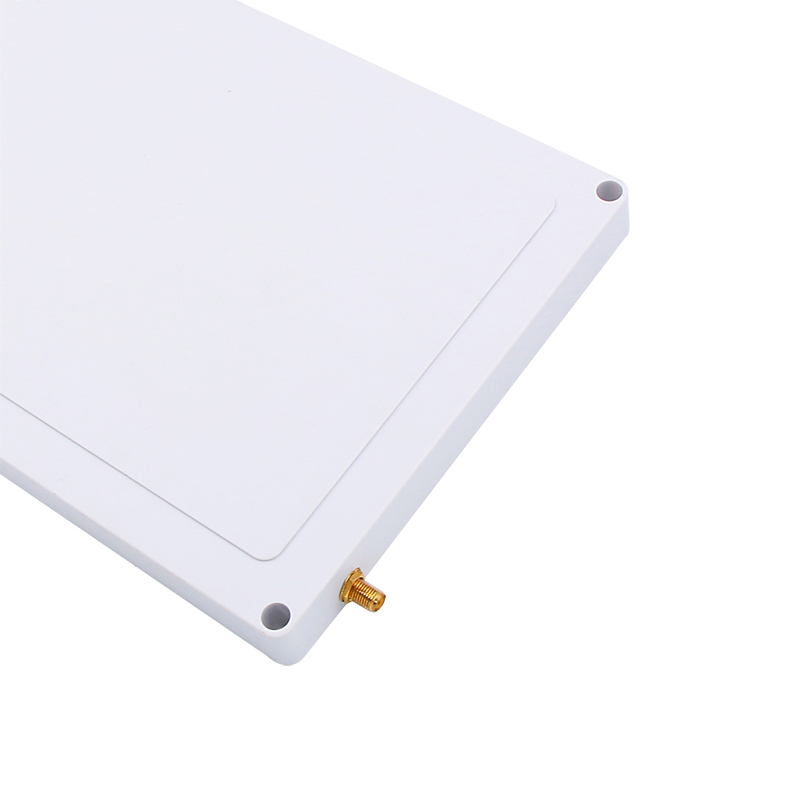

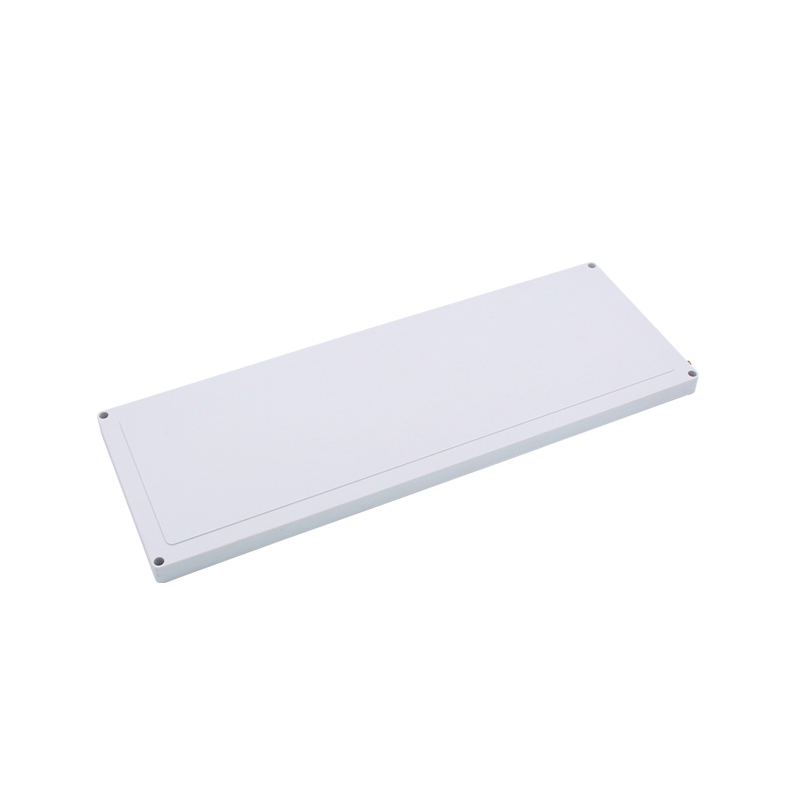

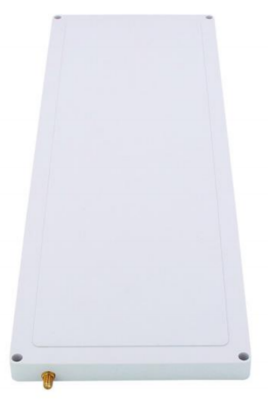

Details display

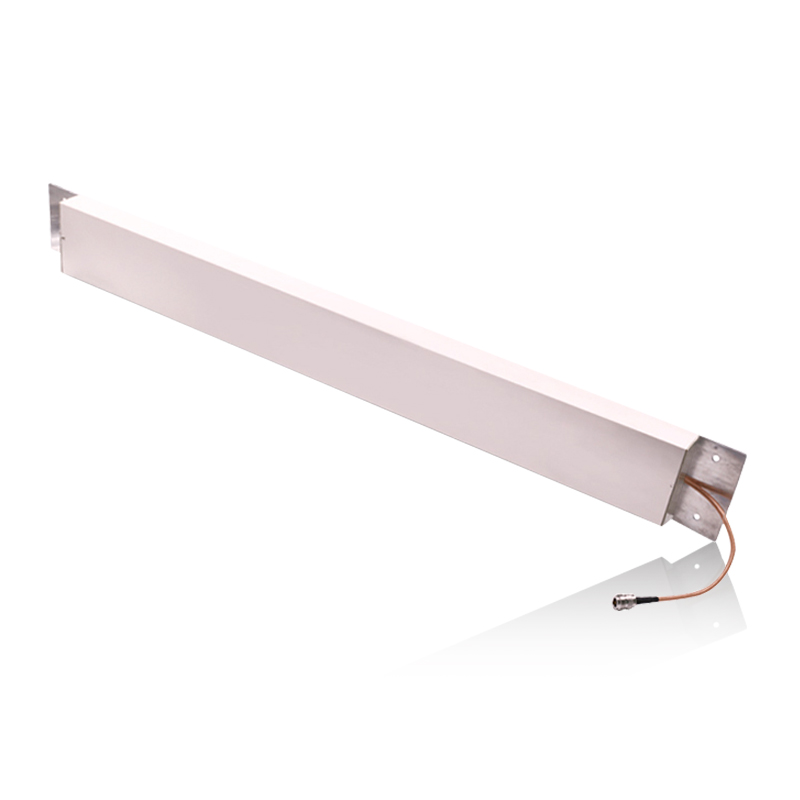

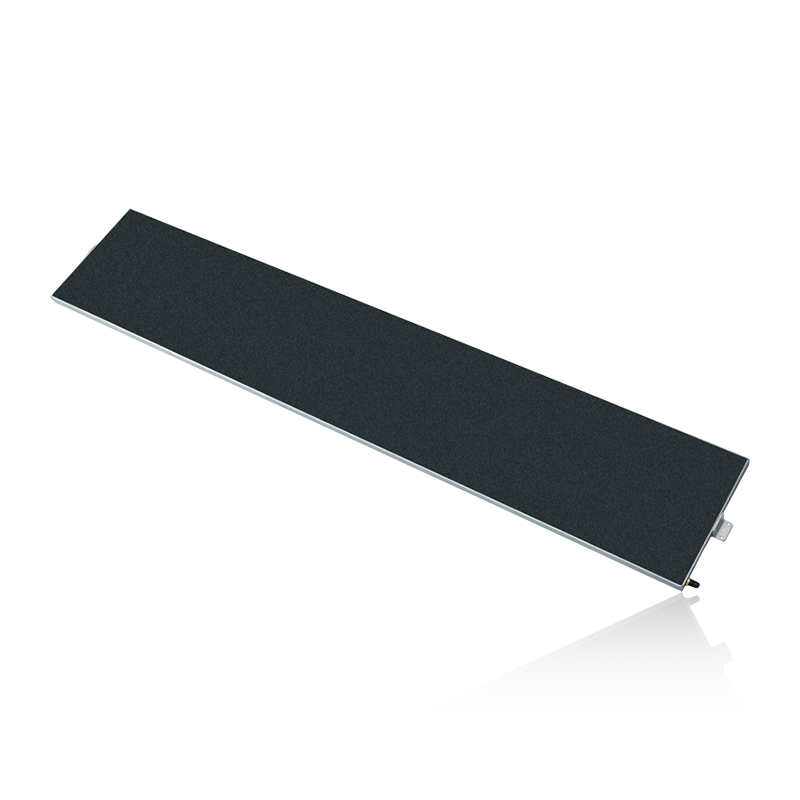

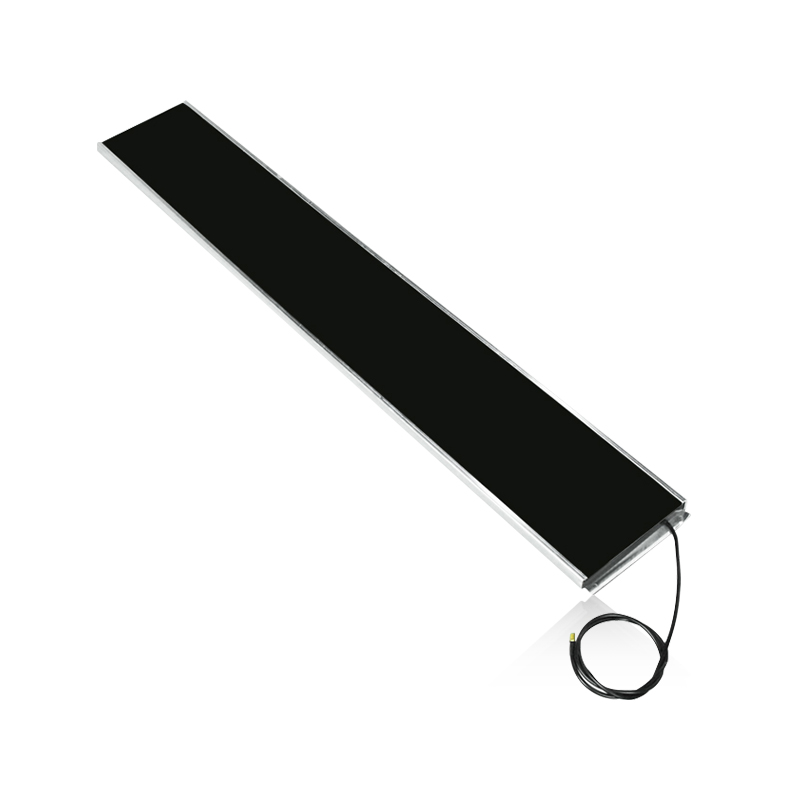

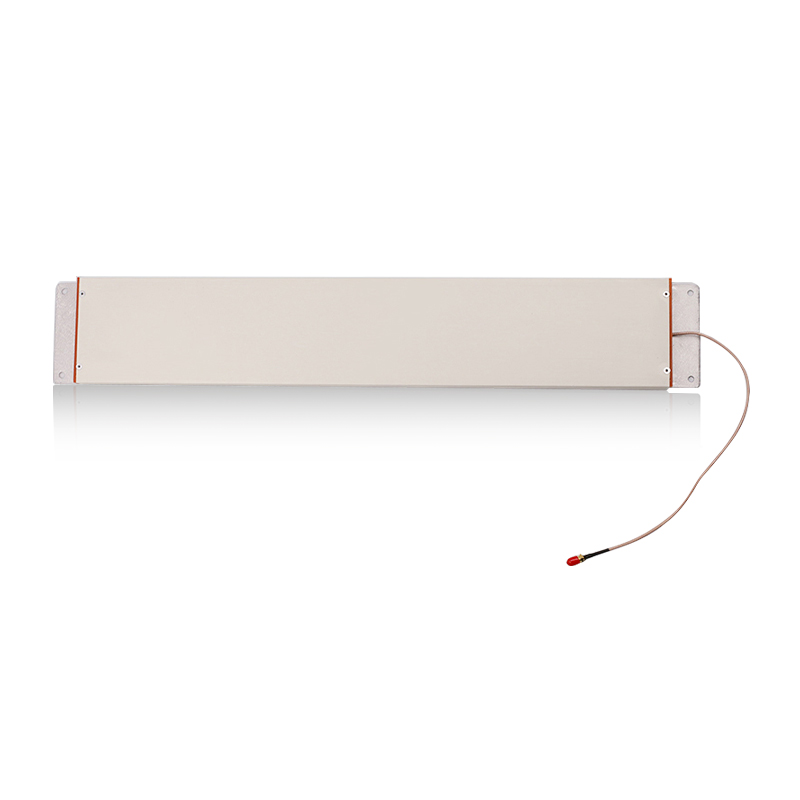

Related Products
|
