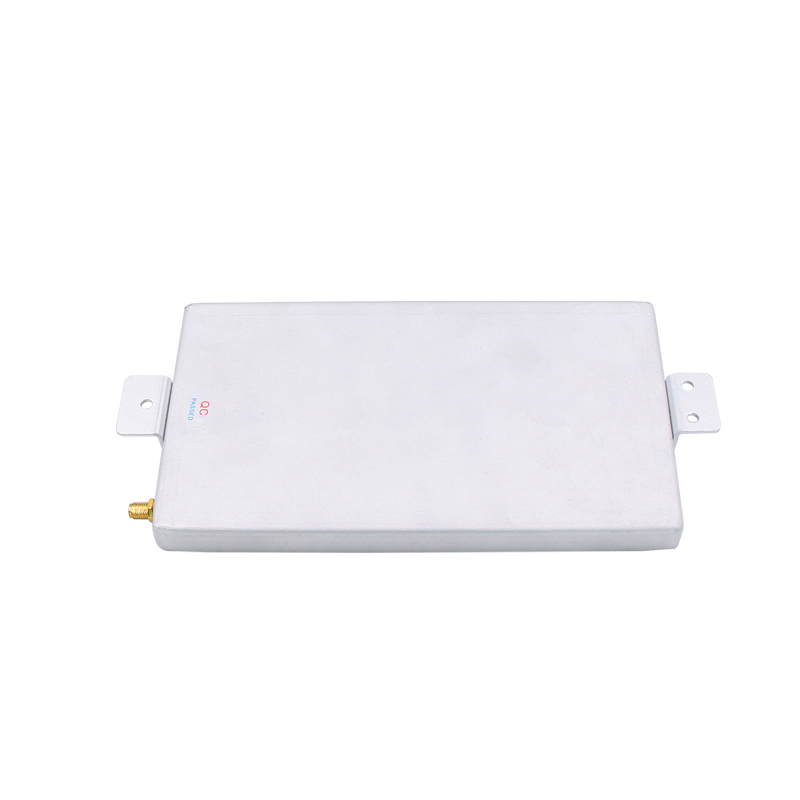

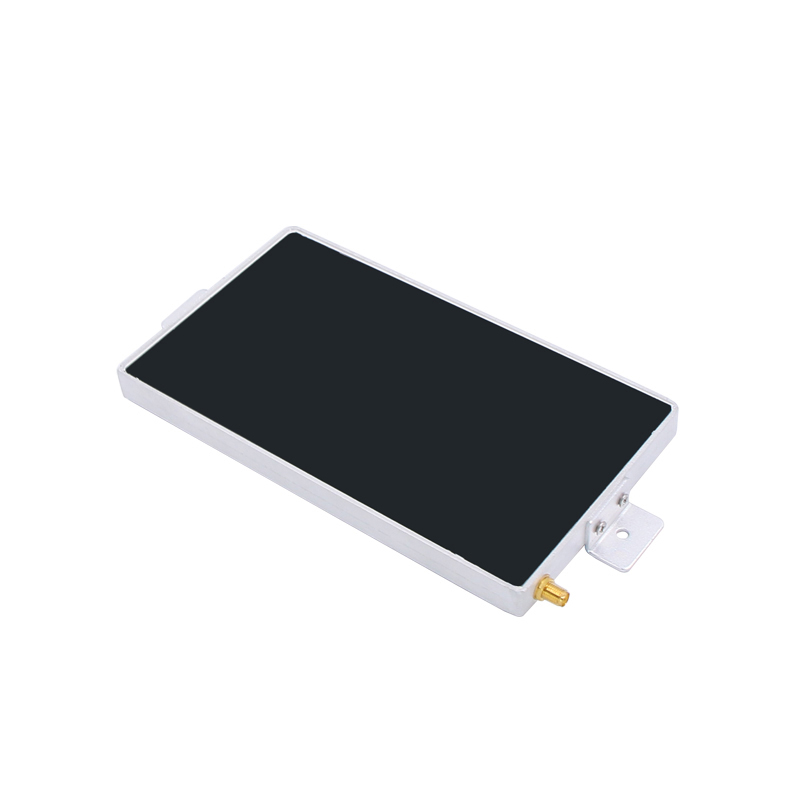

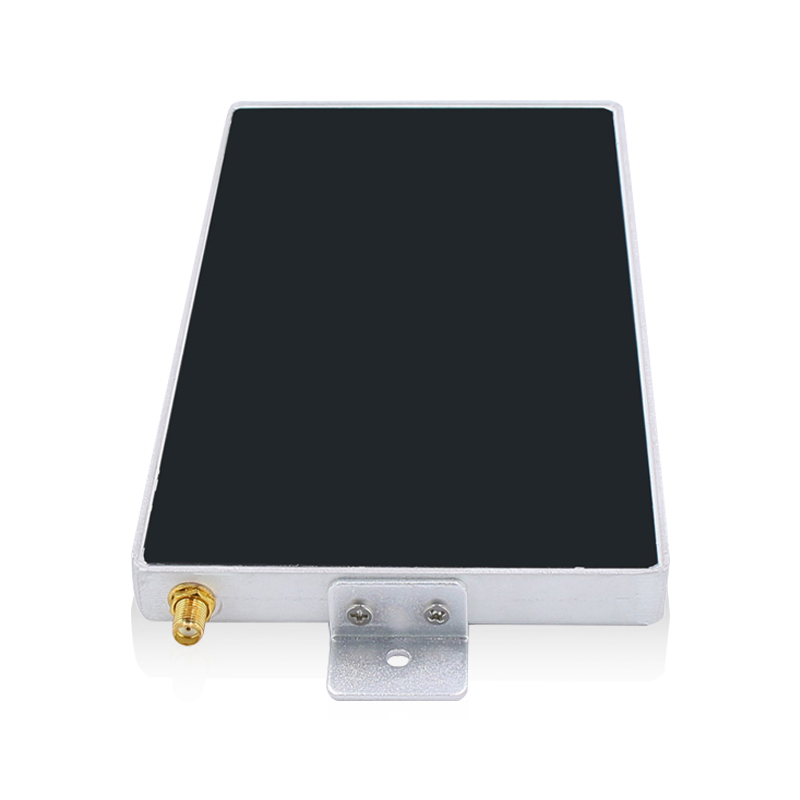

CF-RA3002 UHF 3dBi smart cabinet antenna

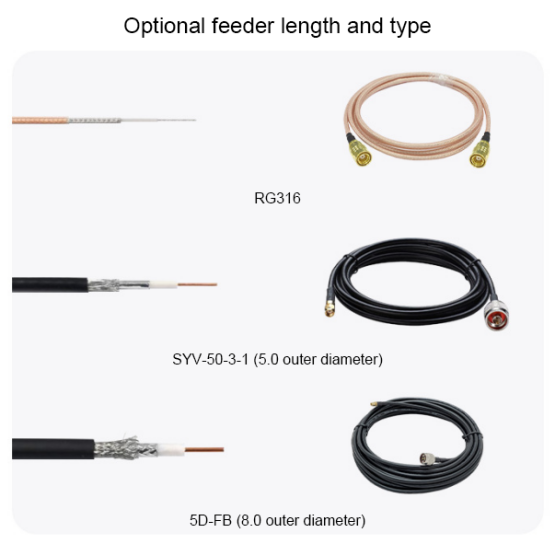

- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
- Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.
Product Specifications
|
RFID Parameters |
|
Technical Parameters |
||
|
Frequency |
865-868MHz（EU） 902~928MHz（US） |
|
Maximum power |
50W |
|
Gain |
3dBi |
|
Front-to-back ratio F/B |
≧20 |
|
Reading distance reference |
0-3 meters (depending on reader and tag) |
|
Standing wave ratio |
≦1.5 |
|

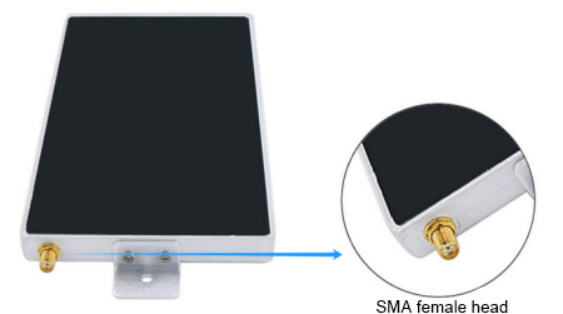

Interface type |
SMA female |
|
Impedance |
50 Ω |
|
Polarization mode |
Circular polarization |
|
Lightning protection |
DC grounding |
|
Radiation angle |
Horizontal: 100° Vertical: 85° |
|
Physical parameters |
|
|
Environmental parameters |
|
Antenna cover color |
Black |
|
|
Operating temperature |
-40～70℃ |
|
Antenna cover material |
plexiglass |
|
Installation method |
Mounting ear installation |
|

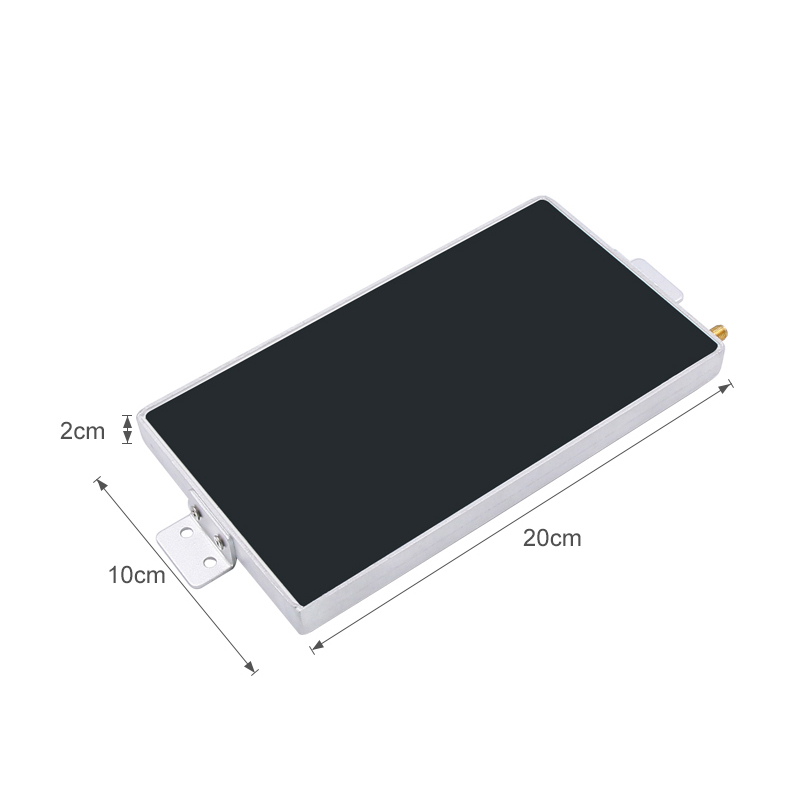

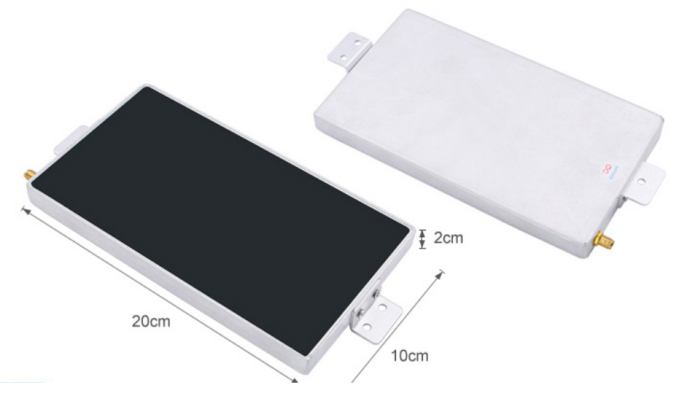

Antenna size |
200*100*20mm |
|
Product List |
|
Antenna Net Weight |
0.3kg |
|
|
Standard |

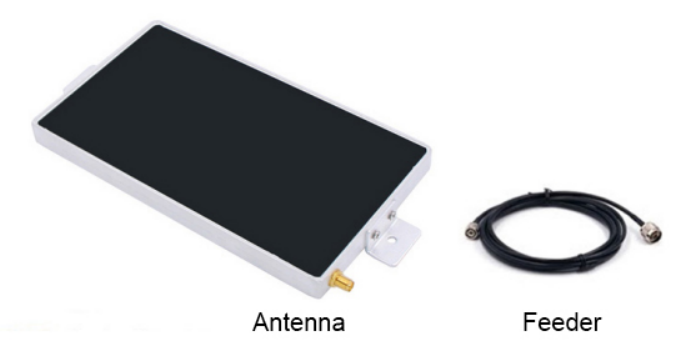

Antenna*1, 3m feeder*1 |
|
Package Size |
24*13*4cm |
|
|
|
|
Antenna gross weight |
0.5kg |

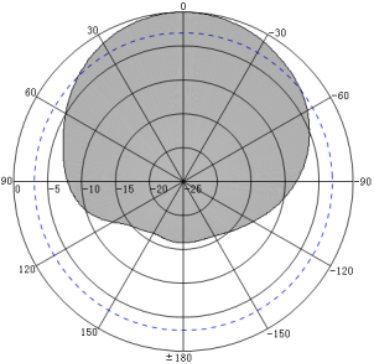

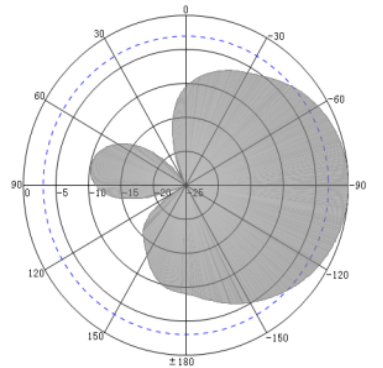

Radiation Angle

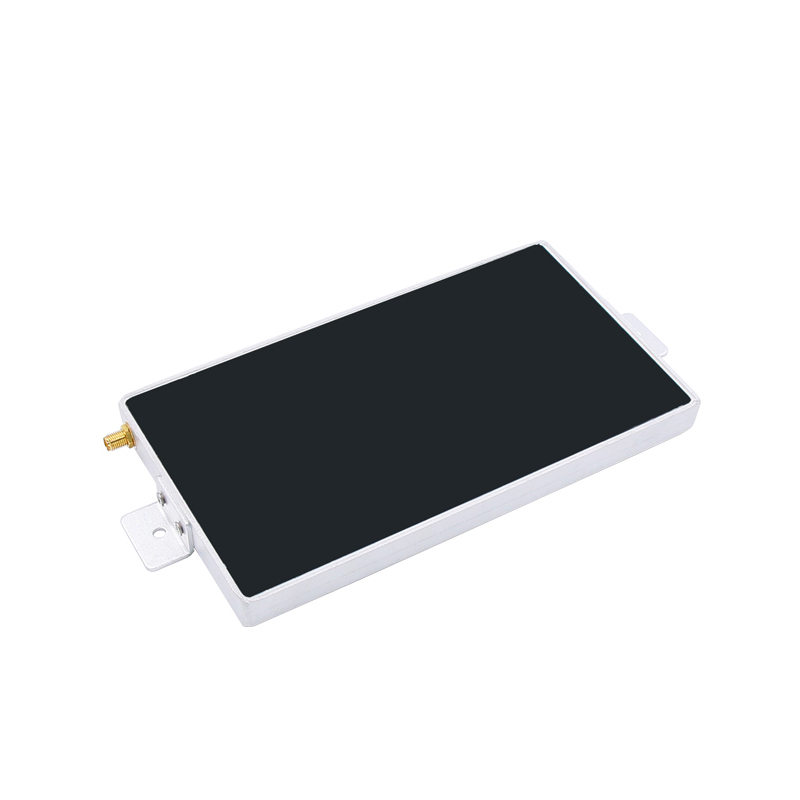

Details display
