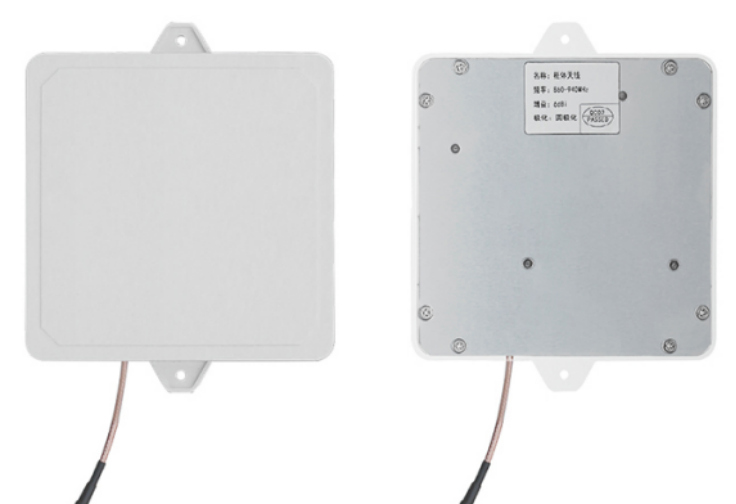

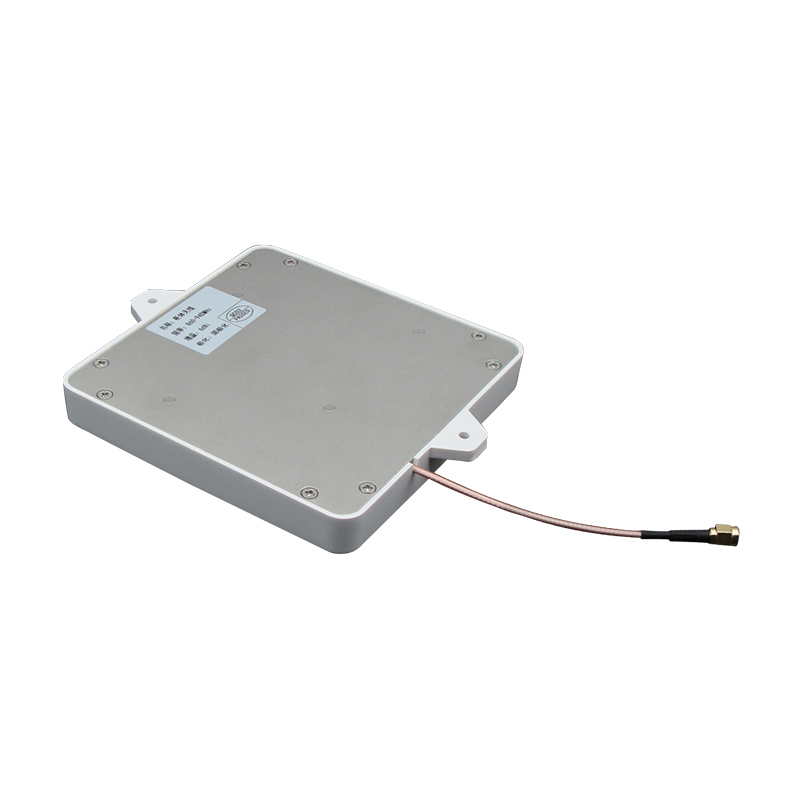

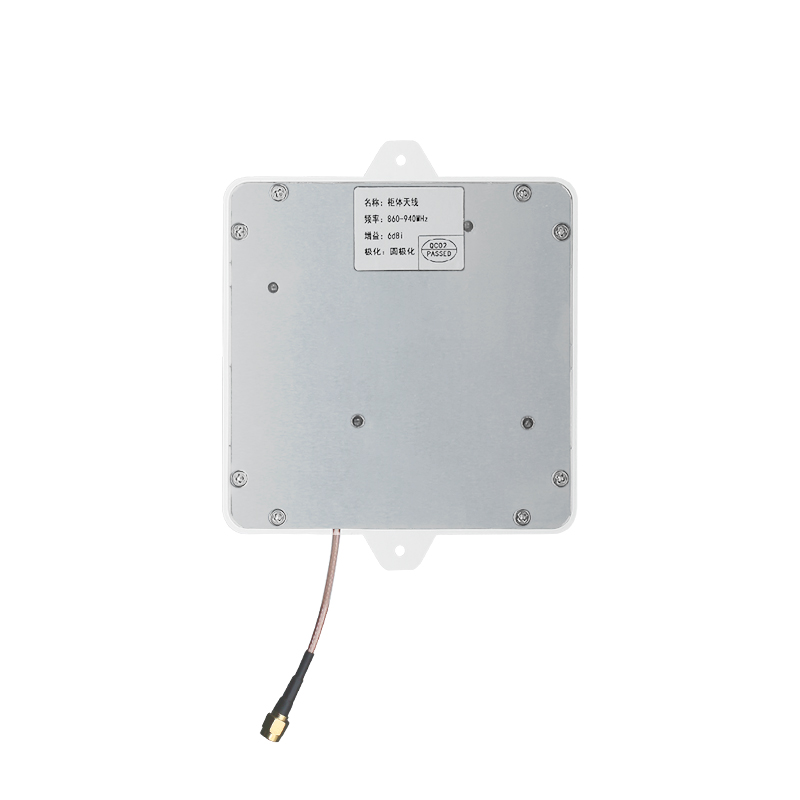

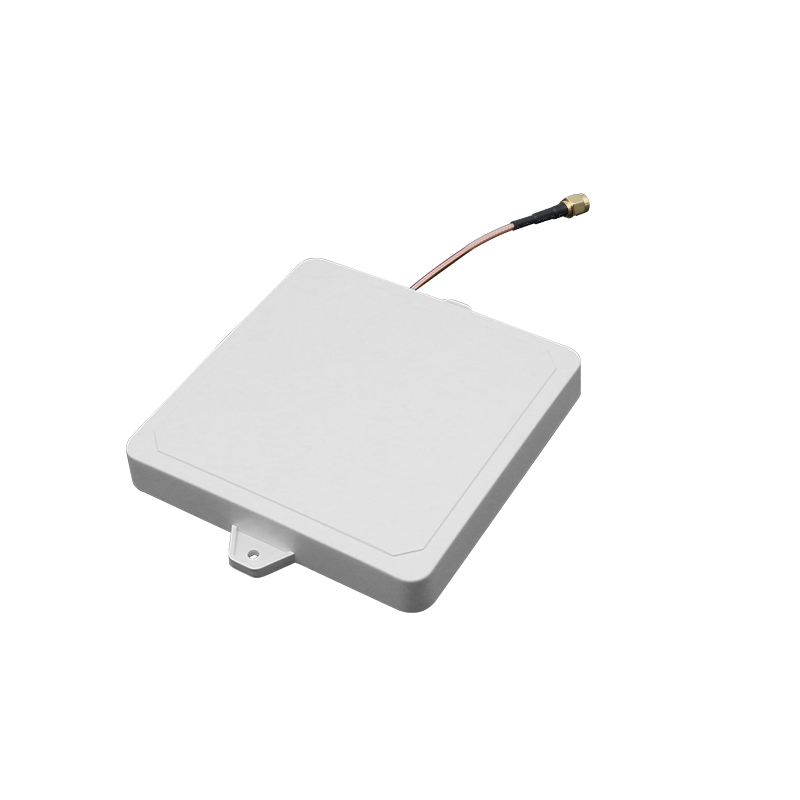

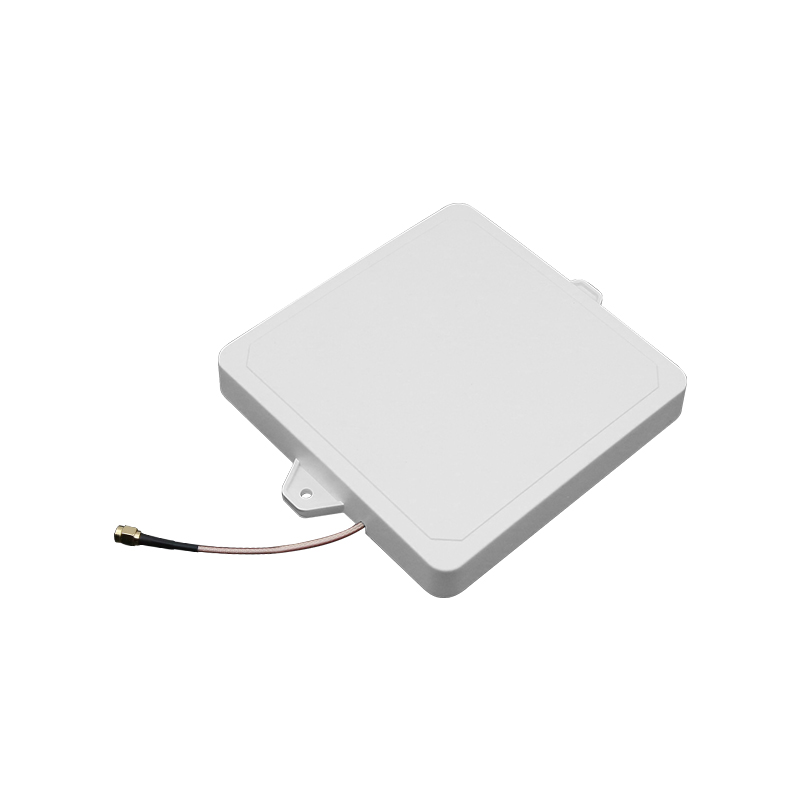

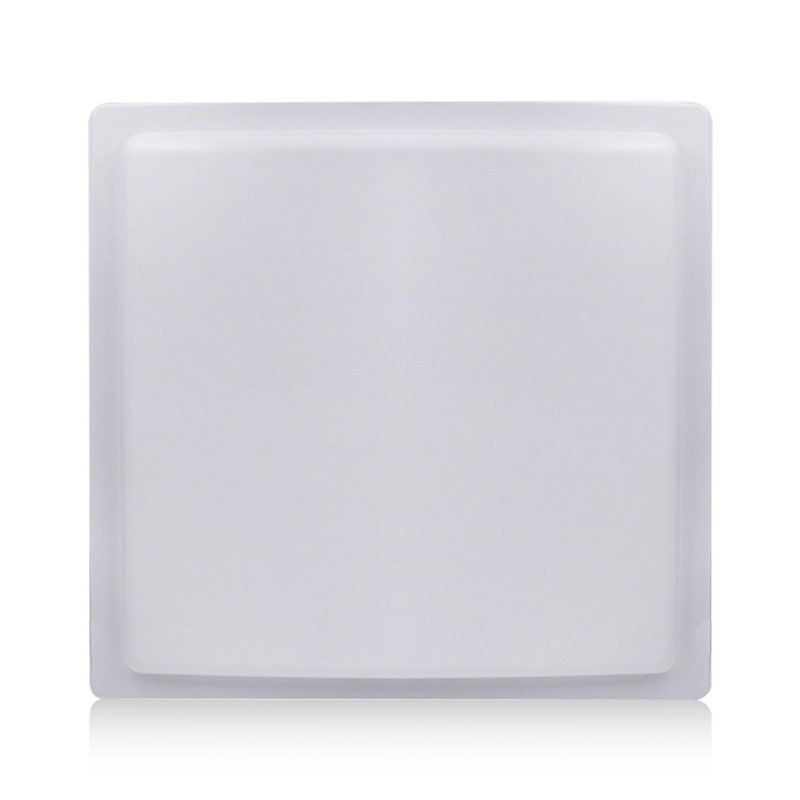

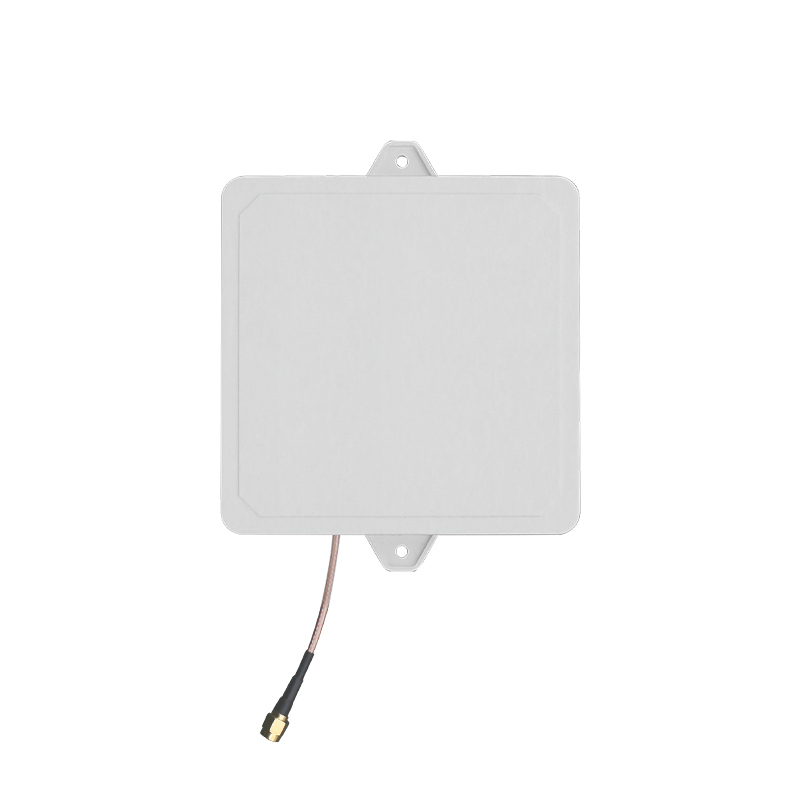

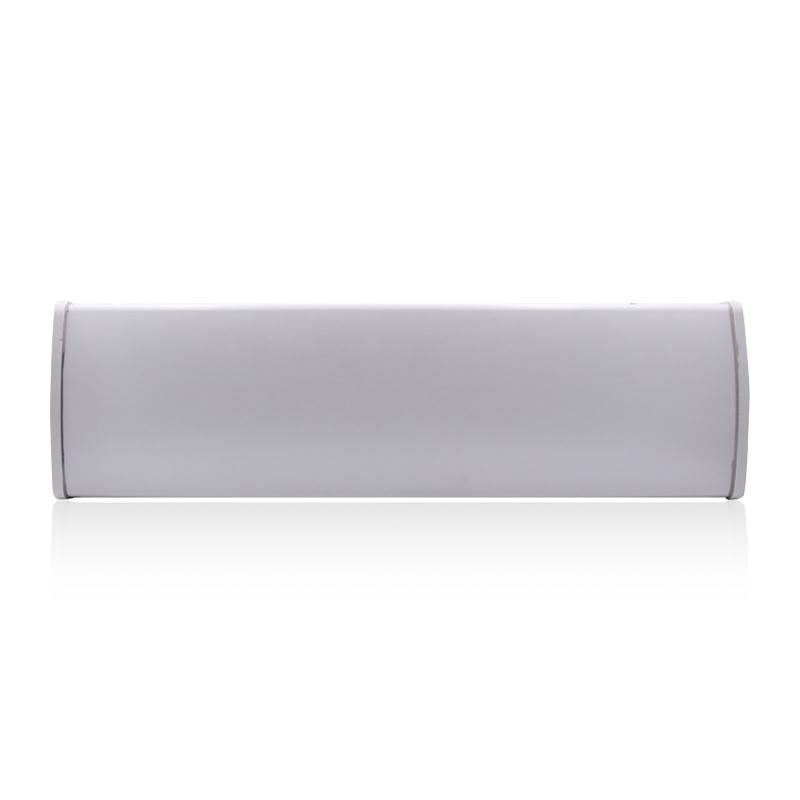

CF-RA6004 UHF 6dBi smart cabinet antenna

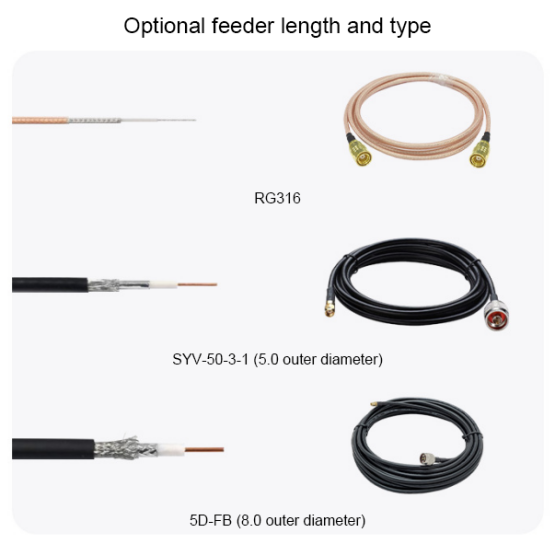

- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
- Application: warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.
Product Specifications
|
RFID Parameters |
|
Technical Parameters |
||
|
Frequency |
865-868MHz（EU） 902~928MHz（US） |
|
Maximum power |
50W |
|
Gain |
6dBi |
|
Axis ratio |
≤2dB |
|
Reading distance reference |
0-6 meters (depending on reader and tag) |
|
Standing wave ratio |
≤1.4° |
|

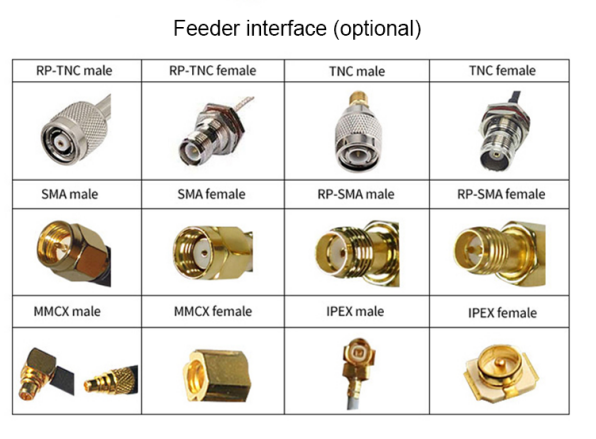

Feeder |
Side lead-out |
|
Impedance |
50 Ω |
|
Polarization mode |
Circular polarization |
|
Lightning protection |
DC grounding |
|
Radiation angle |
Horizontal: 106° Vertical: 106° |
|
Physical parameters |
|
|
Environmental parameters |
|
Radome color |
White |
|
|
Operating temperature |
-40～55℃ |
|
Radiative Materials |
copper |
|
Installation method |
Mounting ear installation |
|
Antenna cover material |
ABS |
|
Product List |
|

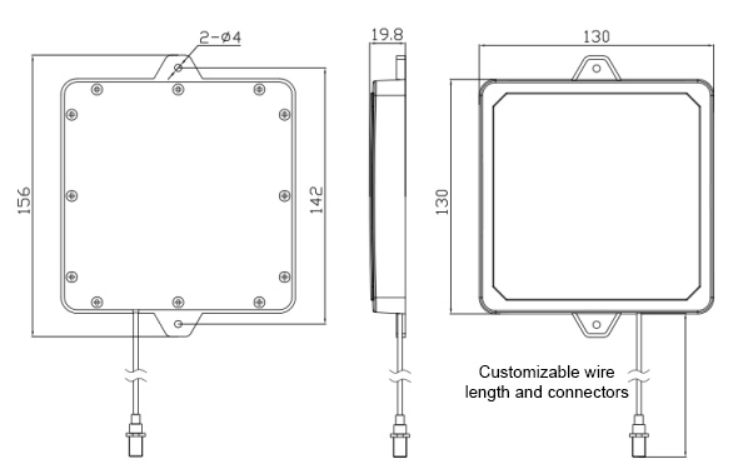

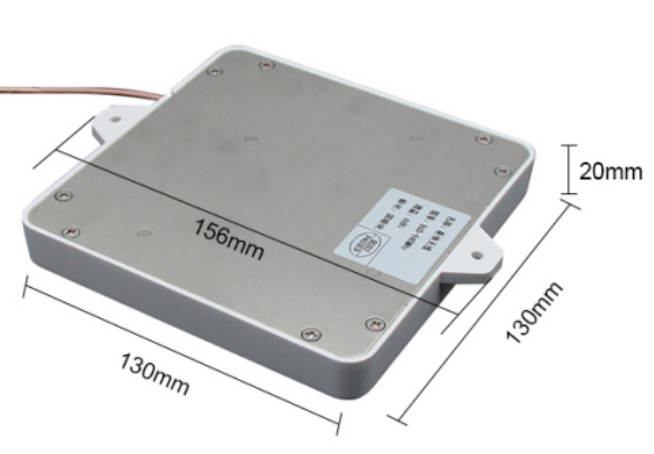

Antenna size |
156*130*20mm |
|
|
Standard |
Antenna*1 |
|
Antenna Net Weight |
0.2kg |

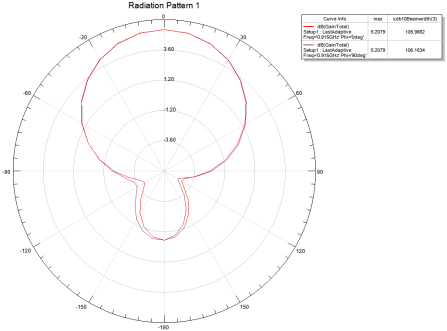

Radiation Angle
Details display

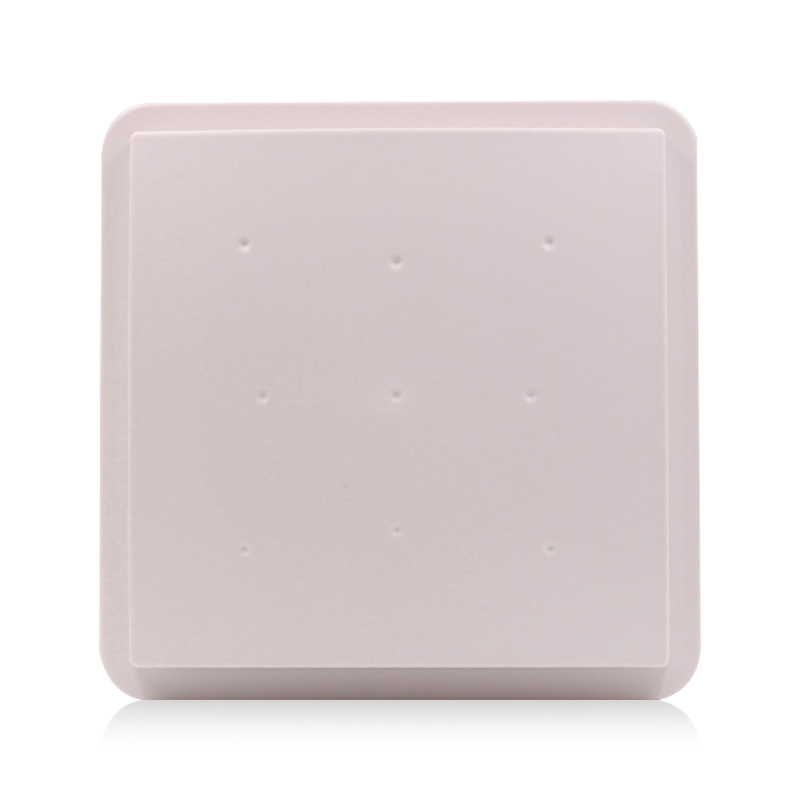

Related Products
|
Image |
|
|
|
|
Model |
CF-RA6004 |
CF-RA8007 |
CF-RA1008 |
|
Gain |
6dBi |
8dBi |
10dBi |
|
Polarization |
Circular polarization |
Circular polarization |
Linear polarization/circular polarization |
|
Reading distance reference |
0-6 meters (depending on the reader and tag) |
0-8 meters (depending on reader and tag) |
0-10 meters (depending on reader and tag) |
|
Dimensions |
156*130*20mm |
295*105*10mm |
Available in various sizes |
