CF501 UHF WG Reader

Access control card swiping
Single card reading scenario
max 1m reading distance
USB-HID interface

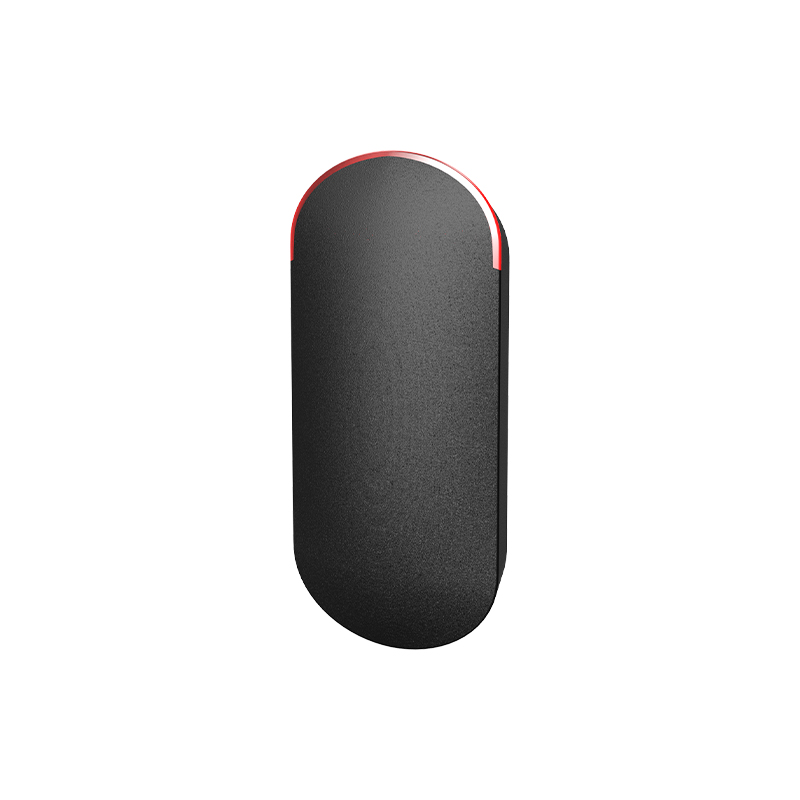

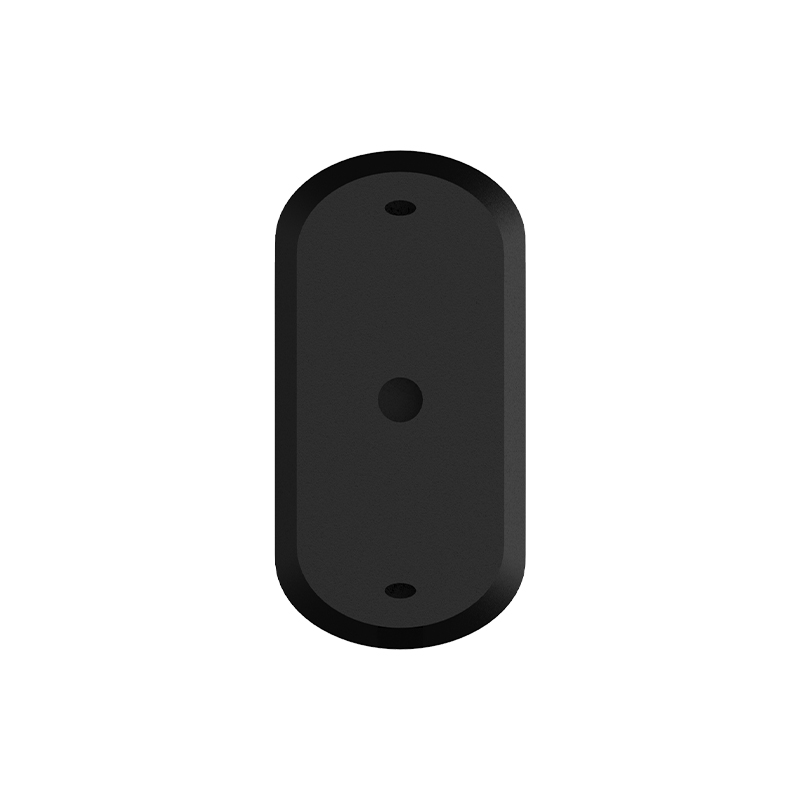

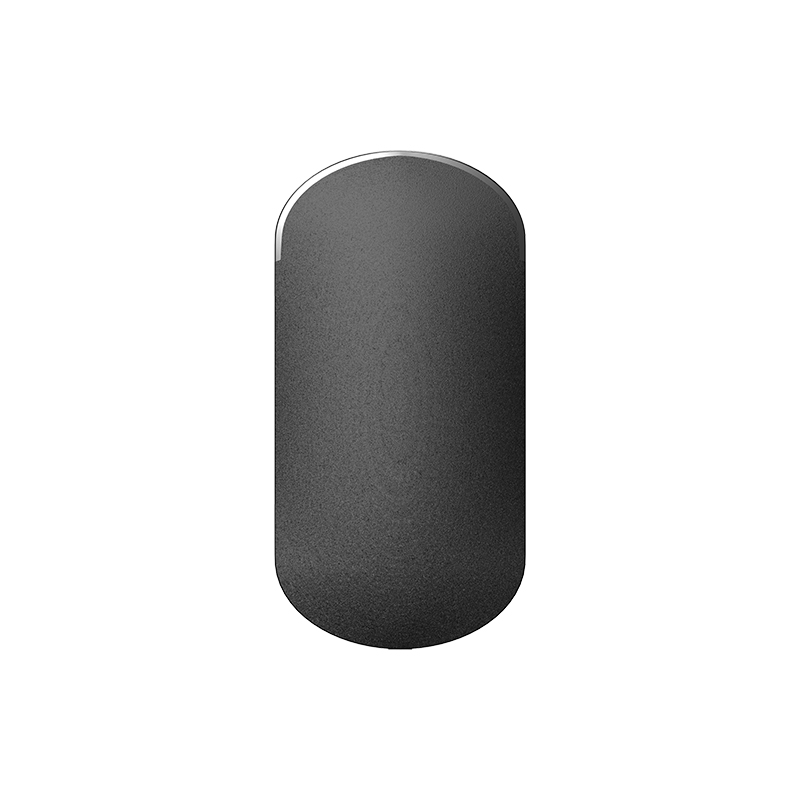

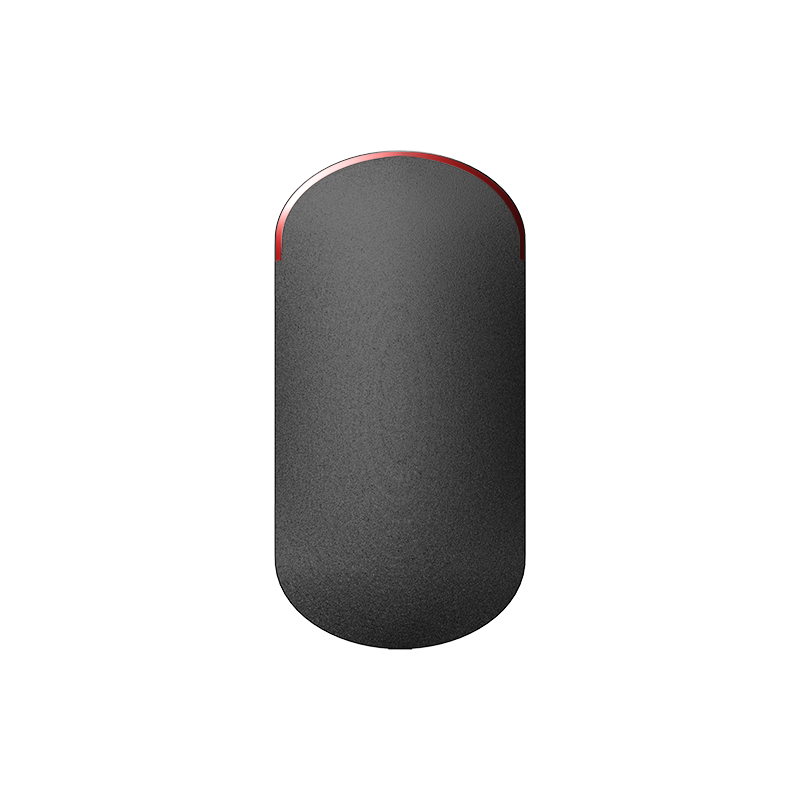

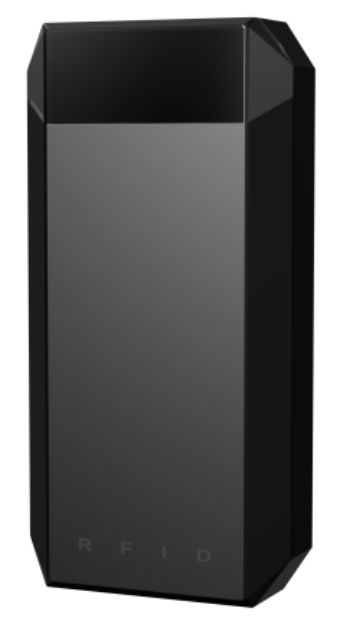

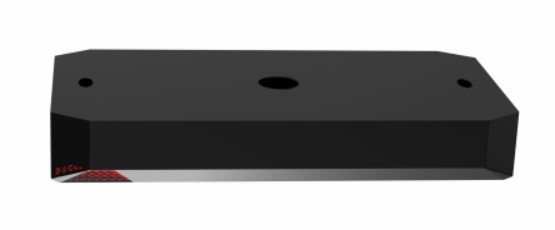

CF501

UHF WG Reader





Widely used in access control card swiping, process tracking, personnel attendance, meeting sign-in and other scenarios

1.Electrical parameters

Model definition

CF501

frequency

865.6—867.6MHZ（EU） /  902-928MHZ (US)

protocol

ISO18000-6C(EPC GEN2)

Built-in antenna

1.5dbi circularly polarized antenna

Card reading speed

>50 images/second (single tag); depends on tag, antenna gain and transmit power

Tag reading distance

Nominal 1m; dependent on tag selected

RF output

Independent read and write mode 5-26dBm, step 1dB, power adjustment accuracy ±0.5dB

Communication Interface

USB-HID

GPIO interface

LED, BEEP, Wiegand

Transmitter spectrum

Comply with the requirements of domestic radio management regulations: adjacent channels -30dBc; separated channels -60dBc

Sensitivity

Module receiving sensitivity: -79dBm at 15dBm transmit power, -77dBm at 26dBm transmit power

Tag RSSI

support

Operating Voltage

+5V~+24V

Working mode power consumption

<1.5W (typ.); at maximum transmit power

logic level

VIL   -0.5 –0.8V ；VIH   +2 —3.3V

Operating temperature

-40℃--+65℃

storage temperature

-45℃--+85℃

Working humidity

<95% (25℃)

waterproof level

IP56

Heat dissipation method

External cooling

Module specifications and dimensions

110mm*56mm*18mm

2.Stamp hole pad definition



Pin

Definition

Color

Illustrate

1

VCC

red

Positive pole of power supply (5~24V)

2

GND

black Brown

land

3

DM

blue

USB negative pole

4

DP

pink

USB positive

5

D0

green

Wiegand output pin 0 (pin withstand voltage 5V)

6

D1

White

Wiegand output 1 pin (pin withstand voltage 5V)

7

LED

yellow

Green light control pin, low level enable, default high level. (Pin withstand voltage 5V)

8

BEEP

grey

Buzzer control pin, low level enable, default high level. (Pin withstand voltage 5V)
